ISO "B"  Heavy Duty Chain

Chain,Chains,Standard Roller Chains,ISO B Heavy Duty Chain 08BH,10BH,12BH

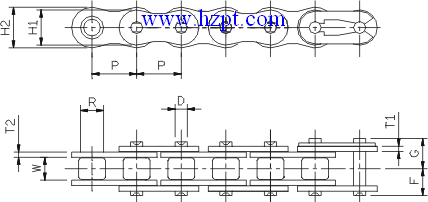

MAXTOP CHAIN NO.

Pitch

Width

Roller

Plate

Pin

Average
 Ultimate
Strength
kgf

Approx Weight
kg/m

P

W

Dia

Height

Thickness

Dia

Lengths

inch

mm

mm

R

H1 H2 T1 T2 D F G
08BH 0.5" 12.70 7.75 8.50 11.20 12.20 2.00 2.00 4.44 9.30 10.70 2400 0.85
10BH 0.625"" 15.875 9.65 10.16 13.00 14.60 2.00 2.00 5.06 10.10 11.65 3100 1.01
12BH 0.75" 19.05 11.68 12.07 16.00 16.00 2.40 2.40 6.12 12.30 13.80 4500 1.42
