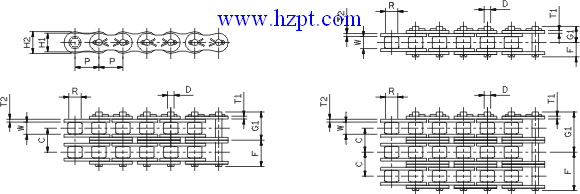

Cotter Type Chain

Chain,Chains,Special Chains,Cotter Type Chain 50CP,50H CP,60CP,60H CP,80 CP,80H CP,100 CP,100H CP,120 CP,120H CP,140 CP,140H CP,160 CP,180 CP,200 CP


MAXTOP CHAIN NO.

Pitch

Width

Roller

Plate

Pin

Transverse

Pitch

Average
 Ultimate
Strength
kgf

Approx Weight
kg/m

P

W

Dia

Height

Thickness

Dia

Lengths

inch

mm

mm

R

H1 H2 T1 T2 D F G1 C
50 CP 5/8" 15.875 9.53 10.16 13.00 14.80 2.00 2.00 5.06 10.10 12.60 --- 3100 1.01
50-2 CP   5/8"   15.875 9.53 10.16 13.00 14.80 2.00 2.00 5.06 19.20 21.10 18.10 6200 2.04
50-3 CP 5/8" 15.875  9.53 10.16 13.00 14.80 2.00 2.00 5.06 28.30 30.20 18.10 9300 3.05
50H CP   5/8"   15.875 9.53 10.16 13.00 14.80 2.40 2.40 5.06 10.90 12.90 --- 3100 1.12
50H-2 CP 5/8" 15.875 9.53 10.16 13.00 14.80 2.40 2.40 5.06 20.65 22.75 19.60 6200 2.25
60 CP 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 12.50 15.40 --- 4400 1.44
60-2 CP 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 24.00 26.90 22.80 8800 3.03
60-3 CP 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 35.35 37.65 22.80 13200 4.50
60H CP 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95  14.10 15.70 ---  4400  1.81
60H-2 CP 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 27.20 29.70 26.11 8800 3.68
60H-3 CP 3/4" 19.05 12.70 11.91 15.50 17.50 3.10 3.10 5.95 40.20 42.70 26.11 13200 5.20
80 CP 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 16.10 18.80 --- 7800 2.40
80-2 CP 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 30.60 33.60 29.30 15600 5.26
80-3 CP 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 45.30 48.00 29.30 23400 7.80
80H CP 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 17.90 20.80  ---  8000  2.95
80H-2 CP 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 34.20 37.10 32.59 16000 5.92
80H-3 CP 1" 25.40 15.88 15.88 20.80 24.00 3.90 3.90 7.94 50.50 53.40 32.59 24000 8.41
100 CP 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 20.10 23.10 --- 11800 3.74
100-2 CP 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 38.00 41.00 35.80 23600 7.51
100-3 CP 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 55.90 58.90 35.80 35400 11.20
100H CP 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 21.70 24.90  --- 12000  4.45
100H-2 CP 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 41.25 44.45 39.09 24000 8.34
100H-3 CP 1-1/4" 31.75 19.05 19.05 24.80 30.10 4.70 4.70 9.52 60.80 64.00 39.09 36000 12.72
120 CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 25.20 28.60 --- 15500 6.18
120-2 CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 47.90 51.30 45.40 31000 12.25
120-3 CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 70.60 74.00 45.40 46500 18.30
120H CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 26.98 30.57 --- 16000 6.78
120H-2 CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 51.40 55.05 48.90 32000 13.45
120H-3 CP 1-1/2" 38.10 25.40 22.23 30.00 35.00 5.60 5.60 11.10 75.90 79.45 48.90 48000 20.13
140 CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 5.60 5.60 12.70 27.30 31.50 --- 21500 7.49
140-2 CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 5.60 5.60 12.70 51.75 55.95 48.90 43000 14.83
140-3 CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 5.60 5.60 12.70 76.20 80.40 48.90 64500 22.20
140H CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 28.90 33.10 --- 21500 8.12
140H-2 CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 55.15 59.05 52.20 43000 16.10
140H-3 CP 1-3/4" 44.45 25.40 25.40 36.20 42.00 6.40 6.40 12.70 88.10 85.30 52.20 64500 24.02
160 CP 2"   50.80 31.75 28.58 41.40 48.00 6.40 6.40 14.28 32.55 37.25 --- 27500 10.10
160-2 CP 2" 50.80 31.75 28.58 41.40 48.00 6.40 6.40 14.28 61.80 66.50 58.50 55000 20.04
160-3 CP 2" 50.80 31.75 28.58 41.40 48.00 6.40 6.40 14.28 91.05 95.75 58.50 82500 30.02
160H CP 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 34.15 38.85 --- 27500 10.87
160H-2 CP 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 65.10 69.80 61.90 55000 20.85
160H-3 CP 2" 50.80 31.75 28.58 41.40 48.00 7.20 7.20 14.28 96.05 100.75 61.90 82500 30.83
180 CP 2-1/4" 57.15 35.71 35.71 46.70 54.20 7.20 7.20 17.45 36.50 42.20 --- 36000 13.40
180-2 CP 2-1/4" 57.15 35.71 35.71 46.70 54.20 7.20 7.20 17.45 69.42 75.12 65.84 72000 26.20
180-3 CP 2-1/4" 57.15 35.71 35.71 46.70 54.20 7.20 7.20 17.45 102.34 108.04 65.84 108000 38.10
180H CP 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 38.10 43.80 --- 36000 15.20
180H-2 CP 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 72.68 78.38 69.16 72000 30.10
180H-3 CP 2-1/4" 57.15 35.71 35.71 46.70 54.20 8.00 8.00 17.45 107.26 112.96 69.16 108000 45.00
200 CP 2-1/2" 63.50 38.10 39.68 51.80 60.10 8.00 8.00 19.84 39.75 47.10 --- 46000 16.50
200-2 CP 2-1/2" 63.50 38.10 39.68 51.80 60.10 8.00 8.00 19.84 75.55 82.85 71.60 92000 32.70
200-3 CP 2-1/2" 63.50 38.10 39.68 51.80 60.10 8.00 8.00 19.84 111.35 118.65 71.60 138000 49.05
200H CP 2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 42.75 50.05 --- 52000 17.80
200H-2 CP 2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 81.91 89.20 78.31 104000 35.20
200H-3 CP 2-1/2" 63.50 38.10 39.68 51.80 60.10 9.50 9.50 19.84 121.06 128.36 78.31 156000 52.50
