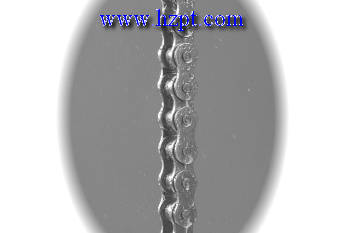

Stainless Steel Chain

Chain,Chains,Special Chains,Stainless Steel Chain 25SS,35SS,40SS,50SS,60SS,80SS,100SS,120SS,C2040SS,C2042SS,A2040SS,C2050SS,C2052SS,A2050SS,06BSS,10BSS,16BSS,06BSS,60FSS

Chain,Chains,Special Chains,Stainless Steel Chain 25SS,35SS,40SS,50SS,60SS,80SS,100SS,120SS,C2040SS,C2042SS,A2040SS,C2050SS,C2052SS,A2050SS,06BSS,10BSS,16BSS,06BSS,60FSS

MAXTOP CHAIN NO.

Pitch

Width

Roller

Plate

Pin

Max
 Allowable
Load
kgf

Approx Weight
kg/m

P

W

Dia

Height

Thickness

Dia

Lengths

inch

mm

mm

R

H1 H2 T1 T2 D F G G1
 *25SS 1/4" 6.35 3.18 3.30 5.00 5.80 0.75 0.75 2.30 3.80 4.80 --- 12 0.14
*35SS 3/8" 9.525 4.76 5.08 7.60 9.00 1.20 1.20 3.59 5.80 7.00 7.60 27 0.33
40SS 1/2" 12.70 7.94 7.92 10.20 11.80 1.50 1.50 3.96 8.25 9.35 10.10 45 0.63
50SS 5/8" 15.875 9.53 10.16 13.00 14.60 2.00 2.00 5.06 10.10 11.65 12.60 70 1.01
60SS 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 5.95 12.50 14.15 15.40 105 1.44
80SS 1" 25.40 15.88 15.88 20.40 24.00 3.10 3.10 7.94 16.10 17.75 18.80 180 2.52
100SS 1-1/4" 31.75 19.05 19.05 24.80 30.10 3.90 3.90 9.52 20.10 --- 23.10 260 3.74
120SS 1-1/2" 38.10 25.40 22.23 30.00 35.00 4.70 4.70 11.10 25.20 --- 28.60 390 6.08
C2040SS 1" 25.40 7.94 7.92 11.70 11.70 1.50 1.50 3.96 8.20 9.35 10.10 45 0.50
C2042SS 1" 25.40 7.94 15.88 11.70 11.70 1.50 1.50 3.96 8.20 9.35 10.10 45 1,20
A2040SS 1" 25.40 7.94 7.92 10.10 11.70 1.50 1.50 3.96 8.20 9.35 10.10 45 0.40
C2050SS 1-1/4" 31.75 9.53 10.16 14.60 14.60 2.00 2.00 5.06 10.10 11.65 12.60 70 0.84
C2052SS 1-1/4" 31.75 9.53 19.05 14.60 14.60 2.00 2.00 5.06 10.10 11.65 12.60 70 1.26
A2050SS 1-1/4" 31.75 9.53 10.16 12.60 14.60 2.00 2.00 5.06 10.10 11.65 12.60 70 0.66
C2060SS 1-1/2" 38.10 12.70 11.91 17.10 17.10 2.40 2.40 5.95 12.50 14.15 15.40 105 1.10
C2060HSS 1-1/2" 38.10 12.70 11.91 17.10 17.10 3.10 3.10 5.95 14.10 15.70 16.60 105 1.37
C2062HSS 1-1/2" 38.10 12.70 22.23 17.10 17.10 3.10 3.10 5.95 14.10 15.70 16.60 105 2.05
C2080HSS 2" 50.80 15.88 15.88 23.00 23.00 3.90 3.90 7.94 17.90 19.40 20.80 180 2.41
C2082HSS 2" 50.80 15.88 28.58 23.00 23.00 3.90 3.90 7.94 17.90 19.40 20.80 180 3.37
06BSS 0.375" 9.525 5.72 6.35 8.10 8.10 1.00 1.25 3.28 6.10 7.40 --- 27 0.39
08BSS 0.5" 12.70 7.75 8.51 10.20 11.80 1.50 1.50 4.44 8.20 9.50 --- 50 0.65
10BSS 0.625" 15.875 9.65 10.16 13.00 14.60 1.65 1.65 5.04 9.60 11.10 --- 66 0.92
12BSS 0.75" 19.05 11.68 12.07 16.00 16.00 1.80 1.80 5.65 11.10 12.60 --- 90 1.24
16BSS 1" 25.40 17.02 15.88 20.80 20.80 3.20 4.00 8.27 17.70 19.25 20.20 209 2.65
40FSS 1/2" 12.70 7.94 7.92 11.80 11.80 1.50 1.50 3.96 8.20 9.35 10.10 45 0.65
50FSS 5/8" 15.875 9.53 10.16 15,00 15.00 2.00 2.00 5.06 10.10 11.65 12.60 70 1.03
60FSS 3/4" 19.05 12.70 11.91 18.10 18.10 2.40 2.40 5.95 12.50 14.15 15.40 105 1.46

                                * Rollerless chain, R indicates bushing diameter.
