Dog Chain

Chain,Chains,Special Chains,Dog Chain 160-X348,160-X458,160-X678




MAXTOP CHAIN NO.

Pitch Dimension
Average
 Ultimate
Strength
kgf

Approx

 Weight
kg/m

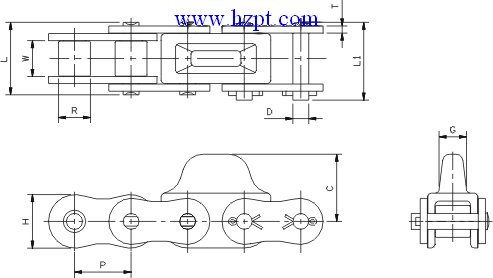

P W(min) R(max) D(max) L L1 H T C G
160-X348 50.8 31.75 28.58 14.29 65.1 69.8 48.0 6.40 53.3 15.88 27500 3.28
160-X458 50.8 31.75 28.58 14.29 65.1 69.8 48.0 6.40 60.3 25.4 27500 4.76
160-X678 50.8 31.75 28.58 14.29 65.1 69.8 48.0 6.40 76.2 27.0 27500 9.98

    Induction hardened is available when required
