Roller Chain Attachments



Chain,Chains,Attachment Chains,Roller Chain Attachments 35,40,41,50,60,80,100,120,160



MAXTOP CHAIN NO. Pitch Width Roller Plate Pin Attachment
Average
 Ultimate
Strength
kgf

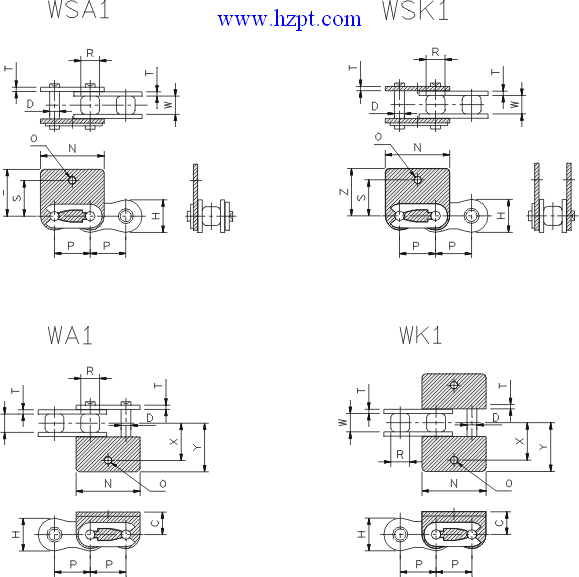

P W Dia Height Thick, Dia   A-1,K-1 SA-1,SK-1
inch mm mm R H T D N O C X Y S Z
35 3/8" 9.525 4.78 5.08 9.00 1.20 3.59 7.90 2.70 3.40 6.35 9.50 14.30 9.50 14.55 1050
40 1/2" 12.70 7.94 7.92 11.80 1.50 3.96 9.50 3.60 8.00 12.70 17.80 12.70 17.40 1850
41 1/2" 12.70 6.35 7.77 9.70 1.20 3.58 9.50 3.30 --- --- --- 12.24 17.73 1200
50 5/8" 15.875 9.53 10.16 14.80 2.00 5.06 12.70 5.20 10.30 15.90 23.40 15.90 23.05 3100
60 3/4" 19.05 12.70 11.91 17.50 2.40 5.95 15.90 5.20 11.90 19.05 28.20 18.30 26.85 4400
80 1" 25.40 15.88 15.88 23.90 3.10 7.94 19.10 6.80 15.90 25.40 36.60 24.60 35.45 7800
100 1-1/4" 31.75 19.05 19.05 30.10 3.90 9.52 25.40 8.70 19.80 31.75 44.90 31.80 44.00 11800
120 1-1/2" 38.10 25.40 22.23 35.00 4.70 11.10 28.60 9.90 23.00 38.10 55.80 36.50 52.85 15500
160 2" 50.80 31.75 28.58 48.00 6.40 14.28 38.10 13.20 31.80 50.80 71.80 50.80 70.10 27500

                                Consult MAXTOP about special spec.



Chain,Chains,Attachment Chains,Roller Chain Attachments 35,40,41,50,60,80,100,120,160

MAXTOP CHAIN NO. Pitch Width Roller Plate Pin Attachment
Average
 Ultimate
Strength
kgf
P W Dia Height Thick, Dia

WA1

WK1

WSA1

WSK1

WA1,WK1 WSA1,WSK1
inch mm mm R H T D N O C X Y S Z
35 3/8" 9.525 4.78 5.08 9.00 1.20 3.59 17.10 3.50 6.35 9.50 14.30 9.50 13.80 1050
40 1/2" 12.70 7.94 7.92 11.80 1.50 3.96 22.90 3.30 4.50 8.00 12.70 17.80 12.70 17.40 1850
50 5/8" 15.875 9.53 10.16 14.80 2.00 5.06 28.70 5.10 5.50 10.30 15.90 23.40 15.90 23.05 3100
60 3/4" 19.05 12.70 11.91 17.50 2.40 5.95 34.60 6.60 11.90 19.05 28.20 18.30 26.85 4400
80 1" 25.40 15.88 15.88 24.00 3.10 7.94 45.70

6.80

9.00

9.00 15.90 25.40 36.60 24.60 35.45 7800
100 1-1/4" 31.75 19.05 19.05 30.10 3.90 9.52 56.55 11.00 19.80 31.75 44.90 31.80 44.00 11800
120 1-1/2" 38.10 25.40 22.23 35.00 4.70 11.10 68.10 9.90 23.00 38.10 55.80 36.50 52.85 15500
160 2" 50.80 31.75 28.58 48.00 6.40 14.28 90.70 13.20 31.80 50.80 71.80 50.80 70.10 27500

                                Consult MAXTOP about special spec.



Chain,Chains,Attachment Chains,Roller Chain Attachments 35,40,41,50,60,80,100,120,160

MAXTOP CHAIN NO. Pitch Width Roller Plate Pin Attachment
Average
 Ultimate
Strength
kgf
P W Dia Height Thick. Dia

WA2

WK2

WSA2

WSK2

WA2,WK2 WSA2,WSK2

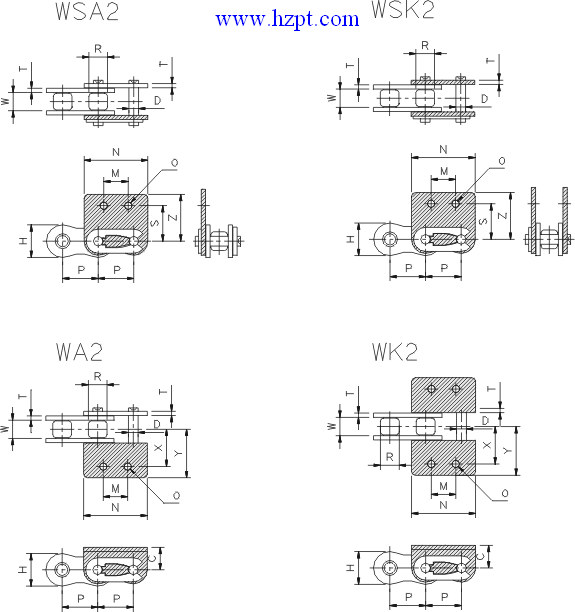

inch mm mn R H T D M N O C X Y S Z
40 1/2" 12.70 7.94 7.92 11.80 1.50 3.96 9.50 22.90 3.30 4.50 8.00 12.70 17.80 12.70 17.60 1850
50 5/8" 15.875 9.53 10.16 14.80 2.00 5.06 11.90 28.70 5.10 5.50 10.30 15.90 23.40 15.90 23.05 3100
60 3/4" 19.05 12.70 11.91 17.50 2.40 5.95 14.30 34.60 5.10 6.60 11.90 19.05 28.20 18.30 26.85 4400
80 1" 25.40 15.88 15.88 24.00 3.10 7.94 19.10 25.40 45.70 6.80 9.00 15.90 25.40 36.60 24.60 35.45 7800
100 1-1/4" 31.75 19.05 19.05 30.10 3.90 9.52 23.80 56.55 11.00 19.80 31.75 44.90 31.80 44.00 11800
120 1-1/2" 38.10 25.40 22.23 35.00 4.70 11.10 38.10 68.10 9.90 23.00 38.10 55.80 36.50 52.85 15500
160 2" 50.80 31.75 28.58 48.00 6.40 14.28 50.80 90.70 13.20 31.80 50.80 71.80 50.80 70.10 27500

                                Any special specifications, please feel free to contact us.

Chain,Chains,Attachment Chains,Roller Chain Attachments 35,40,41,50,60,80,100,120,160
