Double Pitch Roller Chain Attachments
Chain,Chains,Attachment Chains,Double Pitch Roller Chain Attachments C2040,C2042,C2050,C2052,C2060H,C2062H,C2080H,C2082H,C2100H,C2102H,C2120H,C2122H,C2160H,C2162H



MAXTOP CHAIN NO. Pitch x Width Roller Plate Pin Attachment
Average
 Ultimate
Strength
kgf
P x W Dia Height Thick. Dia

A-1

K-1

SA-1

SK-1

A-1,K-1

SA-1,SK-1

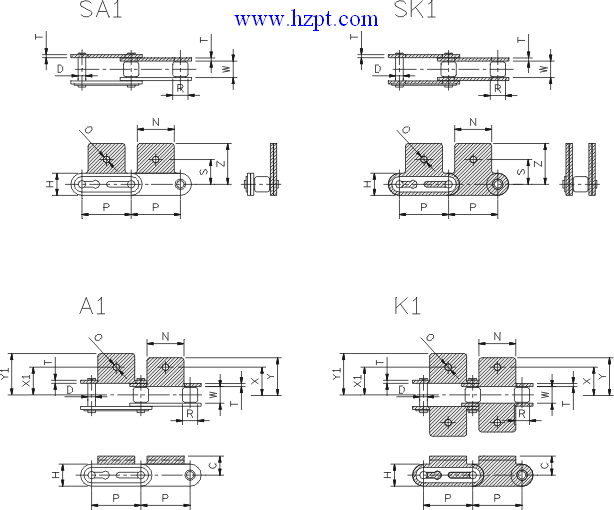

inch mm R H T D N O O C X Y X1 Y1 S Z
C2040 1" x 5/16" 25.40 x 7.94 7.92 11.70 1.50 3.96 19.10 3.60 5.10 9.10 12.70 17.65 12.70 19.30 11.10 19.80 1850
C2042 1" x 5/16" 25.40 x 7.94 15.88 11.70 1.50 3.96 19.10 3.60 5.10 9.10 12.70 17.65 12.70 19.30 11.10 19.80 1850
C2050 1-1/4" x 3/8" 31.75 x 9.53 10.16 14.60 2.00 5.06 23.80 5.10 6.80 11.10 15.90 21.95 15.90 24.15 14.25 24.10 3100
C2052 1-1/4" x 3/8" 31.75 x 9.53 19.05 14.60 2.00 5.06 23.80 5.10 6.80 11.10 15.90 21.95 15.90 24.15 14.25 24.10 3100
C2060H 1-1/2" x 1/2" 38.10 x 12.70 11.91 17.10 3.10 5.95 28.60 5.10 8.70 14.70 21.45 28.20 21.45 31.45 17.50 31.55 4400
C2062H 1-1/2" x 1/2" 38.10 x 12.70 22.23 17.10 3.10 5.95 28.60 5.10 8.70 14.70 21.45 28.20 21.45 31.45 17.50 31.55 4400
C2080H 2" x 5/8" 50.80 x 15.88 15.88 23.00 3.90 7.94 38.10 6.80 10.30 19.10 27.80 36.52 27.80 40.70 22.20 40.50 8000
C2082H 2" x 5/8" 50.80 x 15.88 28.58 23.00 3.90 7.94 38.10 6.80 10.30 19.10 27.80 36.52 27.80 40.70 22.20 40.50 8000
C2100H 2-1/2" x 3/4" 63.50 x 19.05 19.05 28.90 4.70 9.52 47.60

8.7

11.0

13.50 23.40 33.35 44.75 33.35 49.90 28.60 50.40 12000
C2102H 2-1/2" x 3/4" 63.50 x 19.05 39.67 28.90 4.70 9.52 47.60

8.7

11.0

13.50 23.40 33.35 44.75 33.35 49.90 28.60 50.40 12000
C2120H 3" x 1" 76.20 x 25.40 22.20 35.00 5.60 11.10 57.20 9.90 14.80 27.80 39.70 54.40 39.70 60.70 33.30 59.90 16000
C2122H 3" x 1" 76.20 x 25.40 44.45 35.00 5.60 11.10 57.20 9.90 14.80 27.80 39.70 54.40 39.70 60.70 33.30 59.90 16000
C2160H 4" x 1-1/4" 101.60 x 31.75 28.58 48.00 7.20 14.28 76.20 13.20 19.60 36.50 52.35 70.20 52.35 77.80 44.40 78.60 27500
C2162H 4" x 1-1/4" 101.60 x 31.75 57.15 48.00 7.20 14.28 76.20 13.20 19.60 36.50 52.35 70.20 52.35 77.80 44.40 78.60 27500

                           Any special specications, please feel free to contact us..

Chain,Chains,Attachment Chains,Double Pitch Roller Chain Attachments C2040,C2042,C2050,C2052,C2060H,C2062H,C2080H,C2082H,C2100H,C2102H,C2120H,C2122H,C2160H,C2162H

MAXTOP CHAIN NO. Pitch x Width Roller Plate Pin Attachment
Average
 Ultimate
Strength
kgf
P x W Dia Height Thick. Dia

A-2,K-2

SA-2,SK-2

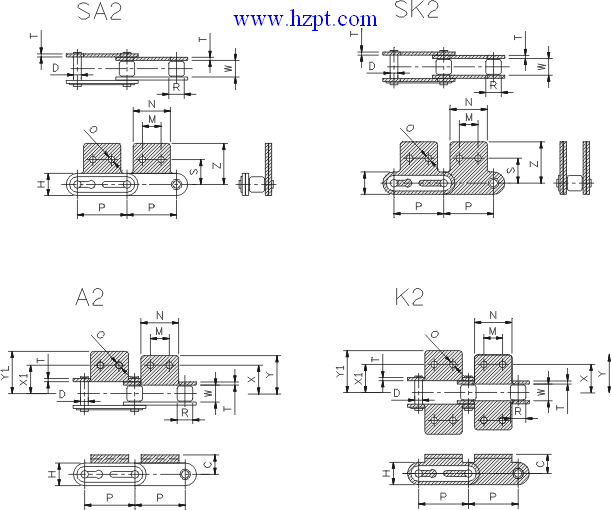

inch mm R H T D N O M C X Y X1 Y1 S Z
