Double Pitch Mega Chain Attachments


Chain,Chains,Mega Chains,Double Pitch Mega Chain Attachments 2040SS,2050SS,2060SS,2080SS

Dimensions:mm

MEGA

CHAIN

NO.

Pitch*Width Roller Links Pin Attachment
P*W Dia Height Thickness Dia Lengths   A1 K1 SA1 SK1
Inch mm R H T1 D F G N O O1
2040SS 1"*5/16" 25.40*7.95 7.92 12 1.5 3.96 9.85 11.55 19.1 3.6 5.2
2050SS 1-1/4"*3/8" 31.75*9.53 10.16 15 2.0 5.06 12.15 14.25 23.8 5.2 6.8
2060SS 1-1/2*1/2" 38.10*12.7 11.91 17.2 2.35 5.94 15.15 17.45 28.6 5.2 8.7
2080SS 2"*5/8" 50.80*15.88 15.88 23.0 3.0 7.94 19.45 22.1 38.1 6.8 10.3



MEGA

CHAIN

NO.

Attachment

Average

Ultimate

Strength

Kgf

Max

Allowable

Load

Kgf

A1 K1 SA1 SK1
C X Y Y1 S Z
2040SS 9.1 12.7 17.6 19.3 11.1 19.8 1800 70
2050SS 11.1 15.9 22.0 24.2 14.3 24.6 3200 120
2060SS 14.7 21.45 28.2 31.5 17.5 30.6 4400 165
2080SS 19.1 27.8 36.6 40.7 22.2 40.5 7200 290
  • Sprocket:Standard Roller Chain sprockets can be used

  • Due to the new design of the plate the pin is now longer(F,G). Please check for any interference.

  • Material:AISI304(SS)

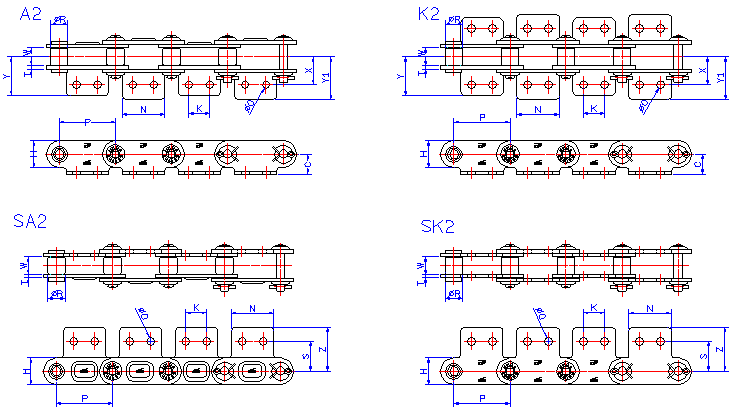

Chain,Chains,Mega Chains,Double Pitch Mega Chain Attachments 2040SS,2050SS,2060SS,2080SS

Dimensions:mm

MEGA

CHAIN

NO.

Pitch*Width Roller Links Pin Attachment
P*W Dia Height Thickness Dia Lengths
Inch mm R H T1 D F G N O K
2040SS 1"*5/16" 25.40*7.95 7.92 12 1.5 3.96 9.85 11.55 19.1 3.6 9.5
2050SS 1-1/4"*3/8" 31.75*9.53 10.16 15 2.0 5.06 12.15 14.25 23.8 5.2 11.9
2060SS 1-1/2*1/2" 38.10*12.7 11.91 17.2 2.35 5.94 15.15 17.45 28.6 5.2 14.3
2080SS 2"*5/8" 50.80*15.88 15.88 23.0 3.0 7.94 19.45 22.1 38.1 6.8 19.1



MEGA

CHAIN

NO.

Attachment

Average

Ultimate

Strength

Kgf

Max

Allowable

Load

Kgf

A2 K2 SA2 SK2
C X Y Y1 S Z
2040SS 9.1 12.7 17.6 19.3 13.6 19.8 1800 70
2050SS 11.1 15.9 22.0 24.2 15.9 24.6 3200 120
2060SS 14.7 21.45 28.2 31.5 19.1 30.6 4400 165
2080SS 19.1 27.8 36.6 40.7 25.4 40.5 7200 290
  • Sprocket:Standard Roller Chain sprockets can be used

  • Due to the new design of the plate the pin is now longer(F,G). Please check for any interference.

  • Material:AISI304(SS)

Chain,Chains,Mega Chains,Double Pitch Mega Chain Attachments 2040SS,2050SS,2060SS,2080SS
