H Class Refuse Drag Chain

“H” Class Refuse Drag Chain is used for conveying sawdust, wood chips, pulp, garbage, tankage, ashes, and other abrasive waste materials through either wooden or steel troughs. Because of its large, wide opening area, the “H” Class Refuse Drag Chain provides sizeable carrying capacity when operated at moderate speeds. The front face of each barrel is flat, providing a broad area to push material along the trough and to keep the chaim from riding over the top of the material. The rounded inner side of the barrel is carefully shaped to make excellent contact. Sidebars are reinforced with wearing shoes which provide both additional wearing surface and stiffening for the link. A vertical member on each sidebar assures added link rigidity and protects the pin from damage.

“H” Class Refuse Drag Chain is available in Promal with a tensile strength range of 36,400 to 52,000 pounds. This rugged working chain is available in a pitch range of 5.000 to 8.000 inches. Each link is produced in accordance with the manufacturer's standards and may be interchanged with links made by other chain manufacturers. “H” Class Refuse Drag Chain is available in riveted construction only. Grease chambers cored into each link's barrel, hold grease which lubricates pins. Wide-faced sprockets, either of Brutaloy or cast steel, are recommended for “H” Class Refuse Drag Chain operation. Links should always be run in the direction of the closed barrel.

“H” Class Refuse Drag Chain Specifications:

H Class Refuse Drag Chain Specifications

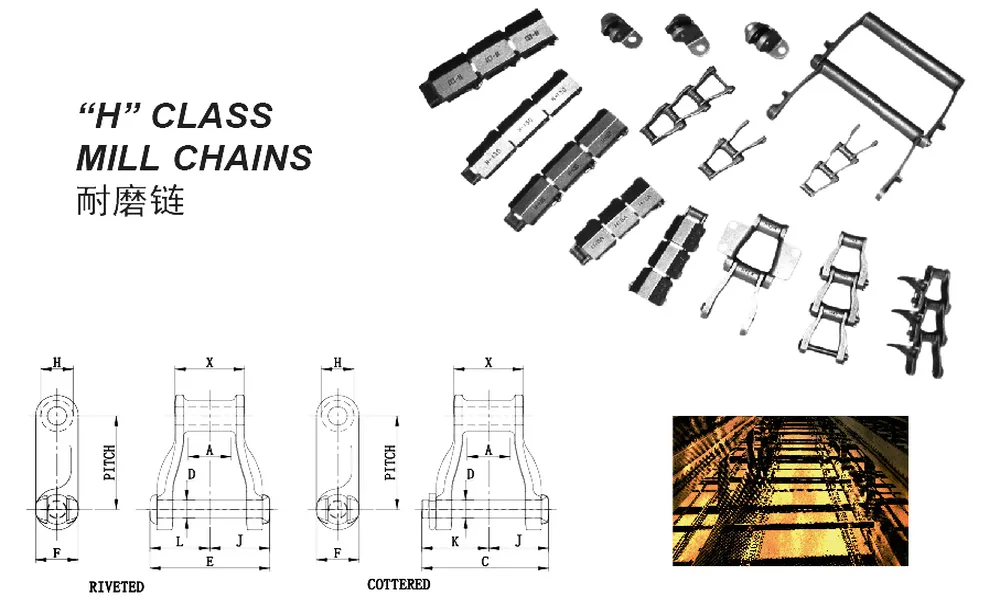

“H” Class Refuse Drag Chain Dimensions in Inches:
Chain No. Pitch in Inches Weight Per Foot LBS. Average Ultimate Strength LBS. Maximum Working Load LBS. A D E F Ne X Available Attachments
H102 5.000 17.10 36400 6100 6.38 0.625 9.75 1.50 9.75 7.75 None
H104 6.000 13.50 36400 6100 4.12 0.625 7.50 1.50 7.50 5.31 None
H110 6.000 13.20 31000 6100 9.00 0.625 12.50 1.50 12.50 10.62 None
H112 8.000 18.10 36400 6100 9.00 0.625 12.50 1.50 12.50 10.62 None
H116 8.000 15.60 36400 6100 13.00 0.625 16.38 1.62 16.38 14.44 None
H120 6.000 18.50 49400 8200 8.75 0.750 12.88 2.00 12.88 10.19 None
H480 8.000 24.00 52000 8650 11.12 0.750 16.00 2.00 16.00 12.69 None

“H” Class Refuse Drag Chain Features:

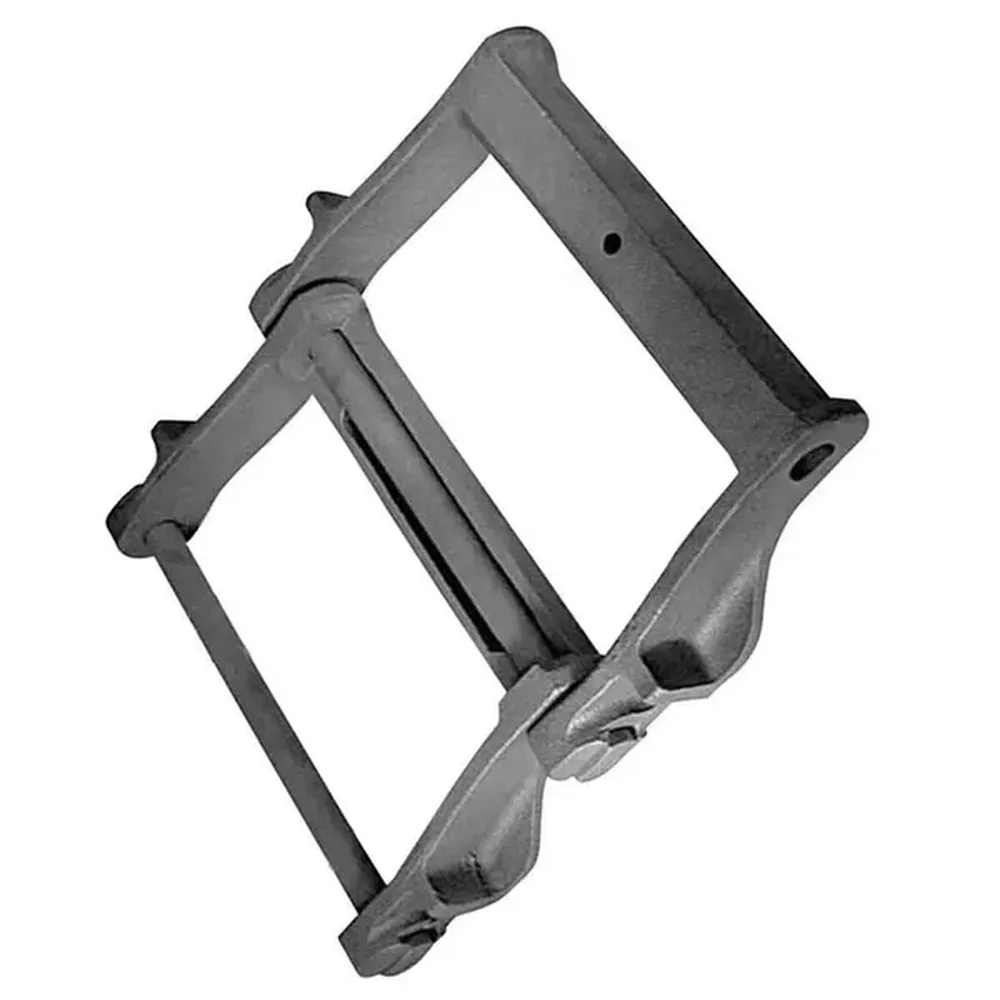

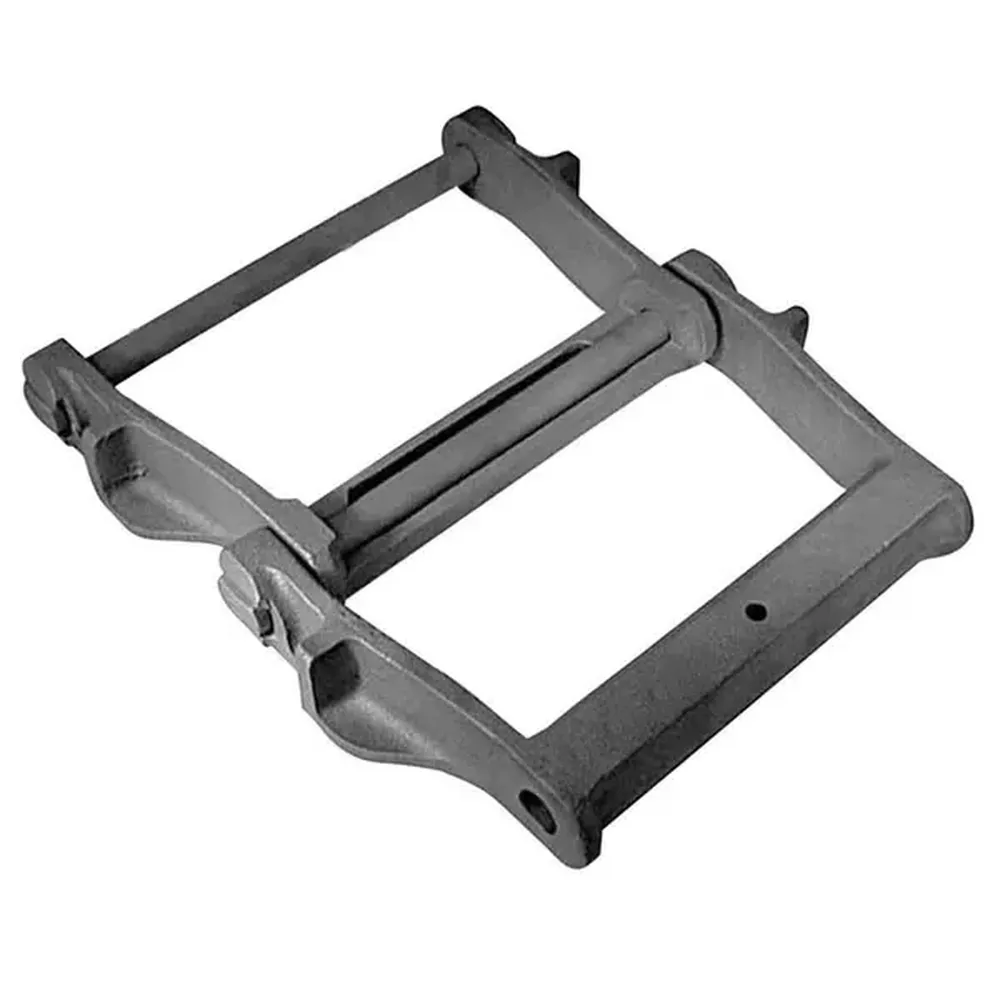

“H” class refuse drag chains are commonly used in waste management and recycling facilities to transport and handle bulk materials such as refuse, waste, and recyclables. These drag chains are designed to withstand the demanding conditions and heavy loads associated with these industries. Here are some key features of “H” class refuse drag chains:

1. Heavy-duty construction: “H” class refuse drag chains are built with robust materials such as high-strength steel or alloy steel to ensure durability and resistance to wear and tear. They can handle heavy loads and withstand the abrasive nature of refuse materials.

2. Drag links: The “H” class refuse drag chain is comprised of individual drag links that are interconnected to form a continuous chain. These links are typically forged or cast to provide strength and reliability. The drag links have a specific shape and design to prevent material from accumulating and causing blockages during operation.

3. Enhanced wear resistance: “H” class refuse drag chains are subjected to constant friction and impact from the materials being transported. To mitigate wear and extend the chain's lifespan, they are often equipped with wear-resistant components such as replaceable wear plates, hardened pins, and bushings.

4. Customizable configurations: “H” class refuse drag chains can be tailored to meet specific operational requirements. They can be manufactured in various widths, lengths, and configurations to accommodate different layouts and material handling needs within the facility.

H Class Refuse Drag Chain Features H Class Refuse Drag Chain Features

“H” Class Refuse Drag Chain Applications:

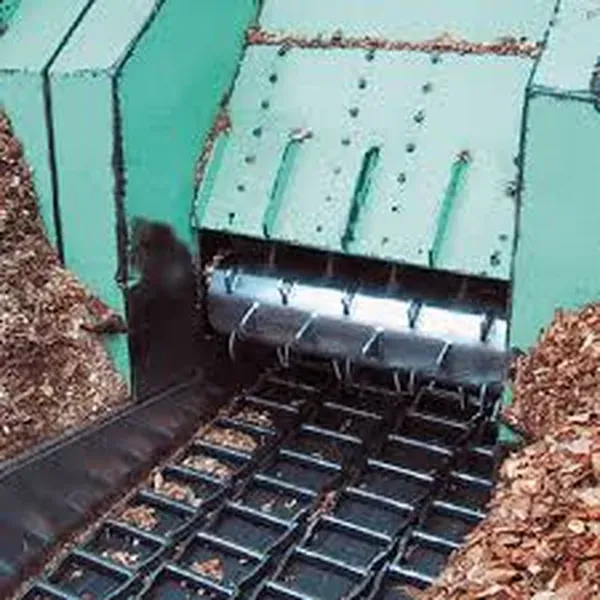

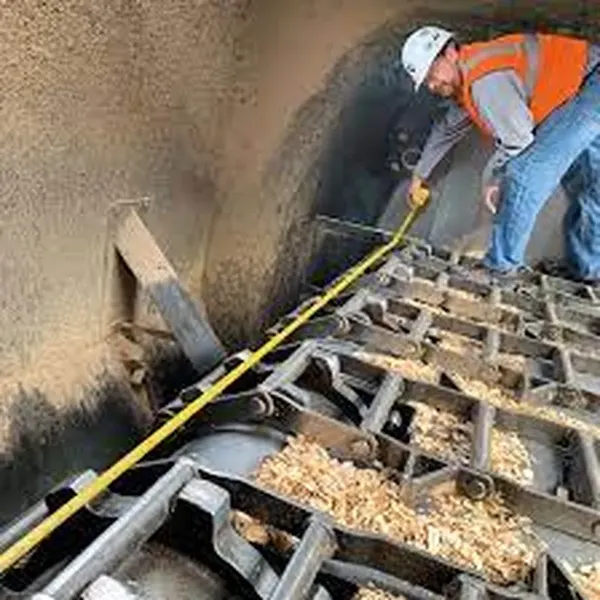

An “H” class refuse drag chain is a type of chain that is used to convey abrasive waste materials through wooden or steel troughs. It is characterized by its large, wide opening area, which provides a sizeable carrying capacity when operated at moderate speeds. “H” class refuse drag chains are typically used in applications where there is a high volume of abrasive waste material, such as:

  • Wastewater treatment plants: “H” class refuse drag chains are used to convey sludge and other waste materials through the treatment process.
  • Mining operations: “H” class refuse drag chains are used to convey ore and other materials through the mining process.
  • Construction sites: “H” class refuse drag chains are used to convey debris and other materials from construction sites.
  • Manufacturing plants: “H” class refuse drag chains are used to convey waste materials from manufacturing processes.

“H” class refuse drag chains are available in a variety of sizes and configurations to meet the specific needs of each application. They are typically made from high-strength steel alloys that can withstand the harsh conditions of abrasive waste materials. “H” class refuse drag chains are also designed to be easy to maintain and repair.

H Class Refuse Drag Chain Applications H Class Refuse Drag Chain Applications

“H” Class Refuse Drag Chain Sprockets for “H” Class Refuse Drag Chains:

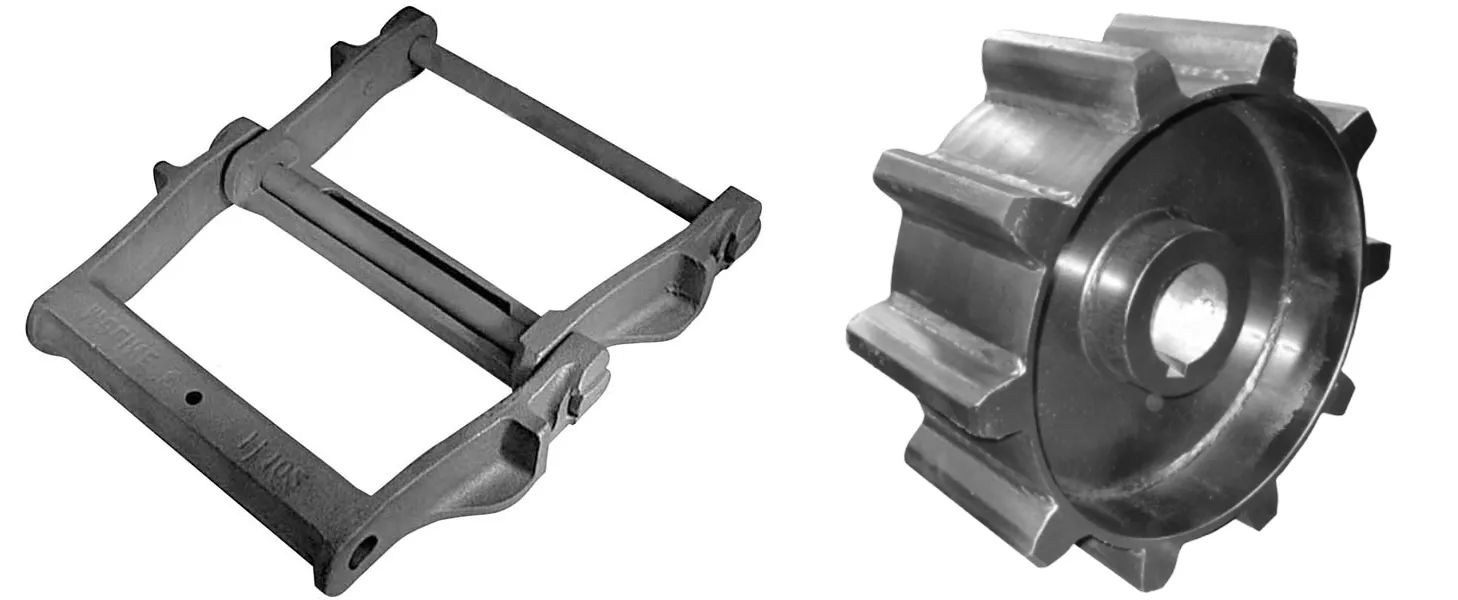

“H” Class Refuse Drag Chain Sprockets are designed to be used with “H” Class Refuse Drag Chains. They are typically made of cast steel or machined steel, and they have wide faces to provide good contact with the chain. The teeth on the chain sprockets are also designed to be wide and rounded, which helps to prevent the chain from riding over the top of the material being conveyed.

Here are some of the factors to consider when choosing “H” Class Refuse Drag Chain Sprockets:

  • Chain pitch: The pitch of the chain is the distance between the centers of two consecutive pins. The sprockets must have the same pitch as the chain in order to work properly.
  • Number of teeth: The number of teeth on the sprockets determines the speed of the chain. A sprocket with more teeth will result in a slower chain speed.
  • Material: Sprockets can be made of cast steel, machined steel, or other materials. Cast are less expensive, but they are also less durable. Machined steel sprockets are more expensive, but they are also more durable.
  • Surface finish: The surface finish of the sprockets can affect the wear rate of the chain. A smooth surface finish will help to reduce wear.

Here are some of the benefits of using “H” Class Refuse Drag Chain Sprockets:

  • They are designed to be used with “H” Class Refuse Drag Chains, so they provide a good fit and performance.
  • They are made of durable materials, so they can withstand the wear and tear of abrasive materials.
  • They have wide faces and rounded teeth, which helps to prevent the chain from riding over the top of the material being conveyed.
  • They are available in a variety of sizes and materials to meet the specific needs of each application.
H Class Refuse Drag Chain Sprockets for H Class Refuse Drag Chains

“H” Class Refuse Drag Chain for Sale:
