2019 Latest Design 24V/33V/36V LCD6 Display Meter/Control Panel For e-Bike DIY Conversion Kit Parts

This article is dedicated to the 2019 latest design of the 24V/33V/36V LCD6 Display Meter/Control Panel, an essential component for e-bike DIY conversion kit parts. The control panel boasts a brushless design, and comes in black/silver color options. The rated output power stands at 250W, with a maximum output power of 500W. The packaging details include a sturdy carton box with bubble wrap for optimal protection during shipping.

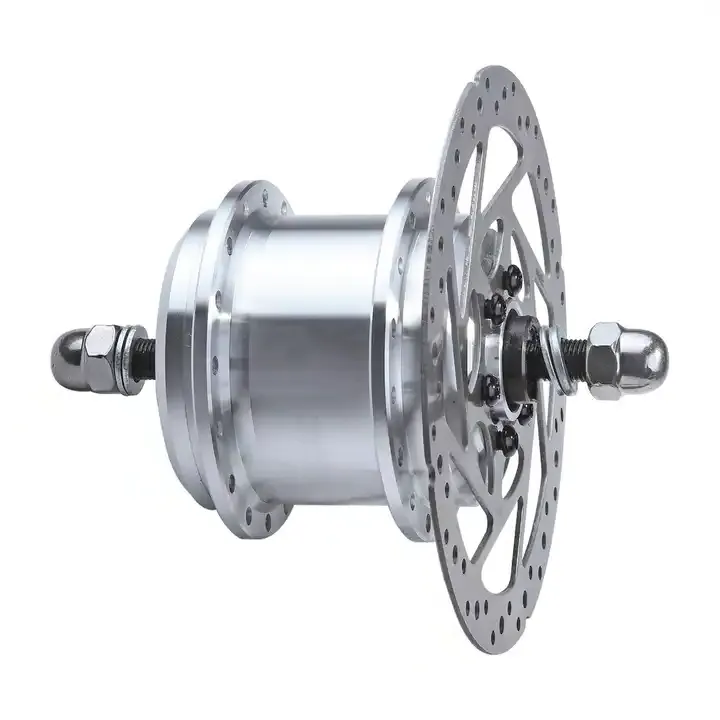

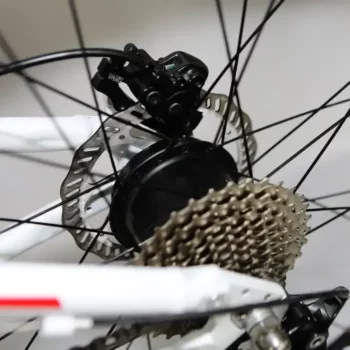

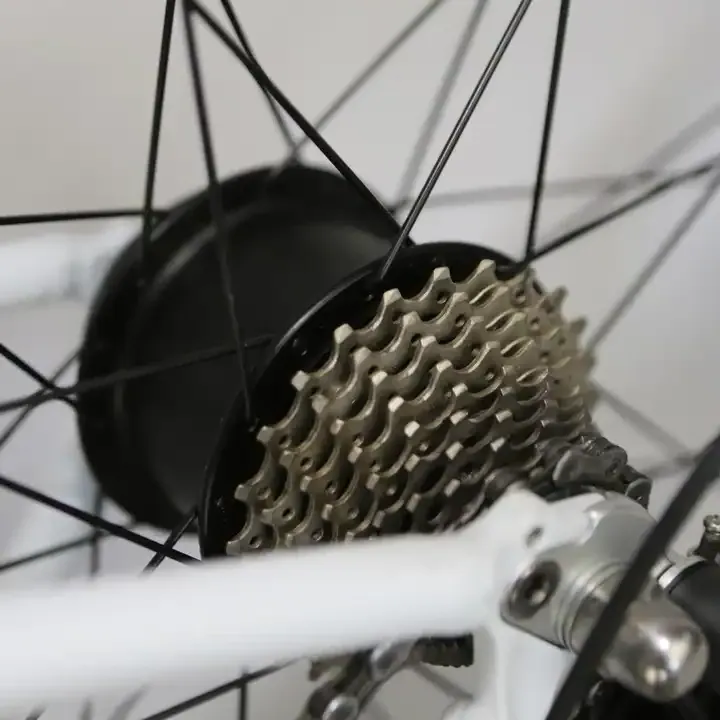

Key Advantages of the S100/S110 Rear Hub Motor

The S100/S110 rear hub motor brings a host of advantages, making it an ideal choice for e-bike conversions.

1. Built-in Controller and Sensor: The controller and sensor are integrated within the motor, simplifying the setup and reducing the amount of wiring needed.

2. Lightweight: Weighing just 2.3 Kg, the lightweight design of the motor ensures the overall weight of the e-bike remains minimal.

3. Compact Size: The compact design, with a diameter of 110mm and width of 135??2mm, ensures easy integration into the rear wheel hub.

4. Super-silent: The motor operates quietly, ensuring a smooth and unobtrusive e-bike riding experience.

5. High Efficiency: With an efficiency of ??85%, the motor offers optimal performance for longer rides without draining the battery.

6. Long Life: The motor is designed for durability and long life, ensuring reliable performance over time.

7. Optional Wireless Communication: The optional wireless communication feature allows for easy monitoring and control of the motor via a smartphone app.

Applications of the S100/S110 Rear Hub Motor

The S100/S110 rear hub motor is versatile and can be used in various applications:

1. Electric Bicycles: It is commonly used in electric bicycles for pedal-assist or full electric propulsion.

2. Commuting: E-bikes fitted with this motor are perfect for commuting, providing additional power to help riders reach their destinations quickly and effortlessly.

3. City Riding: The motor is ideal for navigating city streets, allowing riders to accelerate from a standstill and maneuver through traffic with ease.

4. Cargo Bikes: For cargo bikes designed to carry heavy loads, the motor??s high torque output is an asset.

5. Recreational Riding: The motor is popular among riders who enjoy leisurely rides in various terrains.

6. Touring and Long-Distance Riding: For long-distance tours or bikepacking adventures, the motor provides consistent power for extended rides.

How Does the S100/S110 Rear Hub Motor Work?

The S100/S110 rear hub motor operates on the principle of a brushless direct current (BLDC) motor. Here's a breakdown of its operation:

1. Motor Construction: The motor, typically housed within the rear wheel hub of an e-bike, consists of a stator, rotor, magnets, and coils.

2. Magnetic Field Creation: When electric current flows through the coils, a magnetic field is created within the motor.

3. Electromagnetic Forces: These forces cause the rotor to rotate, which spins the rear wheel of the e-bike.

4. Power and Control: The e-bike's controller regulates the power to the motor, adjusting the current flowing through the coils.

5. Pedal-Assist and Throttle Modes: The motor can operate in pedal-assist mode or throttle mode.

6. Regenerative Braking (optional): In this mode, when the rider applies the brakes, the motor can act as a generator, converting kinetic energy back into electrical energy.

Choosing the Right S100/S110 Rear Hub Motor

When choosing the right S100/S110 rear hub motor, several factors come into play:

1. Power and Torque: The power and torque output of the motor will determine the level of assistance and performance it can provide.

2. Voltage and Battery Compatibility: Ensure that the motor you choose is compatible with the voltage of your e-bike's battery.

3. Wheel Size and Compatibility: The motor comes in different wheel sizes to accommodate various e-bike configurations.

4. Efficiency and Range: A motor that offers good efficiency will affect the e-bike's overall range.

5. Noise and Smoothness: Consider the noise level and smoothness of the motor's operation.

Maintenance of the S100/S110 Rear Hub Motor

Proper maintenance of the S100/S110 rear hub motor can help ensure its longevity and performance:

1. Regular Cleaning: Keep the motor and surrounding areas clean by regularly wiping off dirt, dust, and debris.

2. Inspect and Tighten Fasteners: Periodically check and tighten all fasteners to ensure they are secure.

3. Check Wiring Connections: Examine the wiring connections between the motor, battery, and controller.

4. Lubrication: Some rear hub motors may require lubrication for smooth operation.

5. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance.

6. Wheel Truing: If you notice any wheel wobbling, it may indicate that the wheel needs truing.

7. Regular Inspections: Periodically inspect the motor for signs of wear, damage, or unusual noise during operation.

Why Choose HZPT's S100/S110 Rear Hub Motor?

HZPT Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and marketing of high-end electric bicycle parts. Our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines, and have established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights.

Author: Yjx.
