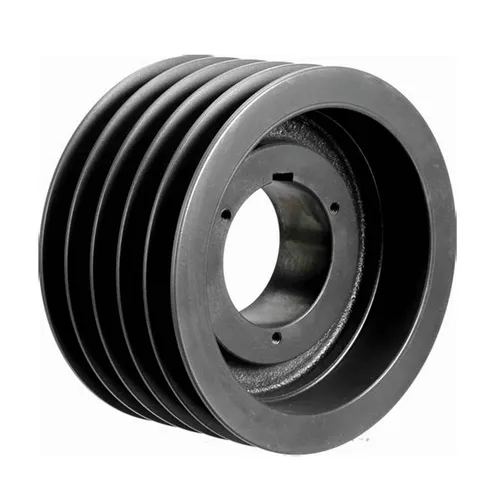

5TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All “C” Section Belts

5TC series five-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40" to 24.40" in diameter. Depending on the sheave size, they are made to use Q2 taper bushings, which we also stock. Most 5TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

5TC Style Sheave Size Chart

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
5TC70	Q2	7"	7.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	27.5
5TC72	Q2	7.2"	7.6"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	29.8
5TC74	Q2	7.4"	7.8"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	31
5TC76	Q2	7.6"	8"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	34.3
5TC78	Q2	7.8"	8.2"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	30
5TC80	Q2	8"	8.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	33.4
5TC82	Q2	8.2"	8.6"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	30.3
5TC84	Q2	8.4"	8.8"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	32.8
5TC86	Q2	8.6"	9"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	31
5TC88	Q2	8.8"	9.2"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	34.9
5TC90	Q2	9"	9.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	32.6
5TC92	Q2	9.2"	9.6"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	36.4
5TC94	Q2	9.4"	9.8"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	35.6
5TC96	Q2	9.6"	10"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	39.1
5TC98	Q2	9.8"	10.2"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	37.3
5TC100	Q2	10"	10.4"	15	5 1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	42.3
5TC102	Q2	10.2"	10.6"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	39.4
5TC106	Q2	10.6"	11"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	41
5TC110	Q2	11"	11.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	42.4
5TC114	Q2	11.4"	11.8"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	42.8
5TC120	Q2	12"	12.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	46.3
5TC130	Q2	13"	13.4"	15	5 1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	49.5
5TC160	Q2	16"	16.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	64.5
5TC200	Q2	20"	20.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	78
5TC240	Q2	24"	24.4"	15	5-1/4"	3-1/2"	1/2"	1-1/4"	4-1/8"	5-1/4"	3/4"	2-3/4"	9/32"	96

Applications of 5TC Series Sheave

Products are widely used in the power output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, some small horsepower motorcycle power transmission, agricultural machinery power transmission, Air compressor, reducer, reducer, generator, etc.

Marine Machinery	Electric machinery	Agricultural machinery

American Standard Pulley

An American standard pulley is a belt pulley with standard size and design that follows American ANSI standards. These pulleys are ideal for 2L, 3L, 4L, and 5L belts. They are also suitable for 3V, 5V, and 8V belts. Depending on the particular application, they are available in different bushing types, and some are even suitable for front and rear installation.

American standard pulleys are generally made of cast iron and are statically balanced and machined. They are also coated to increase their durability, either with a powder coating or e-coating. Their packaging may consist of a plain carton or a plywood case. American standard pulleys are primarily purchased by domestic wheel manufacturers and are rarely used by foreign companies.

Technological Processing

Company Profile

HZPT is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.

Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.

Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development.

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short.

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment.
