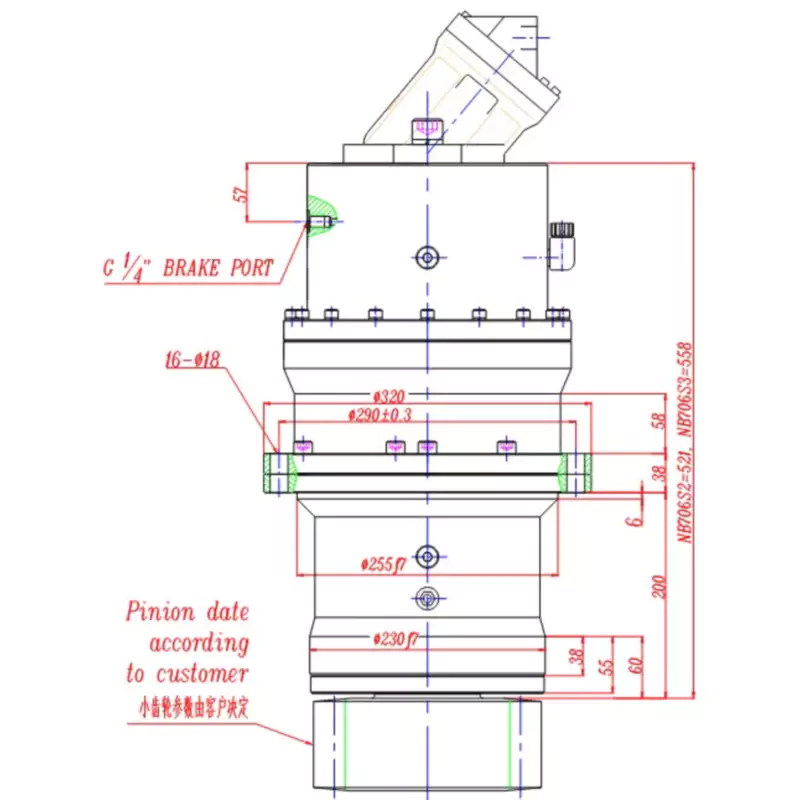

706S3 Slewing Drive Planetary Gearbox

Product Overview

The 706S3 Slewing Drive Planetary Gearbox is a high-performance gearbox designed for various applications. Its model naming convention reflects its positioning in the market and its unique features. Let's delve into the design and structural characteristics of this exceptional product.



Technical specification

Type	Max.Output Torque		Ratio	Recommend Hydraulic Motor	Max. input speed	Brake torque	Brake work pressure
	Excavator	Crane	(i)		(rpm)	(N.m)	(bar)
EP706S2	7700	12000	19.6, 22.5, 26.7, 33.5, 38.9, 46.8	A2FE 45·56·63	3500	400	20-50
EP706S3			78,89.3,106

1. • Input – output rotate same direction.
   • Other ratio and other input type can be specially designed.

Naming Convention and Positioning

The model name, 706S3, signifies the specific series and variant of the Slewing Drive Planetary Gearbox. This nomenclature system allows for easy identification and differentiation within our product range. The "S3" designation represents the advanced third generation of this gearbox, emphasizing its enhanced functionality and reliability.

Product Design and Structural Features

The 706S3 Slewing Drive Planetary Gearbox boasts a meticulously crafted design that optimizes its performance and durability. Key design elements include:

- Planetary Gear Design: Our gearbox utilizes an innovative planetary gear system, ensuring smooth and efficient power transmission.
- Bearing System: The carefully engineered bearing system guarantees exceptional load-bearing capacity and reduces friction for enhanced efficiency.
- Seal Technology: Our cutting-edge sealing technology provides superior protection against moisture, dust, and other environmental elements, extending the lifespan of the gearbox.
- Lubrication System: The advanced lubrication system minimizes friction and heat generation, ensuring reliable and continuous operation even under demanding conditions.

Core Technologies and Materials

Planetary Gear Design

The planetary gear design in our 706S3 Slewing Drive Planetary Gearbox enables efficient torque transfer while maintaining compactness. This design enhances the gearbox's overall performance and ensures smooth operation, reducing wear and prolonging its service life.

Bearing System

Our gearbox incorporates high-quality bearings that are engineered to withstand heavy loads and provide exceptional rotational stability. These bearings are carefully selected and meticulously tested to ensure reliable and long-lasting performance.

Seal Technology

The seal technology employed in our 706S3 Slewing Drive Planetary Gearbox offers superior protection against water, dust, and other contaminants. This ensures reliable operation even in harsh environments, minimizing maintenance requirements and maximizing productivity.

Lubrication System

The lubrication system of our gearbox is designed to ensure proper distribution of lubricants, reducing friction, and heat generation. This enhances the overall efficiency and longevity of the gearbox, minimizing downtime and maintenance costs.

Performance Advantages

High Torque Density

The 706S3 Slewing Drive Planetary Gearbox delivers exceptional torque density, allowing it to handle heavy loads with ease. This high torque capability ensures optimal performance in demanding applications.

Low Noise and Vibration

Our gearbox is engineered to operate with minimal noise and vibration levels. This feature enhances the comfort and safety of the equipment while reducing the impact on the surrounding environment.

Environmental Adaptability

The 706S3 Slewing Drive Planetary Gearbox is designed to withstand a wide range of environmental conditions. It is resistant to temperature variations, dust, and moisture, making it suitable for use in diverse industries and applications.

Intelligent Monitoring

Our gearbox incorporates intelligent monitoring systems that allow for real-time performance tracking and diagnostics. This advanced feature enables proactive maintenance, minimizing downtime and optimizing operational efficiency.

Applications

Engineering Machinery

The 706S3 Slewing Drive Planetary Gearbox finds extensive use in various engineering machinery such as tower cranes, excavators, and port machinery. Its robust design and exceptional performance make it an ideal choice for these demanding applications.

Solar Tracking Systems

In solar tracking systems, our gearbox plays a crucial role in maintaining precise solar panel orientation. Its reliability, high torque density, and adaptability to environmental conditions make it a preferred choice in the solar energy industry.

Marine Engineering Equipment

The 706S3 Slewing Drive Planetary Gearbox is well-suited for marine engineering applications, including offshore platforms, shipyard equipment, and underwater vehicles. Its rugged construction and resistance to corrosion make it an excellent choice for these challenging environments.

Military Equipment

Our gearbox is utilized in various military equipment, such as armored vehicles and missile launchers. Its high torque capacity, durability, and adaptability to extreme conditions make it a reliable component in critical military operations.

Our Company Advantage

Our company takes pride in delivering exceptional products like the 706S3 Slewing Drive Planetary Gearbox. With a focus on technological innovation, quality craftsmanship, and customer satisfaction, we have established ourselves as a leader in the industry. By choosing to partner with us, you can expect:

- Cutting-edge technology and advanced engineering solutions
- Extensive industry expertise and experience
- Customized products tailored to your specific requirements
- Reliable performance and long-term durability
- Timely and efficient customer support

Author: Miya
