Adapter Bushings Kit for CAT 1 Quick Hitch
Most Cat 1 Quick Hitches require bushings over the lower pins to adapt the attachment to the quick hitch. These will fit over any 7/8″ pin to adapt to any Cat 1 Quick Hitch that requires bushings.
CAT 1 Quick Hitch Adapter Bushings
A CAT 1 Quick Hitch Adapter Bushing is a small metal insert designed to adapt a lower link attachment point on a tractor from one size to another so it can use a different size of hitch. The CAT 1 designation refers to the size of the hitch, which is a standard size commonly used in agriculture for smaller tractors. The adapter bushing might be used, for example, if a farmer has a larger attachment that requires a CAT 2 hitch but only has a tractor with a CAT 1 hitch. The bushing serves as a connector that allows the attachment to be used with the smaller hitch.
Most Cat 1 Quick Hitches require bushings over the lower pins to adapt the attachment to the quick hitch. These will fit over any 7/8″ pin to adapt to any Cat 1 Quick Hitch that requires bushings.
- Function -- For use with quick hitch systems, these bushings are used on CAT 1(Category 1) implements, they can help secure equipment attachments which you want to connect to the back of the tractor.
- Fitment -- Fit for Category 1 3-point tractors, compatible with Speeco John Deere Jeffers and many more quick hitches. This bushing set include 2 quick hitch bushings and 4 roll pins.
- Material -- Made of premium quality steel, solid and durable, zinc plated at the surface to ensure rust and corrosion resistance.
- Easy Installation -- Easy to install with quick hitch system, only a hammer is required to insert the roll pins in.
| Weight | 17 Lb |
| Shoulder Bushing Usable Length | 2-7/8 in |
| Shoulder Bushing Overall Length | 4 in |
How to Install Adapter Bushing Kit
 |
 |
 |
|
STEP 1: Use the two top link bushings to slide through the cat 1 top link pin then apply them onto the hitch. |

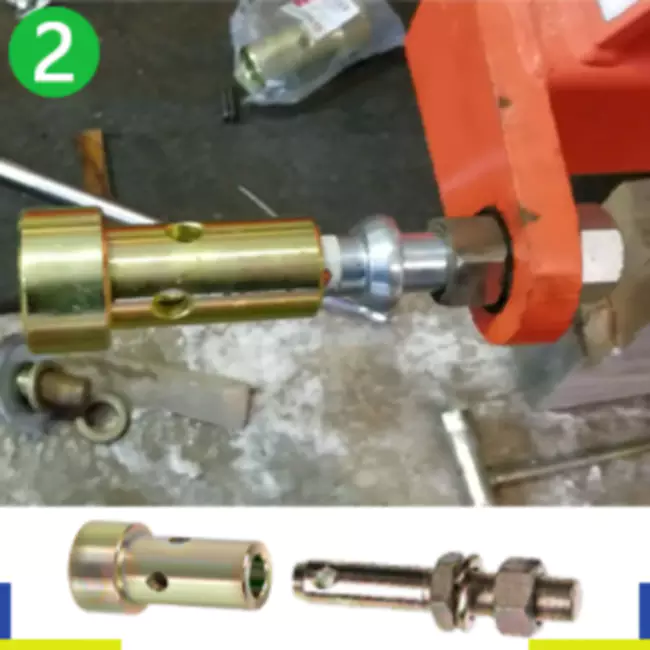

STEP 2: Slide the shoulder bushing through the lower link pin then make sure the holes are at right alignment.
|
STEP 2: Put on the rolling pin and use a hammer to tap it through the holes of the lower link pin and bushing.
|
Why Choose Our Adapter Bushing?
- Quick hitch bushing kit: This 3-ton bushing kit allows you to adjust the implement to install the quick hitch. Simply slide the bushing onto the lower lift pin and the top link pin to reduce and remove the spacing, thus obtaining a better and stronger fit.
- Made of coated steel: each bushing will be made of galvanized steel. This coating can prevent rust and corrosion of steel, so you don't have to worry about bushing damage over time.
- Six top link pin adapters: This quick-hitch bushing kit will include a total of six top link pin adapters. These adapters vary in length and thickness, allowing you to convert the Type 0, Type 1, and Type 2 top connection pins to better fit the quick hitch.
- Easy to install: use this bushing kit to install quickly and easily. Slide the top link bushing onto the top link pin and use the shoulder bushing on the lower lift pin. Fix the shoulder bushing in place with the attached roll pin.

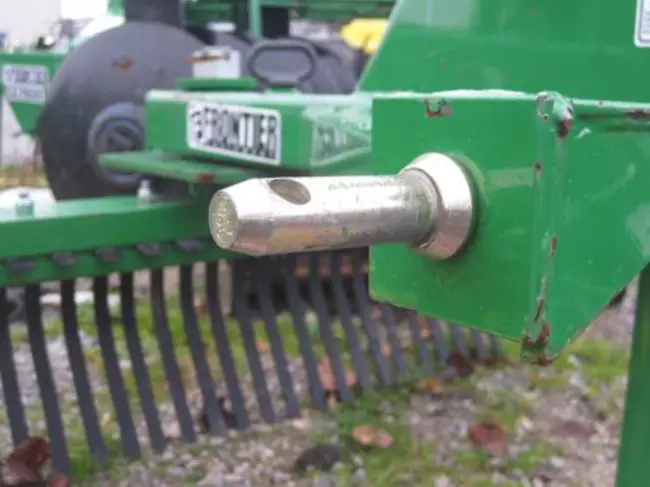

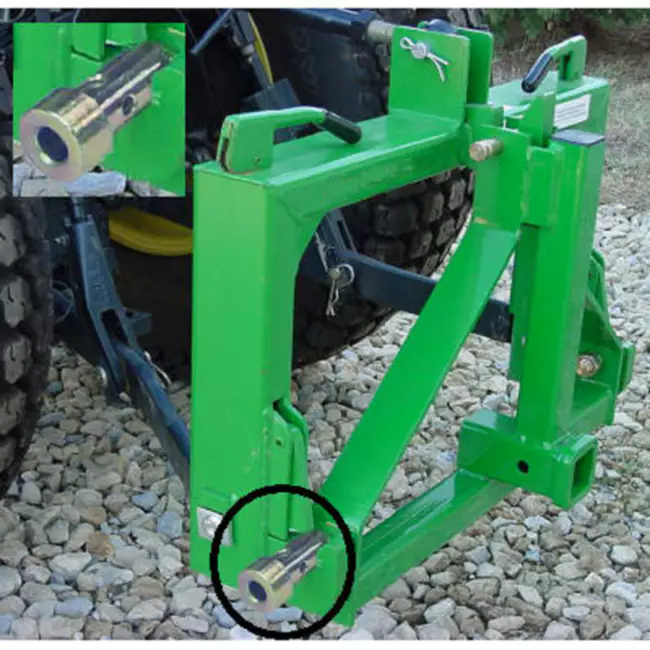

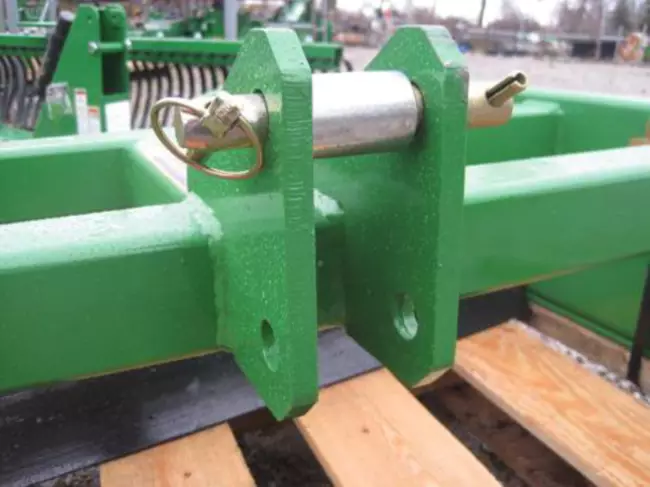

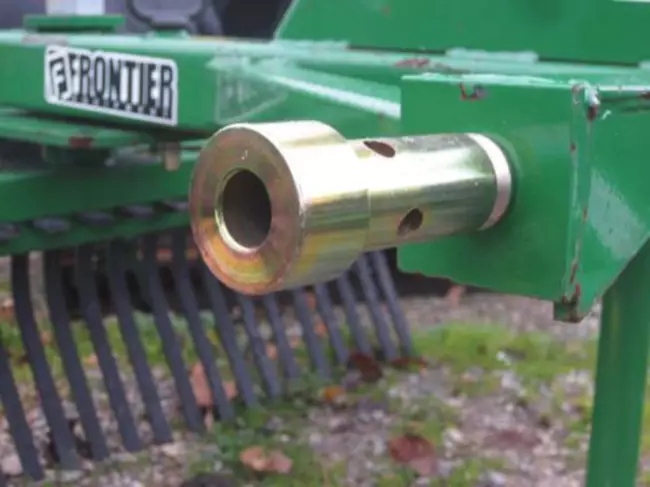

Adapter Bushing on Quick Hitch

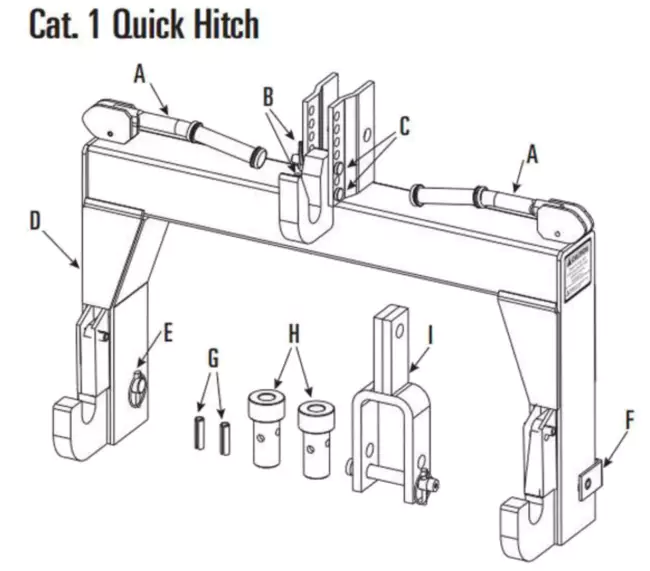

| A-Lock Down Handles*2 B-Top Link Lynch Pins*2 C-Top Link Pins*2 |
D-Frame*1 E-Lower Frame Lynch Pins*2 F-Lower Frame Pins*2 |
G-Roll Pins*2 H-Bushing*2 I-Top Link Adapter Bracket*1 |
Note: The top adapter is required for connecting to a Brush Hog, Mower, and other implements.
|
|
|
 |
 |
Additional information
| Edited | Mea |
|---|
