BAB Series High Precision Planetary Gearbox
BAB series high precision planetary gearboxes consist of complete sizes of the inline gearboxes, also called inline planetary gearboxes. There are three optional backlashes of BAB precision planetary gearboxes for choice: Micro precision backlash (P0), precision backlash (P1), and standard backlash (P2), which are featured with outstanding performance and widely applied in motion control industries for servo application. BAB series high precision planetary gearboxes are featured with high torque, and the input stepper diameter D4 can be up toφ255mm, which can greatly meet the customer needs of high torque. Single-stage planetary gearboxes and two-stage gearboxes for selection according to your application needs.
BAB Series Low Noise Low Backlash High Precision Planetary Gearbox
BAB series high precision planetary gearboxes consist of complete sizes of the inline gearboxes, also called inline planetary gearboxes. There are three optional backlashes of BAB precision planetary gearboxes for choice: Micro precision backlash (P0), precision backlash (P1), and standard backlash (P2), which are featured with outstanding performance and widely applied in motion control industries for servo application. BAB series high precision planetary gearboxes are featured with high torque, and the input stepper diameter D4 can be up toφ255mm, which can significantly meet the customer needs of high torque. Single-stage planetary gearboxes and two-stage gearboxes for selection according to your application needs.
- 1- stage reduction ratio : 3, 4, 5, 6, 7, 8, 9, 10
- 2- Stage reduction ratio: 12, 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100
Precision Planetary Gearbox Design
BAB series precision planetary gearbox is a super high precision and super high efficient planetary gearbox, with double support output, long span, high stability, wide surface of the sun gear and planetary gear, and more extensive related technical parameters to accomplish high-intensity work. All gears inside the precision planetary gearbox are helical design, high bite rate, smooth continuous operation, low noise, and low backlash. Integrated inner ring and shell design, high precision, high wear resistance. The integrated connection board design perfectly matches all kinds of servo motors and stepper motors. The lowest backlash, as high as 95% efficiency, and lifetime lubrication make the BAB series planetary gearbox the best choice for customers.
Precision Planetary Gearbox Advantages
The precision planetary gearbox is a new-generation product independently developed by our company. It integrates advanced technology at home and abroad and has main advantages.
1. Noise less than 65 dB.
2. The backlash can be within three arc minutes for a single stage and five arc minutes for a double stage.
3. The single-stage efficiency is over 95%, and the double-stage efficiency is around 92%.
4. High input speed: up to 8000rpm.
5. High torque: higher than the torque of the available standard planetary reducer.
6. High stability: using high-strength alloy steel, the whole gear is hardened, not only surface hardening, but also guarantees service life and long-term use and maintains the initial speed.
7. The high reduction ratio adopts a modular design, the planetary gearboxes can be connected, and the speed ratio can reach more than one thousandth.

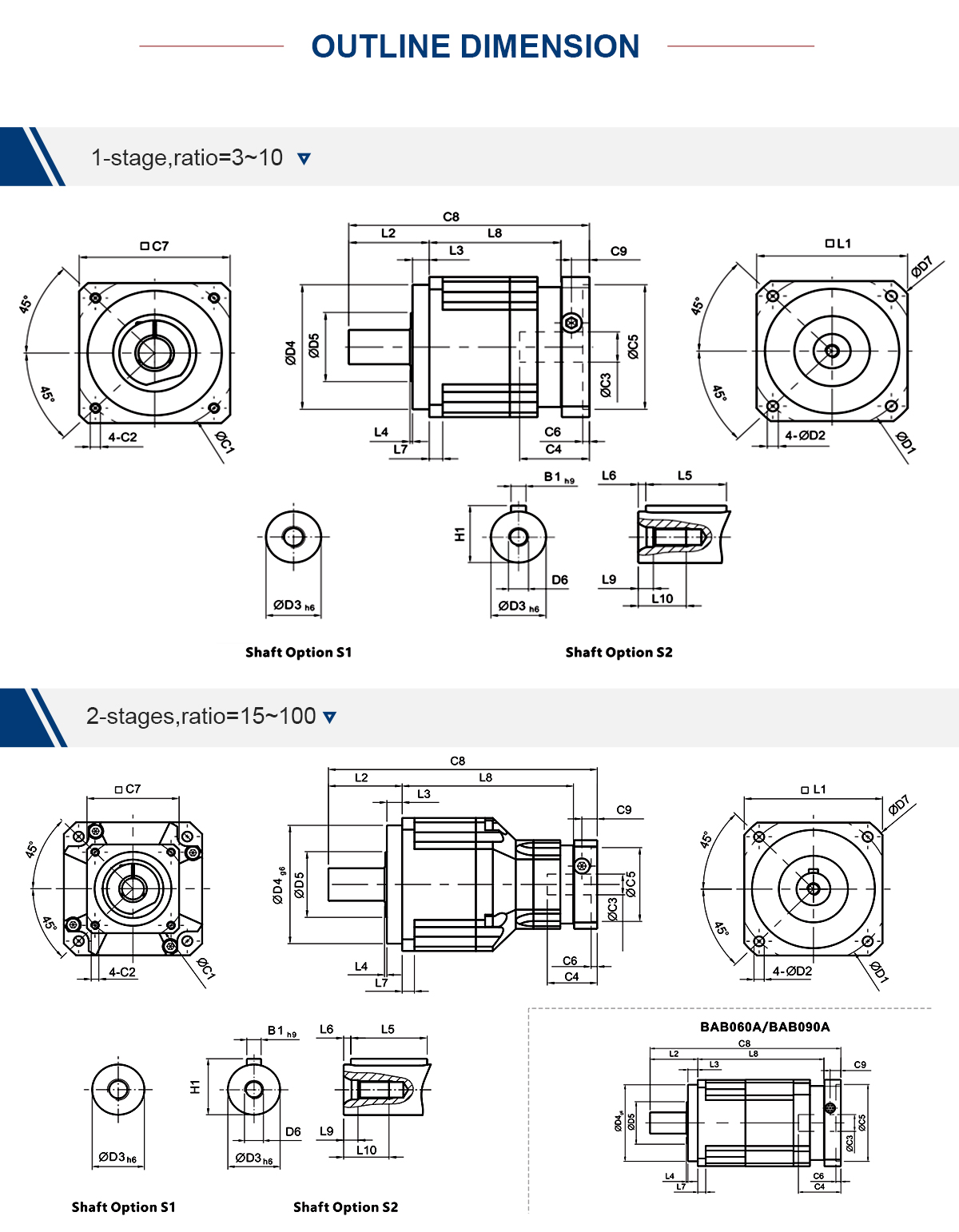

Precision Planetary Gearbox Outline Dimension
Precision Planetary Gearbox Specification
| Series | Stage | Models | Ratio | Rated Torque | Output Flange Dia. | Output Shaft Dia. | Backlash | Efficiency |
| BAB (Linear) | 1 | BAB042, BAB060, BAB090, BAB115, BAB142, BAB180, BAB220 | 3, 4, 5, 6, 7, 8, 9, 10 | 14N.m~2000N.m | 42mm~220mm | Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 | ≤1, ≤3, ≤5 arcmin | ≥97% |
| 2 | BAB042, BAB060, BAB060A, BAB090, PAB090A, BAB115, BAB142, BAB180, BAB220 | 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100 | 14N.m~2000N.m | 42mm~220mm | Φ13, Φ16, Φ22, Φ32, Φ40, Φ55, Φ75 | ≤3, ≤5, ≤7 arcmin | ≥94% |
Precision planetary gear reducers are widely used in the following fields
1. Aerospace and military industries.
2. Healthcare, Electronics Information Technology Industry
3. Industrial robots, production automation, and CNC machine tool manufacturing industries.
4. Industries include automobile manufacturing, textile, printing, food, metallurgy, environmental protection engineering, warehousing, and logistics.
How to Install a Planetary Gearbox on a Servo Motor?
Step One: wipe off the anti-rusting additive and grease on the motor shaft.
Step Two: Remove the rubber plug.
Step Three: Rotate the input shaft to align the fastening bolt with the plug hole. Please make sure that the cap screw is loosened. If a shaft sleeve is attached, please install it according to the figure below.
Step Four: Place the reducer vertically in a flat place so that the motor mounting face of the planetary gearbox is upward. Insert the motor shaft into the input shaft slowly to avoid hitting the input shaft. Please make sure that the flange of the motor is close to the flange of the servo gearbox. Tighten the motor mounting bolts based on the designated tightening torque.
Step Five: Use a torque wrench to tighten the clamping bolt according to the designated fastening torque.
Step Six: Install the rubber bolt. The whole installation procedure is finished.
| Step One | Step Two | Step Three |
 |
 |
 |
| Step Four | Step Five | Step Six |
 |
 |
 |
