Replacement of Bonfiglioli 316L Series Planetary Gearbox Reducer Replacement 316L1 316L2 316L3 316L4
HZPT 316L series planetary gearbox has advantages such as high torque density, high efficiency, low reverse clearance, and durability, making it the preferred choice for many industrial applications.

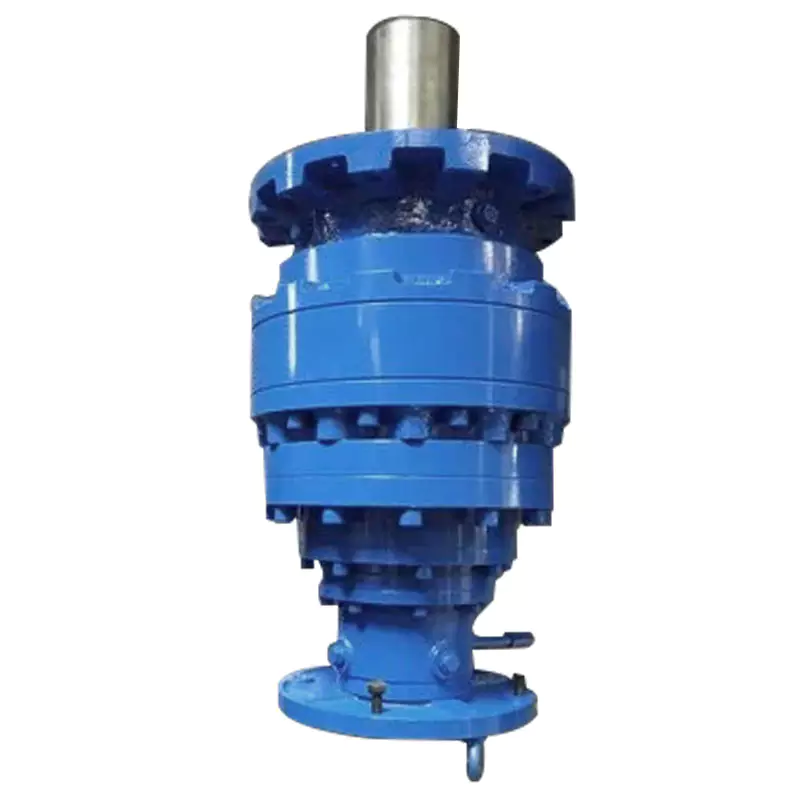

316L Series Planetary Gearbox
HZPT 316L series planetary gearbox has advantages such as high torque density, high efficiency, low reverse clearance, and durability, making it the preferred choice for many industrial applications.
Replacement of Bonfiglioli planetary gearboxes have many advantages, making them ideal choices for many industrial applications. Here are some main advantages:
- High torque density: Planetary gearboxes have high torque density, which means they can transmit higher torque in the same size. This makes them ideal choices for space constrained applications.
- High efficiency: Planetary gearboxes are known for their high efficiency, which means they can transmit power with minimal friction loss. Replacement of Bonfiglioli's planetary gearbox adopts efficient gears and optimized internal structure, which helps to reduce energy consumption and improve transmission efficiency.
- Low reverse clearance: Planetary gearboxes provide low reverse clearance, which means they can provide precise and accurate motion control. This is particularly important in applications that require precise positioning.
- Wide range of transmission ratios: Replacement of Bonfiglioli's planetary gearbox provides a range of transmission ratios that can be adjusted according to specific applications to achieve optimized performance and efficiency.
- Durability: Planetary gearboxes are known for their durability and long lifespan. Replacement of Bonfiglioli's planetary gearbox uses high-quality materials and advanced manufacturing technology to provide reliable and long-lasting performance.
technical parameter
|
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Ratio range for Inline gear |
Ratio range for Right angle gear |
Ratio range for Combined with worm gear |
Design |
|
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
|
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
|
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
|
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
|
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
|
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
|
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
|
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
|
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
|
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
|
Planetary Feed Mixer Gearbox |
Tracked Vehicle |
Winch Drive |
Wheeled Vehicle Drive |
 |
 |
 |
 |
|
Slewing Drive |
Wind Turbines Drive |
Inline Planetary gearbox |
Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Replacement of Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Replacement of Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
