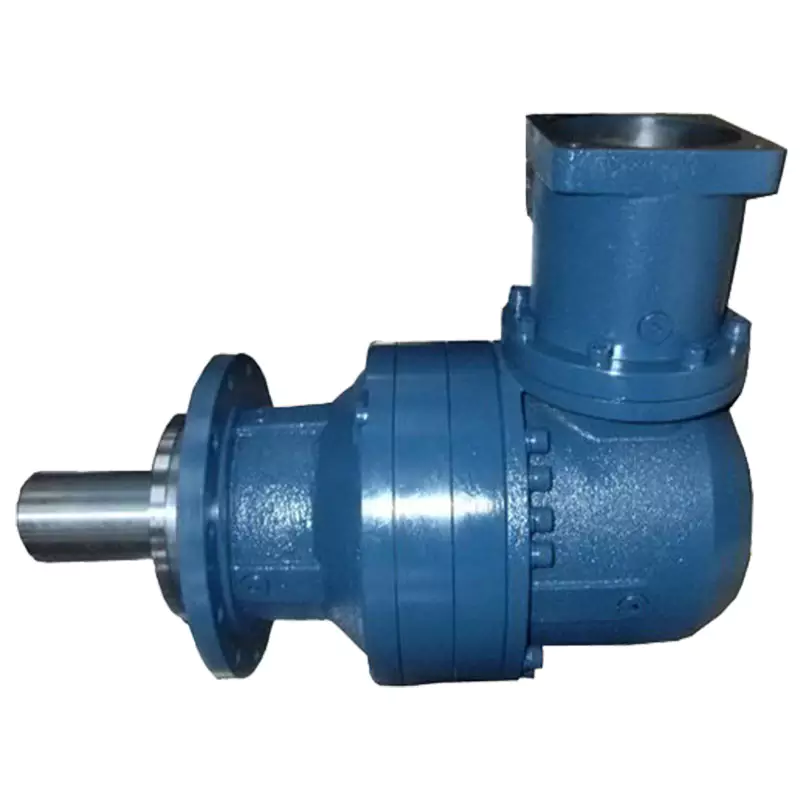

Replacement of Bonfiglioli 319R Series Planetary Gearbox Reducer Replacement 319R4
HZPT is a renowned manufacturer and supplier of foot mounted planetary reduction gearboxes, mini planetary gearboxes, flange mounted planetary gearboxes, planetary crawling drives, sugar crystallizer drives, and planetary gear motors.
Our dedicated engineers, with their expertise in the latest power transmission technologies, have helped us become one of the leading planetary gearbox manufacturers. Innovation through extensive research and development work has always been the leading force in producing various efficient and high-performance gearboxes. We have also received strong support from a team of quality inspectors who ensure that we provide perfect products that meet international standards.
319R Series Planetary Gearbox
HZPT is a renowned manufacturer and supplier of foot mounted planetary reduction gearboxes, mini planetary gearboxes, flange mounted planetary gearboxes, planetary crawling drives, sugar crystallizer drives, and planetary gear motors.
Our dedicated engineers, with their expertise in the latest power transmission technologies, have helped us become one of the leading planetary gearbox manufacturers. Innovation through extensive research and development work has always been the leading force in producing various efficient and high-performance gearboxes. We have also received strong support from a team of quality inspectors who ensure that we provide perfect products that meet international standards.
We are a leading manufacturer and supplier of high-quality, cost-effective, and energy-saving gearboxes, providing various power transmissions. Our engineers' experience helps us meet the necessary industry standards. The diligent efforts of our researchers have helped us introduce new features into our products, making them stand out in the market. Our products comply with ISO, DIN, BS, IS standards.
We have a wide range of network systems, which helps us effectively meet the needs of our customers. In addition, it ensures that the product arrives on our customer website within the specified time. Our proactive marketing team is proficient in all industry norms and provides customers with necessary information about our products.
Technical Parameter
|
Type |
Rated torque (Nm) |
Rated power (Kw) |
Input speed (Max rpm) |
Ratio range for Inline gear |
Ratio range for Right angle gear |
Ratio range for Combined with worm gear |
Design |
|
300 |
1000 |
20 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
301 |
1750 |
30 |
3000 |
3.3-2700 |
7-800 |
400-9000 |
A |
|
303 |
2500 |
40 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
305 |
5000 |
60 |
3000 |
3.6-2900 |
9-900 |
400-9000 |
A |
|
306 |
8500 |
75 |
2500 |
3.7-2900 |
9-900 |
400-9000 |
A |
|
307 |
12500 |
100 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
A |
|
309 |
18500 |
130 |
2500 |
3.4-2500 |
13-800 |
400-9000 |
B |
|
310 |
25000 |
150 |
2000 |
3.8-2500 |
40-900 |
400-9000 |
B |
|
311 |
35000 |
180 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
313 |
50000 |
200 |
2000 |
4-2200 |
18-800 |
400-9000 |
B |
|
315 |
80000 |
250 |
1500 |
4-2000 |
70-900 |
400-9000 |
B |
|
316 |
105000 |
270 |
1500 |
4-2000 |
50-600 |
400-9000 |
B |
|
317 |
150000 |
300 |
1000 |
4-1900 |
70-900 |
400-3000 |
B |
|
318 |
200000 |
340 |
1000 |
4-1100 |
200-700 |
400-9000 |
B |
|
319 |
300000 |
380 |
500 |
4-1400 |
300-800 |
1000-9000 |
B |
|
321 |
450000 |
450 |
500 |
4-1100 |
300-800 |
1000-9000 |
B |
Raleted Planetary Gearboxes
You can click on the image to learn about the corresponding related products
 |
 |
 |
 |
|
Planetary Feed Mixer Gearbox |
Tracked Vehicle |
Winch Drive |
Wheeled Vehicle Drive |
 |
 |
 |
 |
|
Slewing Drive |
Wind Turbines Drive |
Inline Planetary gearbox |
Right Angle Planetary gearbox |
Replaceable Planetary Gearbox Models
The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Replacement of Bonfiglioli.
The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Replacement of Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.
| 300L 1 | 300L 2 | 300L 3 | 300L 4 | 300R2 | 300R3 | 300R4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 | 301R2 | 301R3 | 301R4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 | 303R2 | 303R3 | 303R4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 | 305R2 | 305R3 | 305R4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 | 306R2 | 306R3 | 306R4 |
| 307L 1 | 307L 2 | 307L 3 | 307L 4 | 307R2 | 307R3 | 307R4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 | 309R2 | 309R3 | 309R4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 | 310R2 | 310R3 | 310R4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 | 311R2 | 311R3 | 311R4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 | 313R2 | 313R3 | 313R4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 | 315R3 | 315R4 | |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 | 316R3 | 316R4 | |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 | 317R3 | 317R4 | |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 | 318R4 | ||
| 319L 1 | 319L 2 | 319L 3 | 319L 4 | 319R4 | ||
| 321L 1 | 321L 2 | 321L 3 | 321L 4 | 321R4 |
Additional information
| Edited | Miya |
|---|
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
