CC5 Conveyor Chain (CC5 Chain) for Car Washes and Citrus Processing

The CC5 chain, also called the CC5 conveyor chain or CC5 roller chain is classified as a heavy-duty chain. A CC5 chain is a heavy-duty roller chain that is used in a variety of applications, including auto manufacturing plants, car washes, farm processing, elevators, and other areas that require efficient power transmission. It is made of alloy or premium grade carbon steel and is heat treated for superior strength and toughness. The core is through hardened for superior impact resistance, and the surface is case hardened for the ultimate in extended wear resistance. Precision machining is used to maintain smooth bearing surfaces and a high interference fit with sidebars. Favorable residual stresses resist fatigue and promote extended life.

CC5 chains are available in a variety of sizes and lengths, and they can be customized to meet specific requirements. They are also interchangeable with standard bushed roller chains of other manufacturers. CC5 chains are a reliable and versatile option for a variety of applications. They offer high strength, durability, and a long wear life, making them a good choice for demanding environments. They are also available in a variety of sizes and lengths, and they can be customized to meet specific requirements.

CC5 Chain for Car Washes and Citrus Processing CC5 Chain for Car Washes and Citrus Processing

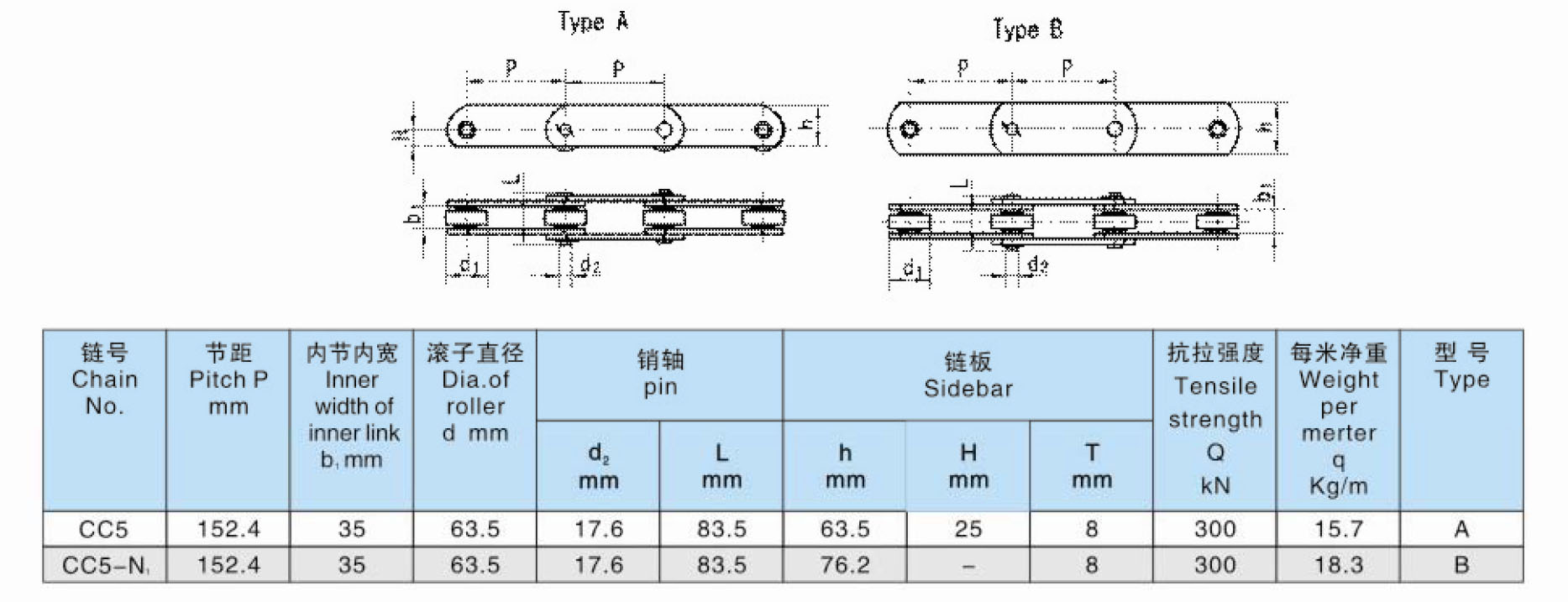

▍CC5 Chain Dimensions

CC5 Chain Dimensions

▍CC5 Chain Specifications

Every chain at HZPT meets the strictest ANSI (American National Standards Institute) and ISO (International Organization for Standardization) requirements for quality and consistency to the latter. Therefore, you can be sure that this chain will support your production even under the most demanding conditions.

The most important measure of roller chains’ strength is tensile strength. The tensile strength represents how much load a chain can bear under a one-time load before breaking apart. Another common factor that is as important as tensile strength is fatigue strength. The critical elements in a chain’s fatigue strength are the quality of steel used to manufacture the chain, the heat treatment of its components, and the quality of the pitch hole fabrication of the link plates. Other factors can include the thickness and the design of the link plates.

The average tensile strength of this heavyweight equipment is around 50,000 pounds, with a maximum allowable working load of 4,800 pounds. The highly customizable CC5 chain also boasts a weight of 11.0 pounds per foot. Flat tops, top rollers, and hex holes in sidebars for conveyors that utilize gravity to roll can be utilized as attachments to the CC5 chain.

Chain Number: CC5 Chain (Car Wash Conveyor Chain)
Pitch Inner Link (P): 6.000″
Pitch Outer Link (P): 6.000″
Pin Diameter (E): 0.687″
Overall Width Cottered (C2): 2.08″
Overall Width Riveted (C1): 2.00″
Sidebar Height (H): 2.50″
Roller Diameter (D): 0.91″
Sidebar thickness (T): 0.312
Bushing Length (X): 2.00″
Links per 10 ft: 20
Avg. Tensile Strength (R): 50000
Average Weight: 11.0 lbs/ft

▍Benefits of Using CC5 Chains

There are many benefits to using CC5 chains, including the following:

1. High strength and durability: CC5 chains are made of high-quality materials and are designed to withstand heavy loads and harsh environments.

2. Long wear life: CC5 chains are built to last, and they can typically handle more wear and tear than other types of chains.

3. Ability to roll on any flat, firm surface: CC5 chains are designed to roll smoothly on any flat, firm surface, which makes them ideal for a variety of applications.

4. Interchangeable with standard bushed roller chains of other manufacturers: CC5 chains are interchangeable with standard bushed roller chains of other manufacturers, which makes them a versatile option for a variety of applications.

5. Available in a variety of sizes and lengths: CC5 chains are available in a variety of sizes and lengths, which makes them a good choice for a variety of applications.

6. Customizable to meet specific requirements: CC5 chains can be customized to meet specific requirements, which makes them a versatile option for a variety of applications.

Using CC5 Chains Benefits

▍Applications of CC5 Chains

The CC5 chain is one of the key elements in the machinery of today’s industrialized society. This is due to its variety of applications, which has also made it one of the most commonly used conveyor chains in the country and the world. The high sidebars on this roller chain will roll on almost any surface, provided it is firm and flat, making it an effective conveyor for auto parts.

While the CC5 chain can be interchanged with other roller chains in many applications, the CC5 chain will provide a more durable and longer-lasting chain for any projects that are operating under challenging conditions. It provides leverage to manure spreaders, car washes, citrus production facilities, and more — where water and other liquids, grimy solids, and bubbles are unavoidable.

CC5 chains are used in a variety of applications, including the following:

(1) Auto manufacturing plants: CC5 chains are used in auto manufacturing plants to transport parts and materials throughout the production process.

(2) Car washes: CC5 car wash conveyor chains are used in car washes to transport vehicles through the washing process.

(3) Farm processing: CC5 chains are used in farm processing plants to transport crops and other materials throughout the production process.

(4) Elevators: CC5 chains are used in elevators to transport people and materials between floors.

(5) Other areas that require efficient power transmission: CC5 chains are used in a variety of other areas that require efficient power transmissions, such as conveyor belts, mining equipment, and construction machinery.

Uses of CC5 Chain Uses of CC5 Chain

▍CC5 Chain Sprockets and CC5 Chain

CC5 chain sprockets are specially designed gears that are used in conjunction with CC5 conveyor chains to transfer power and motion between the chain and other components in a conveyor system. The sprockets are typically made from high-strength materials such as steel or cast iron and feature teeth that mesh with the rollers on the CC5 chain.

The design and size of CC5 chain sprockets are critical to the performance and longevity of a conveyor system. Sprockets must be precisely matched to the pitch and width of the CC5 chain and must also be properly aligned and tensioned to prevent excessive wear and premature failure.

When selecting CC5 chain sprockets, it is important to consider factors such as the load capacity, speed, and direction of the conveyor system, as well as the type of material being conveyed and the environmental conditions in which the system will operate.

Overall, CC5 chain sprockets and CC5 conveyor chains are integral components of many industrial conveyor systems, providing reliable and efficient power transmission for a wide range of applications.

CC5 Chain Sprockets CC5 Chain Sprockets
