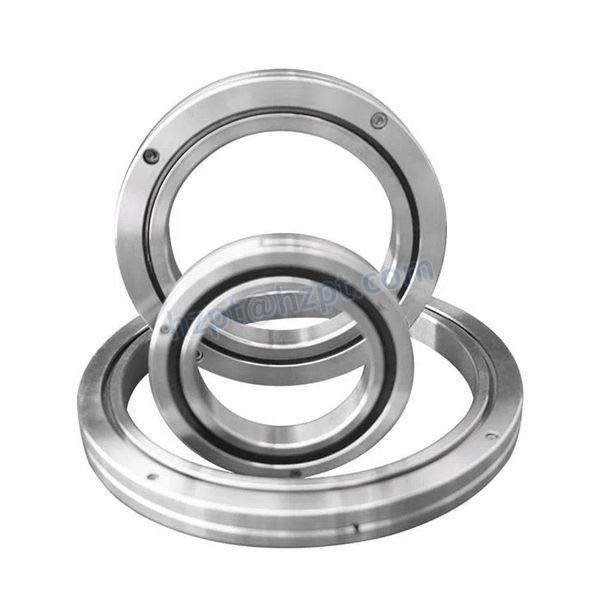

CRB Series Crossed Roller Bearings

CRB series crossed roller bearing series (Split outer ring, with inner ring rotating).CRB series crossed roller bearing series is the primary type of cross roller bearing. Its structure is two split outer rings (connected by bolt or unique rivet, integral design of inner ring), so the inner ring has high rotation accuracy. The integrity of the inner ring is more suitable for high precision of inner ring rotation, and stable rotation accuracy reaches micron level. For example, the rotating position of the machine tool indexing table, the internal rotor drive motor, and so on.

Get a Quote

CRB Series Crossed Roller Bearings

CRB series crossed roller bearing series (Split outer ring, with inner ring rotating).CRB series crossed roller bearing series is the primary type of cross roller bearing. Its structure is two split outer rings (connected by bolt or unique rivet, integral design of inner ring), so the inner ring has high rotation accuracy. The integrity of the inner ring is more suitable for high precision of inner ring rotation, and stable rotation accuracy reaches micron level. For example, the rotating position of the machine tool indexing table, the internal rotor drive motor, and so on.

Technical data

Model No. Outer dimension (mm) Installation dimension (mm) Rated load (Kn) Weight
d D B/C Rmin da Da C C0 kg
CRB3010 30 55 10 0.3 34 44 5.29 6.35 0.12
CRB4010 40 65 10 0.3 44 54 5.98 8.04 0.15
CRB5013 50 80 13 0.6 55 71 14.2 18.4 0.29
CRB6013 60 90 13 0.6 64 81 15.4 21.5 0.33
CRB7013 70 100 13 0.6 75 91 17 25.5 0.38
CRB8016 80 120 16 0.6 86 107 24.3 37.5 0.74
CRB9016 90 130 16 1 98 118 25.9 42.1 0.81
CRB10020 100 150 20 1 108 134 39.4 61.1 1.45
CRB11020 110 160 20 1 118 144 41.2 66.7 1.56
CRB12025 120 180 25 1.5 132 164 59.9 95.4 2.62
CRB13025 130 190 25 1.5 140 172 61 99.8 2.82
CRB14025 140 200 25 1.5 151 183 64.4 108 2.96
CRB15025 150 210 25 1.5 160 192 65 113 3.16
CRB15030 150 230 30 1.5 166 202 85.9 144 5.3
CRB20025 200 260 25 2 208 239 75.3 148 4.0
CRB20030 200 280 30 2 218 262 133 234 6.7
CRB20035 200 295 35 2 221 274 168 282 9.58
CRB25025 250 310 25 2.5 259 290 83.9 183 4.97
CRB25030 250 330 30 2.5 265 310 146 283 8.1
CRB25040 250 355 40 2.5 271 330 215 382 14.8
CRB30025 300 360 25 2.5 310 341 91.9 217 5.88
CRB30035 300 395 35 2.5 318 372 205 408 13.4
CRB30040 300 405 40 2.5 321 381 235 451 17.2
CRB40035 400 480 35 2.5 414 457 165 400 14.5
CRB40040 400 510 40 2.5 423 483 270 590 23.5
CRB40070 400 580 70 2.5 430 532 576 1060 72.4
CRB50040 500 600 40 2.5 517 573 259 648 26.0
CRB50050 500 625 50 2.5 531 592 306 747 41.7
CRB50070 500 680 70 2.5 530 633 653 1330 86.1
CRB60040 600 700 40 3 621 676 287 774 30.6
CRB60070 600 780 70 3 630 734 700 1540 102
CRB600120 600 870 120 3 643 817 1490 2800 274
CRB70045 700 815 45 3 730 785 313 917 46.5
CRB70070 700 880 70 3 731 834 766 1810 115
CRB700150 700 1020 150 3 751 953 1980 3820 478
CRB80070 800 950 70 4 831 907 513 1440 109
CRB800100 800 1030 100 4 840 972 1140 2640 247

CRB Series Crossed Roller Bearing Features

1. Sustain radial, axial, and moment loads

2. Make the best use of space

3. Stable Rotation and high rigidity & running accuracy supplied with average clearance, little clearance, or Even under a pre-load.

Applications

CRB series cross roller bearings are especially suitable for limited space applications, while high rigidity and high rotation accuracy are required. Such as joints and swiveling units of industrial robots, machining center tables, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments, and IC manufacturing machines.

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, thrust ball bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need crossed roller bearings, please get in touch with us.

Our Services

1. Professional bearing manufacturer and exporter for more than ten years;

2. The lowest cost price from our factory with high quality;

3. OEM brand available and customized;

4. Good after-sale service with professional technical engineers.

FAQ

1. Are you a factory or a trading company?

We are a factory, a professional manufacturer of high precision bearings, which has combined researching and developing, producing and marketing together. Taking advantage of the solid industrial basis of Hangzhou city, we grew up rapidly under the guidance of the pioneer in the bearing industry. After years of researching and producing experience, we have developed an integrated system. We have solid technical strength, excellent processing facilities, and a completed quality control system.

2. Do you have a stock for CRB series crossed roller bearings?

Yes, we have many CRB series crossed roller bearings in stock. Some are finished with precision grade P5 or P4. Some are half-finished as parts in stock. If there is an offer request, please contact us for a stocklist.

3. How about your package of CRB series crossed roller bearings?

All small and medium-size CRB series crossed roller bearings are Vacuum-packed + solid paper carton + plywood box packing outside.

4. Can you arrange shipment for customers?

Yes, we can. Depending on different requirements on delivery time, we can choose parcel service (FedEx, UPS, TNT, etc., 5-7 days), by air, or by sea for delivery.
