DSY Series Worm Gear Reducer

speed reducer

DSY

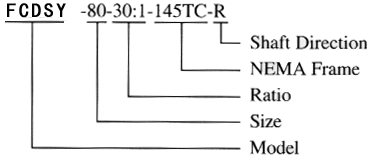

Shaft Direction
speed reducer

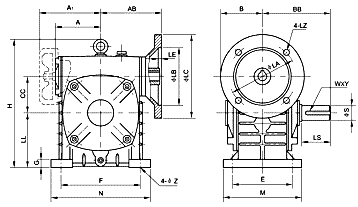

SIZE RATIO A A1 AB BB CC E F M N H HL LL G Z OUTPUT SHAFT NEMA Frame
S LS T×V
60 5:1
10:1
15:1
20:1
30:1
40:1
50:1
60:1
3.09 4.43 4.33 2.362 4.13 4.72 5.12 5.91 8.07 5.91 3.54 0.75 0.43 1.000 1.97 1/4×1/8 56C 140TC
70 3.76 4.63 5.12 2.756 4.53 5.91 5.91 7.48 9.25 6.89 4.13 0.87 0.59 1.125 2.36 1/4×1/8 56C 140TC
80 4.11 5.84 5.51 3.150 5.31 7.09 6.69 8.66 10.43 7.87 4.72 0.87 0.59 1.375 2.56 5/6×5/32 56C 140TC 180TC
100 4.78 6.51 6.10 3.937 6.10 8.66 7.48 10.24 12.87 9.84 5.91 0.98 0.59 1.500 2.95 3/8×3/16 56C 140TC 180TC
120 6.10 8.26 7.48 7.28 4.724 7.09 10.24 9.06 12.60 15.28 11.81 7.09 1.18 0.71 1.750 3.35 3/8×3/16 180TC 210TC
135 6.89 9.06 8.32 8.27 5.315 7.87 11.42 9.84 13.78 17.52 13.78 8.46 1.18 0.71 2.250 3.74 1/2×1/4 180TC 210TC
155 7.64 10.24 9.35 9.92 6.102 8.66 12.60 11.02 15.35 19.02 15.35 9.25 1.38 0.79 2.500 4.33 5/8×5/16 180TC 210TC
175 8.78 11.42 11.02 10.31 6.890 9.84 13.78 12.20 16.93 21.26 17.13 10.24 1.46 0.79 2.750 4.33 5/8×5/16 180TC 210TC 250TC
