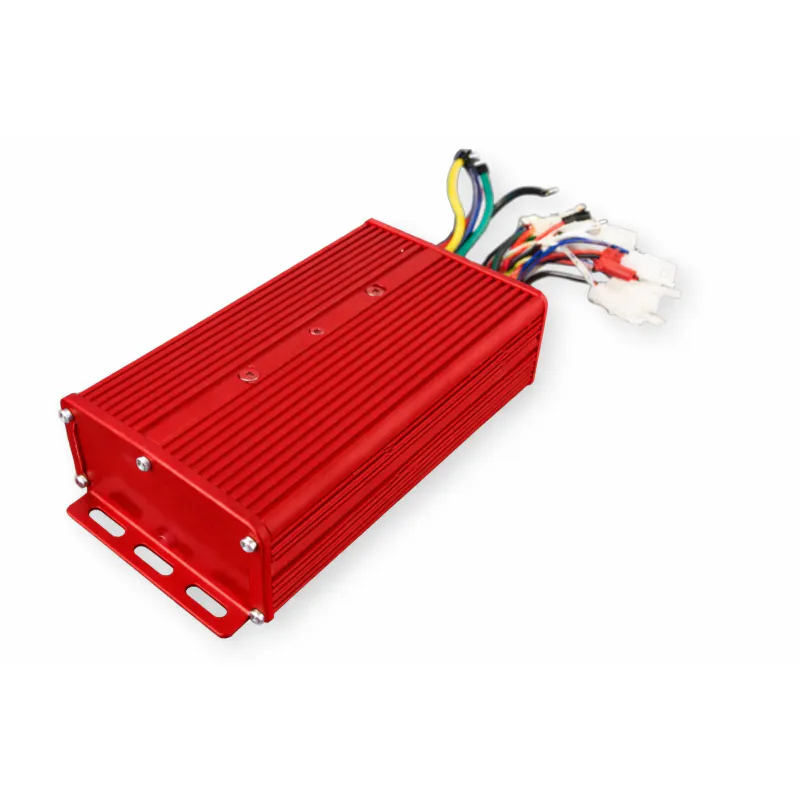

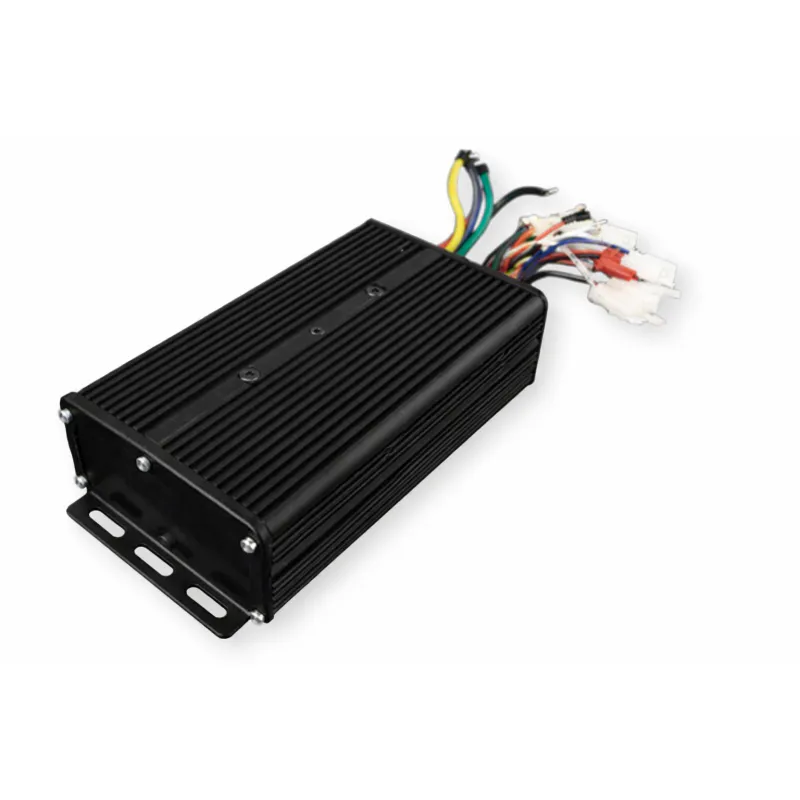

EP-0.8-1.5kW Electric Vehicle Motor Controller
The 0.8–1.5kW Electric Vehicle Permanent Magnet Synchronous Motor Controller is specifically designed for use in a range of electric vehicles, including electric motorcycles, tricycles, electric vans, and low-speed cars. This controller integrates advanced fault protection technologies and offers high-efficiency control to ensure smooth and reliable operation. It supports a broad range of communication options such as RS232, RS485, and CAN, enabling versatile system integration and real-time monitoring of vehicle status.
1. Technical Specifications of Electric Vehicle Motor Controller
| Rated Power (kW) | Rated Voltage (V) | Rated Current (A) | Operating Temperature (°C) | Cooling Method |
|---|---|---|---|---|
| 0.8 | 48/60/72 | 50/40/35 | -15～55 | Natural Cooling |
| 1.0 | 48/60/72 | 60/50/40 | -15～55 | Natural Cooling |
| 1.2 | 48/60/72 | 80/60/50 | -15～55 | Natural Cooling |
| 1.5 | 48/60/72 | 90/80/60 | -15～55 | Natural Cooling |

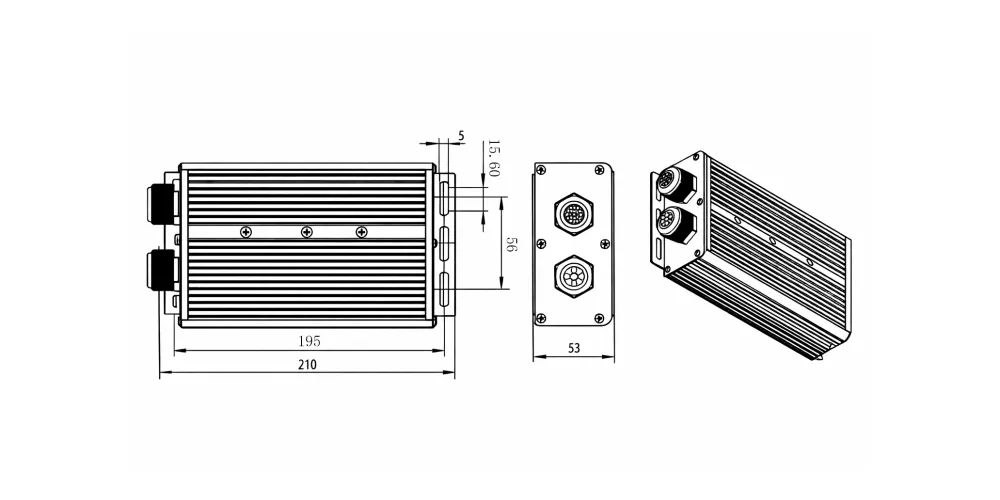

0.8-1.5kW Electric Vehicle Motor Controller Dimensions
2. Working Principle of Electric Vehicle Motor Controller
The core working principle of the EP-0.8-1.5kW Electric Vehicle Motor Controller for electric vehicle applications centers on advanced Sine Wave Vector Control technology. Unlike basic square wave controllers that switch current abruptly, causing noise and torque ripple, our system modulates the current fed into the motor windings to create a perfectly rotating magnetic field. This is achieved through high-speed microprocessors that continuously monitor the rotor's position using compatible sensors—whether they are Hall effect sensors, magnetic encoders, or resolvers. By calculating the precise angle of the rotor in real-time, the controller adjusts the phase voltages to ensure the magnetic field of the stator is always at an optimal 90-degree angle to the rotor's permanent magnets. This results in maximum torque generation per ampere of current, which is the definition of efficiency in an electric vehicle permanent magnet synchronous motor drive controller.
Furthermore, the intelligence embedded within our ev motor controller goes beyond simple commutation. The system employs a sophisticated state machine for fault management, effectively acting as a vigilant guardian over the entire drivetrain. It continuously monitors external input statuses (such as throttle position, brake signals, and communication commands via RS232, RS485, or CAN bus) and internal health parameters (like temperature and bus voltage). One of the standout features enabled by this control strategy is the anti-slip slope function. When a vehicle stops on an incline, the controller detects the potential for rollback and automatically applies a holding torque, ensuring safety without the driver needing to engage the mechanical brake instantly. This seamless integration of logic and power electronics makes our motor controller in electric vehicle applications not just a power switch, but a comprehensive energy management system that optimizes the interaction between the battery, the motor, and the driver's intent.
3. Product materials for 0.8-1.5kW Electric Vehicle Motor Controllers
As an electric vehicle motor controller manufacturer, we understand that reliability is non-negotiable for electric vehicle motors and controllers. Therefore, the EP-0.8-1.5kW Electric Vehicle Motor Controller series is constructed using premium materials and an automotive-grade design ethos. The enclosure is manufactured from high-strength die-cast aluminum alloy, which serves a dual purpose: it provides exceptional structural rigidity to withstand the vibrations inherent in vehicle operation, and it acts as a highly efficient heat sink.
The finned design maximizes surface area for natural cooling, ensuring the controller maintains optimal operating temperatures between -15°C and 55°C without the need for failure-prone external fans. This robust thermal management is crucial for maintaining consistent performance during long operational cycles found in logistics and public transport applications.
Internally, the component selection process follows strict automotive standards. We utilize high-quality power MOSFETs and capacitors capable of handling high current surges, ensuring the Electric Vehicle Controller delivers a large starting torque for superior hill-climbing ability. The entire PCB assembly undergoes rigorous testing and is protected against environmental factors. This level of sealing is achieved through precision machining of the mating surfaces and the use of high-grade gaskets and waterproof connectors.
4. Features and functions of 0.8-1.5kW Electric Vehicle Motor Controller.
4.1. Electric Vehicle Motor Controller's Features
- Advanced and efficient vector control technology improves system efficiency and extends driving range.
- Smooth control with minimal torque ripple, effectively reducing motor vibration and noise;
- High starting torque significantly enhances hill-climbing performance.
- Anti-slip slope design ensures safety and stability.
- Automotive-grade design and component selection ensure high system reliability.
- IP65 protection rating for dust and water resistance.
4.2. Electric Vehicle Motor Controller's Functions
- Built-in multiple protection mechanisms to effectively ensure system safety;
- Optional position sensors (Hall effect, magnetic encoder, rotary transformer, etc.);
- Intelligent fault diagnosis and management for system status, enabling effective monitoring of operational conditions and external input states;
- Online monitoring and parameter configuration via computer;
- Support for communication protocols such as RS232, RS485, and CAN, with optional configurations.
5. Electric Vehicle Motor Controller Application Scenarios
The EP-0.8-1.5kW Permanent Magnet Synchronous Motor for Electric Vehicles is a high-performance motor that is ideal for various electric vehicle applications, offering energy efficiency and excellent power delivery. Its features make it suitable for:
- Electric Motorcycles: This motor offers efficient power output for electric motorcycles, providing a smooth and quiet ride, perfect for urban environments.
- Electric Golf Carts: The motor ensures efficient, low-noise performance for electric golf carts, enhancing battery life and range while maintaining consistent operation.
- Electric Three-Wheelers: Ideal for electric three-wheeled vehicles used for short-distance cargo or passenger transportation, offering a balance of power and efficiency.
- Low-Speed Electric Vehicles: The motor is perfect for low-speed electric vehicles, offering reliable power for urban commuting with minimal environmental impact.
Utilizing cutting-edge permanent magnet technology, the EP-0.8-1.5kW Electric Vehicle Motor Controller delivers reliable and efficient performance for a wide range of applications, making it an excellent choice for urban mobility and light-duty electric transportation.
6. About EVER-POWER
Professional team: Our team of domestic top-tier experts, many holding advanced degrees, brings deep R&D capabilities in motor design, electromagnetic analysis, and intelligent drive systems to every project.

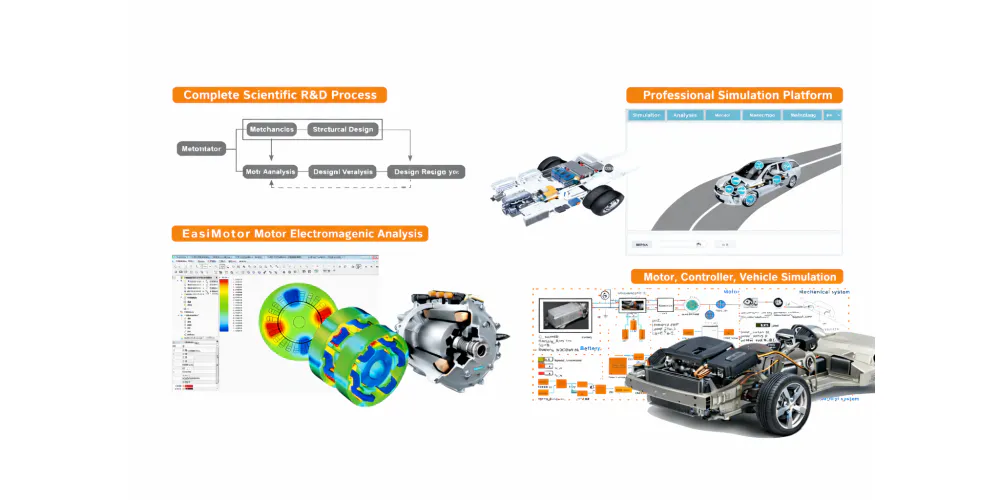

Backed by a complete, scientific R&D process, we begin with your vehicle parameters to define motor specifications, followed by precise performance calculations, detailed design, and comprehensive simulation—ensuring optimal performance before a single prototype is built.Superior Performance & Efficiency: Our permanent magnet synchronous motor technology delivers the "high power density and high efficiency" that defines the next generation of EVs. As demonstrated by our products, we achieve peak efficiencies exceeding 96%, ensuring maximum range and performance for your vehicles—from low-speed logistics trikes to passenger cars.
This excellence is rooted in our advanced electromagnetic field analysis using EasiMotor software, which allows us to simulate magnetic flux distribution, optimize thermal management, and validate torque characteristics at the design stage, minimizing losses and maximizing output.End-to-End Quality Assurance: Quality is our lifeblood. We operate under a rigorous quality management system certified to IATF 16949 and ISO 9001 standards. From our advanced manufacturing lines with automated processes to our comprehensive R&D-level testing platforms, we guarantee reliability and consistency in every motor we ship.
Our professional and efficient simulation platform enables full-system validation of the motor, controller, and vehicle dynamics—allowing us to predict real-world performance, optimize control algorithms, and ensure seamless integration across the entire drivetrain.Tailored Solutions, Not Just Products: We understand that one size doesn't fit all. Our scientific design process starts with your vehicle's specific parameters, allowing us to match or custom-develop the perfect motor and controller system for your unique application, whether it's for a main drive, air compressor, oil pump, or other auxiliary systems.
With end-to-end simulation and virtual prototyping, we can rapidly iterate designs, reduce development cycles, and deliver customized solutions that meet your exact requirements—without compromising on quality or performance.Proven Track Record: With a modern 80,000 sqm production base and a workforce of over 800 professionals, we have a proven history of successful partnerships with major OEMs.
Whether your vehicle operates in dusty construction sites or rainy urban streets, the internal electronics remain isolated and secure. Our manufacturing system, backed by ISO9001 and IATF16949 certifications, ensures that every controller leaving our 80,000 square meter facility meets the highest global standards for quality and durability.
7. Related Products & Accessories
Gearboxes & Transmission
High-precision transmission gears designed to pair perfectly with our motors for optimal torque transfer.

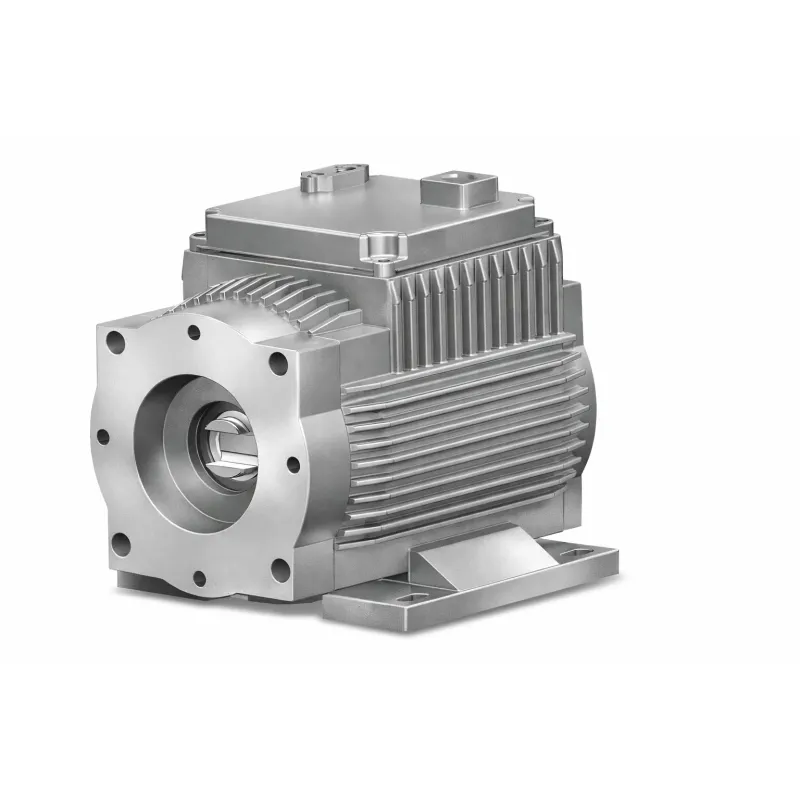

Electric Motor for Steering Pump
Specialized motors ensure responsive and energy-efficient power steering for heavy-duty EVs.

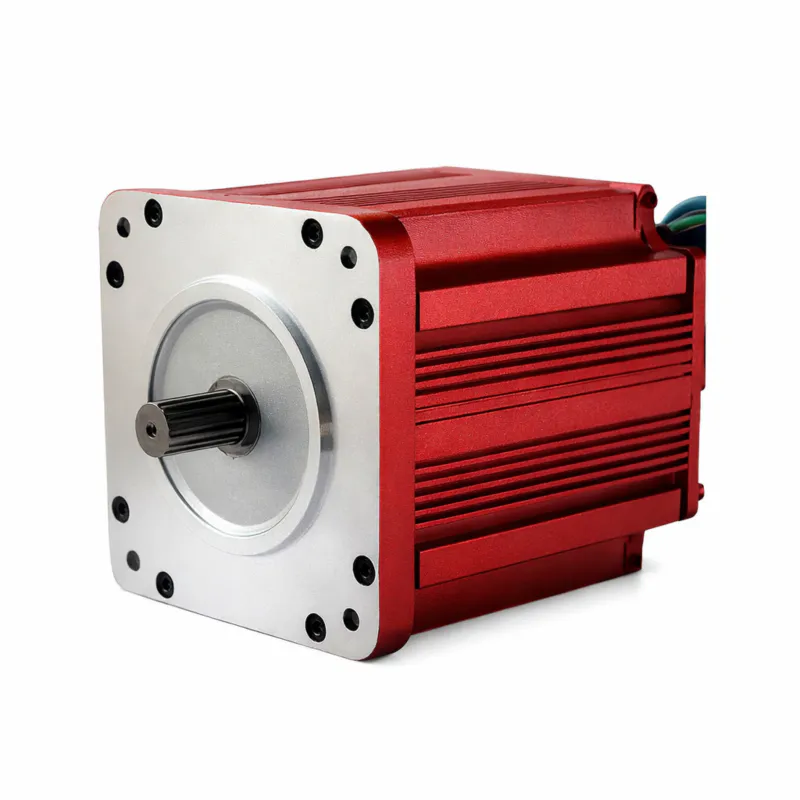

PMSM Drive Motors
A full range of Permanent Magnet Synchronous Motors from 1kW to 20kW specifically for EV propulsion.
8. FAQ:
Q1. How do I select the correct electric vehicle motor controller for my specific golf cart model?
A1. To choose the right unit, verify your motor's rated power (e.g., 1.5kW) and voltage (48V or 60V). Our EP series supports these standard voltages and ensures compatibility with various golf cart chassis.
Q2. What are the main benefits of using a vector control Electric Vehicle Motor Controller over a square wave type?
A2. Vector control (FOC) provides smoother acceleration, significantly reduces motor noise, and improves overall system efficiency by managing torque and flux more precisely than older square wave controllers.
Q3. Can your motor controller for an electric vehicle prevent my delivery tricycle from rolling back on steep hills?
A3. Yes, our controllers feature an advanced anti-slip slope function. This intelligent feature detects rollback on inclines and applies holding torque to keep the vehicle stationary, enhancing safety.
Q4. Which communication protocols are supported by your Electric Vehicle Motor Controller for system integration?
A4. We offer flexibility for system integrators; our controllers can be configured with RS232, RS485, or CAN bus communication protocols, allowing seamless data exchange with dashboards and BMS.
Q5. Is the bldc motor controller for electric vehicles waterproof enough for use in rainy tropical climates?
A5. Absolutely. Our controllers are rated IP65, meaning they are fully protected against dust ingress and low-pressure water jets, making them suitable for wet and humid environments found globally.
Q6. Do you offer computer software for monitoring the status of the Electric Vehicle Controller during operation?
A6. Yes, we provide PC-based monitoring software that allows technicians to configure parameters, run diagnostics, and view real-time data, ensuring optimal tuning for your specific vehicle requirements.
Q7. How does the startup torque of your electric vehicle charge controller system compare to competitors?
A7. Our drive controllers are engineered for large starting torque, significantly superior to standard controllers. This ensures powerful acceleration even when the vehicle is fully loaded with cargo.
