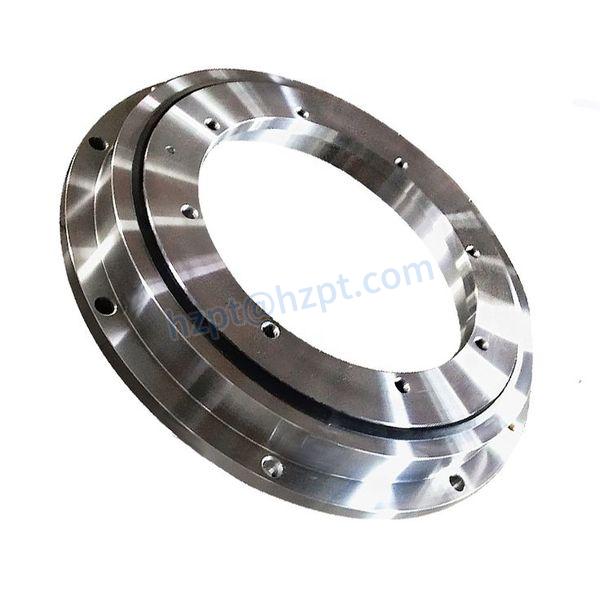

Flange Slewing Bearings
The series of turntable bearing slewing bearings with flanges on the outer wheel make axial positioning simple. The bearing seat is no longer needed and has become more economical. A steel ball with a small outer diameter is used to obtain the low friction torque, high rigidity, and good rotation accuracy of the bearing. The use of hollow shafts ensures lightweight and wiring space. Flanged slewing bearings mainly bear radial loads, but they can also handle radial and axial loads simultaneously.

Product parameters

(1) Model parameters of external gear flange slewing bearing

(2) Model parameters of inner gear flange slewing table bearing

(3) Model parameters of gearless flange slewing table bearings

(4) Reverse flange slewing table bearing model parameters

The flange slewing bearing has the same structure with four points contact ball slewing bearing, but the weight is lighter; the outer or inner ring of the flanged slewing bearing has the "L" edge, like a flange. That's why we called it flange type bearing. A flange light slewing bearing ring is also used for some applications which have a weight limit for the bearing. The weight for the flange type slewing ring is much lower than the standard type. The materials of the flange slewing ring are mainly 50Mn, 42CrMo, and C45.

The flange slewing bearing rings has been widely used in many applications:

1. Food machinery

2. Canning machinery

3. Environmental machinery

4. Car parking systems, etc

Company Information

We are a professional manufacturer and supplier of slewing bearings; We make all kinds of slewing bearings, such as four-point contact ball slewing bearings, single row cross roller slewing bearings, double-row ball slewing bearings, three-row roller slewing bearings, flange slewing bearings, light series slewing bearing. We are capable of designing and manufacturing non-standard slewing bearings independently. Our products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. With eight years of experience, our products are widely exported to the USA, Germany, Japan, Spain, Canada, Italy, France, Finland, Korea, India, Singapore, Brazil, Australia, etc. If you need slewing bearing, please feel free to contact us.
