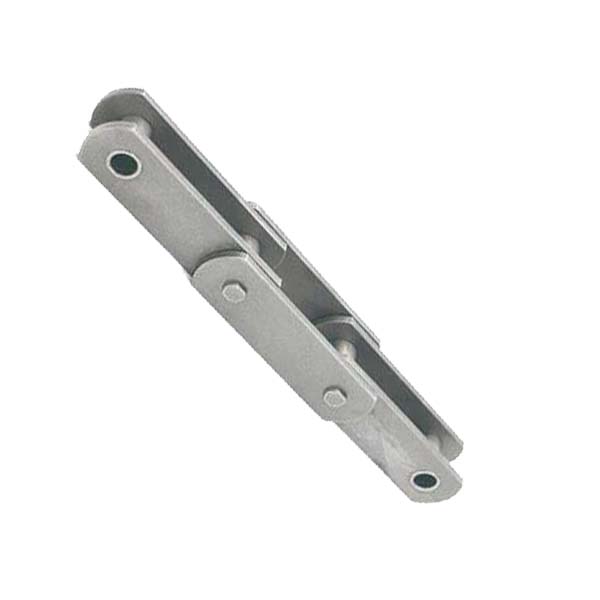

FV Series Conveyor Chains FV40 FV63 FV90 FV112 FV140 FV180 FV250 FV315 Chain
The FV series conveyor chain is a bush chain that is designed for long-distance conveying at relatively low speeds. It is available in a variety of sizes and materials, making it suitable for a wide range of applications. The FV series conveyor chain is made up of a series of links that are connected by pins. The pins are held in place by bushes, which are small, cylindrical pieces of metal that fit snugly into the holes in the links. The bushes help to keep the pins in place and prevent them from rattling or coming loose.
FV Series Conveyor Chains FV40 FV63 FV90 FV112 FV140 FV180 FV250 FV315 Chain
The FV series conveyor chain is a bush chain that is designed for long-distance conveying at relatively low speeds. It is available in a variety of sizes and materials, making it suitable for a wide range of applications. The FV series conveyor chain is made up of a series of links that are connected by pins. The pins are held in place by bushes, which are small, cylindrical pieces of metal that fit snugly into the holes in the links. The bushes help to keep the pins in place and prevent them from rattling or coming loose.
The FV series conveyor chain is available in a variety of sizes, with pitches ranging from 40 to 250 millimeters. The pitch is the distance between the centers of two consecutive pins. The size of the chain is determined by the pitch and the number of links in the chain.
The FV series conveyor chain is available in a variety of materials, including steel, stainless steel, and plastic. The material of the chain is selected based on the application. For example, steel chains are often used in harsh environments, while stainless steel chains are often used in food and beverage applications.
The FV series conveyor chain is a versatile and durable conveyor chain that is suitable for a wide range of applications. It is available in a variety of sizes and materials, making it easy to find the right chain for your needs.

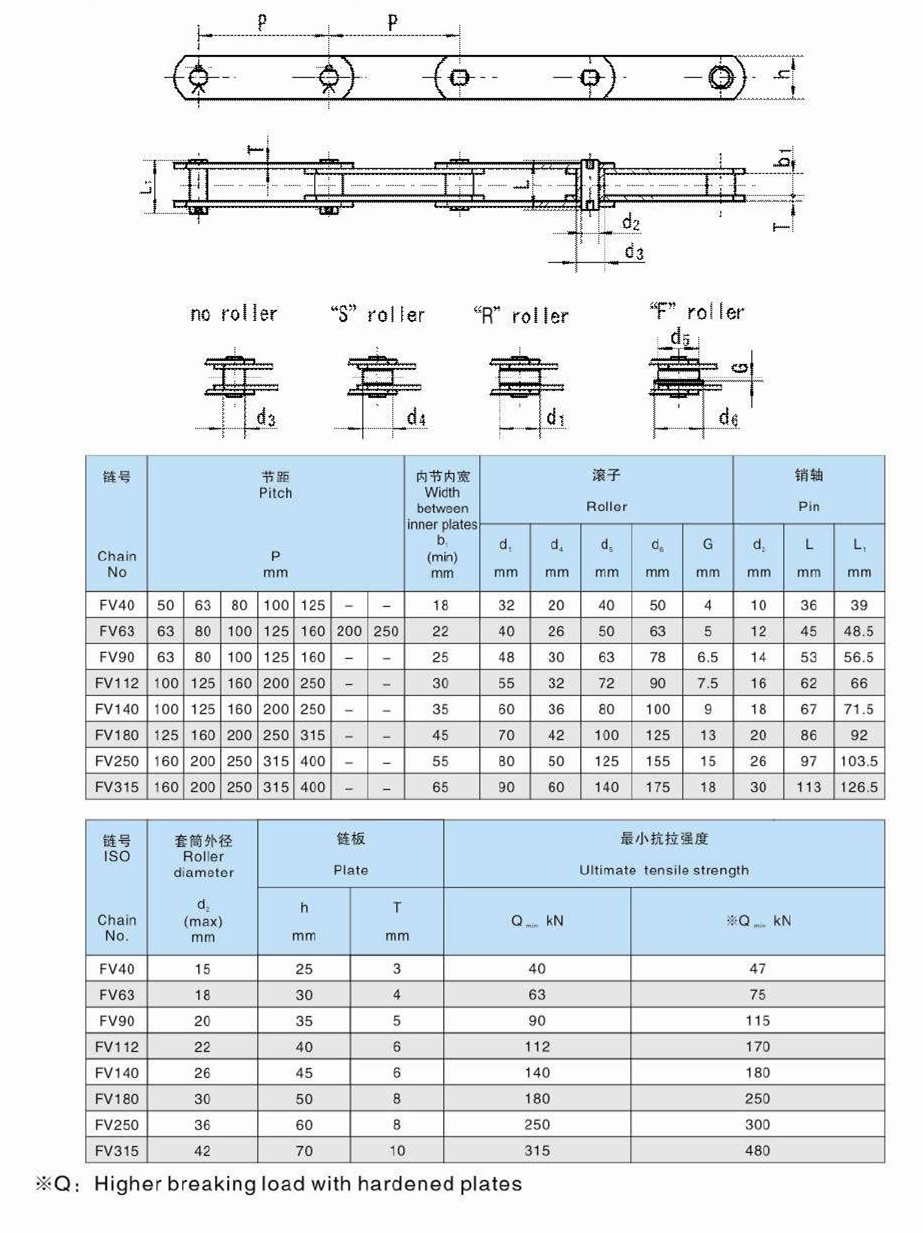

▍FV Series Conveyor Chain Dimensions
Chain No. | Pitch | Roller dimension | Bush diameter | ||||||||||
P | d1 max | d4 max | d5 max | d6 max | G | d3 max | |||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
FV40 Chain | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | - | - | 32.0 | 20.0 | 40.0 | 50.0 | 4.0 | 15.0 |
FV63 Chain | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | - | 40.0 | 26.0 | 50.0 | 63.0 | 5.0 | 18.0 |
FV90 Chain | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 48.0 | 30.0 | 63.0 | 78.0 | 6.5 | 20.0 |
FV112 Chain | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | - | 55.0 | 32.0 | 72.0 | 90.0 | 7.5 | 22.0 |
FV140 Chain | 63.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | - | 60.0 | 36.0 | 80.0 | 100.0 | 9.0 | 26.0 |
FV180 Chain | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | - | 70.0 | 42.0 | 100.0 | 125.0 | 13.0 | 30.0 |
FV250 Chain | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | - | 80.0 | 50.0 | 125.0 | 155.0 | 15.0 | 36.0 |
FV315 Chain | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | - | - | 90.0 | 60.0 | 140.0 | 175.0 | 18.0 | 42.0 |
Chain No. | Width between inner plates | pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | ||
b1 min | d2 max | L min |
Lc max | h2 max | T max |
Q min |
*Q min | |
mm | mm | mm | mm | mm | mm | kN/lbf | kN/lbf | |
FV40 Chain | 18.0 | 10.0 | 36.0 | 39.0 | 25.0 | 3.0 | 40.0/9091 | 47.0/10681 |
FV63 Chain | 22.0 | 12.0 | 45.0 | 48.5 | 30.0 | 4.0 | 63.0/14317 | 75.0/17045 |
FV90 Chain | 25.0 | 14.0 | 53.0 | 56.5 | 35.0 | 5.0 | 90.0/20453 | 115.0/26136 |
FV112 Chain | 30.0 | 16.0 | 62.0 | 66.0 | 40.0 | 6.0 | 112.0/25452 | 170.0/38636 |
FV140 Chain | 35.0 | 18.0 | 67.0 | 71.5 | 45.0 | 6.0 | 140.0/31815 | 180.0/40908 |
FV180 Chain | 45.0 | 20.0 | 86.0 | 92.0 | 50.0 | 8.0 | 180.0/40908 | 250.0/56817 |
FV250 Chain | 55.0 | 26.0 | 97.0 | 103.5 | 60.0 | 8.0 | 250.0/56817 | 300.0/68181 |
FV315 Chain | 65.0 | 30.0 | 113.0 | 126.5 | 70.0 | 10.0 | 315.0/71591 | 480.0/109089 |
*Q denotes the tensile strength after hardened
Chain No. | Pitch | Roller diameter | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Weight per meter | ||||||
P | d1 max | d3 max | d4 max | d5 max | d6 max | G | d2 max | L max |
Lc max | h2 max | t/T max | Q min |
q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
FV40F3-P-63 | 63.0 | 32.0 | - | - | - | - | - | 10.0 | 38.1 | 41.5 | 45.0 | 4.0 | 80.0/17985 | 2.13 |
FV63F11-P-100 | 100.0 | 40.0 | - | - | - | - | - | 14.0 | 37.0 | - | 30.0 | 4.0 | 60.0/13488 | 3.89 |
FV63F12-P-125 | 125.0 | 40.0 | - | - | - | - | - | 10.0 | 44.5 | 48.0 | 30.0 | 4.0 | 63.0/14162 | 3.84 |
FV90-B-50 | 50.0 | - | 20.0 | - | - | - | - | 14.0 | 52.0 | 56.4 | 35.0 | 5.0 | 90.0/20453 | 6.10 |
FV90F9-B-100 | 100.0 | - | 20.0 | - | - | - | - | 14.0 | 60.2 | 64.6 | 35.0 | 6.0/8.0 | 90.0/20453 | 6.00 |
FV90F10-B-100 | 100.0 | - | 20.0 | - | - | - | - | 14.0 | 60.2 | 64.6 | 40.0 | 6.0/8.0 | 90.0/20453 | 6.83 |
FV112-S-63 | 63.0 | - | - | 32.0 | - | - | - | 16.0 | 63.0 | 67.5 | 40.0 | 6.0 | 112.0/25454 | 8.80 |
FV140-B-80 | 80.0 | - | 26.0 | - | - | - | - | 18.0 | 67.0 | 72.5 | 45.0 | 6.0 | 140.0/31473 | 8.55 |
FV140-PF1-125 | 125.0 | 65.0 | - | - | - | - | - | 18.0 | 67.0 | 71.5 | 45.0 | 6.0 | 140.0/31473 | 12.76 |
FV140F27-F-125 | 125.0 | - | - | - | 80.0 | 93.5 | 9.5 | 18.0 | 68.4 | 73.0 | 45.0 | 6.4 | 140.0/31473 | 17.00 |
FV180-B-150 | 150.0 | - | 30.0 | - | - | - | - | 20.0 | 85.5 | 92.0 | 50.0 | 8.0 | 180.0/40492 | 8.24 |
▍FV Series Conveyor Chains with Attachments
Chain No. | P | L | G | d4 | F | W | h4 |
mm | mm | mm | mm | mm | mm | mm | |
FV40 Chain | 50.0 | △ | 45.0 | 6.5 | 25.0 | 40.5 | 20.0 |
63.0 | △ | 31.0 | |||||
80.0 | 25.0 | 45.0 | |||||
100.0 | 30.0 | 50.0 | |||||
125.0 | 30.0 | 60.0 | |||||
FV63 Chain | 63.0 | △ | 40.0 | 8.4 | 34.0 | 50.0 | 30.0 |
80.0 | 25.0 | 45.0 | |||||
100.0 | 30.0 | 50.0 | |||||
125.0 | 40.0 | 60.0 | |||||
160.0 | 50.0 | 70.0 | |||||
FV90 Chain | 63.0 | △ | 30.0 | 8.4 | 40.0 | 64.0 | 35.0 |
80.0 | 25.0 | 45.0 | |||||
100.0 | 30.0 | 50.0 | |||||
125.0 | 40.0 | 60.0 | |||||
160.0 | 50.0 | 70.0 | |||||
200.0 | 60.0 | 80.0 | |||||
250.0 | 65.0 | 85.0 | |||||
FV112 Chain | 100.0 | 30.0 | 50.0 | 11.0 | 50.0 | 70.0 | 40.0 |
125.0 | 40.0 | 65.0 | |||||
160.0 | 50.0 | 75.0 | |||||
200.0 | 65.0 | 90.0 | |||||
250.0 | 80.0 | 105.0 |
* △Attachments with one hole
Chain No. | P | L | G | d4 | F | W | h4 |
mm | mm | mm | mm | mm | mm | mm | |
FV140 Chain | 100.0 | 30.0 | 55.0 | 11.0 | 50.0 | 81.0 | 45.0 |
125.0 | 40.0 | 65.0 | |||||
160.0 | 50.0 | 75.0 | |||||
200.0 | 65.0 | 90.0 | |||||
250.0 | 80.0 | 105.0 | |||||
FV180 Chain | 125.0 | 35.0 | 63.0 | 13.0 | 64.0 | 91.0 | 45.0 |
160.0 | 50.0 | 80.0 | |||||
200.0 | 65.0 | 95.0 | |||||
250.0 | 80.0 | 110.0 | |||||
315.0 | 100.0 | 130.0 | |||||
FV250 Chain | 160.0 | 50.0 | 80.0 | 14.0 | 69.0 | 106.0 | 55.0 |
200.0 | 65.0 | 95.0 | |||||
250.0 | 80.0 | 110.0 | |||||
315.0 | 100.0 | 130.0 | |||||
400.0 | 100.0 | 130.0 | |||||
FV315 Chain | 160.0 | △ | 50.0 | 14.0 | 85.0 | 130.0 | 60.0 |
200.0 | 65.0 | 95.0 | |||||
250.0 | 80.0 | 110.0 | |||||
315.0 | 100.0 | 130.0 | |||||
400.0 | 100.0 | 130.0 |
* △Attachments with one hole
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max |
Lc max | Q min |
Q0 | q | |
mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
FV40A2.02-P-40 | 40.00 | 32.00 | 18.00 | 10.00 | 36.0 | 40.0 | 40.0/8992 | 44.0 | 4.98 |
FV63A2F4-S-100 | 100.00 | 26.00 | 22.00 | 12.00 | 46.0 | 50.0 | 63.0/14172 | 69.3 | 3.95 |
FV90A2F1-P-85 | 85.00 | 50.00 | 25.00 | 14.00 | 52.0 | 56.5 | 90.0/20250 | 100.0 | 10.15 |
FV90A2F1-P-100 | 100.00 | 50.00 | 25.00 | 14.00 | 52.0 | 56.5 | 90.0/20250 | 100.0 | 8.74 |
FV112F1A1-P-100 | 100.00 | 55.00 | 30.00 | 16.00 | 71.0 | 76.5 | 180.0/40492 | 200.0 | 14.30 |
FV112F1A1-P-80 | 80.00 | 55.00 | 30.00 | 16.00 | 71.0 | 76.5 | 180.0/40492 | 200.0 | 16.60 |
FV112F14A2-P-125 | 125.00 | 55.00 | 30.00 | 16.00 | 63.0 | 67.5 | 112.0/25454 | 123.2 | 10.00 |
FV180F21A2-P-160 | 160.00 | 80.00 | 45.00 | 20.00 | - | 90.0 | 180.0/40492 | 200.0 | 20.40 |
FV250K2F8-P-250 | 250.00 | 80.00 | 55.00 | 26.00 | - | 107.5 | 250.0/56817 | 275.0 | 22.60 |
Chain No. | P | L1 | G | F | W | h4 | h2 | d4 | T |
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
FV40A2.02-P-40 | 40.00 | 17.00 | 30.00 | 60.0 | 90.0 | 20.0 | 25.0 | 6.4 | 3.00 |
FV63A2F4-S-100 | 100.00 | 30.00 | 50.00 | 86.0 | 106.0 | 20.0 | 30.0 | 10.0 | 4.00 |
FV90A2F1-P-85 | 85.00 | 40.00 | 60.00 | 80.0 | 109.2 | 40.0 | 35.0 | 9.5 | 5.00 |
FV90A2F1-P-100 | 100.00 | 40.00 | 60.00 | 80.0 | 109.2 | 40.0 | 35.0 | 9.5 | 5.00 |
FV112F1A1-P-100 | 100.00 | △ | 50.00 | 120.0 | 164.0 | 50.0 | 40.0 | 15.0 | 8.00 |
FV112F1A1-P-80 | 80.00 | △ | 50.00 | 120.0 | 164.0 | 50.0 | 40.0 | 15.0 | 8.00 |
FV112F14A2-P-125 | 125.00 | 40.00 | 65.00 | 100.0 | 130.0 | 40.0 | 40.0 | 11.0 | 6.00 |
FV180F21A2-P-160 | 160.00 | 50.00 | 80.00 | 140.0 | 180.0 | 40.0 | 50.0 | 14.0 | 8.00 |
FV250K2F8-P-250 | 250.00 | 80.00 | 120.00 | 140.0 | 191.0 | 50.0 | 60.0 | 14.0 | 8.00 |
* △Attachments with one hole
▍FV Series Conveyor Chain Design Features
The FV series conveyor chain is a bush chain that is designed for long-distance conveying at relatively low speeds. It is available in a variety of sizes and materials, making it suitable for a wide range of applications.
The FV series conveyor chain has a number of design features that make it ideal for long-distance conveying. These features include:
1. Large rollers: The large rollers in the FV series conveyor chain help to reduce friction and wear, which can extend the life of the chain.
2. Wide plates: The wide plates in the FV series conveyor chain provide a large bearing surface, which helps to distribute the load evenly and prevent the chain from flexing or bending.
3. Strong pins: The strong pins in the FV series conveyor chain help to keep the chain together and prevent it from breaking or coming apart.
4. Durable bushes: The durable bushes in the FV series conveyor chain help to keep the pins in place and prevent them from rattling or coming loose.
The FV series conveyor chain is a versatile and durable conveyor chain that is suitable for a wide range of applications. It is available in a variety of sizes and materials, making it easy to find the right chain for your needs.
▍FV Series Conveyor Chains Common Applications
The FV series conveyor chains are well-suited for a wide variety of heavy-duty industrial applications that require efficient, reliable, and durable material handling solutions. Here are some of the common applications where these FV series conveyor chains are used:
Automotive Industry: The FV series conveyor chains are often used in automotive assembly lines to move car parts through the production process. They can handle heavy loads and are able to operate at high speeds, making them ideal for this application.
Food Processing Industry: The pre-lubricated and corrosion-resistant properties of the FV series conveyor chains make them suitable for use in the food processing industry. They are often used to transport food products through processing and packaging lines.
Packaging Industry: The FV series conveyor chains are commonly used in packaging applications, where they are used to transport boxes, cartons, and other packaged products through the production process.
Material Handling Industry: The FV series conveyor chains are also used in a variety of material handling applications, such as bulk material handling, pallet handling, and container handling. They can handle heavy loads and are able to operate in harsh environments.
Mining Industry: The FV series conveyor chains are used in mining applications to transport heavy loads of ore and other materials through the production process. They are able to operate in harsh environments and can handle the heavy loads required in mining operations.
▍Conveyor Chain Sprockets and Conveyor Chains
Conveyor chain sprockets are used to transfer power to conveyor chains. They are wheels that have teeth that match a conveyor chain to transmit motion. Conveyor chain sprockets come in a variety of sizes and materials to suit the specific application.
The most common type of conveyor chain sprocket is the single-strand sprocket. This type of sprocket has a single row of teeth and is typically used for low-speed applications. Double-strand sprockets have two rows of teeth and are used for high-speed applications. Triple-strand sprockets have three rows of teeth and are used for very high-speed applications.
Conveyor chain sprockets can be made from a variety of materials, including steel, aluminum, and plastic. Steel sprockets are the most common type of sprocket and are used for general-purpose applications. Aluminum sprockets are lighter than steel sprockets and are used for applications where weight is a concern. Plastic sprockets are used for applications where corrosion resistance is important.
When choosing a conveyor chain sprocket, it is important to consider the following factors:
- The type of conveyor chain that will be used
- The speed of the conveyor
- The load that the conveyor chain sprocket will need to carry
- The environment in which the conveyor chain sprocket will be used
Conveyor chain sprockets are an important part of any conveyor system. By choosing the right sprocket for the application, you can ensure that your conveyor system will operate efficiently and reliably. As a professional transmission parts manufacturer and supplier in China, HZPT offers a variety of high-quality drive chains and sprockets for sale. Contact now!
▍FV Series Conveyor Chain Manufacturers
HZPT is specialized in producing chains and sprockets and other transmission parts companies. The company owns CNC lathes, hobbing machines, machining centers, broaching machines, induction hardening equipment, and other processing equipment. Our main production sprocket, the United States standard sprocket, the European standard sprocket, the stainless steel sprocket, the taper lock sprocket, the conveyor sprocket, sugar mill chains, palm oil chain, leaf chain, 81X chain, steel pintle chain, agricultural CA550 chain, X458 chain, the agricultural chain with attachments, and other transmission products, products used in various types of agricultural machinery, construction machinery, Food machinery and so on.
We also produce special chains as per the customer's sample or drawing. Please feel free to contact us and our goods are most competitive in your market. If you have any need of our chains products, please feel free to let me know your detailed inquiry, and we will offer our best price and service for you asap.
▍FAQ
Q1: What is an FV series conveyor chain?
A: An FV series conveyor chain is a type of roller chain specifically designed for use in conveyor systems. It is typically used in applications where heavy loads need to be transported over long distances.
Q2: What materials are FV series conveyor chains made of?
A: FV series conveyor chains are typically made of carbon steel or stainless steel, with the choice of material depending on the specific application and environmental conditions.
Q3: What are the benefits of using FV series conveyor chains?
A: FV series conveyor chains offer several benefits, including high strength, durability, and wear resistance. They are also designed to operate smoothly and quietly, which can help to reduce noise levels in the workplace.
Q4: What types of conveyor systems are FV series conveyor chains suitable for?
A: FV series conveyor chains are suitable for a wide range of conveyor systems, including those used in the automotive, food and beverage, and manufacturing industries.
Q5: What maintenance is required for FV series conveyor chains?
A: Regular maintenance is essential for ensuring the optimal performance and lifespan of FV series conveyor chains. This typically involves conveyor chain lubrication, conveyor chain cleaning, and conveyor chain regular inspection for signs of wear or damage.
Q6: How can I select the right FV series conveyor chain for my application?
A: When selecting an FV series conveyor chain, it is important to consider factors such as the load capacity, speed, and operating conditions of the conveyor system. It is also important to choose a chain that is compatible with the sprockets used in the system.
Q7: Where can I purchase FV series conveyor chains?
A: FV series conveyor chains can be purchased from a range of suppliers, including manufacturers of conveyor systems and industrial supply companies. It is important to choose a reputable supplier that offers high-quality products and reliable customer support.
