Galvanized Scaffolding Double Couplers for Fixing and Stabilizing the Steel Tubular Scaffolding

Galvanized Scaffolding Double Couplers for Fixing and Stabilizing the Steel Tubular Scaffolding
Galvanized Scaffolding Double Couplers for Fixing and Stabilizing the Steel Tubular Scaffolding - Image 2
Galvanized Scaffolding Double Couplers for Fixing and Stabilizing the Steel Tubular Scaffolding - Image 3

A scaffold coupler, also known as a scaffold clamp, is an integral part of the scaffolding system. Generally, it consists of half-ring central bodies, T-bolts, nuts, and gaskets. The forging process manufactures the main body of the coupler. Therefore, it is also known as a forged coupler. It can work with steel tubes to form a flexible line and coupler system. In addition, it can also work with ringlock scaffolding, cuplock scaffolding, and quick lock scaffolding to provide a more flexible connection where a single scaffolding system cannot reach.

Category: Tag:
Get a Quote

A scaffold coupler, also known as a scaffold clamp, is an integral part of the scaffolding system. Generally, it consists of half-ring central bodies, T-bolts, nuts, and gaskets. The forging process manufactures the main body of the coupler. Therefore, it is also known as a forged coupler.

It can work with steel tubes to form a flexible line and coupler system. In addition, it can also work with ringlock scaffolding, cuplock scaffolding, and quick lock scaffolding to provide a more flexible connection where a single scaffolding system cannot reach.

All scaffold couplers are manufactured in accordance with BS 1139 standards and EN 74 standards.

We have various types of scaffold couplers like Italian type, German type, British type, and American type.

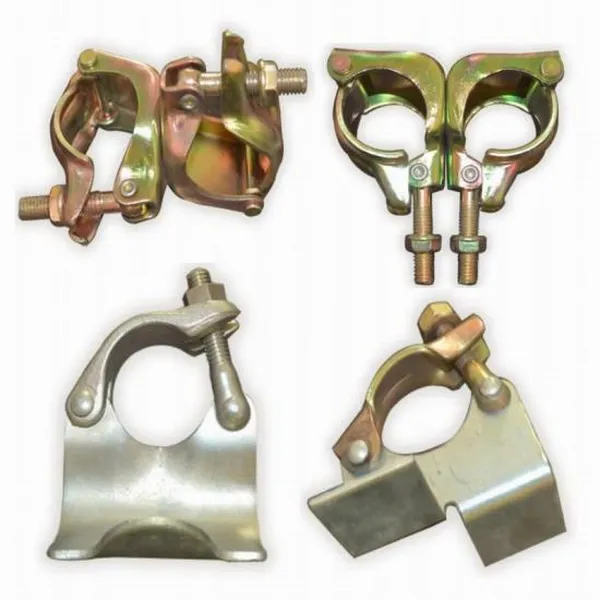

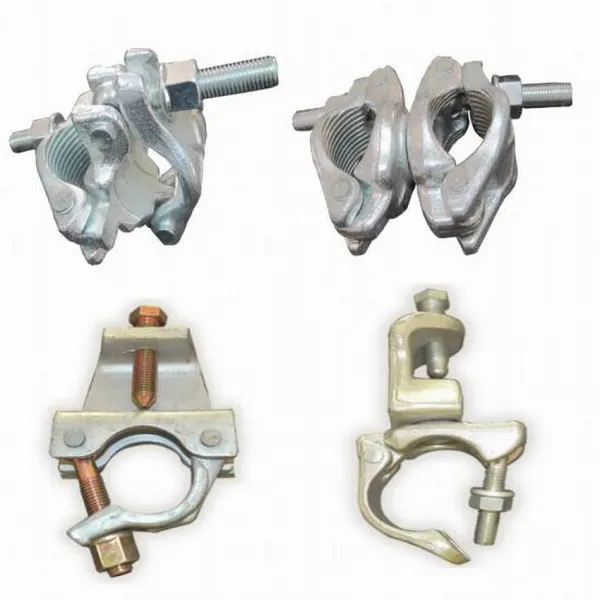

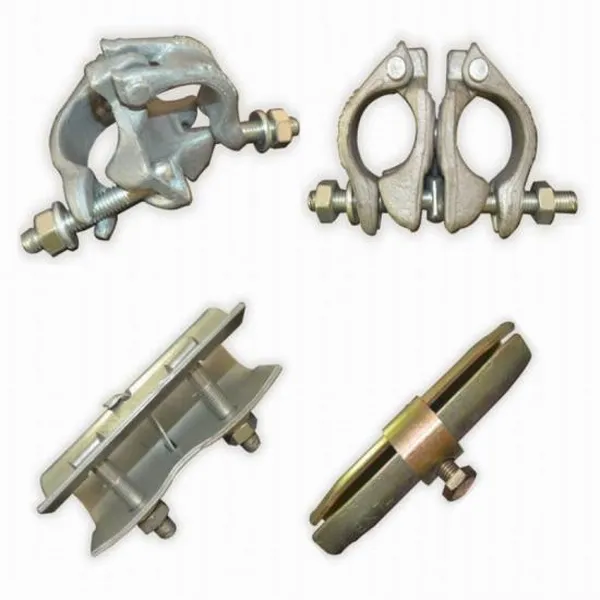

Scaffolding Couplers

Surface Treatment: Hot Dip Galvanized, Electric Galvanized

Code Description Weight(kg) Weight(lbs)
RAC.US Forged Right Angle Coupler (US) 1.52 3.35
SWC.US Forged Swivel Coupler  (US) 1.80 3.97
RAC.BS Forged Right Angle Coupler (BS) 1.10 2.43
SWC.BS Forged Swivel Coupler  (BS) 1.20 2.65
RAC.JIS Pressed Right Angle Coupler (JIS) 1.10 2.43
SWC.JIS Pressed Swivel Coupler  (JIS) 1.20 2.65
SBS Side by Side Clamp 1.30 2.87
ISC Internal Sleeve Coupler 0.70 1.54
ESC External Sleeve Coupler 1.20 2.65
GRC Fixed Gravlok Coupler 1.75 3.86
GRC-S Swivel Gravlok Coupler 1.80 3.97
SPC Single Putlog Coupler 0.80 1.76
HPC Half Putlog Coupler 0.60 1.32
BRC Board Retainer Clamp 0.65 1.43

Benefits of Scaffolding Double Coupler

  • Easy To Use. These scaffolds are easy to use; only four essential components are the required tube, right angle coupler, swivel coupler, bases, or casters.
  • High Durability. These scaffolds double couplers are durable, galvanized tubes, and couplers are always ready to combat harsh environments.
  • Ease in Assembly and Dismantling. Scaffold couplers are often assembled easily and dismantled, saving time on site.
  • Light Weight. The couplers are often easily moved around the construction site.
  • Cost Effectiveness. In cases when a scaffolding doubler coupler got to be erected for long periods, tube and fitting system scaffolds provide the foremost cost-effective scaffold solutions.
  • Longer lifetime. Double Coupler scaffolds are extended life compared to other stands and offer more sturdy work platforms.

Product Display

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.

The factory has ten production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.

If you need, you can contact our branch：

SN TRADING & TRANSPORTATION PTE LTD
Mp: 89417358    Tel: 65923150    Email: jimmy@sngroup.com.sg

Additional information

Edited

Yjx
Category: Tag:
