H Class Mill Chain with K2 Attachment H78-K2 H82-K2 H124-K2

H Class Mill Chain with K2 Attachment

H Class Mill Chain with K2 Attachment H78-K2 H82-K2 H124-K2

Category:
Get a Quote

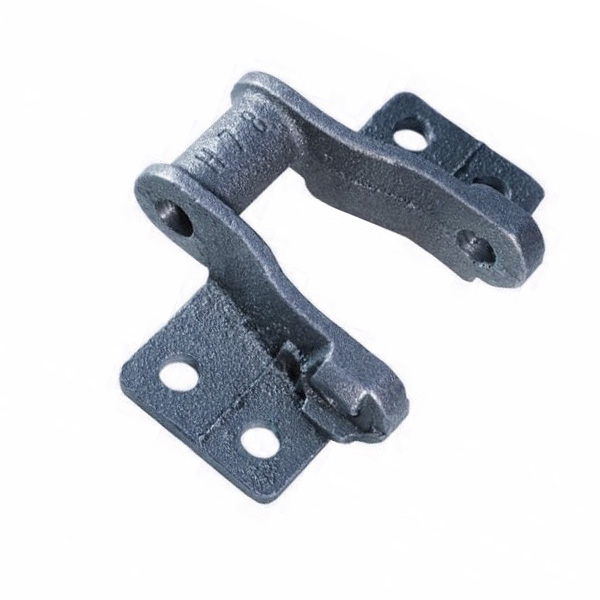

H Class Mill Chain with K2 Attachment H78-K2 H82-K2 H124-K2

Manufactured to perform and support heavy drives, transfer conveyors, and abrasive environments, Class H conveyor chains are standard malleable cast iron conveyor chains. The sidebars of the H-class conveyor chain have a reinforced cross-section that provides the added benefit of a wear-resistant surface to extend the life of the chain when running in troughs or above floors and slide beds.
This H-Class Conveyor Chain is a heavy-duty, extremely durable, high-quality milled chain with a tensile strength of 27,000 LBS. In addition to H-class conveyor chains, we also have a full line of accessories and H-class conveyor chain sprockets for sale. For more information or to get a quote, please get in touch with us, and we will be happy to assist you.

H Class Mill Chain with K2 Attachment
H Class Mill Chain with K2 Attachment

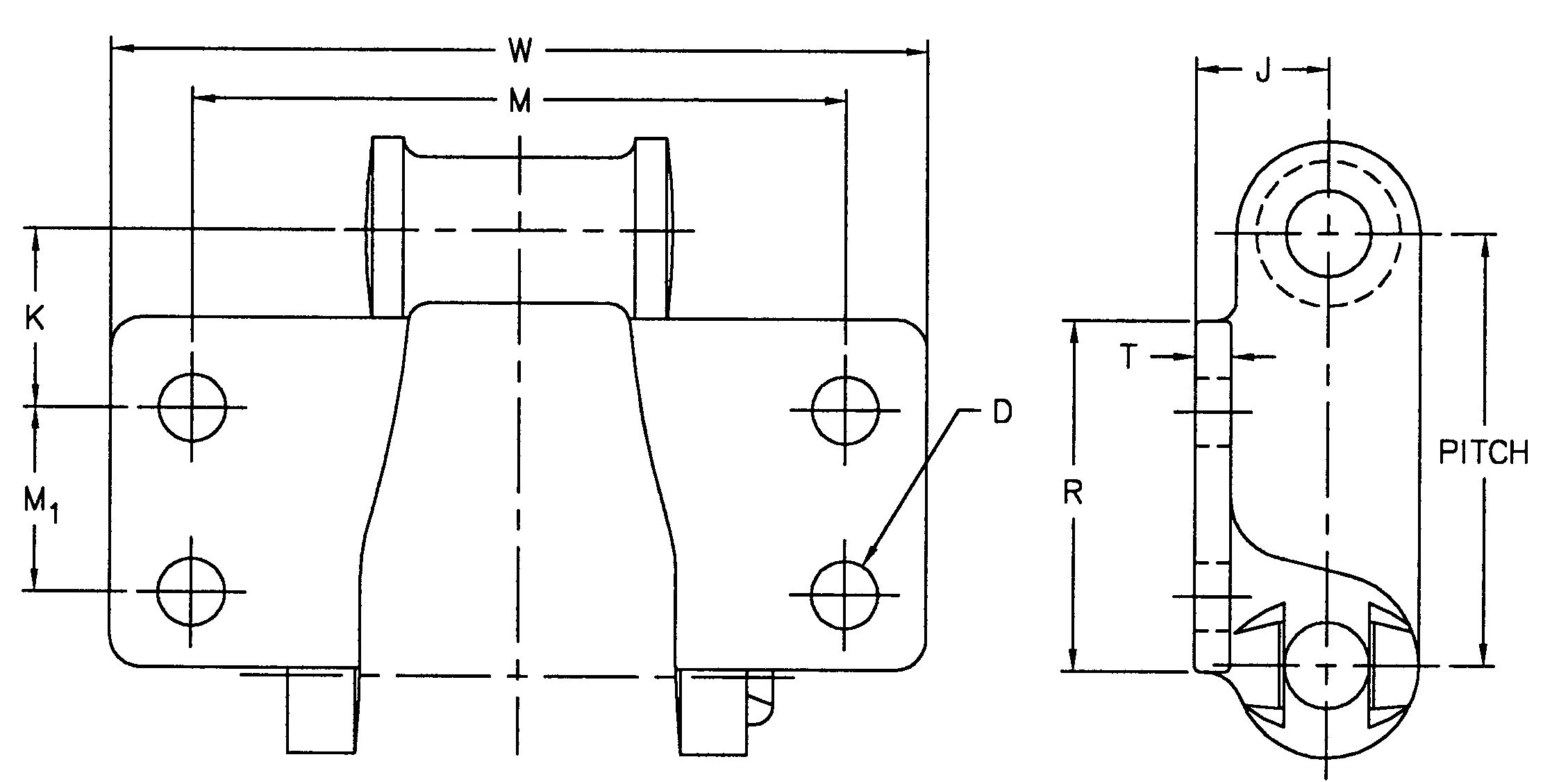

MOLINE ATTACHMENT NO
PITCH
J
K
M
M1
R
T
W
AVERAGE WEIGHT PER FOOT LBS
H 78-K2
2.609
0.81
1.08
4.00
1.12
2.12
0.25
5.00
6.0
H 82-K2
3.075
0.88
1.00
4.25
1.31
2.19
0.31
5.50
7.6
H 124-K2
4.000
1.19
1.19
5.25
1.94
2.88
0.31
6.38
11.3
