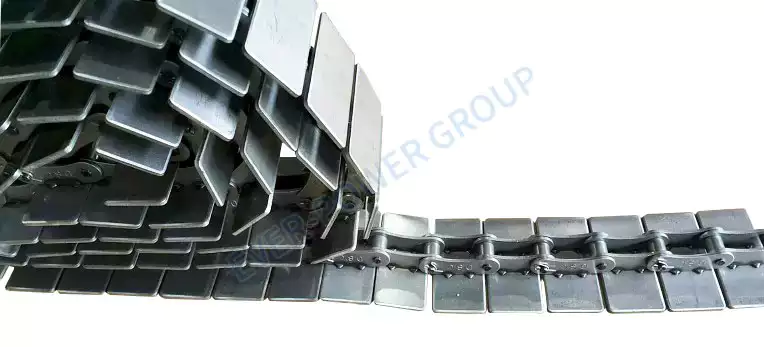

HTPW Type Stainless Steel Welded Flat Top Chain SSTPWP38.1
The HTPW Type Stainless Steel Welded Flat Top Chain SSTPWP38.1 is constructed with high-quality stainless steel material, making it durable and resistant to wear and corrosion. Its flat top structure provides a smooth conveying surface, allowing for the efficient movement of goods and materials. This chain is commonly used in food processing, packaging, and other industries that require reliable and sanitary conveying systems.
Specifications
| Chain No. | Pitch | Pin length | Pin Diameter |
Roller Diameter |
Plate Thickness |
Top Plate Length |
Top Plate Thickness |
Width Between Inner Plates |
Plate Height |
Distance Between Top Plate and Chain Center |
| P | L | d1 | d2 | T | D | T1 | b1 | H | h1 | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| SSTPWP38.1 | 38.1 | 28.1 | 5.94 | 11.91 | 2.4 | 36.5 | 3.2 | 12.57 | 18.08 | 13.6 |
| Top Plate Width | |||||||||||||||||
| K | |||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 36 | 55 | 63.5 | 69.9 | 76.2 | 82.6 | 88.9 | 95 | 95.3 | 101.6 | 114.3 | 120.7 | 125.6 | 127 | 152.4 | 155.6 | 165.1 | 190.5 |
Key Features
- High quality HTPW Type Stainless Steel Welded Flat Top Chain SSTPWP38.1
- Excellent corrosion resistance and durability
- Smooth and quiet operation
- Suitable for a wide range of applications, including food processing and packaging
This chain is designed and manufactured by our company using high-quality stainless steel materials. It features excellent corrosion resistance, durability, and smooth operation. The HTPW Type Stainless Steel Welded Flat Top Chain SSTPWP38.1 is suitable for a wide range of applications, including food processing and packaging. Our chain is reliable and can withstand heavy loads, making it an ideal choice for many industries.
How To Select Sprockets for HTPW Type Stainless Steel Welded Flat Top Chain SSTPWP38.1?
To select the appropriate sprockets for HTPW Type Stainless Steel Welded Flat Top Chain SSTPWP38.1, consider the following factors:
- Pitch diameter: Match the pitch diameter of the sprocket to the chain to ensure proper engagement.
- Tooth count: Choose a sprocket with the desired number of teeth to achieve the desired speed ratio.
- Material: Opt for stainless steel sprockets for their corrosion resistance and durability.
At our company, we offer a wide range of sprockets for different applications. Our selection includes various sizes, tooth counts, and materials, providing you with options to meet your specific needs.
Why Choose Ever-power Stainless Steel Roller Chains?
Ever-power stainless steel roller chains are highly preferred due to their exceptional strength. While regular stainless steel has the same strength as mild steel, our company's stainless steel chains can achieve 60%-70% the strength of carbon steel. Our chains are made of materials such as 304 and 316L (resistant to strong acids and corrosion) and 310S (resistant to ultra-high temperatures). The chains have small gaps and high tightness. Our biggest advantage is the high-quality chain plate. During heat treatment, the chain plate undergoes a cooling process that uses pressure to control deformation or eliminate internal stress, ensuring the size accuracy and mechanical properties of the chain. Additionally, the chain surface undergoes high-pressure processing to increase material durability. The chain plate thickness is uniform, and the bright band formed by punching twice ensures the close contact between the small tube and the pin, achieving high tightness. All holes are in the center of the chain plate, without any deviation. The flatness of the chain plate is also high, ensuring a smooth operation.
Additional information
| Editor | Zqq |
|---|
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
