HVAC Manifold Gauge Set (HVAC Manifold Gauge Kit) TMG-2K for Test & Evacuate and Fill Air Conditioning Systems

An HVAC manifold gauge set is a tool used by HVAC technicians to diagnose and service air conditioning systems. The HVAC  manifold gauge set consists of a set of gauges that are connected to the air conditioning system’s high- and low-pressure service ports, allowing the technician to measure the system’s pressure and temperature. The HVAC manifold gauge set typically includes two gauges, one for the high-pressure side and one for the low-pressure side of the air conditioning system. The gauges may be analog or digital and provide readings in psi (pounds per square inch) or kPa (kilopascals). The manifold gauge set also includes hoses that connect the gauges to the service ports and valves that allow the technician to control the flow of refrigerant in and out of the system.

Get a Quote

HVAC Manifold Gauge Set (HVAC Manifold Gauge Kit) TMG-2K for Test & Evacuate and Fill Air Conditioning Systems

An HVAC manifold gauge set is a tool used by HVAC technicians to diagnose and service air conditioning systems. The HVAC  manifold gauge set consists of a set of gauges that are connected to the air conditioning system's high- and low-pressure service ports, allowing the technician to measure the system's pressure and temperature.

The HVAC manifold gauge set typically includes two gauges, one for the high-pressure side and one for the low-pressure side of the air conditioning system. The gauges may be analog or digital and provide readings in psi (pounds per square inch) or kPa (kilopascals). The manifold gauge set also includes hoses that connect the gauges to the service ports and valves that allow the technician to control the flow of refrigerant in and out of the system.

Using the HVAC manifold gauge set, the technician can determine if the air conditioning system is properly charged with refrigerant, if there are any leaks in the system, and if the system is functioning properly. The HVAC manifold gauge set can also be used to evacuate air and moisture from the system during service and to recharge the system with refrigerant.

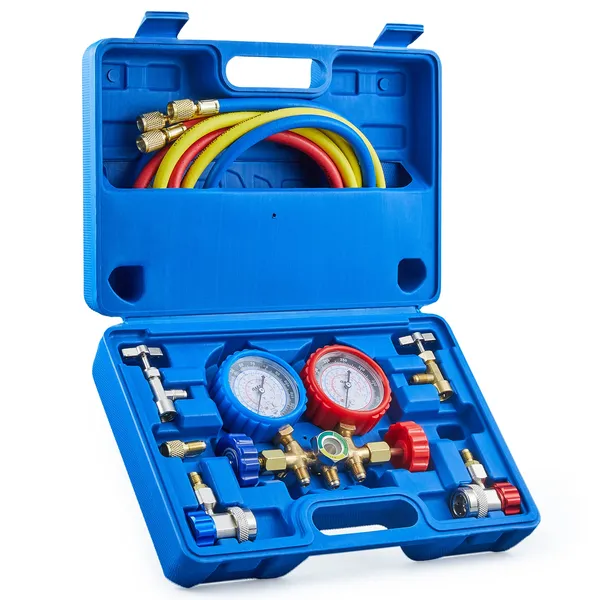

▍HVAC Manifold Gauge Set TMG-2K (Suit for R22, R134A, R410A, R407C)

Impact-resistant, Shockproof

• Oil-filled, Class 1.6 accuracy gauges, Pulse/vibration free.
• Extra large sight glass to view refrigerant movement.
• Built-in led light with a solar cell, suitable for dark working conditions.
• Ball valve handle, efficient and convenient operation.
• Durable rubber cover, impact-resistant.

AC Manifold Gauge Set (AC Manifold Gauge Kit) TMG-2K AC Manifold Gauge Set TMG-2K

▍HVAC Manifold Gauge Set TMG-2K Technical Data:

Model HVAC Manifold Gauge Set TMG-2K
Gauge Scale R22,R134a,R410A,R407C
Diameter ø60
Pressure -30inHg-500psi / -30inHg-800psi
Accessories Set of 3 RYB refrigeration hoses,2XAdapters(5/16"-1/4")
Packing Toolbox

▍What Does the Air Conditioning (A/C) Manifold Gauge Set Do?

An air conditioning manifold gauge set is a tool used to measure the pressure and temperature of the refrigerant in an air conditioning system. It consists of a manifold with two or three gauges, hoses, and adapters. The gauges measure the high and low pressure of the refrigerant, and the temperature gauge measures the temperature of the refrigerant.

Air conditioning manifold gauge sets are used by HVAC technicians to diagnose and repair air conditioning systems. They can be used to:

  • Check the refrigerant levels in an air conditioning system
  • Diagnose leaks in an air conditioning system
  • Evacuate an air conditioning system
  • Recharge an air conditioning system
  • Perform other maintenance tasks on an air conditioning system

Air conditioning manifold gauge sets are an essential tool for any HVAC technician. They are a valuable investment for anyone who works on air conditioning systems.

▍How to Use AC (Air Conditioning) Manifold Gauge Set?

Using an air conditioning manifold gauge set requires some knowledge and experience in HVAC systems. Here is a general overview of how to use the A/C manifold gauge set:

1. Turn off the air conditioning system: Before connecting the air conditioning manifold gauge set to the air conditioning system, ensure that the system is turned off to prevent any accidents.

2. Locate the service ports: The air conditioning system has two service ports for the high and low-pressure sides. Locate these ports and remove the caps.

3. Connect the hoses: Connect the hoses from the air conditioning manifold gauge set to the service ports. The blue hose is connected to the low-pressure service port, and the red hose is connected to the high-pressure service port. The yellow hose goes to the refrigerant tank.

4. Open the valves: Open the valves on the air conditioning manifold gauge set. The low-pressure valve should be opened first, followed by the high-pressure valve.

5. Take readings: Turn on the air conditioning system and take readings from the gauges. The low-pressure gauge measures the suction pressure, and the high-pressure gauge measures the discharge pressure.

6. Compare readings: Compare the readings on the gauges to the manufacturer's specifications to determine if the system is functioning correctly. If the readings are outside the recommended range, then there may be a problem with the system.

7. Diagnose the problem: Use the readings from the A/C manifold gauge set to diagnose the problem with the air conditioning system. If the system is low on refrigerant, then there may be a leak. If the pressure is too high, then there may be a problem with the compressor or condenser.

8. Recharge the system: If the system needs to be recharged, then use the A/C manifold gauge set to monitor the pressure and add refrigerant until the system is back in the recommended range.

9. Disconnect the manifold gauge set: Once you have finished using the air conditioning manifold gauge set, close the valves and disconnect the hoses from the service ports.

It is important to follow the manufacturer's instructions and safety guidelines when using an air conditioning manifold gauge set. If you are not familiar with HVAC systems, it is recommended to hire a licensed HVAC technician to use the air conditioning manifold gauge set and diagnose any problems with your air conditioning system. We can also provide other refrigeration tools and equipment for your need.

How to Use AC (Air Conditioning) Manifold Gauge Set

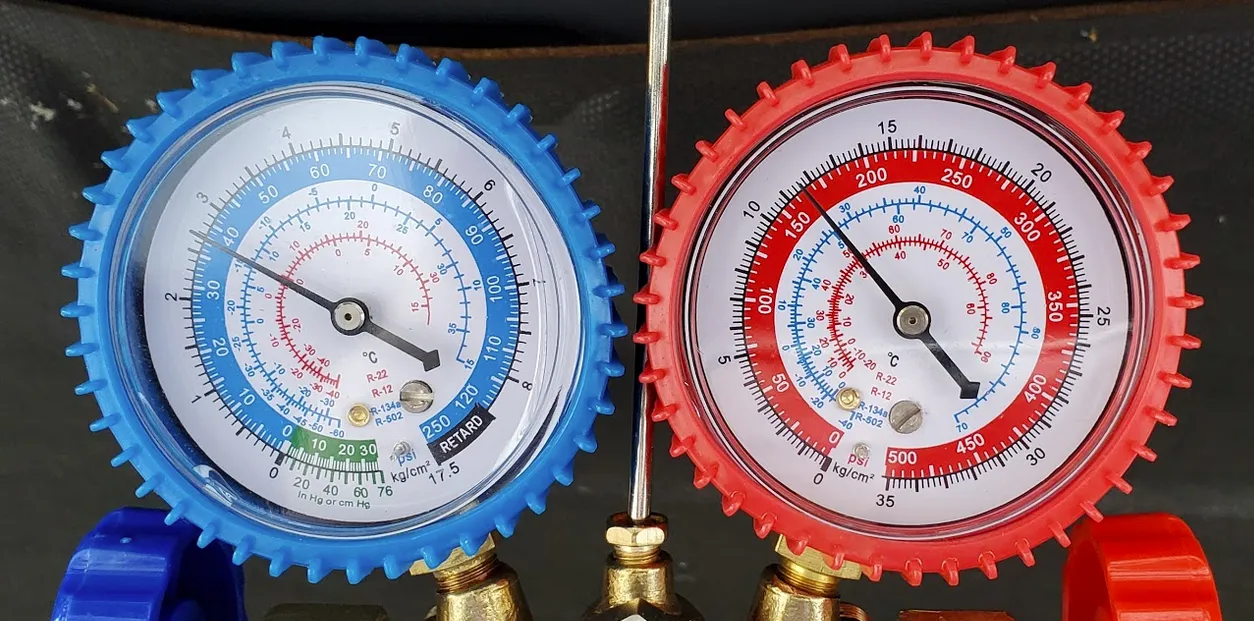

▍How to Read HVAC Manifold Gauge Readings?

Reading HVAC manifold gauges is an essential part of diagnosing and troubleshooting HVAC systems. Here are the steps to read HVAC manifold gauges:

Check the gauges: Check the HVAC manifold gauges to ensure that they are calibrated and in good condition. Make sure that the gauges are clean and free from any debris or dirt that may interfere with the readings.

Identify the gauges: Identify the high-pressure and low-pressure gauges on the manifold. The high-pressure gauge is typically red, and the low-pressure gauge is typically blue.

Check the scale: Check the scale on each gauge to ensure that it is set to the correct units of measurement. For example, the low-pressure gauge may be set to PSI or inches of mercury (inHg), and the high-pressure gauge may be set to PSI or bar.

Connect the gauges: Connect the HVAC manifold gauges to the HVAC system's high and low-pressure service ports using the appropriate hoses.

Open the valves: Open the valves on the HVAC manifold gauges to allow refrigerant to flow into the gauges.

Read the gauges: Read the gauges to determine the system's pressure and temperature. The low-pressure gauge measures the suction pressure, and the high-pressure gauge measures the discharge pressure.

Check the temperature: Check the temperature of the refrigerant entering and leaving the system using the temperature probes attached to the HVAC manifold gauges.

Compare the readings: Compare the readings on the gauges to the manufacturer's specifications. If the readings are outside the recommended range, then there may be a problem with the system.

Interpret the readings: Interpret the readings to determine the problem with the HVAC system. If the pressure is too low, then the system may be low on refrigerant. If the pressure is too high, then there may be a problem with the compressor or condenser.

Take corrective action: Take corrective action based on the readings and diagnosis. This may include adding or removing refrigerant, replacing components, or repairing leaks.

It is important to follow the manufacturer's instructions and safety guidelines when using an HVAC manifold gauge set. If you are not familiar with HVAC systems, it is recommended to hire a licensed HVAC technician to use the manifold gauge set and diagnose any problems with your HVAC system.

How to Read HVAC Manifold Gauge Readings
