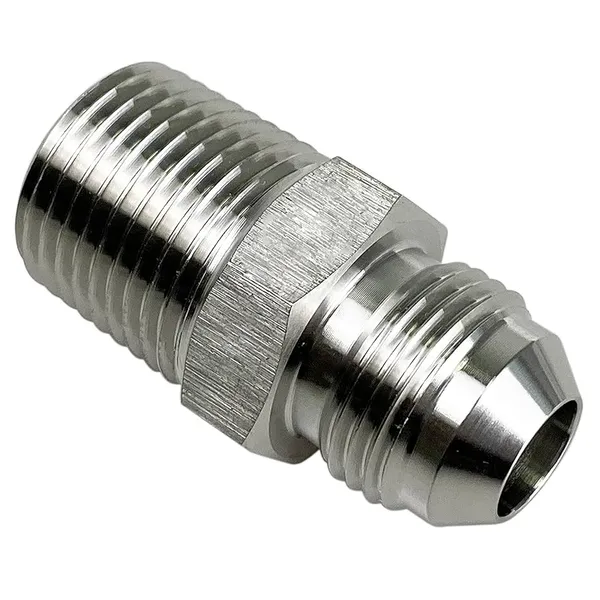

Male Connectors-NPT Flared Tube Fittings
Male connectors-NPT flared tube fittings are a type of fitting that uses a flared tube end to create a seal. The flared tube end is created using a special flaring tool. The fitting itself has a tapered male NPT thread. The male NPT thread mates with a female NPT thread to create a leak-tight seal. Male connectors-NPT flared tube fittings can be manufactured from a variety of materials to cater to different applications. Common materials include brass, stainless steel, and carbon steel. The choice of material will depend on factors like the type of fluid being transported, operating temperatures, and environmental conditions.
Male Connectors-NPT Flared Tube Fittings
Male connectors-NPT flared tube fittings are a type of fitting that uses a flared tube end to create a seal. The flared tube end is created using a special flaring tool. The fitting itself has a tapered male NPT thread. The male NPT thread mates with a female NPT thread to create a leak-tight seal. Male connectors-NPT flared tube fittings can be manufactured from a variety of materials to cater to different applications. Common materials include brass, stainless steel, and carbon steel. The choice of material will depend on factors like the type of fluid being transported, operating temperatures, and environmental conditions.
Male connectors-NPT flared tube fittings are commonly used in a variety of applications, including:
- Automotive systems
- Hydraulic systems
- Pneumatic systems
- Refrigeration systems
- Air conditioning systems
- Fuel systems
- Instrumentation systems
Male Connectors-NPT Flared Tube Fittings Size Chart:
| T-Tube O.D | P-NPT Size |
Basic Ordering Number | Dimension, in. (mm) | |||
| In. | mm | L | E | F (Hex) | ||
| 1/8 | 3 | 1/8 | -JMC-AN2-MN2 | 1.11(28.2) | 0.06(1.6) | 0.44(11.1) |
| 3/16 | 4 | 1/8 | -JMC-AN3-MN2 | 1.14(29.0) | 0.13(3.2) | 0.44(11.1) |
| 1/4 | 6 | 1/8 | -JMC-AN4-MN2 | 1.22(31.0) | 0.17 (4.4) | 0.50(12.7) |
| 1/4 | 6 | 1/4 | -JMC-AN4-MN4 | 1.42(36.0) | 0.17 (4.4) | 0.56(14.3) |
| 1/4 | 6 | 1/2 | -JMC-AN4-MN8 | 1.68(42.7) | 0.17 (4.4) | 0.87(22.2) |
| 5/16 | 8 | 1/8 | -JMC-AN5-MN2 | 1.22(31.0) | 0.19 (4.8) | 0.56(14.3) |
| 5/16 | 8 | 1/4 | -JMC-AN5-MN4 | 1.42(36.1) | 0.24(6.0) | 0.56(14.3) |
| 3/8 | 10 | 1/8 | -JMC-AN6-MN2 | 1.25(31.8) | 0.19 (4.8) | 0.63 (15.9) |
| 3/8 | 10 | 1/4 | -JMC-AN6-MN4 | 1.43(36.3) | 0.28(7.1) | 0.63 (15.9) |
| 3/8 | 10 | 3/8 | -JMC-AN6-MN6 | 1.42(36.1) | 0.3(7.5) | 0.75(19.1) |
| 3/8 | 10 | 1/2 | JMC-AN6-MN8 | 1.67(42.5) | 0.3(7.5) | 0.87(22.2) |
| 1/2 | 12 | 1/4 | -JMC-AN8-MN4 | 1.53(38.9) | 0.28(7.1) | 0.81(20.6) |
| 1/2 | 12 | 3/8 | -JMC-AN8-MN6 | 1.53(38.9) | 0.39(9.9) | 0.81(20.6) |
| 1/2 | 12 | 1/2 | -JMC-AN8-MN8 | 1.79 (45.5 | 0.39(9.9) | 0.87 (22.2) |
| 1/2 | 12 | 3/4 | -JMC-AN8-MN2 | 1.85 (47.0) | 0.39(9.9) | 1.13 (28.6) |
| 5/8 | 16 | 3/8 | -JMC-AN10-MN6 | 1.70 (43.1) | 0.38 (9.6) | 0.94 (23.8) |
| 5/8 | 16 | 1/2 | -JMC-AN10-MN8 | 1.89 (48.0) | 0.48 (12.3) | 0.94 (23.8) |
| 5/8 | 16 | 3/4 | -JMC-AN10-MN12 | 1.95 (49.5) | 0.48 (12.3) | 1.13 (28.6) |
| 3/4 | 18 | 3/4 | -JMC-AN12-MN12 | 2.06 (52.3) | 0.61 (15.5) | 1.13 (28.6) |
| 3/4 | 18 | 1 | -JMC-AN12-MN16 | 2.25 (57.1) | 0.61 (15.5) | 1.37 (34.9) |
| 7/8 | 22 | 3/4 | -JMC-AN14-MN12 | 2.09 (53.1) | 0.62 (15.7) | 1.25 (31.8) |
| 1 | 25 | 3/4 | -JMC-AN16-MN12 | 2.11 (53.5) | 0.62 (15.7) | 1.37 (34.9) |
| 1 | 25 | 1 | -JMC-AN16-MN16 | 2.30 (58.4) | 0.85 (21.5) | 1.37 (34.9) |
| 1 1/4 | 32 | 1 | -JMC-AN20-MN16 | 2.42 (61.5) | 0.88 (22.4) | 1.69 (42.9) |
| 1 1/4 | 32 | 1 1/4 | -JMC-AN20-MN20 | 2.45 (62.2) | 1.08 (27.5) | 1.69 (42.9) |
| 1 1/2 | 38 | 1 1/4 | -JMC-AN24-MN20 | 2.68 (68.1) | 1.13 (28.6) | 2.00 (50.8) |
| 1 1/2 | 38 | 1 1/2 | -JMC-AN24-MN24 | 2.68 (68.1) | 1.30 (33.0) | 2.00 (50.8) |
| 2 | 50 | 2 | -JMC-AN32-MN32 | 3.11 (79.0) | 1.77 (45.0) | 2.63 (66.7) |
| T-Tube O.D | P-NPT Size |
Basic Ordering Number | Dimension, in. (mm) | ||||
| In. | mm | L | E | G | F (Hex) | ||
| 1/8 | 3 | 1/8 | -JMC-AS2-MN2 | 1.18(30.0) | 0.06(1.6) | 0.44(11.1) | 0.44(11.1) |
| 3/16 | 4 | 1/8 | -JMC-AS3-MN2 | 1.26(32.0) | 0.13 (3.2) | 0.50 (12.7) | 0.44(11.1) |
| 1/4 | 6 | 1/8 | -JMCAS4-MN2 | 1.35(34.2) | 0.17 (4.4) | 0.56(14.3) | 0.50(12.7) |
| 5/16 | 8 | 1/8 | -JMC-AS5-MN2 | 1.38(35.0) | 0.24 (6.0) | 0.63(15.9) | 0.56(14.3) |
| 3/8 | 10 | 1/4 | -JMC-AS6-MN4 | 1.58(40.2) | 0.30 (7.5) | 0.69(17.5) | 0.63(15.9) |
| 1/2 | 12 | 3/8 | -JMC-AS8-MN6 | 1.68(42.7) | 0.39 (9.9) | 0.87(22.2) | 0.81(20.6) |
| 5/8 | 16 | 1/2 | --JMC-AS10-MN8 | 2.02(51.3) | 0.48(12.3) | 1.00(25.4) | 0.94(23.8) |
| 3/4 | 18 | 3/4 | -JMC-AS12-MN12 | 2.15(54.5) | 0.61(15.5) | 1.25(31.8) | 1.13(28.6) |
| 7/8 | 22 | 3/4 | -JMC-AS14-MN12 | 2.20(56.0) | 0.71 (18.0) | 1.37 (34.9) | 1.25(31.8) |
| 1 | 25 | 1 | -JMC-AS16-MN16 | 2.51(63.7) | 0.85(21.5) | 1.50 (38.1) | 1.37(34.9) |
| 1 1/4 | 32 | 1 1/4 | -JMC-AS20-MN20 | 2.71(68.9) | 1.08 (27.5) | 2.00 (50.8) | 1.69(42.9) |
| 1 1/2 | 38 | 1 1/2 | -JMC-AS24-MN24 | 3.06(77.6) | 1.30 (33.0) | 2.25 (57.2) | 2.00(50.8) |
| 2 | 50 | 2 | -JMC-AS32-MN32 | 3.66(92.9) | 1.77 (45.0) | 2.87 (73.0) | 2.63(66.7) |

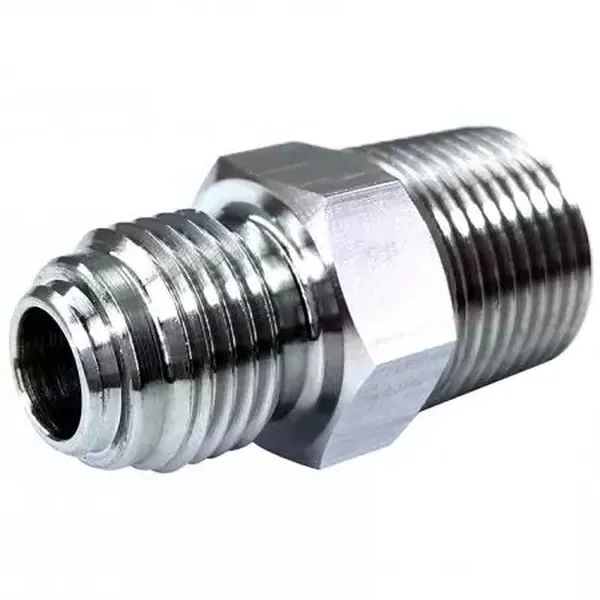

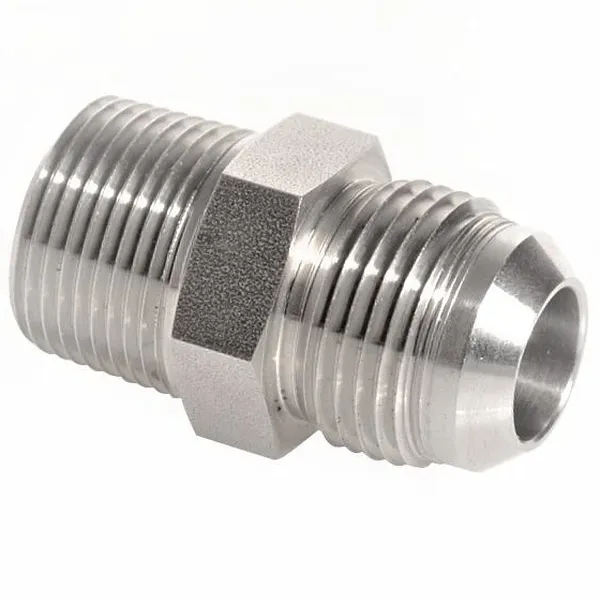

Advantages of Male Connectors-NPT Flared Tube Fittings:
Male Connectors-NPT Flared Tube Fittings are widely utilized in various industries for fluid and gas applications. These flared tube male connectors offer several advantages:
1. Leak-Proof Design: Flared fittings provide a reliable, metal-to-metal sealing surface. When properly installed, this design minimizes the potential for leaks, even under varying pressures and temperatures.
2. Versatility: NPT threads are standardized and used in a wide range of applications. This makes it easier to find replacement parts and to integrate different components within a system.
3. High Pressure Handling: Flared tube fittings are designed to handle higher pressures than many other types of connections. This makes them ideal for hydraulic and high-pressure gas applications.
4. Reusable: Many flared fittings can be disassembled and reassembled without significant wear or damage. This can lead to cost savings in situations where components need to be frequently changed or maintained.
5. Easy Inspection: Since the flare at the end of the tube is visible, it's relatively easy to inspect for proper assembly. This helps ensure a proper connection has been made.
6. No Special Tools: Unlike some other types of fittings, flared fittings do not require special tools for assembly. This simplifies installation and maintenance.
7. Durability: These connectors are typically made of robust materials like stainless steel, brass, or other metals, giving them a longer service life and making them resistant to many corrosive environments.
8. Broad Compatibility: The standardization of NPT threads means that these connectors can be used with a wide variety of tubes and pipes, making them versatile choices for many industries.
9. No Torque on the Body: Since the flared tube fittings relies on the flare for sealing, there is no torque transmitted to the body of the tube or pipe. This minimizes the risk of twisting or damaging the tube during installation.
10. Temperature Resistance: Due to their metal-to-metal sealing mechanism, flared tube fittings can withstand a wide range of temperatures, making them suitable for applications with significant temperature fluctuations.
 |
 |
China Flared Tube Fittings Manufacturers
We're well-known as one of the leading flared tube fitting manufacturers and suppliers, specializing in providing different kinds of fittings, instrument valves, and flanges. We warmly welcome you to buy high-quality flared tube fittings in stock from our factory. Flared Tube Nuts, Flared Tube Sleeves, Flared Tube Unions, Flared Tube Large Hex Unions, Male Connectors-NPT Flared Tube Fittings, Male Connectors-SAE Flared Tube Fittings, Male Connectors-NPT Flared Tube Fittings, Female Connectors-NPT Flared Tube Fittings, Male Elbows-NPT Flared Tube Fittings, Flared Tube Reducing Adapters.
1. We established in July 2008.
2. We are a professional manufacturer of Instrumentation Tube Fittings, Pipe Fittings, Hydraulic Ball Valves, Needle Valves, Ball Valves, Check Valves, Valve Manifolds, DIN 2353 Fittings, SAE Flanges, Sampling systems, and Water Heater Accessories.
3. Products are available in a variety of different materials, such as Carbon Steel, Stainless steel 316/316L, Duplex, Super Duplex, Hastelloy, Monel, Inconel, Incoloy, and Titanium.
4. We are located in Hangzhou City, a two-hour drive to Shanghai, with convenient transportation access worldwide.
5. Our products are widely used in industries of Chemical, Petrochemical, Power Generation, Oil, Gas, and Shipbuilding.
6. Always available to discuss your requirements and ensure full customer satisfaction.
7. We have more than 50 CNC machines, 3D measurement equipment, Raw Material chemical composition inspection equipment, High-pressure test equipment, etc.
8. We have obtained ISO9001 and CE certificates and more than twenty utility model patents.
9. Our products are exported to the United States, Japan, Germany, South America, South Africa, Southeast Asia, and many other countries.
10. We also welcome OEM and ODM orders. Please feel free to contact and visit us.
