Male Elbows-NPT Flared Tube Fittings

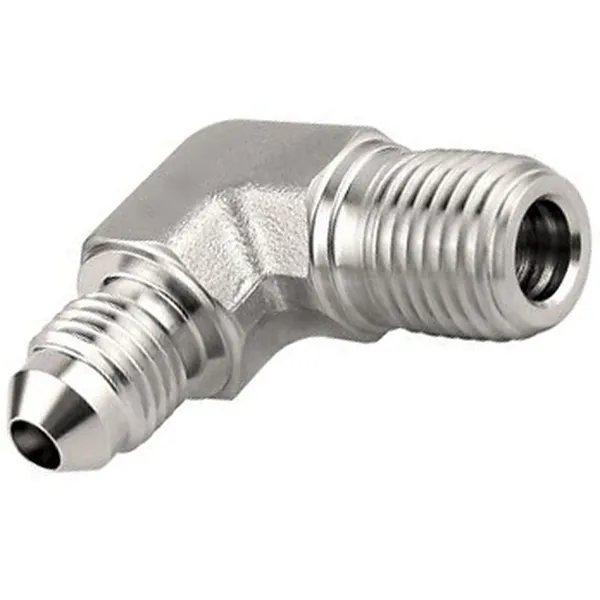

90 Degree Flared Male Elbows

A "90 Degree Flared Male Elbow" is a type of fitting used in fluid and gas systems, particularly in applications where tight seals are crucial, such as hydraulic and pneumatic systems. Here are some key characteristics and details about these flared tube fittings:

1. Design: The "90-degree" description indicates that the elbow makes a right-angle turn. This is useful for connecting hoses or pipes that need to change direction sharply.

2. Flared End: The flared design means that one end of the fitting is expanded or flared outwards. This design allows for a tight and secure connection, minimizing the chance of leaks. Flared fittings are often used with metal tubing, such as copper, aluminum, or steel. When the flared tube end is inserted into the fitting, and a nut is tightened over it, the flare is compressed to create a tight seal.

3. Male Configuration: The term "male" indicates that this end of the fitting has external threads and is designed to thread into a corresponding female fitting.

4. Applications: These flared tube fittings are commonly found in automotive brake lines, aviation systems, and other industrial applications where a secure, high-pressure connection is essential. The flared connection provides a metal-to-metal seal that can withstand higher pressures and temperatures than some other types of connections.

5. Materials: 90-degree flared male elbows can be made from a variety of materials, including brass, steel, stainless steel, and others, depending on the specific application and the type of fluid or gas being transported.

6. Sizes: These flared male elbows come in various sizes to accommodate different tubing diameters and thread sizes.

90 Degree Flared Male Elbows Size Chart:

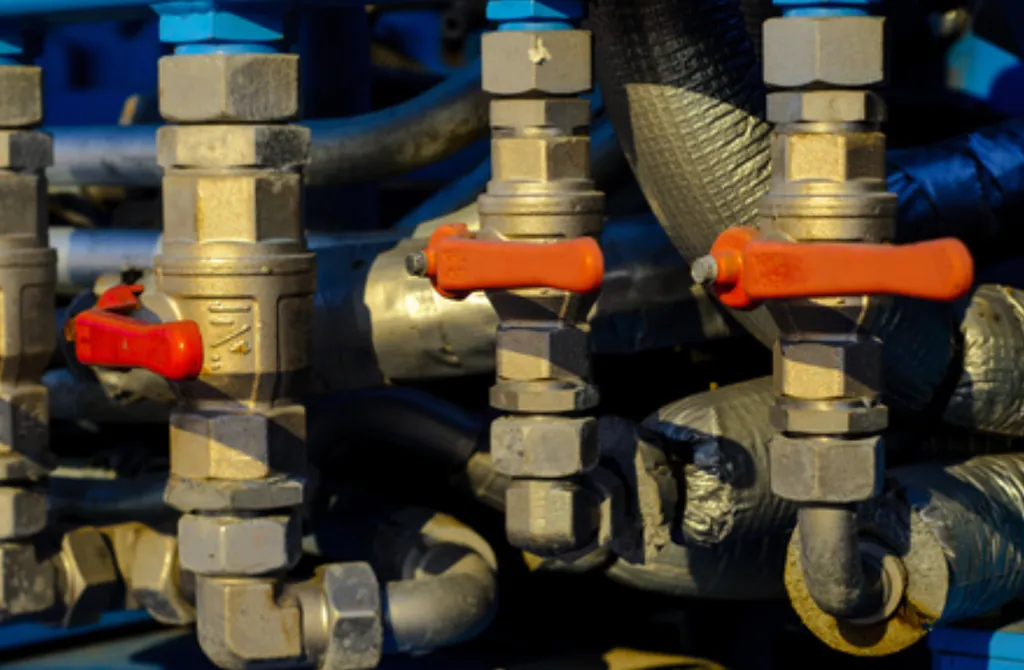

Applications of 90 Degree Flared Male Elbows:

90-degree flared male elbows find applications in various industries and systems where a change in the direction of fluid flow is required. Here are some common applications:

1. Plumbing systems: These flared tube fittings are commonly used in residential, commercial, and industrial plumbing systems to connect pipes and change the direction of water or gas flow. They can be used in water supply lines, drainage systems, and gas distribution systems.

2. HVAC (Heating, Ventilation, and Air Conditioning) systems: 90-degree flared male elbows are used in HVAC systems to connect pipes or tubes and alter the direction of airflow or refrigerant flow. They can be found in ductwork, air conditioning units, and refrigeration systems.

3. Hydraulic systems: In hydraulic systems, these flared tube fittings are used to redirect fluid flow in various applications such as machinery, construction equipment, and automotive systems. They provide flexibility in routing hydraulic lines and connecting components.

4. Pneumatic systems: Similar to hydraulic systems, pneumatic systems use 90-degree flared male elbows to change the direction of compressed air flow. They are commonly used in pneumatic tools, air compressors, and pneumatic control systems.

5. Automotive applications: These flared tube fittings are utilized in automotive systems for fuel lines, brake lines, and other fluid transfer applications. They enable the smooth routing of pipes and tubes around the engine compartment and other tight spaces.

6. Industrial processes: 90-degree flared male elbows can be found in various industrial processes such as chemical plants, oil refineries, and manufacturing facilities. They are used to connect pipes and change the direction of fluid flow in process piping systems.
