China Supplier Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

China Supplier Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

● Small size dc gear motor with low speed and big torque
● Suitable to small diameter. Low noise and big torque application
● Reduction ratio: 48、120、180、220、288
Application: Motorized Toy, Ride-on Toy, Robot

Categories: ,
Get a Quote

China Supplier Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

● Small size dc gear motor with low speed and big torque

● Suitable to small diameter. Low noise and big torque application

● Reduction ratio: 48、120、180、220、288

Application: Motorized Toy, Ride-on Toy, Robot

Characters of Mini DC Motor

  • voltage: 3v 6v
  • Reduction Ratio: 1/48,,1/120,1/180,1/220,1/256,1/288
  • Dize:64.2 X 22.5 X 18.8mm,64.2mm length micro motor
  • Double side
  • can match with wheels, leading wires, and battery boxes
  • Samples can be sent first. The delivery time is 15-20 days

Gear motor dimension (mm)

Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

Mini DC Motor Technical Data

Motor model No Rated voltage
VDC
No-load speed
r/min
No-load current
mA
Stall torque
g.cm
Stall current
A
TFE-130RA-12215 6.0 11500 120 20 0.85
TFE-130RA-14175 3.0 8000 120 13 0.70
TFE-130RA-18100 3.0 11500 250 20 1.80

Gear Motor Technical Data:

Gearbox with motor: TGP01D-A130-12215-XXX
reduction ratio: 48  120  180  220  288
No-load speed rpm: 230  90  60  50  38
Max. momentary tolerance torque kg.cm: 0.7   1.4   2.0   2.2   2.8

Gearbox with motor

TGP01D-A130-14175-XXX
reduction ratio: 48  120  180  220  288
No-load speed rpm: 150  60  40   33  25
Max. momentary tolerance torque kg.cm: 0.5   0.9   1.2   1.4   1.8

TGP01D-A130-18100-XXX
reduction ratio: 48  120  180  220  288
No-load speed rpm: 230   90   60   50   38
Max. momentary tolerance torque kg.cm: 0.7   1.4   2.0   2.2   2.8



Mini DC Motor Manufacturer

Ever-power, which is the toy production base in China. The company is a complex company, which includes research and development, manufacturing, and marketing.
The primary business of the company is producing the gear of the toy car, various precise accurate gearboxes, plastic gearboxes, reduction gears of a toy car, various accessories of a toy car, miniature motor, iron shaft and etc. Through the long-term unremitting efforts of all staff, our company has become one of the leading companies in the industry. All products are sold around the world, especially in Europe, North America, and Southeast Asia. Our products have a good reputation, which is highly recommended by customers.

Mini DC Motor TGP01D-A130 Plastic Gearbox Plus A130

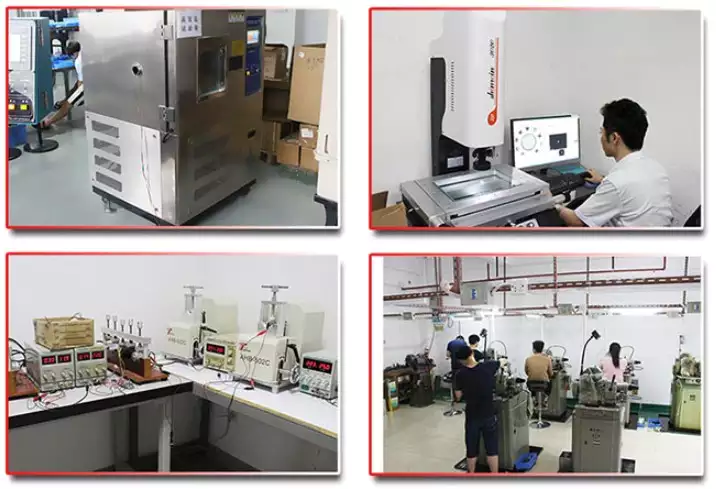

Nowadays, the company has a large-scale workshop, administration buildings, and staff dormitories. In the meanwhile, the company has an excellent research facility, manufacturing facility, and inspection facility. The company owns a specialized product engineering department, mold making and assembled center, and customer customization accepted. The company has strong technical strength, and excellent production, and management system. The company always focuses on every detail: materials, design, production, shipment, and customers’ feedback. Providing satisfactory service to our customers is always the main principle of the company.
Instead of high profit-seeking, building and maintaining long-term cooperation relationship with customers is what the company truly focus on, and the company is sincerely looking forward to having a better future with cooperative partners.
