Multiple Plate Bearing Pin Chains MP15/MP20/MP25/MP30/MP35/MP40

A multiple plate bearing pin chain is a type of timing chain that uses many rows of plate-type bearings. It is often used in automotive engines. These chains use a short pin to hold the plates in place. These chains are highly efficient and require less maintenance than conventional chain systems. They are especially useful in high-performance applications.

Get a Quote

Multiple Plate Bearing Pin Chains

MP15/MP20/MP25/MP30/MP35/MP40/MP45/MP50/MP55/MP60/MP70/MP80/MP90/MP100/MP110/MP120

A multiple plate bearing pin chain is a type of timing chain that uses many rows of plate-type bearings. It is often used in automotive engines. These chains use a short pin to hold the plates in place. These chains are highly efficient and require less maintenance than conventional chain systems. They are especially useful in high-performance applications.

A multiple plate bearing pin chain has two types: the hollow type, which allows attachments to fit through the pin itself, and the solid type, which is thicker and more durable than the hollow variety. Hollow bearing pin chains are generally used in light-duty applications, while solid bearing pin chains are typically used in more intensive conveyor applications. Both types have their benefits, so choose the one that fits your specific needs. Deep link chains are different from other chains, which use a single plate. They have deeper side plates than the standard chain plates, giving them a continuous carrying edge over the roller's periphery.

Multiple Plate Bearing Pin Chains

Specifications of Multiple Plate Bearing Pin Chains

Multiple Plate Bearing Pin Chains

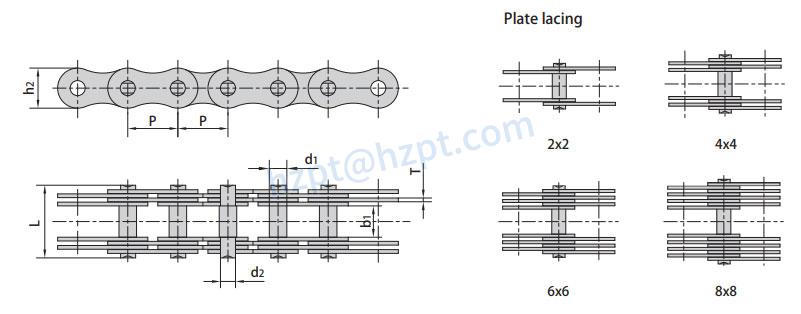

Chain No.PitchWidth between inner platesPlate lacingPin diameterPin lengthPlate depthPlate thicknessUltimate tensile strengthWeight per meter
Pb1
min
d1 maxd2
max
L
max
h2
max
T
max
Q
min
q
mmmmmmmmmmmmmmkN/lbfkg/m
MP1515122×25425122.035.0/11250.7
MP2020152×28628152.0312.5/28121.1
MP2525182×210836183.0025.0/56241.8
MP3030204×411951203.0040.0/89993.4
MP3535224×4121053263.0060.0/134984.5
MP4040254×4141258323.0080.0/179985.0
MP4545304×4171463353.00100.0/224977.0
MP5050354×4221890404.50150.0/3374611.3
MP5555404×42421108426.00200.0/4499414.5
MP6060454×42623114466.00250.0/5624317.1
MP7070506×63228148556.00375.0/8436434.0
MP8080606×63632159606.00500.0/11248639.0
MP9090706×64036184707.00750.0/16872853.0
MP100100808×84540224807.001000.0/22497277.0
MP110110908×85045236907.001250.0/28121590.0
MP1201201008×855502621008.001500.0/337458112.0



Multiple Plate Bearing Pin Chain Features

There are many features of multiple plate bearing pin chains, including the ability to accommodate a wide range of attachments. These chains are usually used in conveyor systems. The sizes of these chains are shown above. Because the pin is at the center of articulation, the pitch length remains constant throughout the chain's motion. Because of this, the center distance for attachments is always the same, even if the chain bends or the sprocket is engaged.

Hollow bearing pin chains are more flexible, allowing for attachments to be loosely affixed to the chain. Solid bearing pin chains are thicker and fuller, making them appropriate for more demanding conveyor applications. Lastly, deep link chains are deeper than standard chain plates, offering a steady carrying edge atop the roller. Both types feature solid or hollow bearing pins. This type of chain is generally more expensive, and its higher tension limits make it the ideal choice for demanding conditions.
