MYD Series 60KW Induction Heating Equipment for Assembly and Disassembly Preheat

MYD Series 60KW Induction Heating Equipment for Assembly and Disassembly Preheat

MYD series 60kw induction heating equipment is designed for Rapid Heating. The typical applications are motor casing thermal assembly, shaft coupling thermal assembly & disassembly, welding, coating, painting, bending, hot-fitting, pipe fabrication heating. For these kinds of heating temperatures ≦of 300℃, the induction heating is 3-8 times more rapid and 20-80% energy saving than the same power ceramic heating elements heating. That is to say, for weld preheating and hot fitting, thermal assembly, induction heating will save more time and electric energy than resistance pad heating. Especially in hot unfitting and thermal disassembly heating, the heating speed is the key factor. Or it will be hard to remove one part from the other.

MYD Series 60KW Induction Heating Equipment Technical Parameters

Technical Data
Model	MYD-60KW Induction Heater
Input Voltage	3 x 380V, 50/60HZ
Work Voltage	(340 ~ 440 ) V, 3 Phase, 50/60HZ
Frequency	3 ~15 KHZ
Heat Temperature	Max heating temperature 900℃
Heat Speed	< 100℃/ Min
Temperature Control	Yes, the temperature control system built into the machine
Control System	PID, DSP, PLC, Touch Screen control system
Brand/Origin	EPT Induction / Made in China
H.S. Code	851440090
Size	950 x 750 x 1100 mm
Weight	125 kg
Post Weld Heat Treatment Heating Capacity For Pipe
Diameter	50 ~600 mm
Thickness	10 ~50 mm
Max Heating Temperature	0 - 900 C

MYD Series 60KW Induction Heating Equipment Parts

●  Induction heating power

●  Induction coil (Clamp induction coil) or (Soft induction coil)

●  Connection cable for the convenient of linking the coil and the heating power

●  Temperature controller

●  PLC touch screen

●  Temperature recorder with the printer

Soft Cable Coil	Blanket Coil and Fillet Coil	Circular Coil	Clamp Coil
Extend Cable for Coil	K Type Thermocouple	Handhold Thermocouple

MYD Series 60KW Induction Heating Equipment Advantages

Welding preheat induction Heater compared with ceramic pad weld heater: Compared with conventional preheating and stress relieving methods, induction heating has numerous advantages, like energy saving, uniformity and quality heating, reduced time, and lower consumables costs. Induction heating is also safe, reliable, and easy to use and scores higher than alternative technologies in power efficiency and versatility. In the weld heating process, the induction weld heater has the above advantages over the ceramic pad weld heater.

Features of Induction Heating Systems

●  Air cooling: working well at -10℃-40℃

●  Induction heating power: To heat the work job with an insulation blanket around it. High heating speed and heating efficiency with little energy lost.

●  PLC touching screen: Intuitive to see and easy to operate.

●  Soft induction coil: Easy to wind on different work pieces.

●  The Removable opening Induction coil: easy to operate and move.

●  Temperature recorder: Record the whole heating curve.

●  Temperature Controller: Heating according to the heating requirement details with the ±3℃ tolerance.

MYD Series 60KW Induction Heating Equipment Applications

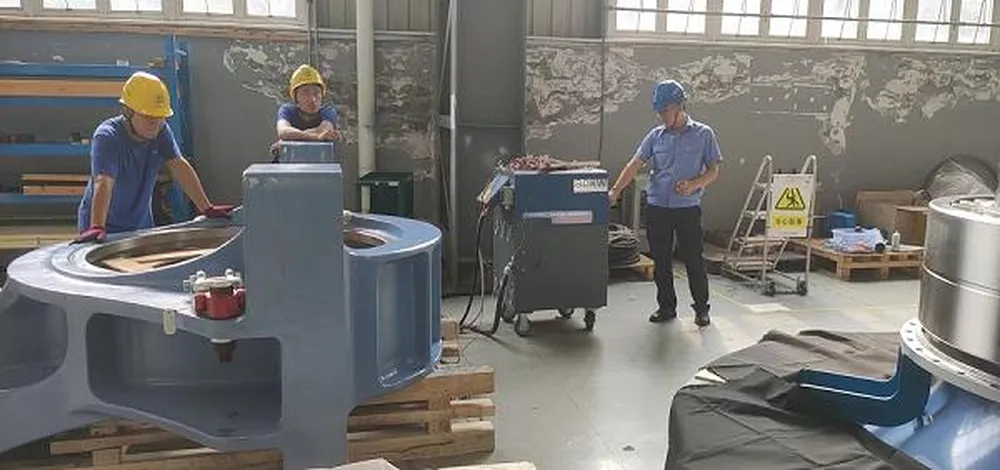

1. Induction Heating Equipment for Assembly and Disassembly Preheat

(1) Turbine shaft assembly and disassembly preheat

(2) Generator rotor assembly and disassembly preheat

(3) Retaining ring removing heating

2. Induction Heating Equipment for Weld Preheat

(1) Platform steel structure weld preheat

(2) Railway Bridge steel structure weld preheat

(3) Bridge steel structure weld preheat

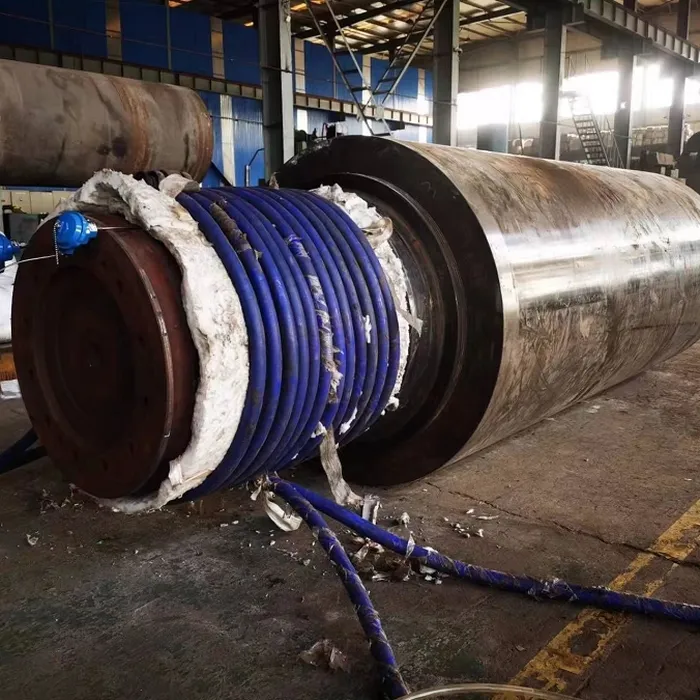

3. Induction Heating Equipment for Post Weld Heat Treatment

(1) Petroleum pipeline post weld heat treatment

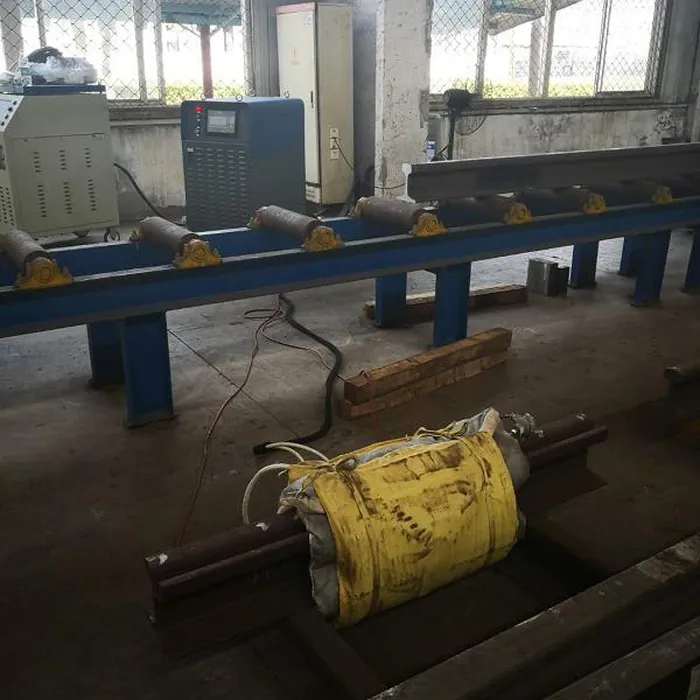

(2) Rail post weld heat treatment

(3) Steel sheet post weld heat treatment

Induction Heating Equipment Manufacturers & Suppliers

WLY has been a professional manufacturer of induction heater company in Hangzhou City, China, since 1999. Our induction heating equipment specializes in Metal Weld Heating, Post Weld Heat Treatment(PWHT), Thermal Assembly, Fluid Heating, and Non-ferrous Metal Melting Furnace design and manufacture. Our main induction heater(induction heating equipment) product used for Pre-heating: for coating, bending, fitting, unfitting, and welding. Post-welding heat treatment: tank, boiler, or other metal jobs. Heating: mold heating, shipboard, zinc bath, and large & irregular metal parts. Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical.

The induction heater using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, casting, mold, screw barrel industries, etc. We supply heat calculation, scheme design, heating machine and coil ODM, and OEM service. We have sold our induction heating equipment machine to many countries and used it very well. Such as the USA, Germany, Japan, Russia, India, Italy, South Korea, Indonesia, Malaysia, and Singapore.
