3-Point Tractor Quick Hitch CAT 3 (Category 3)

 CAT 3 Quick Hitch

Category 3 Quick Hitch, Brand New. This quick hitch meets all ASAE standards and is a high quality unit.

GENERAL FEATURES & SPECIFICATIONS:

• See Photo in listing for dimensions
• Quick Hitch Is Rated For Tractors Up To 200HP With Category 3, 3-Point Hitches.
• Your 3-Point Implements & Attachments Must Be Quick Hitch Compatible For This Quick Hitch To Work!
• All connection points ASAE Cat 3
• Includes Lift Arm Mounting Pins
• Weight: 182lbs

3-point Quick Hitch Dimensions

What is the Difference Between Category 2 and 3 Quick Hitch?

Category 2 and Category 3 hitches are two common types of hitches used for different vehicles and applications-

Category 2 quick hitches have a pin diameter of 1.25 inches and can handle up to 4,000 to 6,000 pounds of weight capacity. They are commonly used for tractors or other agricultural equipment that requires moderate to heavy-duty hauling.

Category 3 hitches have a larger pin diameter of 1.5 inches and can handle 6,000 to 10,000 pounds of weight capacity. They are suitable for heavier loads or equipment, such as large trailers or construction equipment.

Other differences between Category 2 and Category 3 hitches include size and weight, as well as the specific types of attachments used to connect them to equipment. It's important to select the correct hitch category based on the weight of the load you need to tow, as using an incorrect hitch can be unsafe and risk damage or accidents.

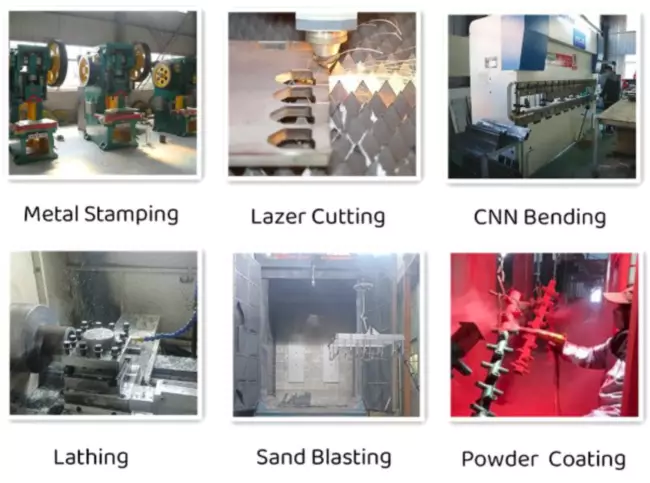

Process flow of Quick Hitch

The production process of quick hitches involves several steps, which may vary slightly depending on the manufacturer and the type of quick hitch being produced. Here is a general overview:

1. Design and Engineering: The first step involves designing and engineering the quick hitch to meet the required specifications, such as the weight capacity, size, compatibility with different equipment, and safety features.
2. Material Selection: Once the design is finalized, the manufacturer selects the best materials for the quick hitch, which may include steel, aluminum, or other materials based on the specific application.
3. Cutting and Drilling: The selected materials are cut and drilled according to the design specifications to create the different components of the quick hitch, such as the hitch arms, locking mechanism, and other parts.
4. Welding and Fabrication: The components are then welded and fabricated together using specialized equipment such as robotic welders and CNC machines to ensure accuracy and quality.
5. Surface Treatment: The quick hitch may undergo several surface treatments, such as sandblasting, powder coating, or painting, to enhance its durability and appearance.
6. Assembly: The different components are assembled together to create the final product, which may require additional adjustments and testing to ensure proper fitting and operation.
7. Testing and Quality Control: The quick hitch undergoes rigorous testing to ensure it meets the required safety standards and functional requirements. This includes load testing and functional testing to verify its operation and safety features.
8. Packaging and Shipping: The final step involves packaging the quick hitch and shipping it to the customer or distributor.

Overall, the production process of quick hitches requires precision engineering, advanced materials, skilled labor, and specialized equipment to ensure quality, safety, and reliability of the final product.
