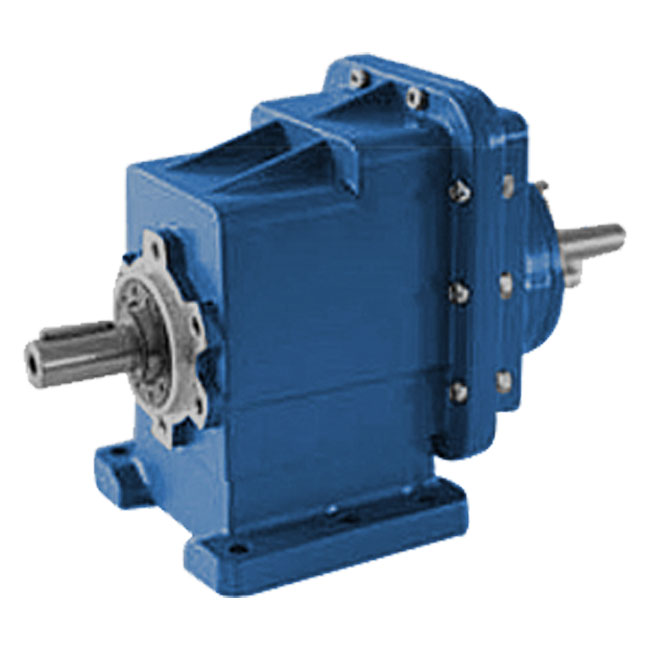

Shaft Input Foot-mounted RC Helical Gear Unit



Category:
Get a Quote

Shaft input Foot mounted Aluminum Alloy Housing RC helical gear unit gear reducer

Product Description

The RC series helical gear reducers feature a highly modular design. It can be combined with ordinary iec, brake, explosion-proof, frequency conversion, servo and other motors respectively. This product is widely used in traditional fields such as textile, food, ceramics, packaging, logistics, plastics, etc. Different flanges and feet can be used to form the structure of various reducers

Main Parameter:
Output speed: 0.1~560rpm
Output torque: up to 28000Nm
Motor power: 0.18~160kw
Input Model: directly connected with motor, flange input or shaft input.
Installation Model: Horizontal or Vertical.
RC Helical Gear Unit



Model Shaft Dia. Center Height
(mm)
Output Flange Dia. (mm) Power
(kw)
Ratio Permitted Torque
(Nm)
Weight
(KGS)
Solid (mm)
RC37 25k6 90h13 120/160 0.12~0.75 5~136 150 10
RC47 30k6 115h13 160/200 0.25~2.2 5~173 300 15
RC57 35k6 115h13 200/250 1.18~5.5 5~173 400 21
RC67 35k6 130h13 200/250 0.37~7.5 5~170 500 27
RC77 40k6 140h13 250/300 0.55~11 5~192 750 35
RC87 50k6 180h13 300/350 0.75~18.5 5~192 1250 65
RC97 60m6 225h13 350/450 1.5~30 5~197 2400 120
RC107 70m6 250h13 350/450 2.2~45 5~197 3600 165
RC137 90m6 315h13 450/550 4~55 5~197 6600 255
RC147 110m6 355h13 450/550 7.5~90 5~195 10700 370
RC167 120m6 425h13 550/660 11~132 8~186 14800 700
RC187 160m6 510h13 660/770 15~160 8~186 28000 1500

Remark: the weight without oil and motor, shaft and flange input add 10%.
