RC Series Aluminum Alloy Housing Helical Gearbox with Foot Mounted

RC Series Aluminum Alloy Housing Helical Gearbox with Foot Mounted

The high degree of modularity is a design feature of the RC helical gearboxes range. It can be connected respectively with motors such as normal motors, brake motors, explosion-proof motors, frequency conversion motors, and servo motors. IEC motor, and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics plastics, and so on. It is possible to set up the version required using flanges or feet.

Model No	Output torque	Rated input speed	Max input speed	Ratio	Rated Power
RC01	116N.m	≤1500rpm	3000rpm	3.82-53.33	120-1500W
RC02	197N.m	≤1500rpm	3000rpm	3.66-54	180-1500W
RC03	300N.m	≤1500rpm	3000rpm	3.74-51.3	370-4000W
RC04	491N.m	≤1500rpm	3000rpm	3.74-51.3	750-4000W

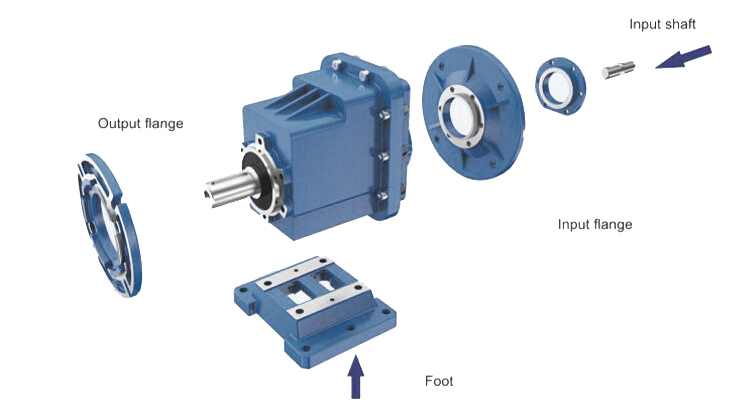

RC Series Foot-mounted Helical Gearbox Parts Structure:

RC Series Helical Gearbox Components Parameters:

Housing:	Aluminum Alloys
Gears:	Hardened Helical Gears
Input Configurations:	Hollow Shaft with IEC Normalized Motor Flange  /Solid Shaft Input
Applicable Motors:	IEC-normalized Motors and Brake Motors/Explosion-proof Motors/Inverter Motors/Servo Motors
Output Configurations:	Solid Shaft with B5 Output Flange/Solid Shaft with B14 Output Flange
Models:	RC(Foot-mounted): RC01,RC02,RC03,RC04
Applications:	Textile, Food, Ceramics, Packaging, Logistics, Plastics Industry
Installation:	Foot-mounted
Lubrication:	Oil-bath and Splash Lubrication/Cooling:/Natural Cooling

RC Series Foot-mounted Helical Gearbox Characteristics:

• Ground-hardened helical gears
• Modularity can be combined in many forms
• Aluminum casing, lightweight
• Gears in carbonized hard, durable
• Universal mounting
• Refined design, space effective, and low noise.

RC Series Foot-mounted Helical Gearbox Mounting Position:

We Also Provide Other Series of Helical Gearbox:

Helical Gearbox Manufacturer in China

As one of the top helical gearbox manufacturers in china, HZPT offers superior efficiency helical gearboxes widely used in applications where high shock load is required. The helical gearbox includes a set of helical gears. These helical gears are used as power transmitting gears, cylindrical gears, with the slanted form of tooth trace. These teeth are cut at an angle to the hole (axis), and the line of contact between the two teeth is inclined. This gradual engagement of teeth from one end of the tooth to the other makes the gears function smoothly without noise.

In comparison with spur gears, helical gears have a higher contact level; because of their lower dynamics, they can carry larger loads. The helical gearbox is manufactured with high-quality material and excels in quietness as its noise and vibration levels are very low. We also produce RV series worm gearboxes, WP series worm gearboxes, X/B series cycloidal gearboxes, R/F/S/K series helical gearboxes, ATA series shaft-mounted gearboxes, SMR series shaft-mounted gearboxes, etc.

We manufacture gearboxes and geared motors for mining, rolling mills, conveyors, crushers, cranes, thermal power plants, larger ball mills, mixers, agitators, plastic extruders, fin cooler drives, etc. Our products are widely used in applications like material handling, presses, elevators/escalator drive systems, feeders, small ball mills, cooling towers, filters, stirrer units, hoists, lapping tables, steel cooling beds, plastic machinery, goods & personnel lifts, machine tools, derrick & dockyard slewing drives; truck mounted mobile cranes, etc. dredging equipment, automotive, road making machinery, sugar crystallizers, wind turbines, medical equipment, robotics machinery, aviation equipment, packaging equipment, and mill drives.
