Rivetless Drop Forged Chain X Type X348 X458 X658 X678

X Type X348 X458 X658 X678 Rivetless Drop Forged Chain Bar Loop Chains

Category:
Get a Quote

X Type X348 X458 X658 X678 Rivetless Drop Forged Chain Bar Loop Chains

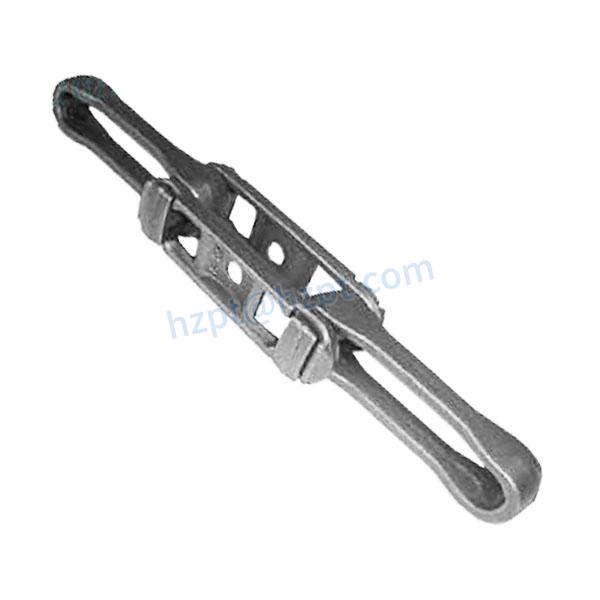

Rivetless Drop Forged Chain is highly regarded as one of the most robust chains ever developed and has widespread application in many industries. Because materials do not tend to pack in its open structure, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permits horizontal and vertical operation over irregular routes, making it particularly adaptable for trolley conveyor service. Special features of this chain in- include maximum strength without excessive weight and resistance to lengthening even after the extensive operation.

Rivetless Drop Forged Chain
Rivetless Drop Forged Chain
X-TYPE X-Type is furnished with all components heat-treated and is designed to have increased flexibility, transverse strength, and better operating performance.
A-L CHAIN NO.
PITCH IN INCHES
LINKS PER
10 FEET
WEIGHT PER FOOT LBS.
AVERAGE ULTIMATE STRENGTH—LBS.
Heat Treated Steel*
CHAIN CONSTRUCTION
3.031" PITCH CHAIN
X348
3.031
40
2.2
24,000
Special Pin
4.031" PITCH CHAIN
X458
4.031
30
3.2
48,000
Special Pin
468
4.031
30
7.5
70,000
Special Pin
6.031" PITCH CHAIN
X658
6.031
20
2.6
48,000
Special Pin
X678
6.031
20
6.7
85,000
Special Pin
698
6.031
20
11.4
130,000
Special Pin
9.031" PITCH CHAIN
998
9.031
13.3
9.0
130,000
Special Pin
9118
9.031
13.3
16.0
220,000
Special Pin
9148
9.031
13.3
27.0
300,000
Special Pin
3.031" PITCH CHAIN
S348
3.031
40
2.4
24,000
Riveted
4.031" PITCH CHAIN
S458
4.031
30
3.5
48,000
Riveted
4.031" PITCH CHAIN
S468
4.031
30
7.9
80,000
Riveted
9.031" PITCH CHAIN
S9118
9.031
13.3
20.4
220,000
Riveted
Rivetless Drop Forged Chain
REGULAR TYPE Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.
Rivetless Drop Forged Chain
S-TYPE Barloop chain is manufactured with a standard rivet-less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of the chain coming apart when slack is present and reducing wear between the pin and sidebar.
