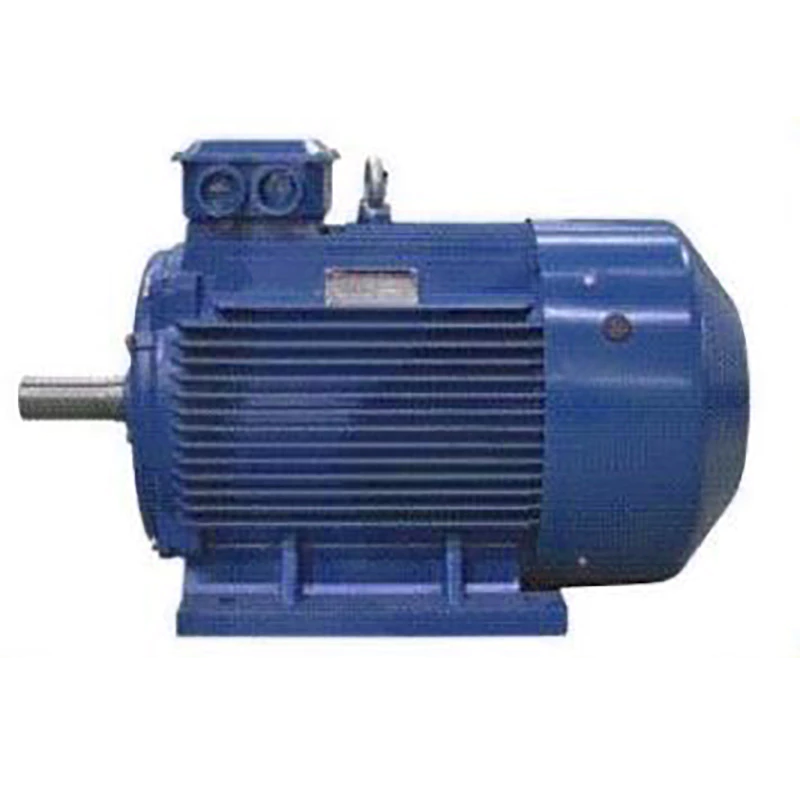

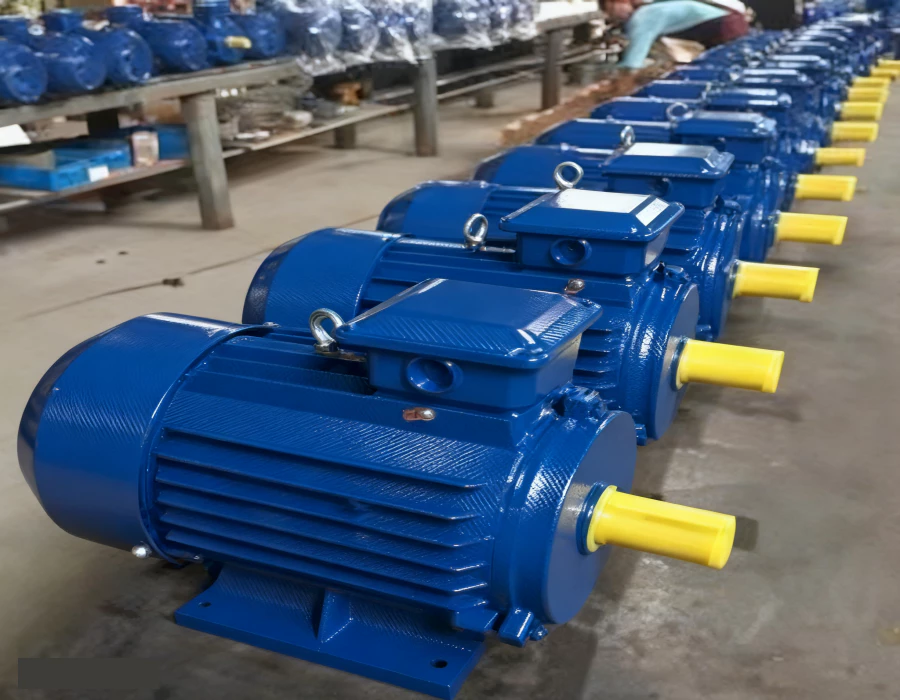

Russian Standard ANP Series Three‑Phase Asynchronous Motor

We are a professional three-phase asynchronous motors Chinese manufacturer supplying industrial-grade Russian standard. Highly efficient and energy-saving, with comprehensive service, we are an OEM supplier serving the global market.

This series of energy-saving motors is single-speed, fully enclosed, self-cooled, continuously operating general-purpose low-voltage squirrel-cage rotor three-phase asynchronous motors. Suitable for applications without special requirements, these motors can drive various general-purpose mechanical equipment and are widely used in machine tools, fans, compressors, conveyors, mixers, printing presses, agricultural machinery, packaging machinery, and other equipment.

Hzpt is a leading industrial motor supplier and manufacturer in China. We offer high-quality Russian standard three-phase asynchronous motors designed to meet demanding B2B requirements. As a manufacturer and wholesaler, we ensure comprehensive after-sales support and reliable supply for global buyers.

Technical Specifications and Performance Parameters

Type	Output (kW)	Electric Current (A)	Speed (r/min)	Eff. (%)	Power Factor	Locked Torque/ Rated Torque	Max. Torque/ Rated Torque	Locked Current/ Rated Current	Noise (dB(A))	Weight (kg)
ANP132M-2	11	21.5	2900	88.4	0.88	2.2	2.3	7.5	86	90
ANP160S-2	15	29	2925	89.4	0.88	2.2	2.3	7.5	86	120
ANP160M-2	18.5	35.5	2925	90	0.88	2	2.3	7.5	86	140
ANP180S-2	22	42	2940	90.5	0.88	2	2.3	7.5	89	170
ANP180M-2	30	56.7	2940	91.4	0.88	2	2.3	7.5	92	203
ANP200M-2	37	69.4	2940	92	0.88	2	2.3	7.5	92	247
ANP200L-2	45	84	2945	92.5	0.88	2.1	2.4	7.1	92	255
ANP225M-2	55	102.1	2960	93	0.88	2.1	2.4	7.1	93	325
ANP250S-2	75	137.4	2970	93.2	0.89	2	2.5	7.5	94	450
ANP250M-2	90	164.2	2970	93.6	0.89	2	2.5	7.5	94	530
ANP280S-2	110	199.8	2970	94	0.89	2.5	2.8	7	96	650
ANP280M-2	132	236.3	2975	94.3	0.9	2.5	2.8	7	96	700
ANP315S-2	160	282.7	2975	94.5	0.91	2	2.5	7.1	99	1170
ANP315M-2	200	352.6	2975	94.7	0.91	1.8	2.2	7.1	99	1460
ANP355S-2	250	433.7	2980	95.2	0.92	1.6	2.2	7.1	103	1900
ANP355M-2	315	545.3	2980	95.4	0.92	1.6	2.2	7.1	103	2300
ANP132S-4	7.5	15.6	1440	87	0.84	2.2	2.3	7	71	80
ANP132M-4	11	22.5	1450	88.4	0.84	2.1	2.3	7	75	91
ANP160S-4	15	30	1455	89.4	0.85	1.9	2.3	7.5	75	138
ANP160M-4	18.5	36.7	1455	90	0.85	1.9	2.3	7.5	76	142
ANP180S-4	22	43.3	1465	90.8	0.85	1.9	2.3	7.5	76	177
ANP180M-4	30	58.7	1465	91.4	0.85	1.9	2.3	7.5	79	190
ANP200M-4	37	71.9	1470	92	0.85	2.2	2.3	7.2	81	247
ANP200L-4	45	87	1465	92.5	0.85	2.2	2.4	7.2	81	260
ANP225M-4	55	105.9	1480	92.8	0.85	2.2	2.3	7.2	83	326
ANP250S-4	75	143.5	1475	93.4	0.85	2.2	2.5	7.5	86	477
ANP250M-4	90	171.3	1475	93.9	0.85	2.2	2.5	7.5	86	485
ANP280S-4	110	184.8	1480	94.2	0.96	2.1	2.5	7	93	710
ANP280M-4	132	247	1480	94.4	0.86	2.1	2.5	7	93	730
ANP315S-4	160	295.1	1480	94.7	0.87	2.1	2.5	7	97	1053
ANP315M-4	200	367.7	1480	95	0.87	2.1	2.5	7	97	1243
ANP355S-4	250	453.9	1490	95.1	0.88	2.1	2.2	6.9	101	1745
ANP355M-4	315	571.9	1490	95.1	0.88	2.1	2.2	6.9	101	1957
ANP132S-6	5.5	12.3	955	84.6	0.8	2.1	2.1	6.5	69	71
ANP132M-6	7.5	16.7	960	85.2	0.8	2.1	2.2	6.5	73	78
ANP160S-6	11	23.6	965	87.6	0.81	2	2.2	6.5	73	140

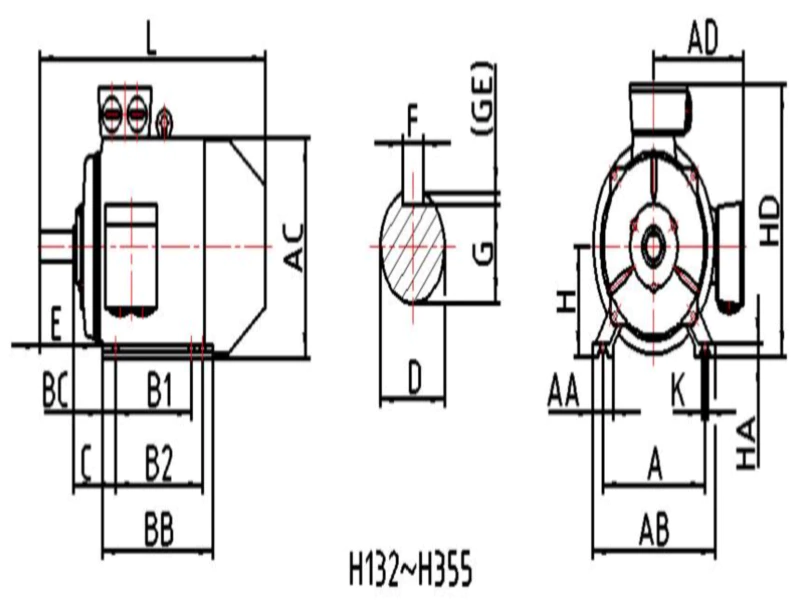

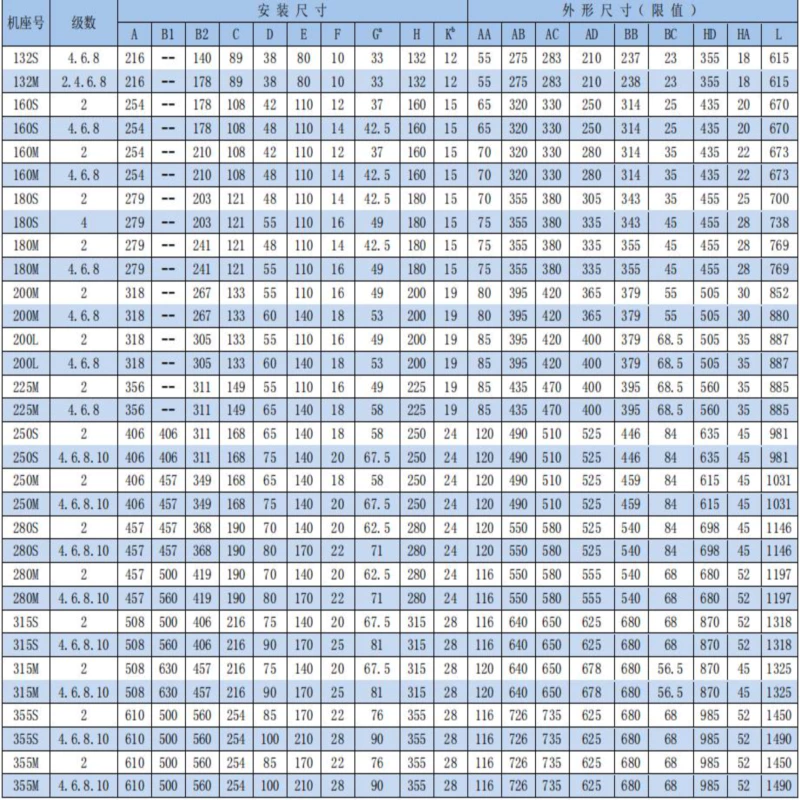

Motor with base feet and flangeless end cover

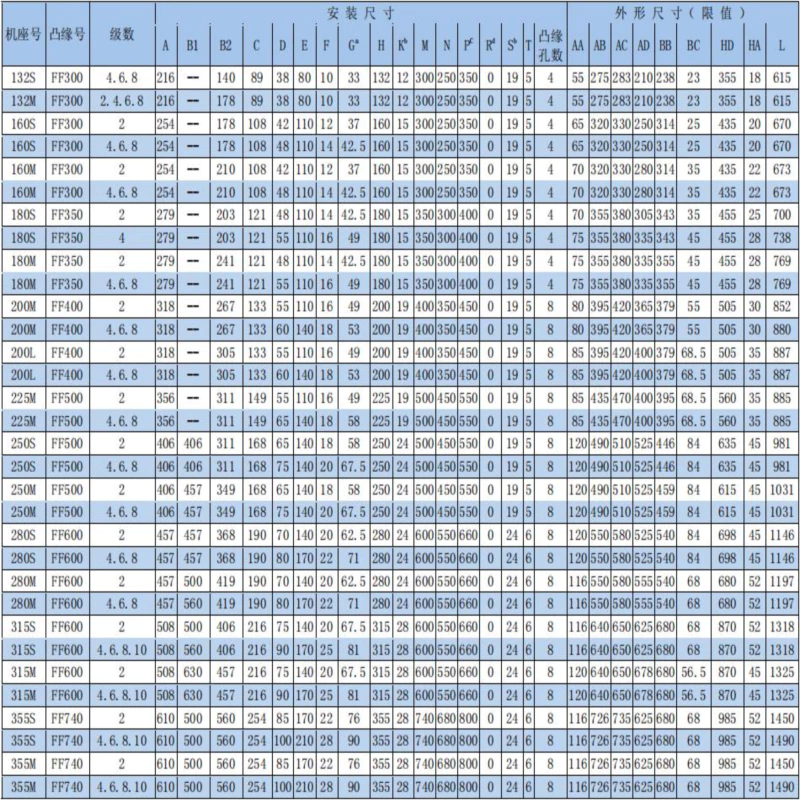

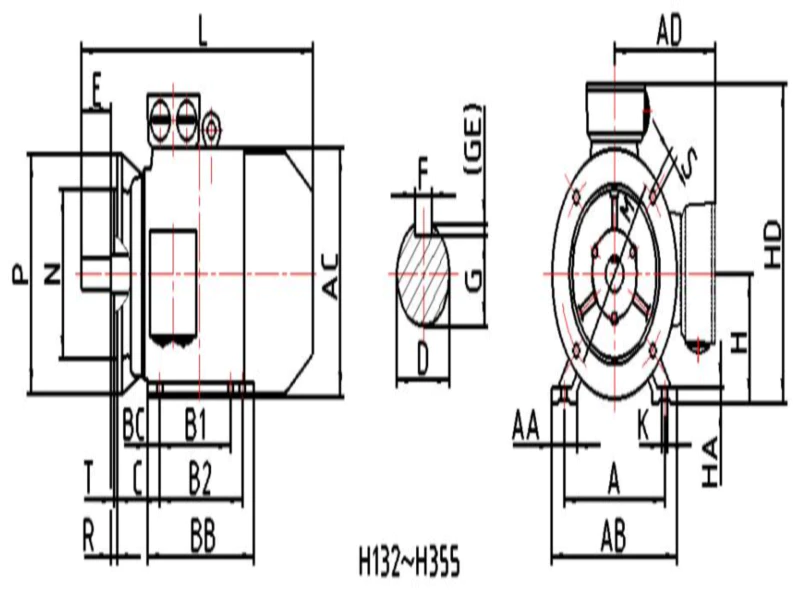

Motor with base feet, flanged end cover (with through hole)

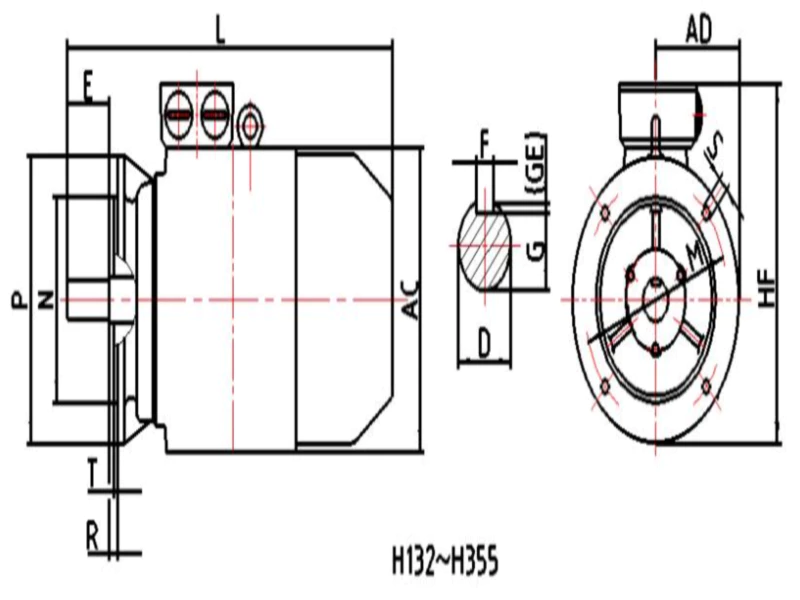

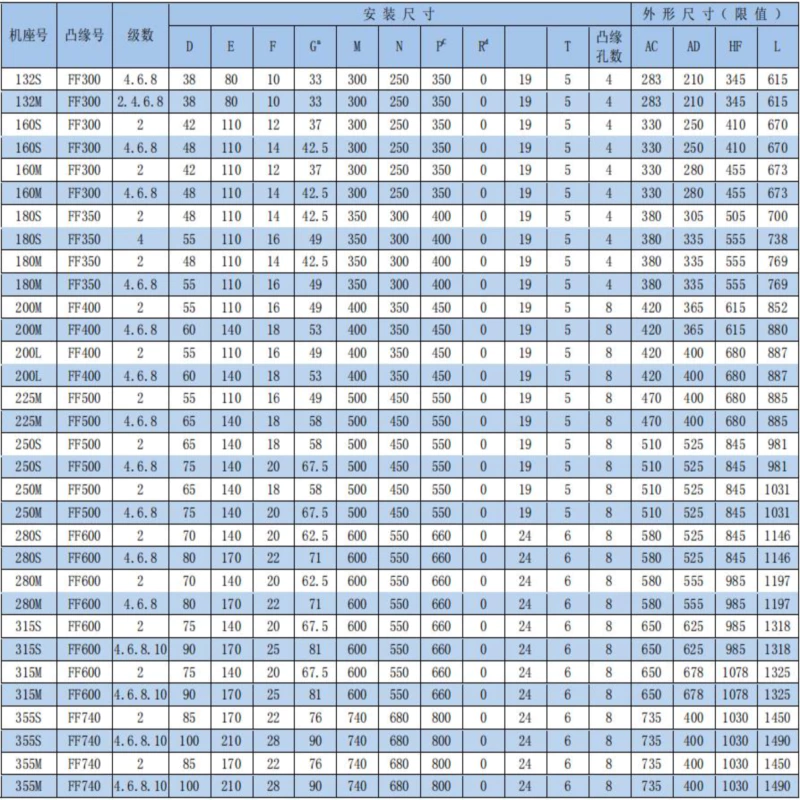

Motor with base feet, flanged end cover (with through hole)

Why Choose Our Russian Standard Asynchronous Motors?

– Designed to meet the dimensions and specifications of the Russian market's GOST standard

– Designed for efficient, high-torque starting and continuous heavy-load operation

– Made in China ensures reliable supply and cost competitiveness

– Comprehensive system support: OEM/ODM, integrated services, global export logistics

– Real customer feedback and a comprehensive service system demonstrate our commitment to quality and performance

We not only supply motors, but also support equipment such as gearboxes, coupling assemblies, custom installation kits, and on-site integration support for the Russian market. As a full-service supplier and wholesaler, we cover all aspects from sourcing and manufacturing to logistics, ensuring our customers receive comprehensive solutions.

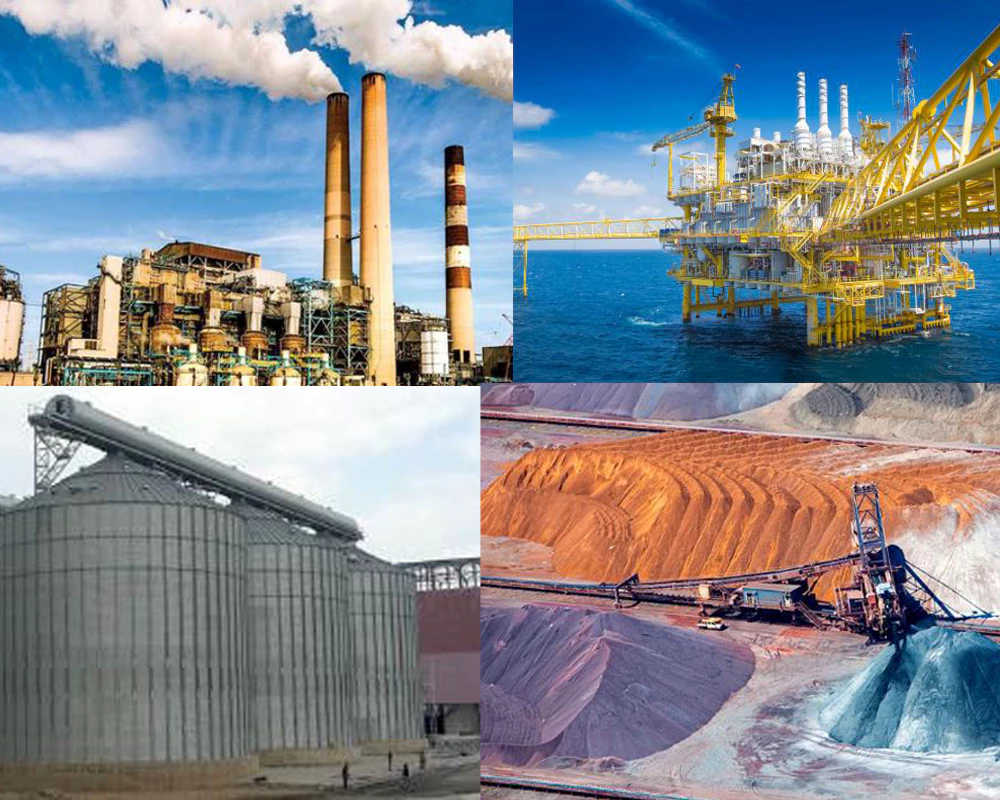

Russian Standard Three-Phase Asynchronous Motor Applications

1. Oil and Gas Industry:

Onshore and Offshore Drilling Platforms: Power mud pumps, drilling winches, and large circulating fans in explosive environments.

Refineries and Petrochemical Plants: Power pumps for conveying crude oil, gasoline, and other hydrocarbons, as well as agitators and compressors in chemical reactors.

Pipeline Transportation: Operate mainline pumps and booster pumps at pumping stations along oil and gas pipelines.

2. Mining and Mineral Extraction:

Underground Coal Mines: Power coal mining machines, conveying systems, mine ventilation fans, and drainage pumps in environments containing methane and coal dust.

Potash Mines: Power machinery in environments containing explosive dust.

3. Chemical and Pharmaceutical Industry:

Chemical Processing Plants: Operate agitators, reactors, and centrifuges that handle volatile solvents and flammable compounds.

Spray Drying and Powder Processing: Drive equipment in areas that generate combustible powders and dust (e.g., pharmaceutical raw materials, food, chemicals).

4. Grain Handling and Food Processing:

Flour Mills and Grain Silos: Driving conveyors, elevators, and grinding equipment in areas where highly flammable grain dust and potentially explosive atmospheres may occur.

5. Heavy Industry and Material Handling:

Metallurgical Plants: Operating overhead cranes, ladle hoists, and loaders in areas where flammable gases or dust may be present.

Paint and Coating Manufacturing: Driving agitators and mixers in environments where flammable solvent vapors may be present.

Customer reviews

“We installed this motor at our processing plant in Siberia, and after eight months of continuous operation, it has maintained perfect performance. The comprehensive after-sales service and two-year warranty gave us confidence from the start.” – A manufacturing company customer in the Ural region

“In our Southeast Asian dredging project, we switched to this motor that meets Russian standards. Even under frequent start-stop cycles and extreme conditions, it operates stably. The complete system supply and spare parts support provided by the Chinese manufacturer played a crucial role.” – Vietnam Factory Manager

“Our logistics center in Germany has upgraded its conveyor drive motors to meet Russian standards. The support from the OEM, the supplier's on-site commissioning, and the stable power output impressed our maintenance team. Highly recommended for heavy-duty applications.” – Hamburg Maintenance Supervisor

Product Warranty and After-Sales Service

Each motor comes with a 2-year warranty, covering manufacturing defects and operational failures under normal use. Our after-sales service provides 24/7 global support, spare parts supply, and logistical assistance. At the bottom of the product page, you can find complete contact information: company address, email, telephone number, and export department hotline—reflecting our transparency and credibility.

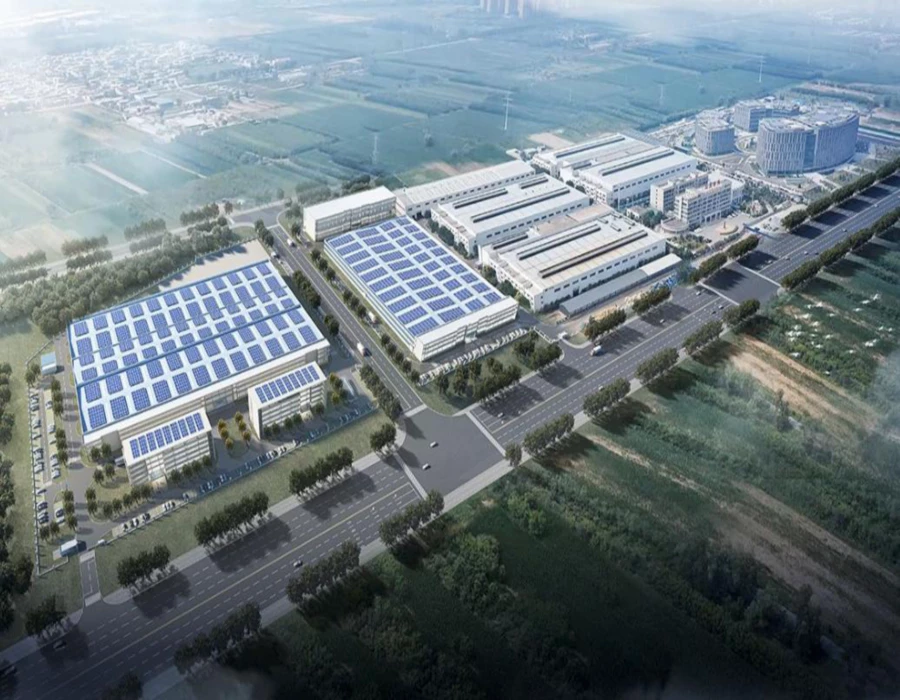

Three-Phase Asynchronous Motor Company

HZPT is a professional manufacturer & supplier of electric motors. We have an experienced technical team to provide technical services for custom electric motors. In May 2014, the company completed its overall relocation and renovation, with an equipment investment of 500 million RMB and a load capacity of 1 billion RMB. Its type testing capability (direct load method) reaches 3000kW. The company adheres to a development path focused on quality and efficiency, establishing a quality management system according to ISO9001 standards and passing the certification of the China Quality Certification Center (CQC). It has also passed ISO14001 environmental management system, ISO45001 occupational health and safety management system, and ISO5001 energy management system certifications. The company's management system framework is now largely complete.

We are a China-based company with over 15 years of experience in motor manufacturing. We are ISO9001 certified and hold numerous patents related to Russian standard motor design. We are committed to OEM and ODM services, integrating manufacturers and global suppliers. Our rigorous quality control and cost-effective production model make us a reliable partner for global B2B customers.

FAQ

Q1: What voltage and pole number options are available?

A: We offer voltage options of 220/380V and 380/660V, and pole options of 2, 4, 6, and 8 poles, covering a wide range of industrial applications.

Q2: Does this motor come with a warranty and global after-sales service?

A: Yes. It includes a two-year warranty. Our after-sales team provides technical support, spare parts, and global logistics services to B2B customers.

Q3: How does this Russian standard motor differ from the IEC standard model?

A: The Russian standard model conforms to the GOSTR51689 size standard, typically uses a top-mounted junction box, and is tailored for the Russian market, making it easier to integrate into the Russian environment.

Q4: Can you provide OEM or system integration solutions?

A: Of course. As a manufacturer, we support OEM and ODM orders, providing complete systems that include gearboxes and integration kits for the Russian market.

Q5: What heavy-duty applications is this motor suitable for?

A: Ideal for use in pumps, fans, mixers, conveyors, mining equipment, and drilling rigs—especially suitable for environments requiring continuous operation under harsh conditions.
