SMA Common Motor Base SMA 210B-SMA 490
Motor bases series absorb the international advanced techology, integrated with the characteristics of all kinds of motors. This product is made of high qualty steel plate. It is suitable for dfferent kinds of motors with compact structure, beautiful appearance, easy instalation and fexible tension adjustment.
SMA Common Adjustable Motor Base SMA210B, SMA210, SMA270, SMA307, SMA340, SMA380, SMA430, SMA450, SMA490

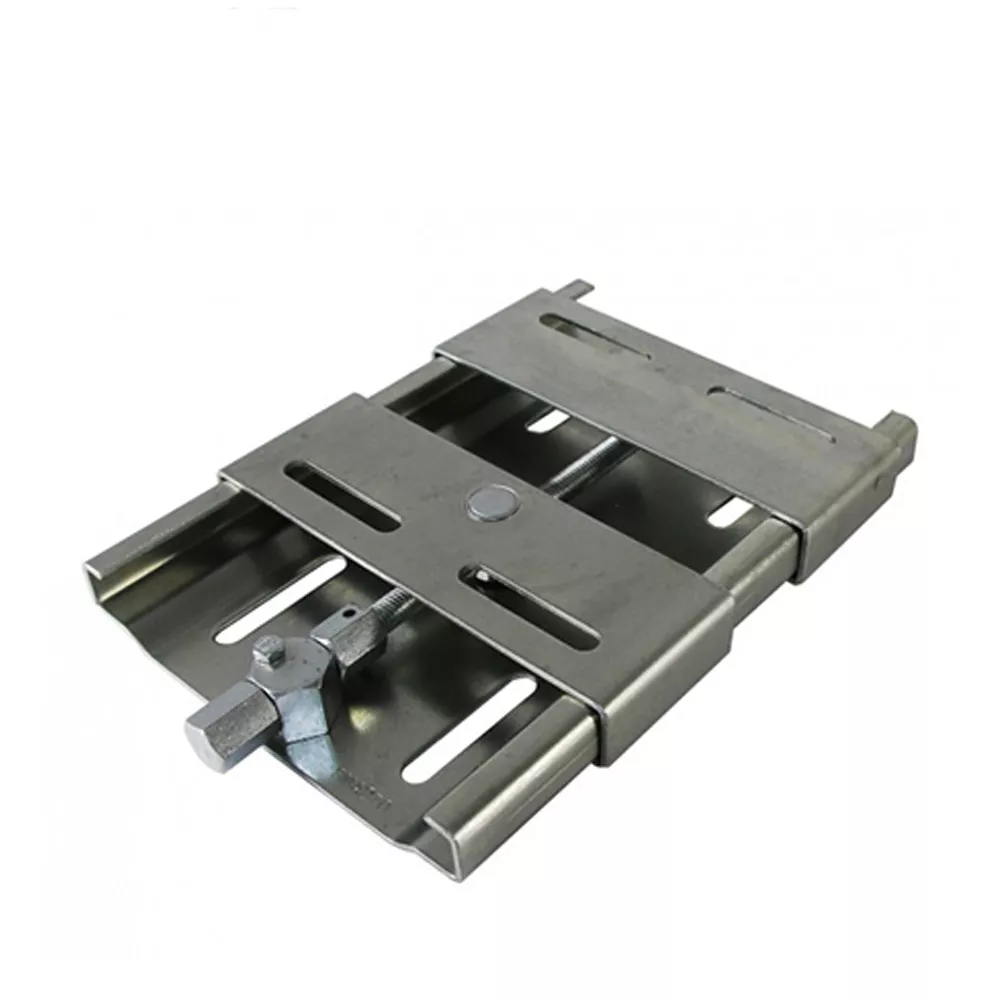

SMA Common Adjustable Motor Base
The motor base can solve the problem of the belt tension in the power transmission. They are easy to assemble and allow adjustment of bel tension or disassembly without removing the electric motor. The movement of the motor is controlled by a screw which is adjusted by a common key.
Characteristics of SMA Motor Bases
Application of SMA Motor Bases
|
 |
We also can supply Adjustable Motor Mounts products according to drawings or samples.
Dimensions of SMA Motor Bases
| Product name | Motor Base, SMA Common Motor Base, China Motor Base |
| Model number | SMA210B , SMA210 , SMA270 , SMA307,SMA340,SMA380,SMA430,SMA450,SMA490 |
| Length(mm) | 210,270,307,340,380,430,450,490 |
| Width(mm) | 150,195,213,240,290,350,410 |
Specifications of SMA Motor Base
| T1P0 | A | B | C | CH | D | E | F | G | H | L | M | N | 0 | P | Q | Kg |
| SMA2I0B | 210 | 150 | 20 | 19 | 30 | 25 | 25 | 10 | 27 | 65 | 50 | 25 | 25 | 80 | 2.5 | 1.8 |
| SMA210 | 210 | 195 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 43 | 50 | 26 | 98 | 3 | 2.6 |
| SMA 270 | 270 | 195 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 43 | 50 | 26 | 98 | 3 | 3.0 |
| SMA 307 | 307 | 213 | 20 | 19 | 25 | 50 | 25 | 10.5 | 33 | 70 | 65 | 50 | 24 | 108 | 3 | 3.2 |
| SMA 340 | S40 | 290 | 27 | 22 | 30 | 62 | 30 | 12.5 | 40 | 95 | 90 | 62 | 38 | 165 | 4 | 6.3 |
| SMA 380 | 380 | 240 | 27 | 19 | 25 | 43 | 30 | 12 | 33 | 95 | 96 | 43 | 29 | 160 | 3 | 4.5 |
| SMA 430 | 430 | 290 | 27 | 22 | 30 | 62 | 30 | 12.5 | 40 | 95 | 90 | 62 | 38 | 165 | 4 | 7.5 |
| SMA 450 | 450 | 350 | 40 | 22 | 30 | 55 | 30 | 15 | 40 | 125 | 174 | 55 | 33 | 225 | 4 | 9.7 |
| SMA 490 | 490 | 410 | 40 | 22 | 30 | 60 | 30 | 15 | 40 | 95 | 193 | 60 | 48.5 | 284 | 4 | 10.8 |
Packing & Shipping
| Package | Standard suitable package / Pallet or container. Polybag inside export carton outside, blister and Tape and reel package available. If customers have specific requirements for the packaging, we will gladly accommodate them. |
| Shipping | 10-20 working days after payment receipt is confirmed (based on actual quantity). Packing standard export packing or according to customers' demand. Professional goods shipping forward. |
Motor Base Manufacturer-HZPT
A motor base manufacturer provides various types and sizes of motor bases. These are designed by using premium quality raw materials that are sourced from reliable vendors. The range of motor bases available from HZPT includes welded, bolted, adjustable, sliding, and modular bases. Moreover, these bases can be customized according to the client's specifications.
The motor base is a crucial component of a motor. Its structure and machining have a big influence on its performance. If the machining base of a motor is not suitable for the intended use, it can affect the performance of the motor. Therefore, it is necessary to select the right structure and process it according to the technical requirements of the motor. This will reduce the chances of non-conformity caused by the machining base.
Special fixed-position bases feature mounting studs extending from slots. This type of base allows the motor to be lifted above the pulley center. However, the motor may shift closer to the driven pulley during the tightening process, which puts excessive tension on the mounting studs. Alternatively, a tension-controlling base automatically changes the center distance of the pulley during mounting.
