Stainless Steel Precision Filters In The Air Compressor After-Treatment System

From booming manufacturing plants to sophisticated laboratories, compressed air, with its ubiquitous energy supply, ensures the continuous operation and efficient operation of production lines. However, the moisture, oil droplets and particulate impurities carried in untreated compressed air are like hidden dangers. They will not only corrode the precision parts of the equipment and shorten their service life, but also threaten the purity and quality of the final product, thus affecting the production efficiency and market competitiveness of the enterprise.Air compressor post-processing equipment

It is in this context that stainless steel precision filters play a pivotal role in the post-processing system of air compressors. As the last line of defense for purifying compressed air, it accurately captures and removes those tiny to micron-level pollutants to ensure that the output air reaches unprecedented purity. The choice of stainless steel material not only gives the filter excellent corrosion resistance and durability, but also ensures the absolute safety and hygiene of the filtration process in industries such as food and medicine that have strict requirements on hygiene standards. Therefore, in-depth exploration of the principles, applications and value of stainless steel precision filters is not only an exploration of improving industrial production efficiency, but also a positive response to promoting the green and sustainable development path of the manufacturing industry.

Conditions of Use

  • FC grade: Primary dust filter, filtration accuracy 3µm
  • FT grade: Dust filter, filtration accuracy 1µm

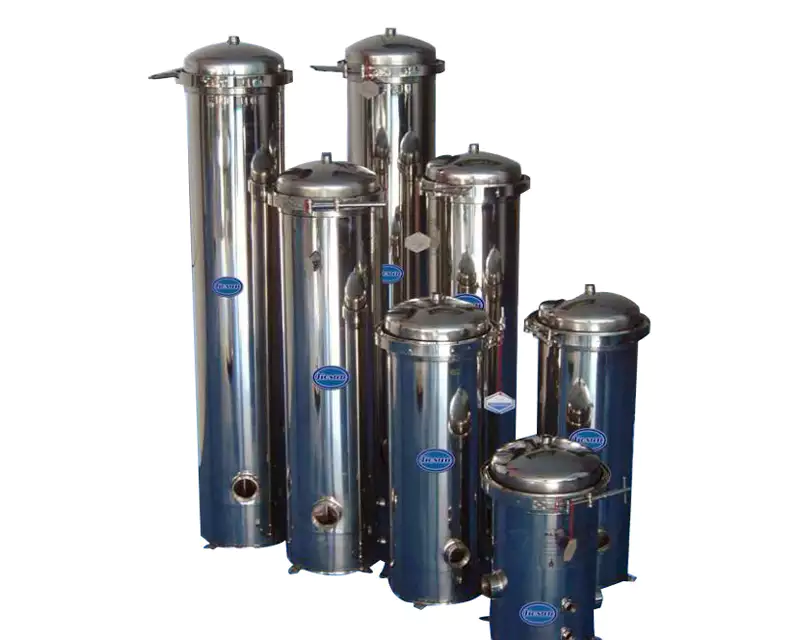

  • FA grade: Precision dust filter, filtration accuracy 0.01µmPrecision Filter for Air Compressor
ModelProcessing capacity (m3/min)Connection flangeFilter element configurationOverall dimensions L*H
-0033.8DN255" Single core200*340
-0066.5DN4010" Single core200*470
-01010DN5020" Single core200*730
-01313DN6510" Three cores320*747
-01616.5DN6510" Three cores320*747
-02020DN8020" Three cores320*1012
-03232DN8020" Three cores320*1012
-04343DN10020" Five cores400*1156

Features Of Our Stainless Steel Precision Filter

  1. Advanced design concepts and materials: The shell design refers to the high standards of similar French products and is made of 316 stainless steel, a high-grade stainless steel alloy known for its excellent corrosion resistance, high temperature resistance and high strength. The inside and outside of the casing have been processed with high-precision mechanical polishing, which not only improves the cleanliness of the appearance, but also reduces the possibility of bacterial adhesion and enhances cleanliness and hygiene. The special shell locking collar or flange design ensures convenient installation and sealing. The standard design working pressure is up to 10bar, which is suitable for a variety of industrial pressure requirements.
  2. High-efficiency particle filtration capability: The stainless steel precision filter is equipped with a high-efficiency filter element, which can accurately intercept tiny particles. The filtration accuracy usually ranges from 0.22 microns to 5 microns, effectively removing dust, oil mist and other particulate impurities in the compressed air, ensuring Output air purity. High-efficiency filtration not only improves air quality, but also extends the service life of downstream equipment and reduces maintenance costs.
  3. Long life and low maintenance costs: Thanks to the excellent durability of stainless steel, this type of filter can resist corrosion and wear, and can maintain long-term stable operation even under harsh working conditions, greatly reducing replacement frequency and maintenance costs. Reasonable structural design makes filter element replacement simple and fast, reducing downtime and operational complexity.
  4. High degree of hygiene and safety: 316 stainless steel material and fine polishing treatment make it an ideal choice for industries that have strict requirements on hygienic conditions, such as food and medicine. Stainless steel itself does not rust and does not produce harmful substances. Together with the sophisticated filtration mechanism, it effectively prevents pollutants from entering the production process and ensures the safety and quality of the final product.
  5. Wide range of environmental adaptability: Stainless steel precision filters are not only resistant to high temperatures and high pressures, but also perform well in the face of various corrosive environments. Whether in chemical, petroleum, pharmaceutical or food processing industries, they can work stably, demonstrating Extremely strong environmental adaptability and reliability.

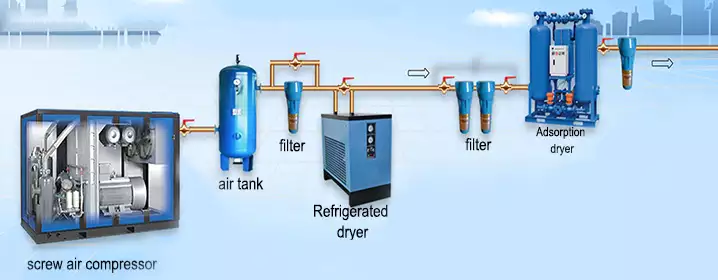

Basic Components of the Post-processing System

  • Drying unit: Mainly responsible for reducing the moisture content in compressed air and preventing moisture from condensing in pipelines or downstream equipment, causing corrosion, blockage or product quality problems. Common drying equipment includes refrigeration dryers and adsorption dryers. The former uses the principle of refrigeration to reduce the air temperature and promote the condensation of water vapor; the latter uses adsorption materials (such as molecular sieves) to adsorb moisture in the air under pressure.
  • Filter unit: It is divided into multiple levels, from coarse filtration to fine filtration, gradually removing solid particles, oil mist and tiny water droplets in compressed air to ensure air quality. Stainless steel precision filters play a core role in this link. Their high-efficiency filter can capture extremely small pollutants and ensure that the cleanliness of the air reaches extremely high standards.
  • Gas tank: As a temporary storage facility for compressed air, it not only balances the pressure fluctuations of the system, but also allows the compressed air to stay in the tank for a sufficient time to further precipitate moisture and solid impurities. Stainless steel gas tanks have become the first choice for many high-standard applications due to their excellent corrosion resistance and hygiene.

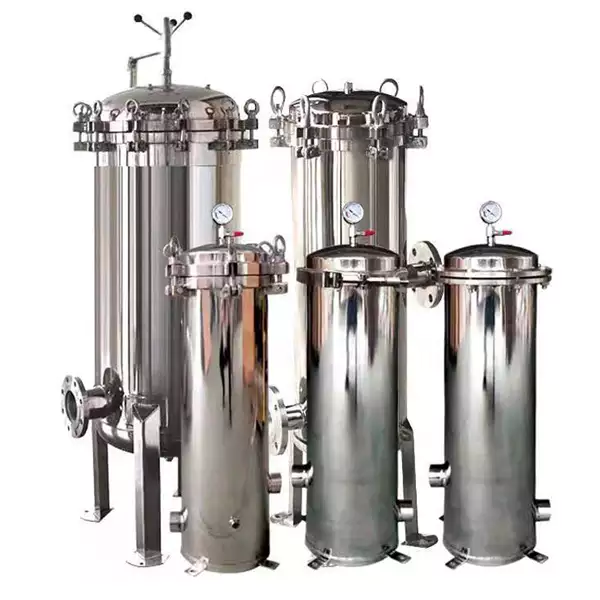

    Stainless steel precision filter 3

Selection Guide for Stainless Steel Precision Filters

When choosing a stainless steel precision filter, consider several factors to ensure that it is perfectly matched with your air compressor system to achieve the ideal air purification effect and working efficiency. The following is a detailed selection guide to help you make an informed decision:

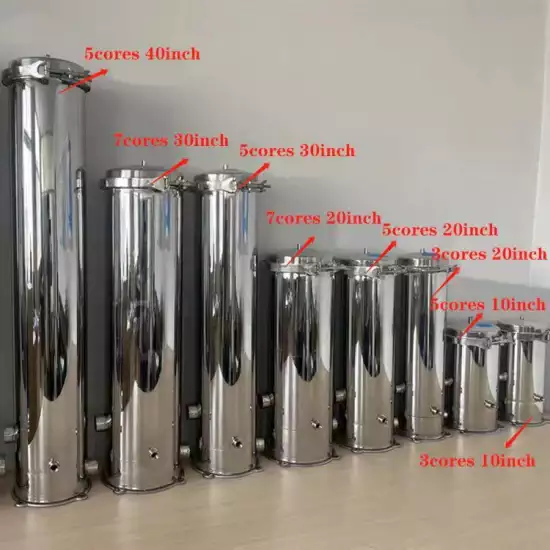

Stainless steel precision filter 2

1. Determine the filtration level (ISO 8573-1 standard)

  • Understand the ISO 8573-1 standard: This is an internationally recognized compressed air quality standard that divides the purity of compressed air into three main categories: solid particles, water (humidity), and oil (including oil mist and oil vapor). The standard defines different levels of air quality requirements, such as Class 1 for the purest and Class 4 for the lowest requirements.
  • Evaluate needs: Determine the required air quality level based on your specific application (such as food processing, medicine, electronics manufacturing, etc.). For example, the food and pharmaceutical industries usually require extremely high purity and may require Class 1 or Class 2 filtration levels.

2. Flow and pressure matching

  • Calculate the required flow: Understand the maximum output flow of your compressor and the average flow demand during actual use, and ensure that the filter's flow handling capacity matches it to avoid pressure loss or overload.
  • Confirm the working pressure: According to the working pressure range of the compressor, select a filter that can withstand the corresponding pressure to ensure safe and stable operation even when running at full load.

3. Installation location and connection method

  • System layout planning: Consider the best installation location of the filter, which is generally located after the dryer and close to the final gas point to reduce the chance of secondary contamination.
  • Choose the connection method: Select suitable connection accessories such as threaded connection, flange connection, etc. according to the existing pipe size and material to ensure easy installation and good sealing.

4. Budget and cost-effectiveness considerations

  • Cost-benefit analysis: On the basis of meeting the filtering needs, compare the price, maintenance cost and service life of stainless steel precision filters of different brands and models.
  • Consider long-term benefits: Although some high-end models have a large initial investment, their lower maintenance cost and longer service life may bring higher overall cost-effectiveness.
  • Additional function considerations: Some filters may be equipped with easy-to-replace filter element design, pressure drop indicator or automatic drainage function, which can improve the user experience and efficiency to a certain extent and are also part of the cost-effectiveness evaluation.
