Steel Sprockets 40, 60

A sprocket is a rotating mechanical wheel with teeth that engage with roller or conveyor chains to facilitate their movement in various applications and equipment. As the sprocket rotates around a central shaft, the specially designed teeth engage the gaps in the chain to pull it with a secure grip regardless of whether it is in dirty or oily environments. Although they may resemble gears, sprockets are designed solely to work with chains, not other sprockets or gears.

Category:
Get a Quote

Steel Sprockets

A sprocket is a rotating mechanical wheel with teeth that engage with roller or conveyor chains to facilitate their movement in various applications and equipment. As the sprocket rotates around a central shaft, the specially designed teeth engage the gaps in the chain to pull it with a secure grip regardless of whether it is in dirty or oily environments. Although they may resemble gears, sprockets are designed solely to work with drive chains, not other sprockets or gears.

HZPT specializes in high-quality drive and conveyance components, power transmission parts, and custom-designed products. The integrity and performance of your transmission system rely on the suitability of your sprockets, and our team can help you find the perfect solution.

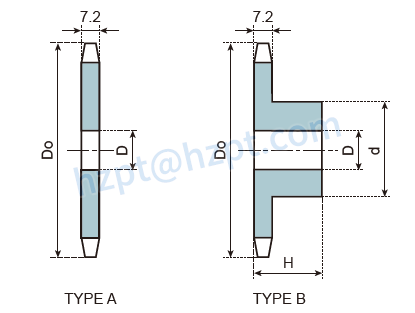

(1) 40 Steel Sprockets for Chain 843 / 845 / 1843

编号
CODE
TYPE A TYPE B
外径 Do
Outer dia. (mm)
节径 Dp
Pitch dia. (mm)
孔径 D
Bore dia. (mm)
外径 Do
Outer dia. (mm)
节径 Dp
Pitch dia. (mm)
孔径 D
Bore dia. (mm)
凸台直径 d
Hub dia. (mm)
总长 H
Overall length (mm)
13T 59 53.07 13.5 59 53.07 13.5 37 22
14T 63 57.07 13.5 63 57.07 13.5 42 22
15T 67 61.08 13.5 67 61.08 13.5 46 22
16T 71 65.10 13.5 71 65.10 13.5 50 22
17T 76 69.12 13.5 76 69.12 13.5 54 22
18T 80 73.14 13.5 80 73.14 13.5 57 22
19T 84 77.16 13.5 84 77.16 13.5 62 22
20T 88 81.18 14 88 81.18 14 67 25
21T 92 85.21 14 92 85.21 14 71 25
22T 96 89.24 14 96 89.24 14 75 25
23T 100 93.27 14 100 93.27 14 77 25
24T 104 97.30 14 104 97.30 14 63 25
25T 108 101.33 14 108 101.33 14 63 25
26T 112 105.36 14 112 105.36 14 63 25
27T 116 109.40 14 116 109.40 14 63 25
28T 120 113.43 14 120 113.43 14 63 25
29T 124 117.46 14 124 117.46 14 63 25
30T 128 121.50 14 128 121.50 14 63 25

NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)

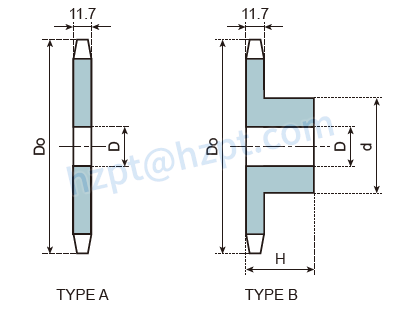

(2) 60 Steel Sprockets for Chain 863 / 963 / 1864 / 1873 / 1874 / 3873

This series of sprockets can be used with 1874TAB-G Flat Top Chains Sideflexing.

steel sprockets steel sprockets
编号
CODE
TYPE A TYPE B
外径 Do
Outer dia. (mm)
节径 Dp
Pitch dia. (mm)
孔径 D
Bore dia. (mm)
外径 Do
Outer dia. (mm)
节径 Dp
Pitch dia. (mm)
孔径 D
Bore dia. (mm)
凸台直径 d
Hub dia. (mm)
总长 H
Overall length (mm)
13T 89 79.60 14 89 79.60 14 57 32
14T 95 85.61 16 95 85.61 16 62 32
15T 101 91.62 16 101 91.62 16 68 32
16T 107 97.65 16 107 97.65 16 73 32
17T 113 103.67 16 113 103.67 16 73 32
18T 119 109.71 16 119 109.71 16 83 40
19T 126 115.74 16 126 115.74 16 83 40
20T 132 121.78 16 132 121.78 16 83 40
21T 138 127.82 16 138 127.82 16 83 40
22T 144 133.86 16 144 133.86 16 83 40
23T 150 139.90 16 150 139.90 16 83 40
24T 156 145.95 16 156 145.95 16 83 40
25T 162 151.99 16 162 151.99 16 83 40
26T 168 158.04 16 168 158.04 16 83 40
27T 174 164.09 20 174 164.09 20 83 40
28T 180 170.14 20 180 170.14 20 83 40
29T 187 176.20 20 187 176.20 20 83 40
30T 193 182.25 20 193 182.25 20 83 40

NOTE: Material: Carbon Steel / Stainless Steel (Plastic Material is Available)

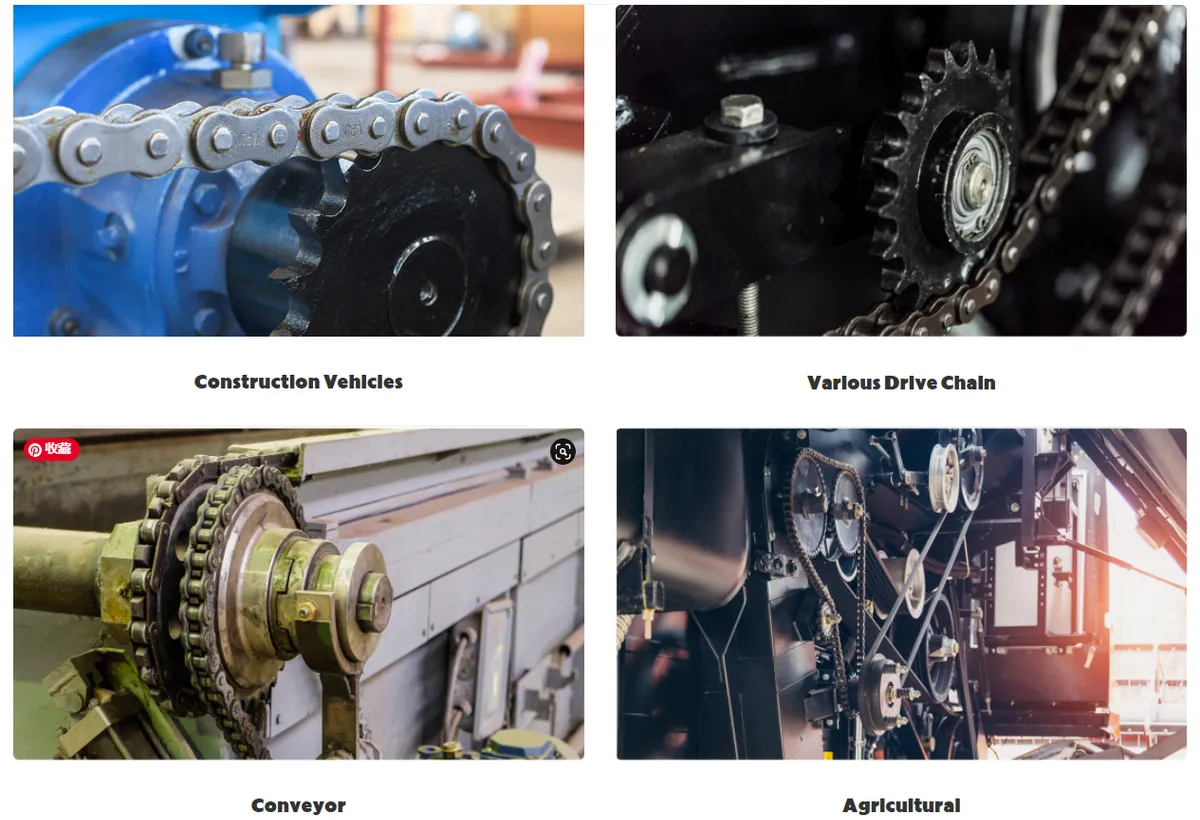

Applications for Sprockets

Finding Your Ideal Chain and Sprocket

Do you need a sprocket but aren't sure exactly what you need? This common problem is one that our professionals hear about every week. We excel at working with you to ensure that you get the roller chain sprocket or conveyor chain sprocket that will keep your project or machinery moving again.

Sprockets are available for various uses, from forestry to agriculture and everything in between. It's equally as important to select the correct sprocket as it is to use the proper chain -- a mismatch can be catastrophic, causing damage to expensive machinery and even dangerous accidents. At HZPT, we help you find the right pairing.

Choose HZPT for high-quality sprockets.

Sprockets transmit reliable mechanical force using simple yet highly essential mechanisms; therefore, it is crucial to choose the right parts to ensure a long life for your critical system, considering loads and manufacturing conditions. HZPT has been creating high-quality roller chains and conveyance parts for over 20 years, and we have an extensive line of standard and specialized sprockets. Contact us to find suitable sprockets for your systems or equipment today.
