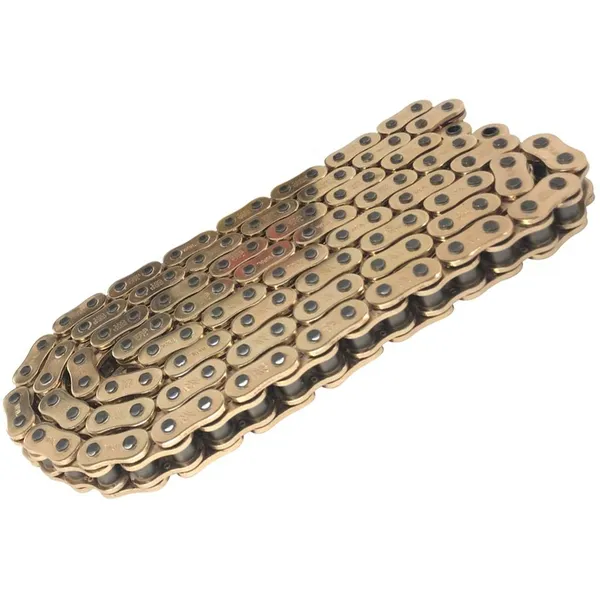

Super X-Ring Motorcycle Chain
A Super X-Ring motorcycle chain is a type of sealed chain that uses a unique X-shaped ring seal to retain lubrication and keep dirt out. This type of chain is designed to be more durable and wear-resistant than traditional O-ring motorcycle chains and is often used on high-performance motorcycles and ATVs. The X-ring seal has a number of advantages over the O-ring seal. First, it has a larger contact area, which helps to distribute stress more evenly and reduce friction. Second, the X-ring has a triple-lip design that provides a more effective seal against dirt and moisture.
Super X-Ring Motorcycle Chain
A Super X-Ring motorcycle chain is a type of sealed chain that uses a unique X-shaped ring seal to retain lubrication and keep dirt out. This type of chain is designed to be more durable and wear-resistant than traditional O-ring motorcycle chains and is often used on high-performance motorcycles and ATVs.
The X-ring seal has a number of advantages over the O-ring seal. First, it has a larger contact area, which helps to distribute stress more evenly and reduce friction. Second, the X-ring has a triple-lip design that provides a more effective seal against dirt and moisture. Finally, the X-ring is made of a more durable material than the O-ring, which helps to extend the chain's lifespan.
Super X-Ring motorcycle chains are typically made with high-strength alloy steel and are available in a variety of sizes to fit different motorcycles. They are also available in a variety of finishes, including black, gold, and silver.
Super X-Ring Motorcycle Chain Sizes Chart:
| Chain No. | Pitch | Bush Type | Width | Pin Dia | Pin Length | Roller Dia | Plate Thickness Inner | Plate Thickness Outer | Tensile Strength | Weight |
| mm | mm | mm | mm | mm | mm | mm | KN | kg/m | ||
| 428SX | 12.700 | Solid | 7.85 | 5.00 | 20.60 | 8.51 | 2.20 | 2.03 | 28.0 | 1.02 |
| 52055 | 15.875 | Solid | 6.35 | 5.34 | 19.20 | 10.18 | 1.85 | 1.85 | 30.5 | 0.91 |
| 520-SX | 15.875 | Solid | 6.35 | 5.34 | 19.20 | 10.18 | 2.03 | 2.03 | 36.0 | 0.94 |
| 520-SX3 | 15.875 | Solid | 6.35 | 5.34 | 21.80 | 10.18 | 2.35 | 2.35 | 38.0 | 1.12 |
| 525-SX | 15.875 | Solid | 7.94 | 5.50 | 22.80 | 10. 20 | 2.35 | 2.35 | 40.0 | 1.12 |
| 530-SX | 15.875 | Solid | 9.60 | 5.50 | 24.50 | 10. 20 | 2.40 | 2.40 | 43.0 | 1.20 |
| 520H-5X | 15.875 | Solid | 6.35 | 5.24 | 22.00 | 10.16 | 2.40 | 2.40 | 38.0 | 1.21 |
| 525H-SX | 15.875 | Solid | 7.94 | 5.24 | 23.80 | 10.16 | 2.40 | 2.40 | 38.0 | 1.35 |
| 530H-5X | 15.875 | Solid | 9.60 | 5.24 | 25.40 | 10.16 | 2.40 | 2.40 | 38.0 | 1.39 |

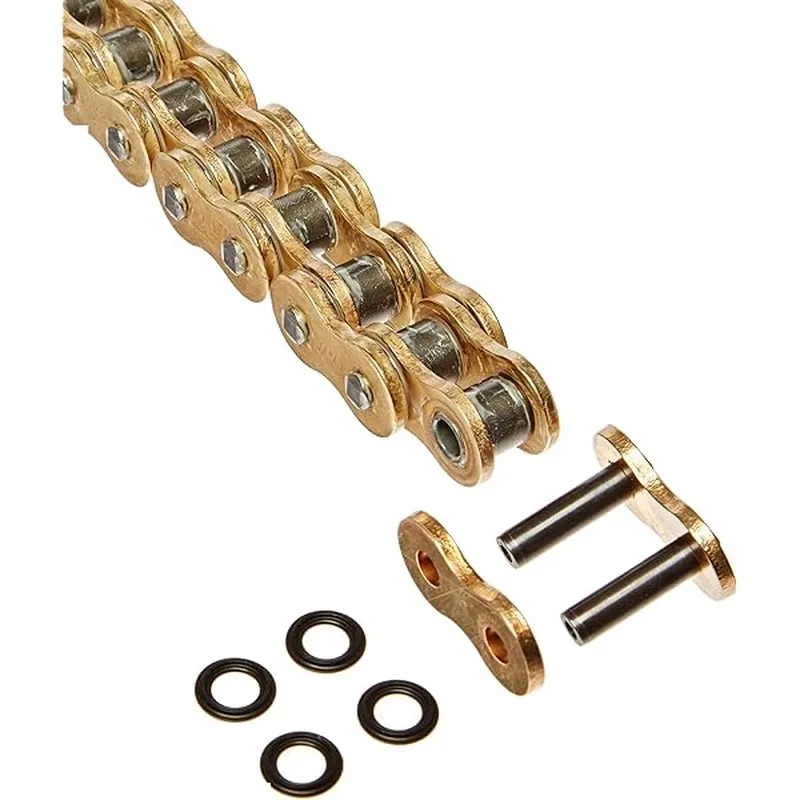

Benefits of Super X-Ring Motorcycle Chain:
Super X-ring motorcycle chains offer a number of benefits over standard and O-ring chains, including:
1. Longer wear life: Super X-ring motorcycle chains are designed to last longer than standard and O-rings, with some brands claiming up to 3 times the lifespan. This is due to their unique shape, which provides better sealing and reduces friction.
2. Reduced friction: Super X-ring motorcycle chains have a lower coefficient of friction than standard and O-rings, which means that they lose less power to friction. This can improve performance and fuel efficiency.
3. Improved performance: Super X-ring motorcycle chains can help to improve motorcycle performance in a number of ways, including by reducing power loss, improving throttle response, and providing smoother shifting.
4. Reduced maintenance: Super X-ring motorcycle chains require less maintenance than standard and O-rings, as they are less likely to stretch or wear out. This can save you time and money in the long run.
5. Better all-weather performance: Super X-ring motorcycle chains are less susceptible to the effects of dirt, water, and other contaminants than standard and O-rings. This means that they can perform better in all weather conditions.
In addition to these benefits, super X-ring chains are also typically stronger and more durable than standard and O-ring chains. This makes them a good choice for high-performance motorcycles and other applications where demanding conditions are expected.
 |
 |
How to Clean a Motorcycle Chain?
To clean a motorcycle chain, you will need:
- Put the motorcycle on a center stand. This will make it easier to rotate the rear wheel and clean the chain.
- Spray the chain with chain cleaner. Be sure to coat all sides of the chain, including the sprockets.
- Let the chain cleaner sit for a few minutes to dissolve the dirt and grime.
- Use the chain brush to scrub the chain clean. Be sure to brush all sides of the chain, including the sprockets.
- Rinse the chain with water to remove any remaining chain cleaner.
- Dry the chain with a rag.
Once the chain is clean, you should lubricate it. This will help to protect the chain from rust and wear.
Here are some additional tips for cleaning a motorcycle chain:
- If the chain is very dirty, you may need to soak it in kerosene or diesel fuel for a few hours before scrubbing it with the chain brush.
- Be careful not to get any chain cleaner on the brakes or tires.
- Avoid using WD-40 to clean your chain, as it can attract dirt and grime.
- Lubricate your chain after every ride, or more often if you ride in wet or dusty conditions.
By following these steps, you can keep your motorcycle chain clean and in good condition, which will help to extend its lifespan.
Motorcycle Sprockets for X-Ring Motorcycle Chains:
Motorcycle sprockets are toothed wheels that transmit power from the engine to the rear wheel. The front sprocket is connected to the engine's crankshaft, and the rear sprocket is connected to the rear axle. The chain runs over the sprockets, transferring power from one to the other.
X-ring motorcycle chains are a type of sealed roller chain that uses X-shaped seals to retain lubricant and keep out dirt and debris. This makes them more durable and longer-lasting than non-sealed chains. X-ring chains are also more efficient, meaning they reduce power loss and improve performance.
The sprockets and chain work together as a system to transmit power from the engine to the rear wheel. If any of the components are worn or damaged, it can affect the performance and reliability of the motorcycle. It is important to inspect the sprockets and chain regularly and replace them as needed.
When choosing sprockets and X-ring motorcycle chains for your motorcycle, it is important to select the correct size and type of components for your specific model. You should also consider your riding style and the conditions in which you will be riding. For example, if you do a lot of off-road riding, you may want to choose a heavier-duty chain and sprockets.
Here are some tips for maintaining your motorcycle sprockets and chain:
- Inspect the sprockets and chain regularly for wear and damage.
- Clean and lubricate the sprockets and chain regularly.
- Adjust the chain tension as needed.
- Replace the sprockets and chain when they are worn or damaged.
By following these tips, you can help to ensure that your motorcycle's sprockets and chain last for many years and miles.
China Motorcycle Chain Manufacturers
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain, "H" Class refuse drag chain, 500 Class bucket elevator chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
Additional information
| Editor | Yjx |
|---|
We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.
Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.
