Supermarket Condensate Pump PC-360A for Supermarket Refrigerated Display Cabinets

Supermarket Condensate Pump PC-360A for Supermarket Refrigerated Display Cabinets

The supermarket condensate pump PC-360A is a type of condensate pump that is designed for use in large commercial refrigeration systems, such as those found in large supermarkets, warehouses, and other industrial environments. This supermarket condensate pump PC-360A is designed to remove the condensate water that is produced by refrigeration equipment, such as display cases, walk-in coolers, and freezers. The supermarket condensate pump PC-360A is typically installed in a condensate collection pan or reservoir, and it automatically pumps the water out of the pan as it accumulates.

The supermarket condensate pump PC-360A is a high-capacity pump that is capable of handling very large volumes of water, making it ideal for use in busy commercial refrigeration systems. It is also designed to operate quietly, helping to maintain a comfortable working environment. In addition to its high-capacity and quiet operation, the supermarket condensate pump PC-360A also features a compact design that allows it to be installed in tight spaces, and it requires minimal maintenance to keep it running smoothly.

Overall, the supermarket condensate pump PC-360A is a reliable and efficient solution for removing condensate water from large commercial refrigeration systems, helping to prevent damage to equipment and maintain a comfortable working environment for employees.

▍Features of Supermarket Condensate Pump PC-360A

Stable Operation, Easy Installation

• Built-in indicators show status clearly
• Max discharge head at 36m
• Easy to clean and maintenance
• Super large reservoir with 11L
• Dual float control design

▍Supermarket Condensate Pump PC-360A Dimensions:

▍Supermarket Condensate Pump PC-360A Technical Data:

Model	PC-360A
Voltage	230V~/50-60Hz or 100-120V~/50-60Hz
Discharge head	Max.36M(118ft)
Flow rate	Max.360L/H(95GPH)
Tank capacity	11L
Sound level at 1m	60dB(A)
Water temp	0°C~40°C
Power consumption	80W

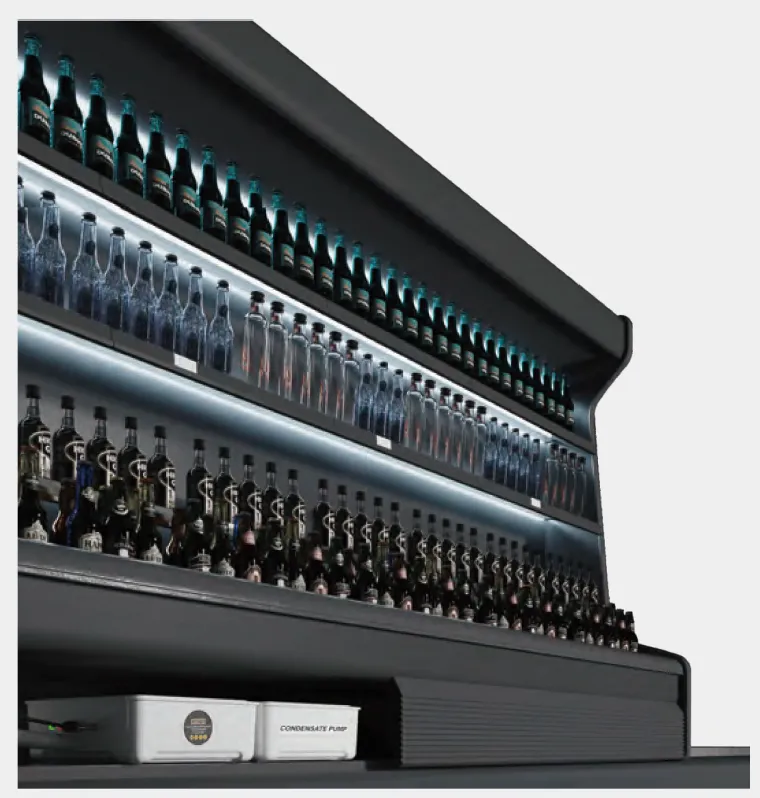

Supermarket Condensate Pump PC-360A Flow Rate	Supermarket Condensate Pump PC-360A Instructions

▍Benefits of Supermarket Condensate Pump PC-360A

The supermarket condensate pump PC-360A is a device that is designed to remove the condensate water that collects in commercial refrigeration units, such as walk-in coolers and freezers. The benefits of using this type of supermarket condensate pump include:

1. Efficient removal of water: The supermarket condensate pump PC-360A is designed to efficiently remove condensate water from refrigeration units, which helps prevent the buildup of water and ice that can cause damage to the unit and create safety hazards for employees.

2. Easy installation: The supermarket condensate pump PC-360A is easy to install and can be connected to a variety of refrigeration units, including walk-in coolers and freezers.

3. Compact size: The supermarket condensate pump PC-360A is a small, compact unit that can be easily mounted in a variety of locations, making it ideal for use in tight spaces.

4. Automatic operation: The supermarket condensate pump PC-360A is designed to operate automatically, which means it will turn on and off as needed to remove condensate water from the refrigeration unit.

5. Low maintenance: The supermarket condensate pump PC-360A requires minimal maintenance and is designed to be durable and reliable, which means it can provide years of trouble-free operation.

Overall, the supermarket condensate pump PC-360A is a reliable and efficient device that can help keep commercial refrigeration units running smoothly and prevent damage from condensate water buildup.

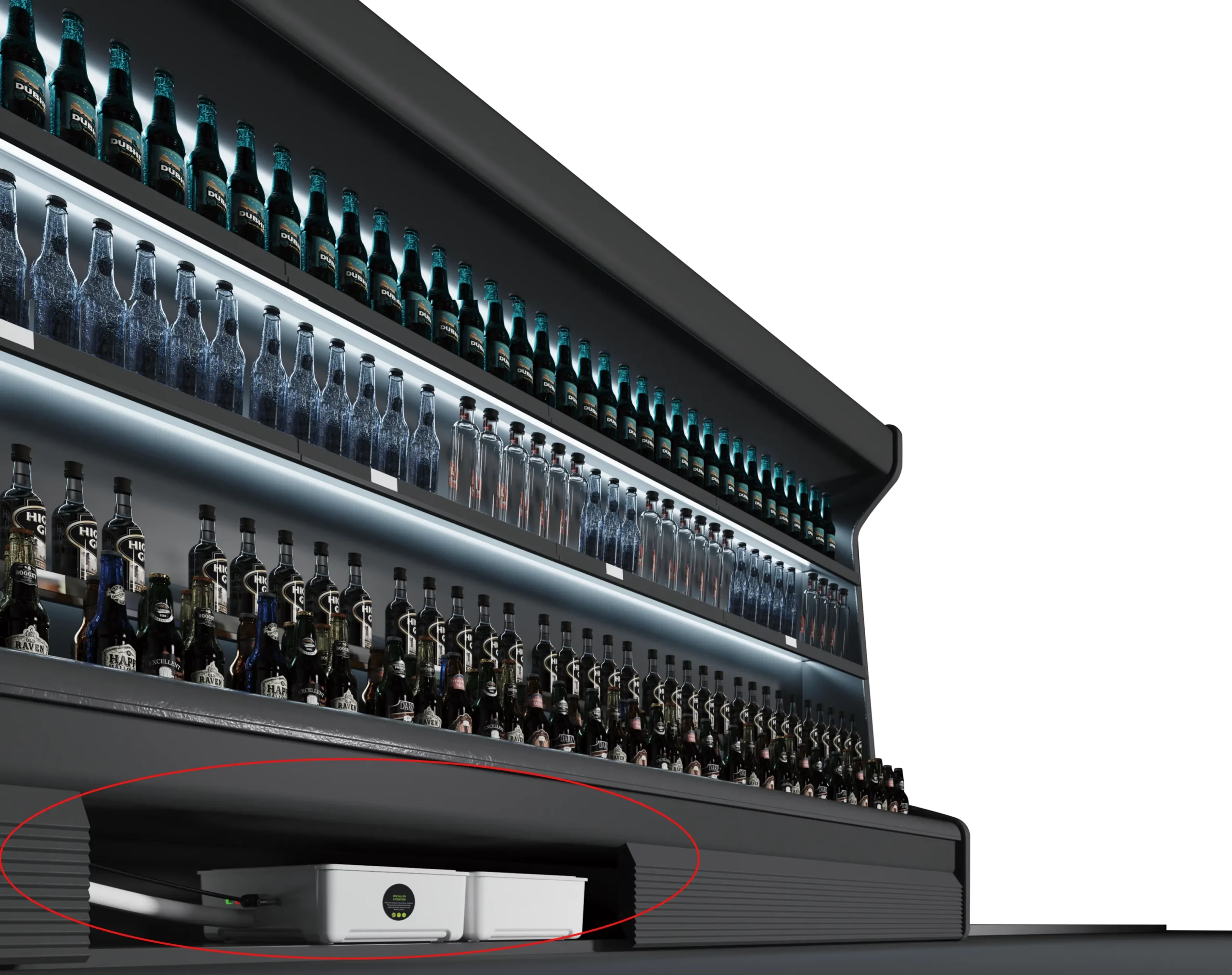

▍How Does Supermarket Condensate Pump Work?

A supermarket condensate pump is typically used in supermarkets to remove excess water that is generated by the refrigeration system. This excess water, also known as condensate, is generated when warm air comes in contact with the cold surface of the refrigeration equipment, causing moisture in the air to condense.

The supermarket condensate pump works by collecting the excess water from the refrigeration equipment and then pumping it through a small diameter pipe to an appropriate disposal location, such as a drain or a collection tank. The supermarket condensate pump is typically located at the bottom of the refrigeration equipment, which allows the water to flow into the pump's reservoir.

When the water level in the supermarket condensate pump's reservoir reaches a certain level, the pump's float switch is activated, causing the pump to turn on and begin pumping the water out of the reservoir and through the pipe. Once the water level in the reservoir drops below a certain threshold, the float switch is deactivated, which causes the pump to turn off.

The supermarket condensate pump typically operates automatically, meaning that it turns on and off as needed without any manual intervention. This ensures that the excess water is removed in a timely and efficient manner, which helps to prevent damage to the refrigeration equipment and maintains a safe and sanitary environment in the supermarket.

▍How to Maintain Supermarket Condensate Pump?

Proper maintenance of a supermarket condensate pump is important to ensure it operates efficiently and effectively. Here are some general tips for maintaining a condensate pump:

(1) Clean the condensate pan or tray regularly: Regularly remove any debris or buildup from the condensate pan or tray to prevent blockages and ensure adequate water flow to the supermarket condensate pump.

(2) Check the pump and discharge pipe for blockages: Inspect the supermarket condensate pump and discharge pipe regularly for any blockages that could prevent water from flowing through the pump and out of the system.

(3) Test the pump regularly: Test the supermarket condensate pump periodically by pouring water into the condensate pan or tray to ensure it activates and pumps the water out of the system.

(4) Replace worn or damaged parts: If any parts of the supermarket condensate pump become worn or damaged, such as the impeller or discharge pipe, replace them promptly to prevent further damage to the system.

(5) Follow manufacturer's recommendations: Follow the manufacturer's recommendations for maintenance and cleaning, which may include specific instructions for your particular supermarket condensate pump.

(6) Hire a professional for complex maintenance: For more complex maintenance tasks, such as cleaning the inside of the supermarket condensate pump or repairing electrical components, it is best to hire a qualified professional.

Overall, regular maintenance of a supermarket condensate pump can help prevent costly repairs and ensure the system operates efficiently and effectively.

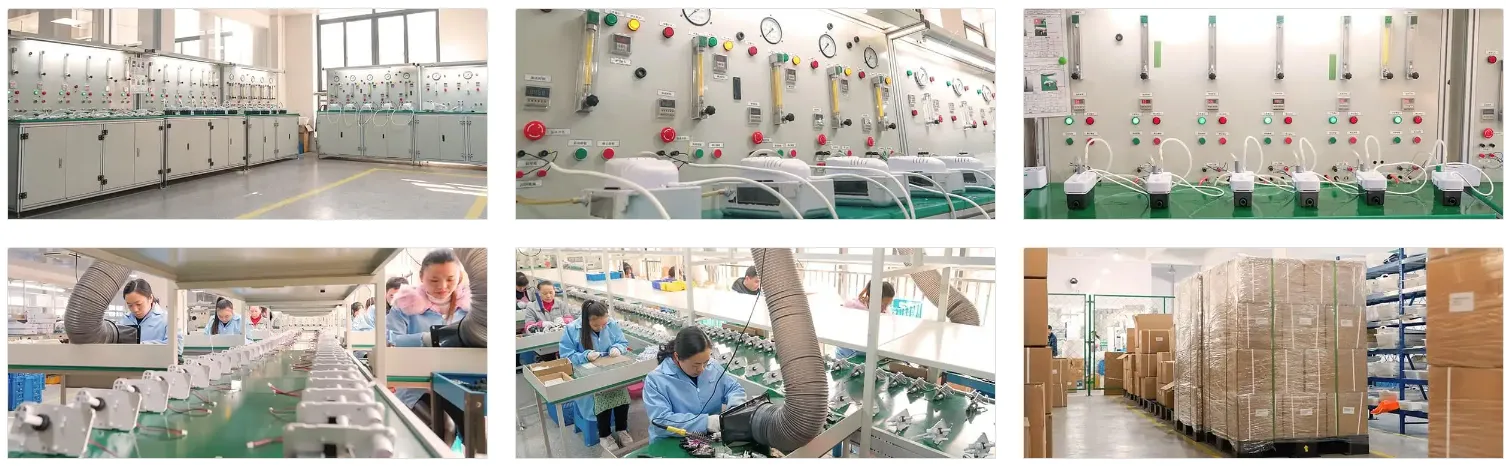

▍Supermarket Condensate Pump Manufacturers and Suppliers

HZPT HVAC condensate pump manufacturer specializes in the development, production, and sales of refrigeration and air conditioning drainage pumps, including air conditioner condensate pumps, mini HVAC condensate pumps, hot water condensate pumps, commercial condensate pumps, automatic condensate pump, etc., which are widely used in air conditioning equipment, heating, and various refrigeration systems.

HZPT HVAC condensate pump manufacturer pays attention to R&D investment, owns more than 20 Chinese patents, and has established a sales network in many countries and regions around the world, supporting 5 famous domestic air conditioning brands.

The company has a complete quality management system and established an incoming inspection and process inspection system to strictly control HVAC condensate pump quality. Send your inquiry now and get a high-quality HVAC condensate pump!

▍FAQ

Q1: Does a condensate pump run all the time?

A1: A condensate pump will only pump out the water from the tank when it reaches a certain level and stop once the water level goes down. If there’s a significant amount of condensate being produced by your HVAC system, then it may seem your pump is running continuously.

Q2: How do you clean a condensate pump?

A2: First, make sure it’s unplugged. Disconnect the pipes both on the inlets and outlet. Remove the top (which contains the motor and wirings) to access the tank at the bottom. Clean the tank and the discharge valve until they’re free from clogs or any debris. Rinse and replace all components.

Q3: What happens if a condensate pump fails?

A3: If your condensate pump fails, the water may overflow and spill. However, if you have a properly working safety switch connected, then it will automatically shut off your dehumidifier or any other appliance to prevent overflow.

Q4: Why is my condensate pump so loud?

A4: Condensate pumps are naturally loud due to the motor and the movement of water. If possible, add insulation to block the noise. But if you notice your unit getting unusually louder, then it may be a case of a clogged drain pipe. It makes a gurgling noise as it tries to push out the excess water and whatever is stuck in there. If you don’t check as soon as possible, it can lead to water leakage.

Q5: How long does a condensate pump last?

A5: Just like any device or appliance, it depends on your usage and maintenance. A lot of users get the most out of their condensate pumps from five years up to ten years.
