SZHQ Type Double Coordinate Worktable

SZHQ type double coordinate worktable is a versatile and robust solution designed to elevate precision and efficiency in workstation operations. This innovative product is engineered to provide smooth and accurate movement along two coordinate axes, enabling multidirectional positioning and enhancing productivity across various industrial and laboratory applications.

The SZHQ type double coordinate worktable is a versatile and precise tool for enhancing workstation operations. With its enhanced precision, dual-axis flexibility, sturdy construction, and smooth operation, this worktable provides a reliable and efficient solution for various industrial and laboratory tasks. By following the recommended usage method and maintenance guidelines, you can unlock the full potential of the SZHQ type double coordinate worktable, leading to improved workflow, increased productivity, and exceptional results in your daily operations. Experience the versatility and precision of the SZHQ type double coordinate worktable today and elevate your workstation capabilities to new heights.

CNC precision worktable consists of a linear motion guide as guide supporting and ball screw as motion enforcing parts. Its advantages include high accuracy, high efficiency, long lifetime, less abrasion, saved energy, small friction coefficient, compact structure, and wide application. It is widely used for measuring, laser welding, laser cutting, gelatinization, boring, small-type CNC machine tools, ray screeners, carving & milling machines, actual teaching situations, etc.

Characteristics of SZHQ Type:

Enhanced Precision: The SZHQ Type Double Coordinate Worktable is engineered precisely. It incorporates high-quality components and advanced control mechanisms, ensuring precise movement along both coordinate axes. Experience accurate positioning and precise alignment for your workstation operations.

Dual-Axis Flexibility: This worktable offers the advantage of dual-axis movement, providing enhanced flexibility and versatility. With the ability to move along horizontal and vertical axes, you can achieve multidirectional positioning, enabling a more comprehensive range of applications and workpiece manipulation.

Sturdy and Stable: The SZHQ Type Double Coordinate Worktable's robust construction ensures stability and durability. It is designed to handle heavy loads and maintain rigidity during operation, making it suitable for demanding tasks in industrial and laboratory environments.

Smooth and Silent Operation: This worktable delivers smooth and silent operation with its refined design and advanced mechanism. It minimizes friction and vibration, resulting in smooth movement along the coordinate axes. Enjoy a peaceful and productive working environment.

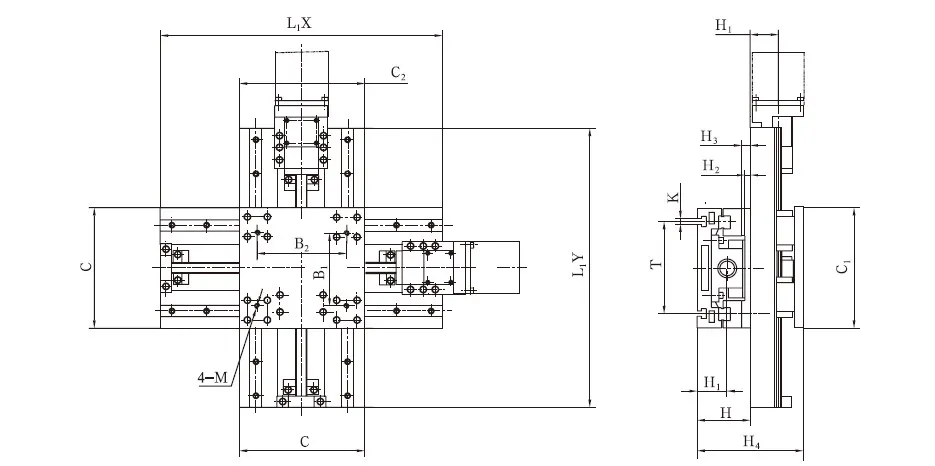

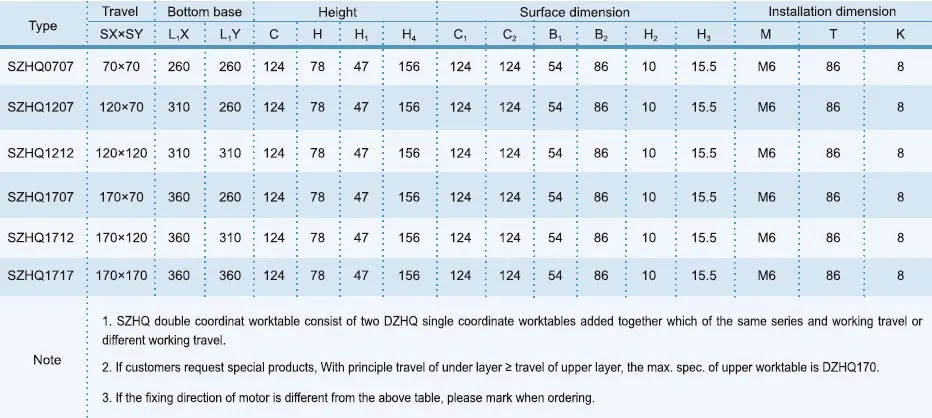

Dimension of SZHQ Types:

Maintenance Guidelines of SZHQ Type:

To ensure the longevity and consistent performance of the SZHQ Type Double Coordinate Worktable, follow these maintenance guidelines:

Regular Cleaning: Periodically clean the worktable to remove dust, debris, or contaminants that may hinder its performance. Utilize a soft cloth or brush to gently clean the surface and components, ensuring smooth and reliable operation.

Lubrication: Apply the recommended lubricant to the moving parts of the worktable as per the manufacturer's instructions. Regular lubrication minimizes friction, reduces wear, and extends the lifespan of the components.

Inspection and Adjustment: Regularly inspect the worktable for signs of wear, misalignment, or damage. Check for loose connections or abnormalities during operation. Address any issues promptly to prevent further damage and ensure optimal performance.

Component Replacement: If any components display significant wear or damage, replace them with genuine parts from the manufacturer. Using authentic parts ensures compatibility and maintains the worktable's performance and reliability.

Type of Ball Screw and Linear Motion Guide, Parameters for Neck of Ball Screw in DZHQ and SZHQ:

Type of workable:

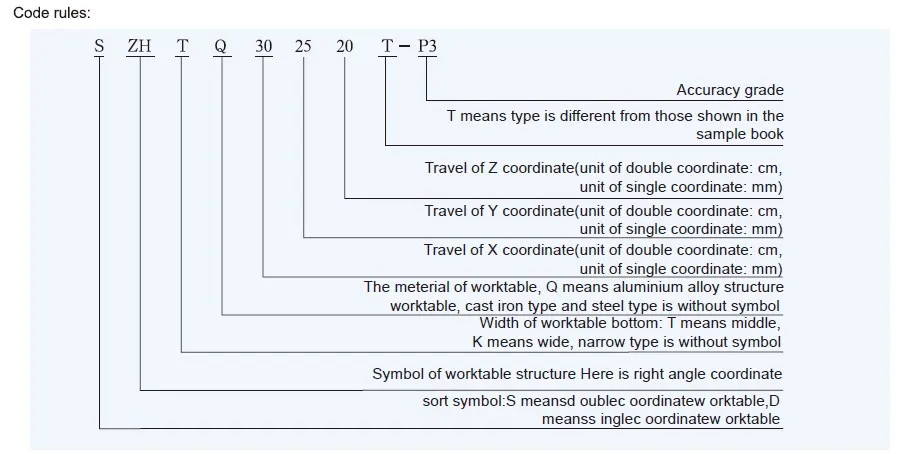

Code rules:

Selection Principle:

There are 49 types of standard type single & double-coordinate worktables manufactured in our factory, and all their worktables belong to 10 series, such as DZH, DZHT, DZHK, SZH, SZHT, and SZHK.

Double coordinate worktables SZH, SZHT, and SZHK consist of two single-color donate worktables DZH, DZHT, and DZHK, respectively. The principle is that the above worktable travel is not longer than underside worktable travel.

We can provide integration unit of machine & electric. Customize a select motor, drive, and CNC system according to the requirements to meet the speed, load, and pulse needs. The series of standard worktables has no dustproof unit and no electric limit unit. When customers want it, we will make it a particular project. If customers select a motor by themselves, its power should not be much higher or lower. Generally, the relative motors will be chosen according to the neck of the ball screw.

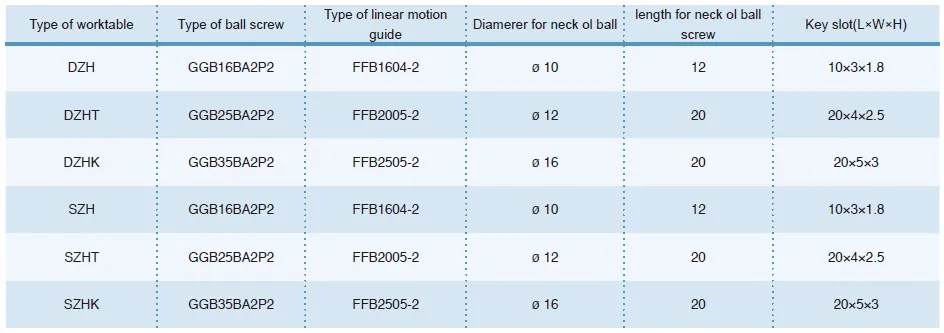

Type of ball screw and linear motion guide, the parameter for the neck of ball screw in series standard worktable.

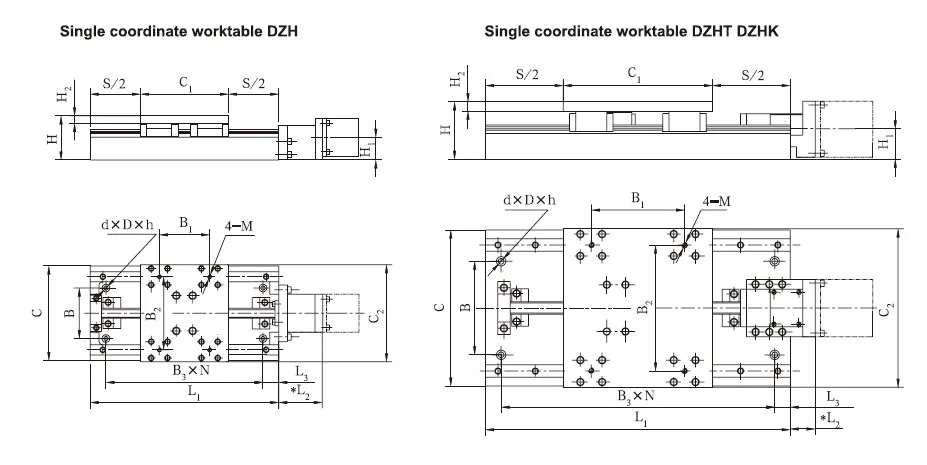

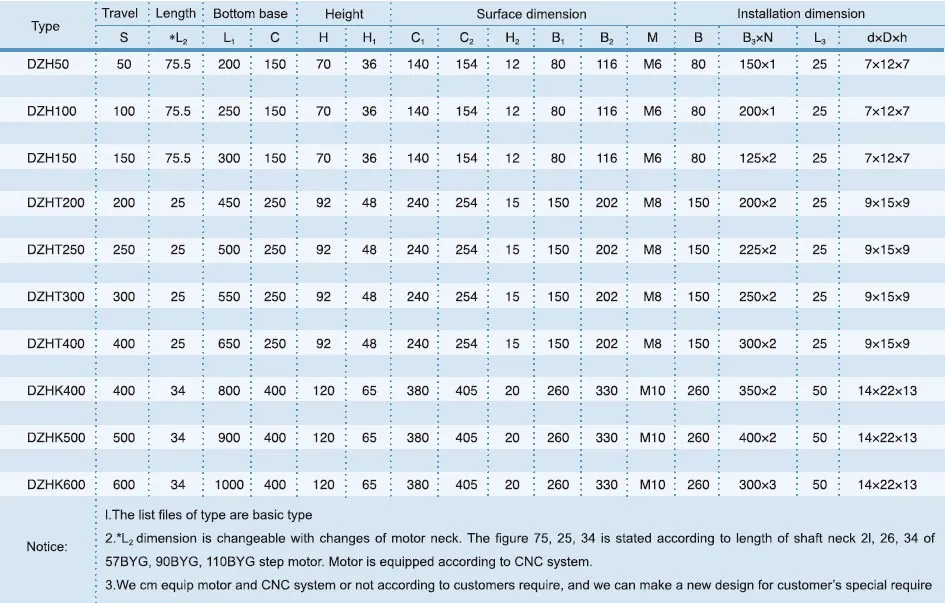

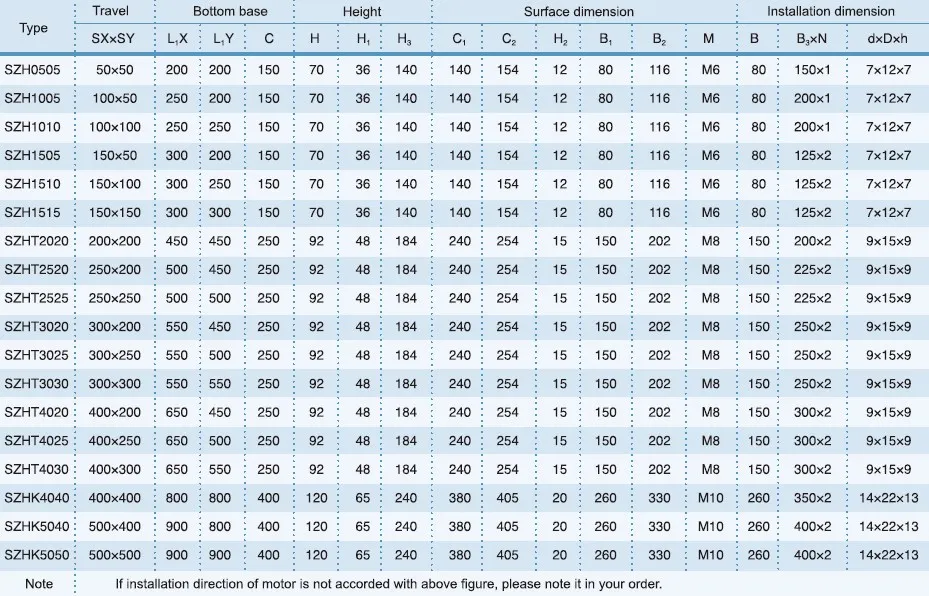

Dimension of Worktable:

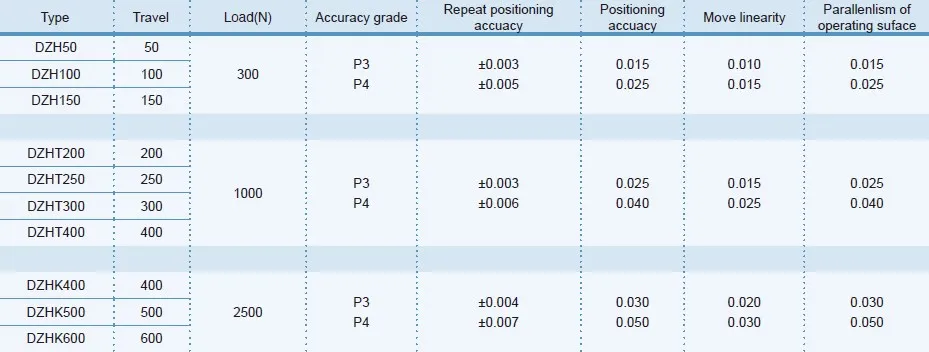

Accuracy Grade:

Accuracy Grade

Accuracy Gracle

New Product-aluminium Alloy Structure Worktable:

With the aluminum alloy of the base component, it has advantages such as high accuracy, long lifetime, lightweight, compact structure, and beauty. It is widely used for measuring, laser welding, laser cutting, gelatinization,insen, ray screener, actual teaching situations, etc. There are two types of single coordinate worktable DZHQ and double coordinate worktable SZHQ for customers to choose from.

We can provide integration unit of machine & electric. Customers can select motors, drives, and CNC systems according to the requirements to meet the needs of speed, load, pulse, etc.

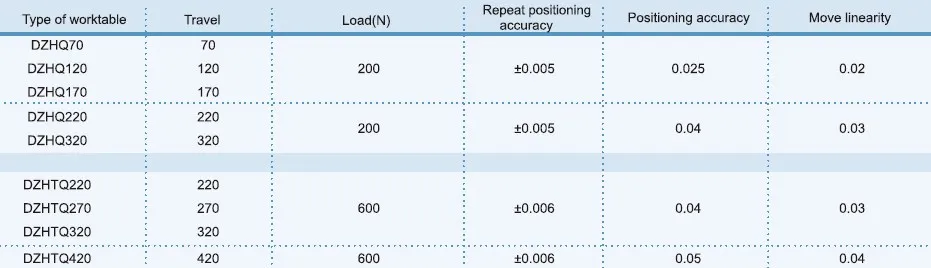

Accuracy of DZHQ and SZHQ Aluminium Alloy Worktable:

Accuracy of SZHQ and SZHTQ Aluminium Alloy Worktable:
