WPEDO Series Double Stage Worm Gearboxes

As a traditional transmission device, the worm gear reducer has a worm gear inside, and the tooth profile is involute. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking; that is, only the worm can drive the worm wheel, but the worm wheel cannot drive the worm. Such as the self-locking worm mechanism used in its heavy machine, its reverse self-locking can play a role in safety protection.

Get a Quote

WPEDO Series Double Stage Worm Gearboxes

As a traditional transmission device, the worm gear reducer has a worm gear inside, and the tooth profile is involute. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking; that is, only the worm can drive the worm wheel, but the worm wheel cannot drive the worm. Such as the self-locking worm mechanism used in its heavy machine, its reverse self-locking can play a role in safety protection.

The self-locking function of the worm gear drive is handy in mechanical applications, such as hoists, conveying equipment, etc. However, because of the worm gear's friction transmission mode, the worm gear's transmission efficiency is much lower than that of the gear transmission.

WPEDO Worm Gearboxes

Product Name WPEDO Worm Gear Speed Reducer
Size WPEDO 40- 250
Ratio 200.300.400.500.600.800.900
Color Green, Brown, or as customized
Weight 5.4-410KG
Surface Hardness of Gears HRC58~62
Gear core hardness HRC33~40
Noise (MAX) 60~68dB
Efficiency 94%~96% (depends on the transmission stage)
Packing Paper Carton, Plywood box/ per set (With foam board inside)
Price Term FOB Ningbo Or Shanghai
Warranty One year
Input Power 0.12-15kw
Usages In industrial machines: Food stuff, Ceramics, chemicals, packing, printing, dyeing, woodworking, and so on.

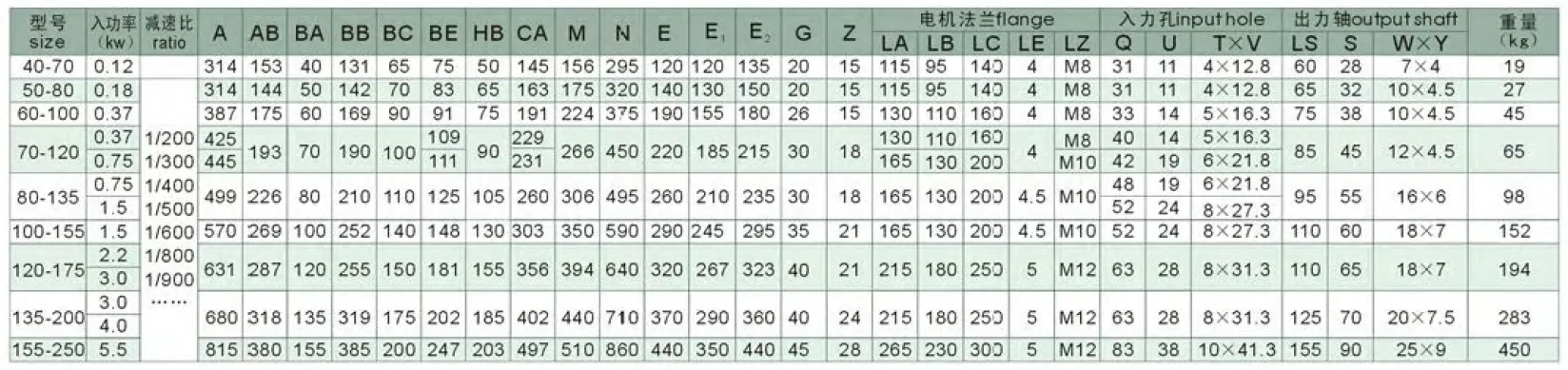

Specifications Parameter

Double Stage Worm Gearboxes Features

1. The double-stage worm gearbox is a small transmission gearbox; the reduced gearbox is a small machine shape, lightweight, without shaft coupling, chain, sprockets, and other transmission parts.

2. The space of the WPEDO worm gearbox, a small transmission gearbox, and the input shaft is mounted directly to the machine side, which can effectively save space.

3. The double-stage worm gearboxes are low-cost. Due to the direct installation, without transmission parts, assembly time can be reduced, and in general, reduce the cost.

4. The WPEDO double-stage worm gearbox is easy installation, has stable operation, has a long service life, and has a high carrying capacity. Because of direct docking and motor installation, it can completely prevent contact with transmission parts and does not need a safety cover which can ensure safety.

Install And Usage

1. The base plate must be a plane, stout, screwed down, and shockproof.

2. The reducer and operation device must be coaxially installed.

3. The diameter tolerance zone of the input and output shaft is H6, and the holes of fittings( such as couplings, sprocket wheels, and so on) must properly mate the post, which prevents the bearing from breaking.

4. Drivers such as sprocket wheels and gear must be fitted close to bearings to reduce the hanging shaft's bending stress.

Input connecting method ratio. Output shaft structure. Input and output shaft direction and revolving direction accord with required. 5. Before using, please carefully check the reducer distance.
