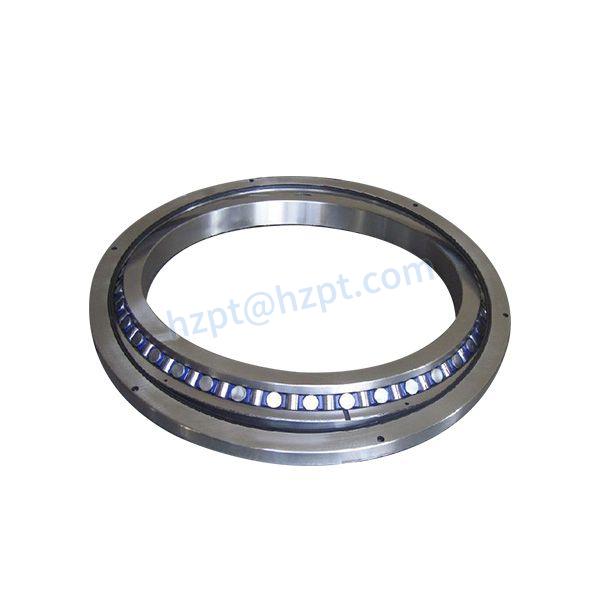

XR Series Crossed Tapered Roller Bearings

XR Series crossed tapered roller bearing, this particular designed single bearing, has two tapered roller bearings functions and offers the highest level of rotational accuracy and rigidity. This bearing can withstand high radial, axial, and moment loads. Crossed tapered roller bearings’ applications can be simplified; it helps reduce assembly time. The bearing is preloaded. It promotes the machine’s accuracy because the shaft thermal expansion minimizes bearings with preload.

Get a Quote

XR Series Crossed Tapered Roller Bearings

XR Series crossed tapered roller bearing, this particular designed single bearing has two tapered roller bearings functions and offers the highest level of rotational accuracy and rigidity. This bearing can withstand high radial, axial, and moment loads. Crossed tapered roller bearings' applications can be simplified; it helps reduce assembly time. The bearing is preloaded. It promotes the machine's accuracy because the shaft thermal expansion minimizes bearings with preload.

Technical data

Model Number Main dimensions Basic dynamic load rating Limiting speed (Oil) r/m Weight (Kg)
Inner ring
(mm)
Outer ring D(mm) Width B(mm) Chamfer r(min) Radial Cr(KN) Axial Ca(KN)
XR496051 203.2 279.4 31.75 1.5 41 49.2 800 6.5
XR678052 330.2 457.2 63.5 3 80 98.4 620 35
XR766051 457.2 609.6 63.5 3 106 133 520 51
XR820060 580 760 80 5 106 209 300 100
XR855053 685.8 914.4 79.375 3 180 224 260 150
XR882055 901.7 1117.6 82.55 3 225 297 200 185
XR889058 1028.7 1327.15 114.3 3 283 374 160 400
XR897051 1549.4 1828.8 101.6 3 326 489 80 500
XR637050 300 400 37 1.5 47.2 60 720 13
XR652050 310 425 45 2.5 61.6 76.5 640 20
XR699050 370 495 50 3 70.2 89.2 600 30

XR Series Crossed Tapered Bearing characteristics:

1. High precision: precision at P4, P4, P2.

2. High rigidity: these series bearings are with preload.

3. High load capacity: can support radial, axial, and tilting loads.

4. High speed: rollers roll in the raceway, so the limited rate of crossed taper roller bearings is higher than that of crossed cylindrical roller bearings.

5. Low friction: the frictional torque of crossed taper roller bearings is much lower than that of crossed cylindrical roller bearings.

Application of XR Series Crossed Tapered Bearing:

This makes the XR Series crossed tapered roller bearing suited to applications where space is limited, or the lowest possible center of gravity of a rotating mass is required and high speed. And withstand high overturning moments, for example, accuracy machine tools circular division rotary table, vertical and horizontal boring machine, vertical grinder, rotary surface grinding machine, vertical lathe, large-scale gear hobbing machine, turret, large telescope (radio telescope and optical telescope), rotation camera, industry robot.
