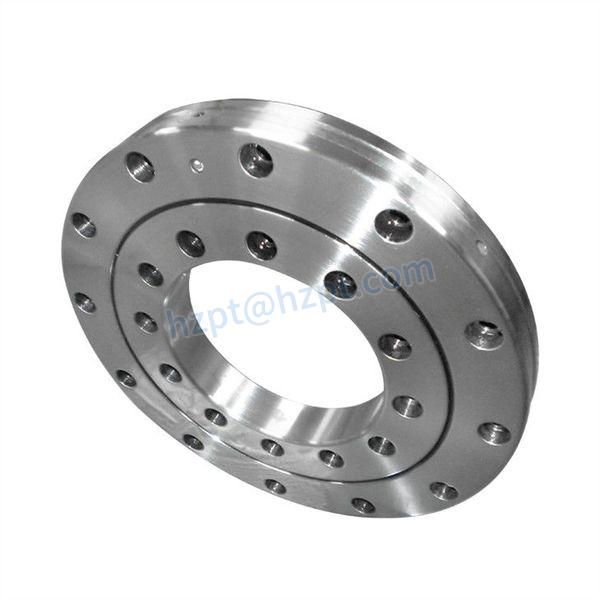

XU Series Crossed Roller Bearings
This model can be used for both inner-ring rotation and outer-ring rotation. XU Series Crossed Roller Bearings (Integrated Inner/Outer Ring Type, both for inner-ring rotation and outer-ring rotation) Since the mounting holes are provided, this model does not require a presser flange or housing. In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque.

Advantage of XU crossed roller slew bearings.

1. Crossed roller bearings can withstand radial and axial loads at the same time. One bearing equals two standard bearings.

2. Rollers of crossed roller bearings are in line contact with the raceway, while steel balls of the ball slewing bearings are in point contact with the raceway, so cross roller bearings have higher loading capacity and stiffness.

3. Cross roller bearings have low grease consumption due to high rotation efficiency and low heat dissipation, so their maintenance interval is longer.

4. Provide extremely high rotation accuracy, negative clearance available.

Technical data

Features

Inner Diameter(mm) :40-382 (Inner Ring)

Outer Diameter(mm) :112-646 (Outer Ring)

Height(mm): 22-86

Weight(Kg) :1.4-115

Material: GCR15/GCR15SiMn

Precision: P5/P4/P2 (Accuracy )

Lubrication: grease lubrication

Rotation: inner ring and outer ring together

Loading capacity direction: axial and radial

Application: CNC machine tool, Industrial robot, CNC turntable, CNC vertical lathe. Precision rotary table, Instrumentation, Precision equipment.

2. Package as your requirements.

3. Small size Bearings: Plastic vacuum packaging bag+Paper Box/Neutral Carton

4. Large size Bearings: Plastic film+pergamyn paper+Roll tape+Wooden Box

5. Shipping: By air or By sea: DHL/TNT/UPS/EMS etc

Company Information

We are a professional bearing exporter in China, producing many different types and sizes of bearings. We can provide you with excellent service in a wide range of bearings with world-class quality, such as deep groove ball bearings, spherical roller bearings, self-aligning ball bearings, cylindrical roller bearings, tapered roller bearings, thrust ball bearings, angular contact ball bearings, needle roller bearings, crossed roller bearings, pillow block bearing, slewing bearings, plain bearings, etc. Bearings can also provide OEM services according to customer requirements. Our bearings products are widely used in various applications, such as port, ship, vehicle, mining, engineering, lifting, environmental protection, oil, chemicals, light industry, metallurgical machinery, the military, etc. Products are exported to the United States, Germany, Japan, Spain, Canada, Italy, France, Finland, South Korea, India, Singapore, Brazil, Australia, and other countries. If you need crossed roller bearings, please get in touch with us.

FAQ

1. Are you a factory or a trading company?

We are a factory, a professional manufacturer of high precision bearings, which has combined researching and developing, producing and marketing together. Taking advantage of the solid industrial basis of Hangzhou city, we grew up rapidly under the guidance of the pioneer in the bearing industry. After years of researching and producing experience, we have developed an integrated system. We have solid technical strength, excellent processing facilities, and a completed quality control system.

2. Do you have a stock for XU series crossed roller bearings?

Yes, we have many types of crossed roller bearings in stock. Some are finished with precision grade P5 or P4. Some are half-finished as parts in stock. If there is an offer request, please contact us for a stocklist.

3. How about your package of XU series crossed roller bearings?

All small size and middle size crossed roller bearings are Vacuum-packed + solid paper carton + plywood box packing outside.

4. Can you arrange shipment for customers?

Yes, we can. Depending on different requirements on delivery time, we can choose parcel service (FedEx, UPS, TNT, etc., 5-7 days), by air, or by sea for delivery.
