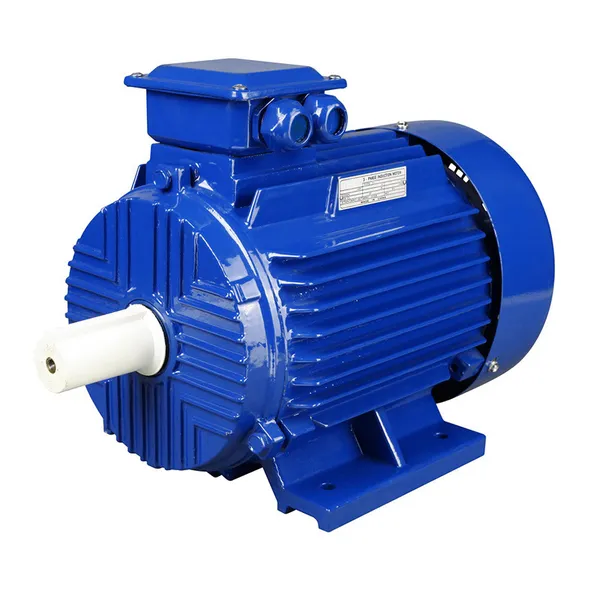

Y2 Series Cast Iron Housing Three Phase Asynchronous Electric Motor

Y2 series( IP54 ) three-phase asynchronous motor is the latest three-phase asynchronous motor developed by finalizing the advanced experiences from internationally developed counties. For the Y2 series three-phase asynchronous motor, the frame number is 63-355, a total of 14 frame numbers, and the electrode reaches 2, 4, 6, 8, 10, and Power from 0.12 to 200 KW. Totaly 104 specifications. At present, we have 82 specifications, from frame number 63 to 280. The number of electrode ranges includes 2, 4, 6, and 8, and the power range from 0.12 to 200 KW.

Get a Quote

Y2 Series Cast Iron Housing Three Phase Asynchronous Electric Motor

Y2 series( IP54 ) three-phase asynchronous motor is the latest three-phase asynchronous motor developed by finalizing the advanced experiences from internationally developed counties. Various properties reached the international advanced standard in 1990. The performing standards are conformed to JB / T8680-1998.

For the Y2 series three-phase asynchronous motor, the frame number is 63-355, a total of 14 frame numbers, and the electrode reaches 2, 4, 6, 8, 10, and Power from 0.12 to 200 KW. Totaly 104 specifications. At present, we have 82 specifications, from frame number 63 to 280. The number of electrode ranges includes 2, 4, 6, and 8, and the power range from 0.12 to 200 KW.

Y2 Series Three Phase Asynchronous MotorY2 Series Three Phase Asynchronous Motor

Y2 Series Three-phase Asynchronous Motors Operating Conditions:

  • Ambient temperature: -15℃ - 40℃;
  • Relative Humidity: Not higher than 90%;
  • Altitude: Altitude should be lower than 1000 meters above sea level.
  • Rated voltage:380V.
  • Rated frequency:50Hz.
  • Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
  • Duty/Rating: Continuous(S1).
  • Cooling method: ICO141.

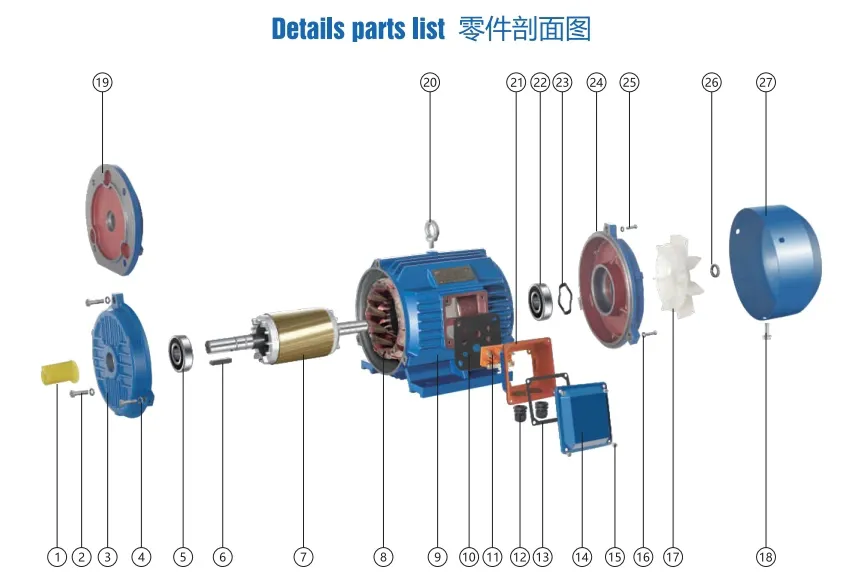

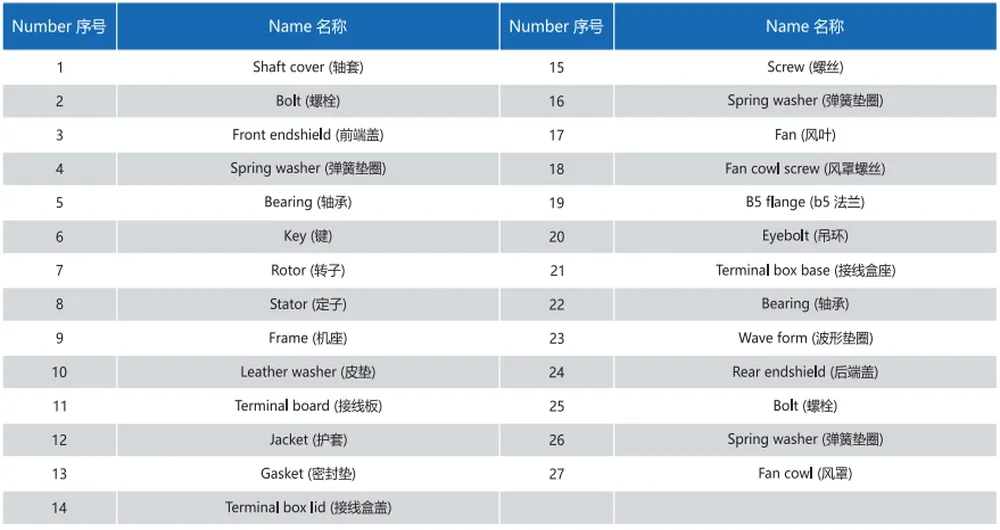

Y2 Series Three-phase Asynchronous Motors Parts List:

Y2 Series Three-phase Asynchronous Motors Parts List Y2 Series Three-phase Asynchronous Motors Parts List

Characteristics of Y2 Series Three-phase Asynchronous Motor:

(1) High standardization and universality of this series, the installation size is basically similar to the Y series electric motor in the same specification. The standard parts and fasteners are chosen according to relevant national standards.
(2) Y2 series three-phase asynchronous motors adopt special exterior design-parallel vertical radiate slices. This design not only increased radiated surface but also strengthened the electric motor's beautification
(3) Y2 series electric motor insulation degree is F grade, but for the temperature rise, we still use the B grade standard. It increases both reliability and extension.
(4) Y2 series electric motor has weak vibration and low noise
(5) Y2 series electric motor has the maximum efficiency when the loading rate is at about 75%.

Y2 Series Three-phase Asynchronous Motor Application:

Y2 series three-phase asynchronous motors are widely used in many places, where do not exist combustible, explosive, or corrosive gas, without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, etc.

Y2 Series Three-phase Asynchronous Motor Application

Y2 Series Three-phase Asynchronous Motor Technical Data:

ModelOutput(kw)Current
(A)
Power

Factor

Eff
(%)
Speed
(r/min)
Tstart/TnIst/InTmax/Tn
Synchronous Speed 3000 r/min (2 Poles)
Y2-631-20.18KW0.520.8065.028252.25.52.2
Y2-632-20.25KW0.690.8168.028402.25.02.2
Y2-711-20.37KW0.990.8270.028402.26.02.2
Y2-712-20.55KW1.40.8373.028802.26.02.2
Y2-801-20.75KW1.80.8475.028902.26.02.2
Y2-802-21.1KW2.60.8477.029002.27.02.2
Y2-90S-21.5KW3.40.8579.029002.27.02.2
Y2-90L-22.2KW4.80.8781.0290002.27.02.2
Y2-100L-23KW6.30.8883.029302.27.02.2
Y2-112M-24KW8.10.8885.029302.28.02.2
Y2-132S1-25.5KW110.8886.029402.28.02.2
Y2-132S2-27.5KW150.8887.029502.28.02.2
Y2-160M1-211KW21.30.8988.0295028.02.2
Y2-160M2-215KW28.70.9089.0297028.02.2
Y2-160L-218.5KW34.60.9090.0297028.02.2
Y2-180M-222KW40.90.9090.0297028.02.2
Y2-200L1-230KW55.40.9091.2297028.02.2
Y2-200L2-237KW67.70.9092.0298028.02.2
Y2-225M-245KW82.30.9092.329801.88.02.2
Y2-250M-255KW1010.9092.529801.87.02.2
Y2-280S-275KW1340.9093.029801.87.02.2
Y2-280M-290KW1600.9193.829801.87.02.2
Y2-315S-2110KW1950.919429801.86.82.2
Y2-315M-2132KW2330.9194.529801.86.82.2
Y2-315L1-2160KW2790.9294.629801.86.82.2
Y2-315L2-2200KW3480.9294.829801.86.82.2
Y2-355M1-2250KW4330.9295.329801.67.02.2
Y2-355L2-2315KW5440.9295.629801.67.12.2
Synchronous Speed 1500 r/min (4 Poles)
Y2-631-40.12KW0.440.7257.014002.24.52.2
Y2-632-40.18KW0.620.7360.014002.24.52.2
Y2-711-40.25KW0.790.7465.014002.25.52.2
Y2-712-40.37KW1.120.7567.014002.25.52.2
Y2-801-40.55KW1.60.7571.014002.25.52.2
Y2-802-40.75KW2.00.7773.014002.26.02.2
Y2-90S-41.1KW2.90.7775014002.26.02.2
Y2-90L-41.5KW3.70.7978.014002.26.02.2
Y2-100L1-42.2KW5.10.8180.014202.27.02.2
Y2-100L2-43KW6.80.8282.014202.27.02.2
Y2-112M-44KW8.80.8284.014402.27.02.2
Y2-132S-45.5KW11.80.8385.014402.27.02.2
Y2-132M-47.5KW15.50.8487.014402.07.02.2
Y2-160M-411KW22.30.8588.014602.07.02.2
Y2-160L-415KW300.8589.014602.07.02.2
Y2-180M-418.5KW36.40.8590.514702.27.52.2
Y2-180L-422KW43.10.8591.014702.27.52.2
Y2-200L-430KW58.40.8692.014702.27.52.2
Y2-225S-437KW69.90.8792.514802.27.52.2
Y2-225M-445KW84.70.8792.814802.27.52.2
Y2-250M-455KW1030.8993.014802.27.02.2
Y2-280S-475KW1400.8693.814802.27.02.2
Y2-280M-490KW1670.8694.214902.27.02.2
Y2-315S-4110KW2010.8794.514902.16.92.2
Y2-315M-4132KW2400.8794.814902.16.92.2
Y2-315L1-4160KW2870.8894.914902.16.92.2
Y2-315L2-4200KW3590.8895.014902.36.92.2
Y2-355M-4250KW4430.8895.314852.36.82.2
Y2-355L-4315KW5560.8995.614852.26.92.2
Synchronous Speed 1000 r/min (6 Poles)
Y2-711-60.18KW0.740.6656.09002.24.02.2
Y2-712-60.25KW0.940.6859.09002.04.02.2
Y2-801-60.37KW1.30.7062.09002.05.02.2
Y2-802-60.55KW1.80.7265.09002.05.02.2
Y2-90S-60.75KW2.30.7269.09102.05.52.2
Y2-90L-61.1KW3.20.7372.09102.05.52.2
Y2-100L-61.5KW3.90.7576.09402.05.52.2
Y2-112M-62.2KW5.60.7679.09402.06.52.2
Y2-132S-63KW7.40.7681.09602.06.52.2
Y2-132M1-64KW9.70.7682.09602.06.52.2
Y2-132M2-65.5KW12.90.7784.09602.06.52.0
Y2-160M-67.5KW16.50.7786.09702.06.52.0
Y2-160L-611KW24.10.7887.59702.06.52.0
Y2-180L-615KW31.50.8189.09702.07.02.0
Y2-200L1-618.5KW38.50.8190.09702.07.02.0
Y2-200L2-622KW44.60.8390.09702.07.02.0
Y2-225M-630KW59.30.8491.59802.07.02.0
Y2-250M-637KW71.00.8692.09652.07.02.0
Y2-280S-645KW86.00.8692.59802.07.02.0
Y2-280M-655KW1050.8692.89802.07.02.0
Y2-315S-675KW1410.8693.59902.07.02.0
Y2-315M-690KW1690.8693.89902.07.02.0
Y2-315L1-6110KW2060.86949902.06.72.0
Y2-315L2-6132KW2440.8794.29902.06.72.0
Y2-355M1-6160KW2920.8894.59901.96.72.0
Y2-355M2-6200KW3650.8894.79901.96.72.0
Y2-355L-6250KW4550.8894.99901.96.72.0
Synchronous Speed 750 r/min (8 Poles)
Y2-801-80.18KW0.880.6151.06801.83.31.9
Y2-802-80.25KW1.150.6154.06801.83.31.9
Y2-90S-80.37KW1.50.6162.06801.841.9
Y2-90L-80.55KW2.20.6163.07001.842
Y2-100L1-80.75KW2.40.6771.07001.842
Y2-100L2-81.1KW3.30.6973.07001.852
Y2-112M-81.5KW4.50.6975.07001.852
Y2-132S-82.2KW60.7178.0710262
Y2-132M-83KW7.90.7379.0710262
Y2-160M1-84KW10.00.7381.0720262
Y2-160M2-85.5KW13.60.7483.0720262
Y2-160L-87.5KW17.70.7585.5720262
Y2-180L-811KW25.10.7687.573026.62
Y2-200L-815KW34.00.7688.073026.62
Y2-225S-818.5KW40.00.7690.07401.96.62
Y2-225M-822KW47.00.7890.57401.96.62
Y2-250M-830KW64.00.7991.07401.96.62
Y2-280S-837KW78.00.7991.57401.96.62
Y2-280M-845KW94.00.7992.07401.96.62
Y2-315S-855KW1110.8192.87401.86.62
Y2-315M-875KW1510.8193.07401.86.62
Y2-315L1-890KW1780.8293.87401.86.62
Y2-315L2-8110KW2170.8294.07401.86.42
Y2-355M1-8132KW2610.8293.77401.86.42
Y2-355M2-8160KW3130.8294.27401.86.42
Y2-355L-8200KW3880.8394.57401.86.42
Synchronous Speed 600 r/min (10 Poles)
Y2-315S-1045KW1000.7591.55901.56.52.0
Y2-315M-1055KW1210.75925901.56.52.0
Y2-315L1-1075KW1620.7692.55901.56.52.0
Y2-315L2-1090KW1910.77935901.56.52.0
Y2-355M1-10110KW2300.7893.25901.36.02.0
Y2-355M2-10132KW2750.7893.55901.36.02.0
Y2-355L-10160KW3340.7893.55901.36.02.0

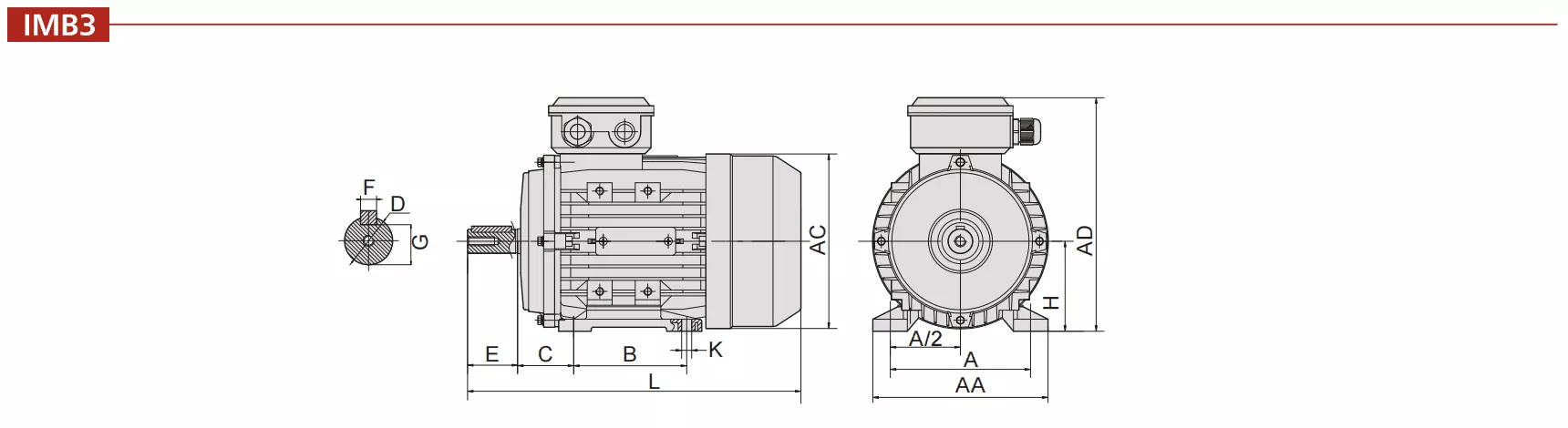

B3 Overall & Installation Dimension:

FramePolesHAA/2BCDEFGKAAADACL
71**2、 4、 6、 87111256904514305117X10132188/180145260
802、 4、 6、 88012562.5100501940615.510X13160217165295
90S2、 4、 6、 8901407010056245082010X13175235185335
90L1/L22、 4、 6、 8901407012556245082010X13175235185365
100**2、 4、 6、 81001608014063286082412X16196252205400
1122、 4、 6、 81121909514070286082412X16220292230400
132S2、 4、 6、 8132216108140893880103312X16252325270480
132M/L2、 4、 6、 8132216108178893880103312X16252325270510/535
160M/L2、 4、 6、 8160254127210/25410842110123715X19290390320640
180M2、 4、 6、 8180279140241121481101442.515355455360670
180L2、 4、 6、 8180279140279121481101442.515355455360710
200L2、 4、 6、 820031815930513355110164919375505400775
225S4、822535617828614960140185319435560470815
225M222535617831114955110164919435560470820
225M4、6、822535617831114960140185319435560470845
250M225040620334916860140185324490615510910
4、6、825040620334916865140185824490615510910
280S2280457228.536819065140185824550680580985
4、6^ 8280457228.5368190751402067.524550680580985
280M2280457228.5419190651401858245506805801035
4、6、8280457228.5419190751402067.5245506805801035
2315508254406216651401858286358456451185
315S4、6、8315508254406216801702271286358456451215
315M2315508254457216651401858286358456451295
4、6、8315508254457216801702271286358456451325
315L2315508254508216651401858286358456451295
4、6、8315508254508216801702271286358456451325
355M2355610305560254751402067.52873010107101500
4、6、83556103055602549517025862873010107101530
355L2355610305630254751402067.52873010107101500
4、6、83556103056302549517025862873010107101530

★★: This frame size has two housing sizes, the rated output is for the normal “L” size, and increased output is for the bigger “L” size

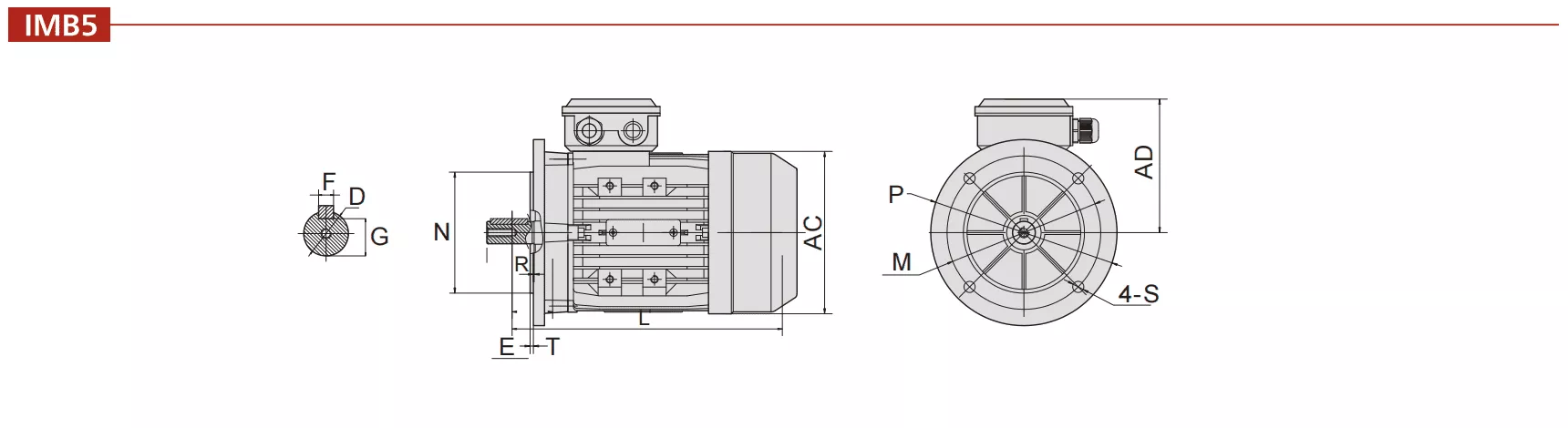

B5 Overall & Installation Dimension:

B5 Overall & Installation Dimension

FramePolesMNPTSDEFGACADL
71**2、 4、 6、 81301101603.5101430511145117/109260
802、 4、 6、 816513O2003.5121940615.5165137295
90S2、 4、 6、 81651302003.5122450820185145335
90L1/L22、 4、 6、 816513O2003.5122450820185145365
100**2、 4、 6、 82151802504.0152860824205152400
1122、 4、 6、 82151802504.0152860824230180400
132S2、 4、 6、 82652303004.01538801033270193480
132M/L2、 4、 6、 82652303004.01538801033270193510/535
160M/L2、 4、 6、 83002503505.019421101237320230640
180M2、 4、 6、 83002503505.019481101442.5380180670
180L2、 4、 6、 83503004005.019551101649420180710
200L2、 4、 6、 83503004005.019551101649400280775
225S4、84003504505.019601401853470305815
225M24003504505.019551101649470335820
225M4、6、84003504505.019601401853470335845
250M25004505505.019601401853510370910
4、6、85004505505.019651401858510370910
280S25004505505.019651401858580410985
4、6、85004505505.019751402067.5580410985
280M25004505505.0196514018585804101035
4、6、85004505505.019751402067.55804101035

★★: This frame size has two housing sizes, the rated output is for the normal “L” size, and increased output is for the bigger “L” size

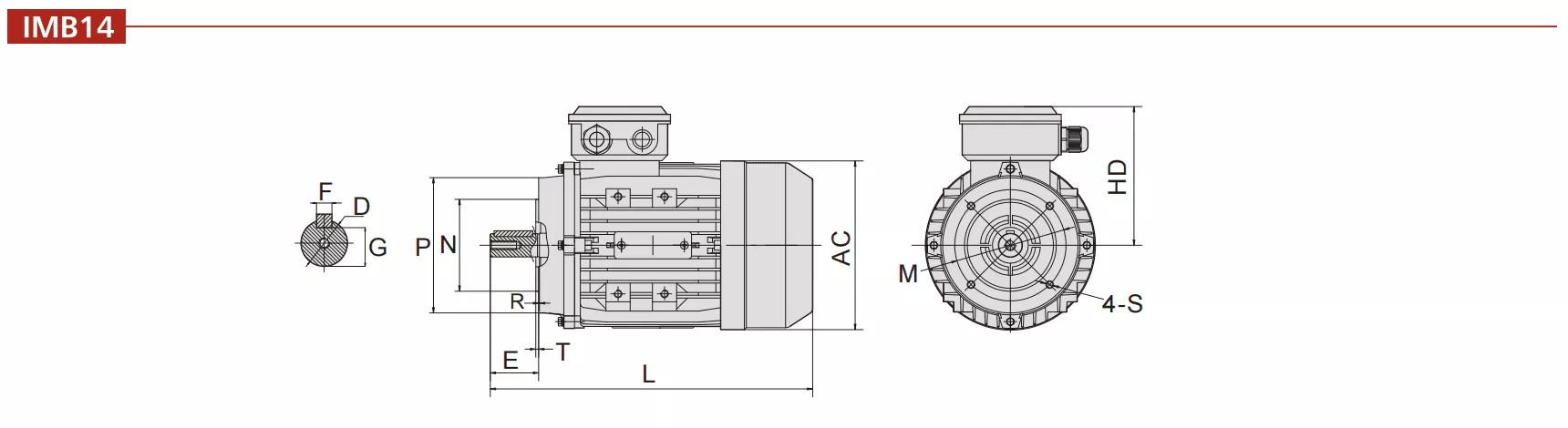

B14 Overall & Installation Dimension:

B14 Overall & Installation Dimension

FrameB14B14BDEFGKKACHDL
NMPTSRNMPTSR
71**70851052.5M6014305111-M20X1.5145117/109260
80801001203.0M601101301603.5M81940615.51-M20X1.5165137295
90S951151403.0M801101301603.5M8024508201-M20X1.5185145335
90L1/L2951151403.0M801101301603.5M8024508201-M20X1.5185145365
100**1101301603.5M801301652003.5M10028608241-M20X1.5205152400
1121101301603.5M801301652003.5M10028608242-M25X1.5230180400
132S1301652003.5M1001802152504.0M120388010332-M25X1.5270193480
132M/L1301652003.5M1001802152504.0M120388010332-M25X1.5270193510/535

★★:This frame size has two housing sizes, the rated output is for the normal “L” size, and increased output is for the bigger “L” size

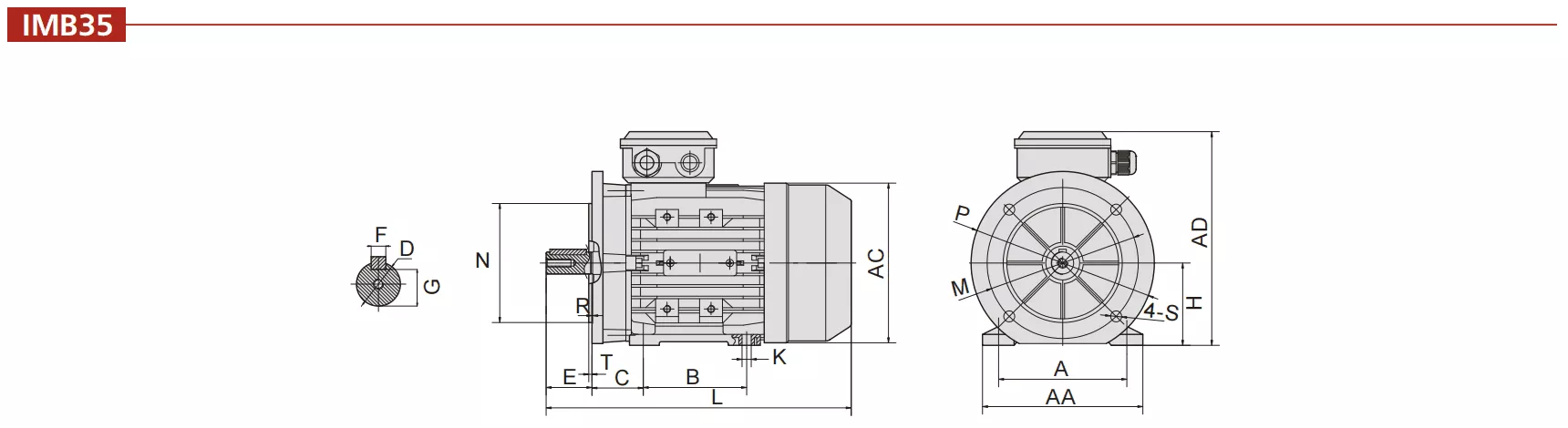

B35 Overall & Installation Dimension:

B35 Overall & Installation Dimension

FramePolesHMNPTSABCDEFGKAAADACL
71**2、 4、 6、 8711101301603.510112904514305117X10132188/180145260
802、 4、 6、 8801301652003.512125100501940615.510X13160217165295
90S2、 4、 6、 8901301652003.51214010056245082010X13175235185335
90L1/L22、 4、 6、 8901301652003.51214012556245082010X13175235185365
100**2、 4、 6、 81001802152504.01516014063286082410X13196252205400
1122、 4、 6、 81121802152504.01519014070286082412X16220292230400
132S2、 4、 6、 81322302653004.015216140893880103312X16252325270480
132M/L2、 4、 6、 81322302653004.015216178893880103312X16252325270510/535
160M/L2、 4、 6、 81602503003505.019254210/25410842110123715X19290290320640
180M2、 4、 6、 81803002503505.019279241121481101442.515355455360670
180L2、 4、  6、 81803002503505.019279279121481101442.515355455360710
200L2、 4、 6、 82003503004005.019318/30513355110164919375505400775
225S4、82254003504505.01935628614960140185319435560470815
225M22254003504505.01935631114955110164919435560470820
225M4、6、82254003504505.01935631114960140185319435560470845
250M22505004505505.01940634916860140184924490615510910
4、6、82505004505505.01940634916865140185824490615510910
280S22805OO4505505.01945736819065140185824550680580985
4、6、82805004505505.01945736819075140206824550680580985
280M22805004505505.019457419190651401858245506805801035
4、6、82805004505505.019457419190751402068245506805801035
315S23156005506606.024508406216651401858286358456451185
4、6、83156005506606.024508406216801702271286358456451215
315M23156005506606.024508457216651401858286358456451295
4、6、83156005506606.024508457216801702271286358456451325
315L23156005506606.024508508216651401858286358456451295
4、6、83156005506606.024508508216801702271286358456451325
355M23557406808006.0246105602547514020682873010107101500
4、6、83557406808006.0246105602549517025862873010107101530
355L23557406808006.0246106302547514020682873010107101500
4、6、83557406808006.0246106302549517025862873010107101530

★★: This frame size has two housing sizes, the rated output is for the normal “L” size, and increased output is for the bigger “L” size

Bearing Size of Y2 Series Three-phase Asynchronous Motor

Bearing Size of Y2 Series Three-phase Asynchronous Motor

Mounting Arrangement of Y2 Series Electric Motors

The mounting arrangements of the motors comply with IEC34-7 Recommendation. There are four basic arrangements shown in the following tables and figures.

Main Data for Terminal Box

Main Data for Terminal Box

The fans are generally made of strengthened plastics, except frame sizes, H315 to H355 are made of aluminum-alloy or stamped steel plate. The fan cover is made from a cold rolled steel plate with high mechanical strength.

Three-phase Motors Manufacturers

HZPT is a professional manufacturer & supplier of electric motors. We have a professional technical team to provide technical services for custom electric motors. Our main products include the Y2 series three-phase asynchronous motor, the YD series pole-changing multi-speed three-phase motor, the YVF2 series variable frequency three-phase motor, the MS series three-phase asynchronous motor with aluminum housing, the YB2 series explosion-proof three-phase motor, YC series single-phase capacitors start induction motor, YCL series heavy-duty single phase capacitor start induction motor and more than 200 specifications and varieties. At the same time, the company has an excellent and professional R & D team committed to developing and designing all kinds of special motors for gearshift machines; the products are widely used in national key projects and are the supplier of many well-known domestic enterprises.

Our motor has the advantages of low energy consumption, high efficiency, novel appearance, low noise, low vibration, long service life, thoughtful service, strict quality management system (ISO9001:2000 quality system certification, CCC certification, CE certification), and has become a well-known brand in the industry and achieved a higher market share. At the same time, the products are also exported to Europe, South America, and Southeast Asia. We would like to have higher quality products, lower preferential prices, complete thoughtful pre-sale, sale, and after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create a glorious future.

China Three Phase Motor Factory

China Three Phase Motor FactoryChina Three Phase Motor Factory
China Three Phase Motor FactoryChina Three Phase Motor Factory

FAQ

Q1: Are you a direct manufacturer or trading company?

A: We have our own production line and advanced workshop, we also have our own international sales department. we produce and sell all by ourselves.

Q2: How long can I get the feedback after we sent the inquiry?

A: We will reply to you within 12 hours of the working day.

Q3: What products can you offer?

A: We are a professional manufacturer of all kinds of electric motors.

Q4: What applications does your electric motor relate to?

A: Our electric motors cover a wide range of industries including train & railway, automobile & truck, construction machinery, mining machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery, construction, valve and pumps, electric machine, hardware, power equipment, and so on.

Q5: Can you do customized electric motor products?

A: Yes, we can customize the electric motors according to the customers’ drawings or samples.

Q6: How about the capacity of your company?

A: We have modern types of energy-saving & environmentally-friendly production lines, as well as 4 heat treatment production lines. and our annual production capacity is over 20,000 sets.

Q7: How many employees of your company? what about the technicists?

A: We now have more than 200 employees, including 10 technicians.

Q8: What's the payment term?

A: When we quote for you,we will confirm with you the way of transaction,fob,cif,cnf,etc. For mass production goods, you need to pay 30% deposit before producing and70% balance against copy of documents.the most common way is by t/t. l/c is also acceptable.

Q9: How to deliver the goods to us?

A: Usually we will ship the goods to you by sea because we are in Ningbo, and we are only 35 kilometers away from the Ningbo port, it is very convenient and efficient to ship goods to any other country. Of course, if your goods are very urgent, Ningbo airport and shanghai airport are also very nearby.

Q10: Where are your electric motor products mainly exported to?

A: Our electric motors are mainly exported to more than 30 countries including the United States, Germany, Japan, Spain, Italy, Britain, South Korea, Australia, and Canada.

Additional information

Editor

Yjx

hzpt oem odm banner

We promise will offer the best price by the high quality in china! We also accept special order about the products. If you are interested in our products. Please do not hesitate to let us know.We are pleased to give you the detailed information.We promise that our products would be safety and were in high quality and reasonable price. If you are interested in our products, please contact us asap.We are sincerely looking for your cooperation.

Most of our products are exported to Europe or Americas, both standard and nonstandard products available. We can produce as per your drawing or sample. Material can be standard or as per your special request. If you choose us, you choose reliable.

Industries We Service

industries we service
en_USEN
