Yaw Drive Planetary Gearbox for Wind Turbine

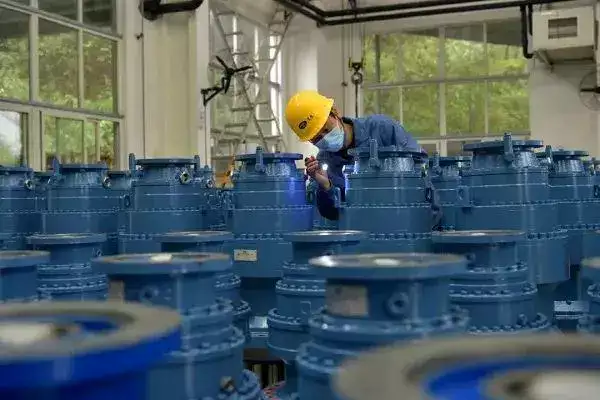

Wind Turbine Yaw Drive Gearbox Overview

The yaw system, as the "navigation helmsman" of the wind turbine, ensures that the wind wheel is always aligned with the wind direction to maximize wind energy capture efficiency. In the face of complex and changeable natural wind conditions, its flexibility and reliability directly affect the power generation efficiency and equipment safety of the entire system. Therefore, the optimization and innovation of yaw drive technology is not only the key to improving the economics of wind power generation, but also a technical challenge to ensure the continuous and stable supply of wind energy.

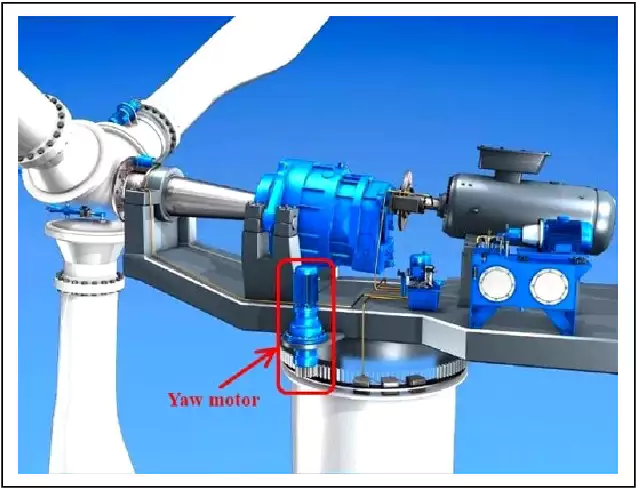

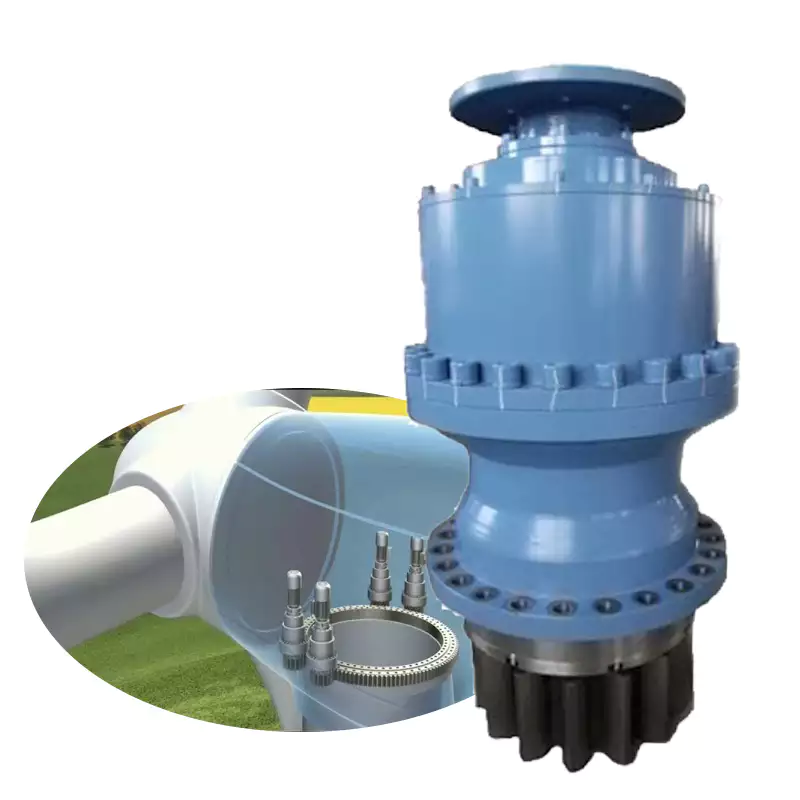

The wind turbine yaw system is a key component to ensure the efficient operation of the wind turbine. Its core is to accurately control the positioning of the nacelle relative to the wind direction, so that the wind wheel can always face the wind direction and maximize wind energy utilization efficiency. The core component of the yaw drive system, the Yaw Drive Gearbox (yaw drive planetary gearbox), plays a vital role in this process to ensure the smooth, precise and efficient yaw movement.

Performance Parameters

Yaw Drive Gearbox Function and Importance

• Track changes in wind direction

  The yaw system monitors wind direction in real time through the integrated wind direction sensor. Once a change in wind direction is detected, it immediately initiates yaw action and adjusts the orientation of the cabin so that the wind turbine blades always maintain the best angle with the wind direction. This is to improve the efficiency of wind energy capture. Foundation.

• Torque transmission and conversion

  The Yaw Drive Gearbox is responsible for efficiently and accurately converting the driving force generated by the electric motor or hydraulic motor into the torque required to rotate the cabin. Its planetary gear structure can transmit large torque with a high transmission ratio while maintaining a compact size and Light weight.

• Stability and safety

  The self-locking feature of the planetary gearbox can provide the necessary damping torque in emergency situations to ensure smooth yaw action and avoid excessive deflection. It also provides additional safety under strong wind conditions and prevents excessive rotation of the cabin.

• Reduce wear and maintenance

  High-quality manufacturing materials and precision processing technology enable the Yaw Drive Gearbox to operate for a long time in harsh environments, reducing wear and maintenance costs, and extending the overall service life of the wind power generation system.

Principle of Planetary Gearbox in Yaw System

The reason why planetary gearboxes are widely used in yaw drives is due to their unique structural advantages:

1. High efficiency and large torque transmission: The planetary gear mechanism can achieve large transmission ratios and high-efficiency torque conversion in a small space through the mutual meshing of the sun gear, planet gear and ring gear. It is very suitable for high output torque but limited space. Limited yaw system.
2. Uniform load distribution: The multi-point contact design of the planetary gears means that the load is evenly distributed across multiple gear contact surfaces, which helps reduce single-point wear and improves the durability and reliability of the system.
3. Precise control and adaptability: By adjusting the layout and number of planetary gears, it can flexibly match the yaw requirements of different wind turbines, achieve precise torque control and speed adjustment, and adapt to various working conditions.

Product Technology Highlights: High-Performance Yaw Drive Planetary Gearbox

• Efficient transmission design
  Our Yaw Drive Planetary Gearbox is made from top-grade alloy steel, a material whose excellent balance of strength and toughness ensures the gears are long-lasting when subjected to extreme torque loads. Through advanced heat treatment processes, including carburizing, quenching and tempering, the surface hardness of the gear is greatly increased and the wear resistance is significantly enhanced. At the same time, the core maintains good toughness, thereby extending the service life and improving transmission efficiency.
•
• High reliability structure
  Sealing technology is the key to ensuring long-term and stable operation of gearboxes. Our products adopt a multi-seal design that combines dynamic and static sealing elements to effectively isolate external contaminants such as dust and moisture while preventing lubricating oil leakage. Selected high-performance bearings are specially designed for heavy-load, low-speed rotation applications, ensuring low friction and long service life even under extreme working conditions.
• Environmental adaptability
  Our Yaw Drive Planetary Gearbox has taken special protective measures against the extreme climatic conditions common in wind power stations. The outer shell is made of anti-corrosion materials with excellent weather resistance and additional coating treatment is applied to effectively resist salt spray corrosion. In low-temperature environments, we use low-temperature lubricating grease to ensure that it can still maintain good fluidity and lubrication effects under extremely cold temperatures. At the same time, the internal structure of the gearbox has been optimized to reduce the mechanical stress caused by the cold shrinkage effect and ensure that It can operate stably and efficiently under any climate conditions. These comprehensive measures ensure that the products can perform well in wind power projects around the world and adapt to diverse environmental challenges.
