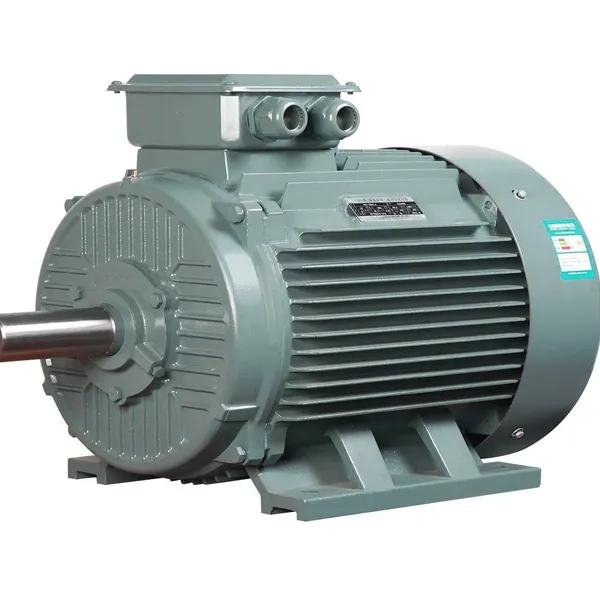

YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor

YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor

YE3(IE3) high efficiency three phase asynchronous motor, with the latest design in its entirety, is made of selected quality materials and conforms to the IEC standard. IE2/YC/YL series electric motor is also provided, according to customers' demand. It has good performance, safety, and reliable operation, a nice appearance, and can be maintained very conveniently. It can be used to drive a variety of general mechanical equipment, such as compressors, fans, pumps, and other mechanical equipment, but also in petroleum, chemical, pharmaceutical, mining, and other fields.

▍YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor Operating Conditions:

• Ambient temperature: -15℃≤0≤40℃
• Altitude: not exceeding 1000m
• Rated voltage: 380V or any voltage between 220-760V
• Rated frequency: 50Hz、60Hz
• Protection class: IP55
• Insulation class: F、H
• Cooling method: ICO141
• Duty: S1 (continuous)
• Connection: Star-connection for up to 3kw,
•                       delta-connection for 4kw and above.

▍YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor Technical Data:

▍YE3/IE3 Series High Efficiency Electric Motor (Synchronous Speed 600r/min 10poles)

▍YE3/IE3 Series Premium Efficiency Three Phase Asynchronous Motor Bearing Specification:

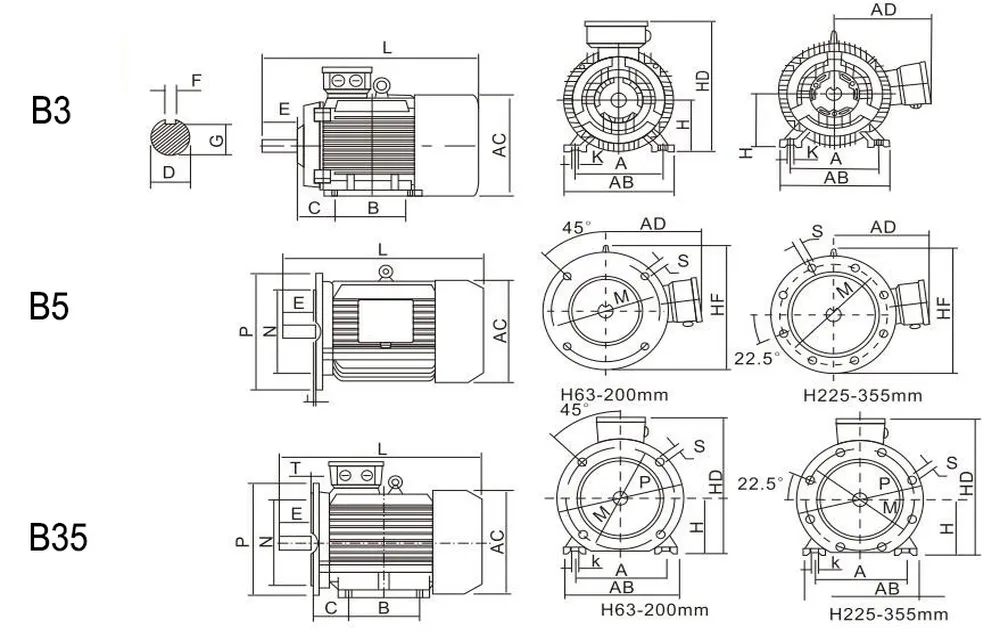

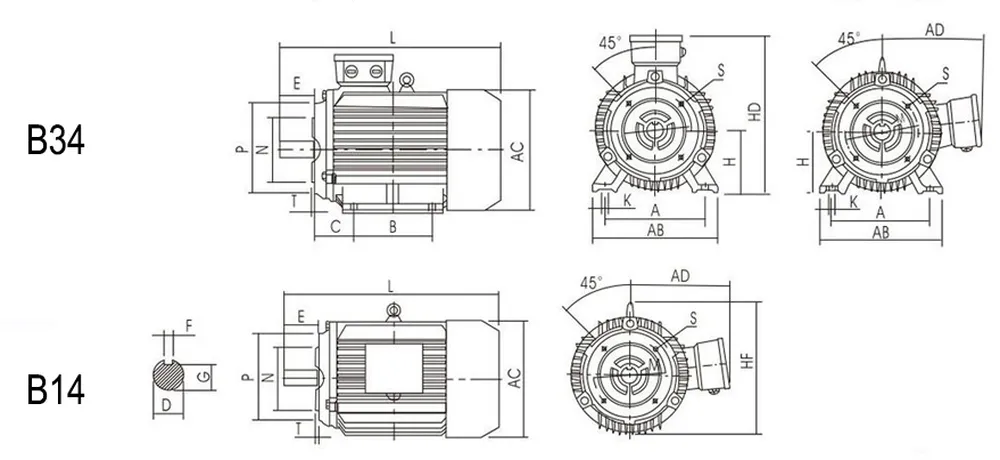

▍YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor Installation Dimension:

Frame	Pole	Mounting Dimension																Overall Dimension
		A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	AB	AC	AD	HD	HF	L
63M	2.4	100	80	40	11	23	4	8.5	63	115	95	140	0	10	3	7	135	130	70	180	130	230
71M	2.4.6	112	90	45	14	30	5	11	71	130	110	160	0	10	3.5	7	150	145	80	195	145	255
80M	2.4.6.8	125	100	50	19	40	6	15.5	80	165	130	200	0	12	3.5	10	165	175	145	220	185	295
90S	2.4.6.8	140	100	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	195	320
90L	2.4.6.8	140	125	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	195	345
100L	2.4.6.8	160	140	63	28	60	8	24	100	215	180	250	0	15	4	12	205	215	180	270	245	385
112M	2.4.6.8	190	140	70	28	60	8	24	112	215	180	250	0	15	4	12	230	240	190	300	265	400
132S	2.4.6.8	216	140	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	470
132M	2.4.6.8	216	178	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	510
160M	2.4.6.8	254	210	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	615
160L	2.4.6.8	254	254	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	670
180M	2.4.6.8	279	241	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	430	700
180L	2.4.6.8	279	279	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	430	740
200L	2.4.6.8	318	305	133	55	110	16	49	200	350	300	400	0	19	5	19	395	420	305	505	480	770
225S	4.8	356	286	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	535	815
225M	2	356	311	149	55	110	16	49	225	400	350	450	0	19	5	19	435	470	335	560	535	820
	4.6.8				60	140	18	53														845
225M	2	406	349	168	60	140	18	53	250	500	450	550	0	19	5	24	490	510	370	615	595	910
	4.6.8				65	140	18	58
280S	2	457	368	190	65	140	18	58	280	500	450	550	0	19	5	24	550	580	410	680	650	985
	4.6.8				75	140	20	67.5
280M	2	457	419	190	65	140	18	58	280	500	450	550	0	24	5	19	550	580	410	680	650	1035
	4.6.8.10				75	140	20	67.5
315S	2	508	406	216	65	140	18	58	315	600	550	660	0	24	6	28	635	645	530	845	_	1160
	4.6.8.10				80	170	22	71														1270
315M	2	508	457	216	65	140	18	58	315	600	550	660	0	24	6	28	635	645	530	845	_	1190
	4.6.8.10				80	170	22	71														1300
315L	2	508	508	216	65	140	18	58	315	600	550	660	0	24	6	28	635	645	530	845	_	1190
	4.6.8.10				80	170	22	71														1300
355M	2	610	560	254	75	140	20	67.5	355	740	680	800	0	24	6	28	730	710	655	1010	_	1500
	4.6.8.10				95	170	25	86														1530
355L	2	610	630	254	75	140	20	67.5	355	740	680	800	0	24	6	28	730	710	655	1010	_	1500
	4.6.8.10				95	170	25	86														1530

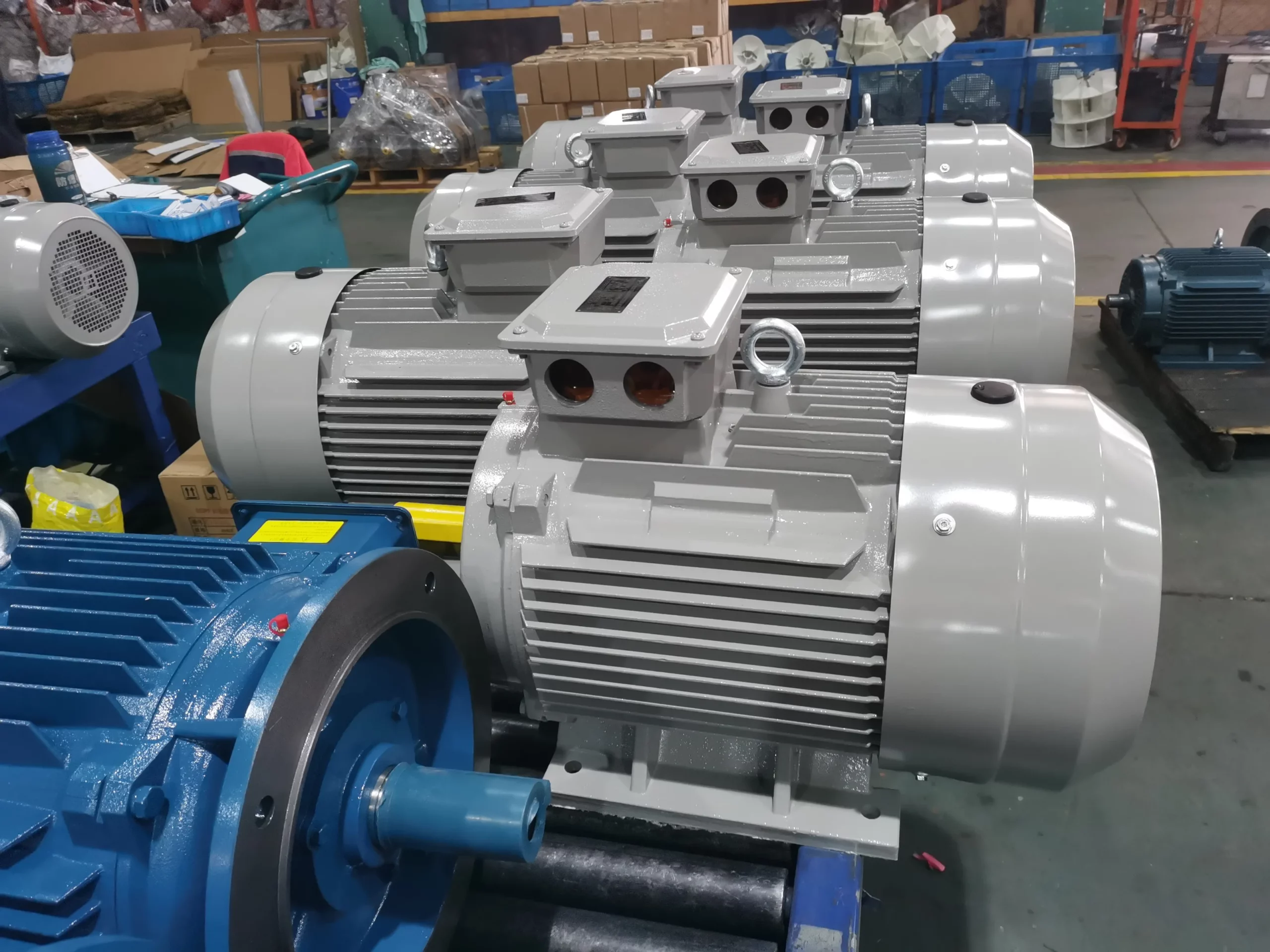

▍YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor Characteristics:

The YE3/IE3 series high efficiency three phase asynchronous motor is a superior choice for industrial applications where energy efficiency is a top priority. Here are some of the key characteristics of this electric motor:

1. High Efficiency: The YE3/IE3 series high efficiency three phase asynchronous motor is designed to meet the requirements of the International Electrotechnical Commission's (IEC) efficiency class IE3, which is the highest level of efficiency for three-phase asynchronous motors. These motors are typically more than 95% efficient, which means they consume less energy and produce less waste heat during operation, resulting in significant energy savings and lower operating costs.

2. Wide Power Range: The YE3/IE3 series high efficiency three phase asynchronous motor is available in a wide range of power ratings, from a few kilowatts up to several hundred kilowatts, making it suitable for a variety of different industrial applications.

3. High Torque: The YE3/IE3 series high efficiency three phase asynchronous motor is designed to deliver high torque at low speeds, which makes it ideal for driving heavy machinery and equipment.

4. Low Noise and Vibration: The YE3/IE3 series high efficiency three phase asynchronous motor is designed with advanced rotor designs, high-quality materials, and precision manufacturing techniques, which help to reduce noise and vibration during operation, resulting in a quieter and more stable motor.

5. Robust Construction: The YE3/IE3 series high efficiency three phase asynchronous motor is built with high-quality materials and designed to be robust and reliable, even in harsh industrial environments.

6. Easy Maintenance: The YE3/IE3 series high efficiency three phase asynchronous motor is designed with easy access to essential components, making it easy to maintain and service, reducing downtime and maintenance costs.

7. Environmental Friendliness: The YE3/IE3 series high efficiency three phase asynchronous motor is designed to be environmentally friendly, with reduced carbon emissions and a longer lifespan compared to conventional motors.

▍YE3/IE3 Series High Efficiency Three Phase Asynchronous Motor Application:

The YE3/IE3 series high efficiency three phase asynchronous motor is a versatile motor that can be used in a wide range of industrial applications. Here are some examples of typical applications for this electric motor:

(1) Pumps: The YE3/IE3 series high efficiency three phase asynchronous motor is often used in pumps for water supply, drainage, and irrigation systems. The high efficiency of the motor helps to reduce energy consumption and operating costs, while the high torque at low speeds makes it ideal for driving pumps with high head requirements.

(2) Fans: The YE3/IE3 series high efficiency three phase asynchronous motor is commonly used in fans for ventilation and air conditioning systems. The high efficiency of the electric motor helps to reduce energy consumption and operating costs, while the low noise and vibration make it ideal for use in quiet environments.

(3) Compressors: The YE3/IE3 series high efficiency three phase asynchronous motor is often used in compressors for air or gas applications. The high efficiency of the electric motor helps to reduce energy consumption and operating costs, while the high torque makes it ideal for driving compressors with high starting torque requirements.

(4) Conveyors: The YE3/IE3 series high efficiency three phase asynchronous motor is commonly used in conveyors for material handling applications. The high efficiency of the electric motor helps to reduce energy consumption and operating costs, while the high torque makes it ideal for driving conveyors with heavy loads.

(5) Machine Tools: The YE3/IE3 series high efficiency three phase asynchronous motor is often used in machine tools such as lathes, milling machines, and grinders. The high efficiency of the electric motor helps to reduce energy consumption and operating costs, while the high torque and precise speed control make it ideal for driving machine tools with high accuracy requirements.

Overall, the YE3/IE3 series high efficiency three phase asynchronous motor is an excellent choice for a wide range of industrial applications. Its high efficiency, high torque, low noise and vibration, and robust construction make it a reliable and cost-effective solution for many different types of machinery and equipment.
