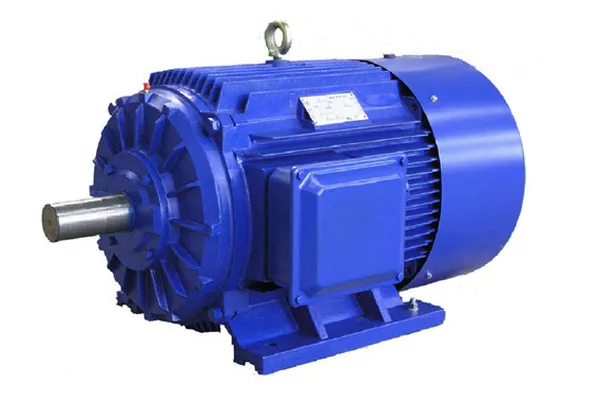

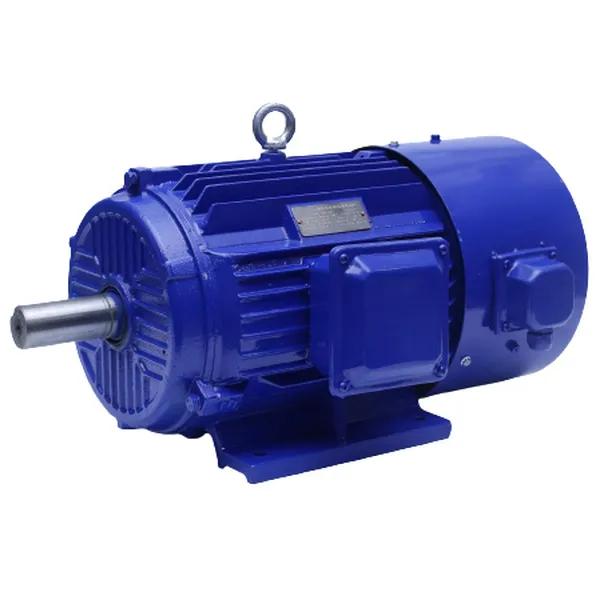

YVF2 Series Frequency Controlled Three Phase Asynchronous Motor

YVF2 Series Frequency Controlled Three Phase Asynchronous Motor Mounting Type:

Conventional mounting type and suitable frame size are given in the following table(with "√")

YVF2 Series Frequency Controlled Three Phase Asynchronous Motor Installation Dimension:

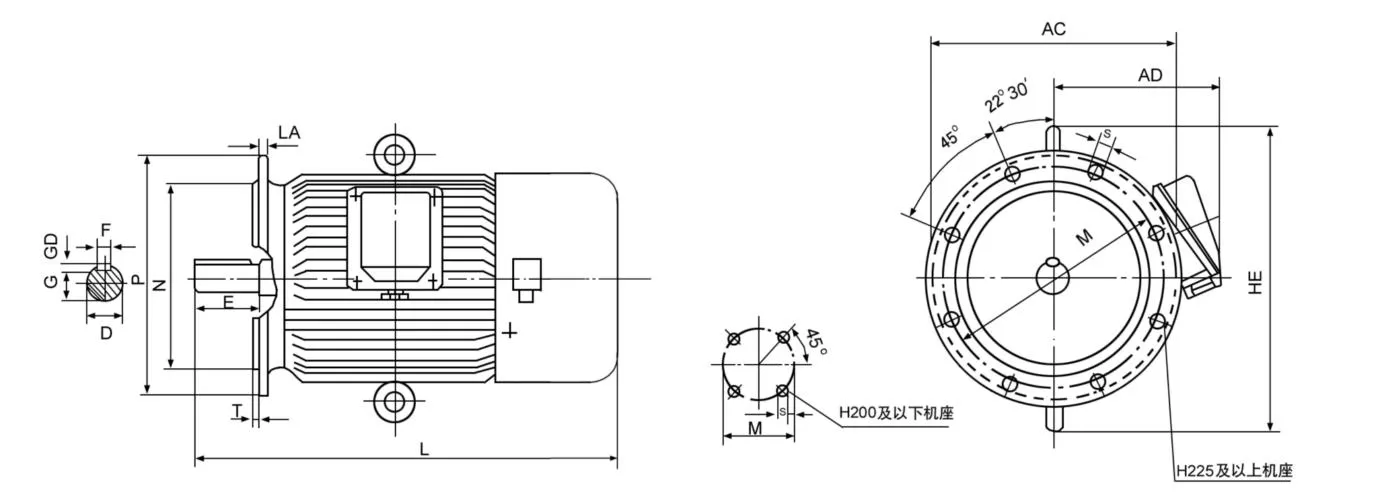

YVF2 Series Frequency Controlled Three Phase Asynchronous Motor B5 Installation Dimension

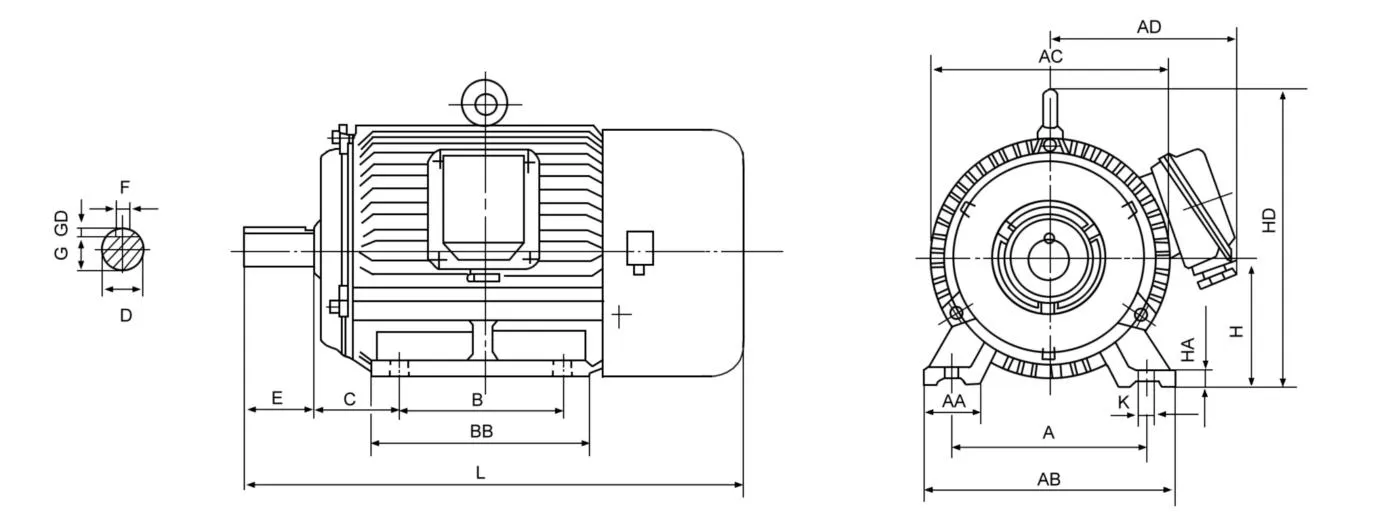

YVF2 Series Frequency Controlled Three Phase Asynchronous Motor B3 Installation Dimension

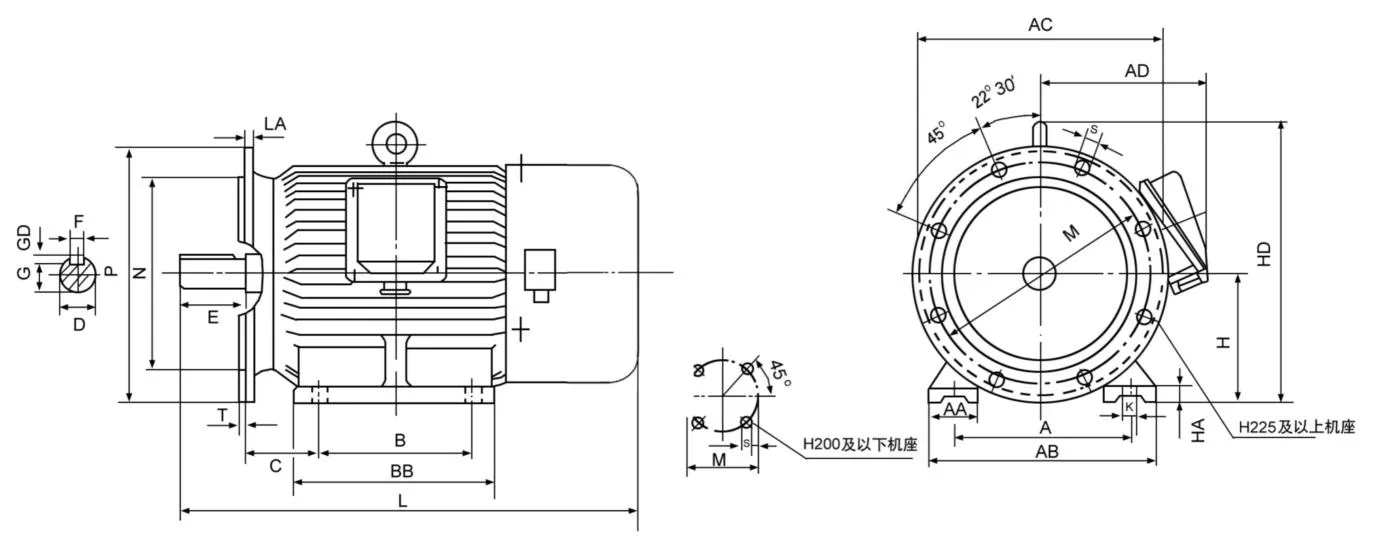

YVF2 Series Frequency Controlled Three Phase Asynchronous Motor B35 Installation Dimension

Model No.	Installation size  mm
	H	A	B	C	D		E		FXGD		G		K	T	M	N	P	R	S
					2Poles		2 Poles	4.6.8 Poles	2 Poles	4.6.8 10 Poles	2 Poles	4.6.8 10 Poles
80	80	125	100	50	19		40		6×6		15.5		10	3.5	165	130	200		4-φ12
90S	90	140		56	24		50		8×7		20							0
90L			125
100L	100	160	140	63	28						24		12	4	215	180	250		4-φ15
112M	112	190		70			60
132S	132	216		89	38		80		10×8		33				265	320	300
132M			178
160M	160	254	210	108	42		110		12×8		37		15	5	300	250	350		4-φ19
160L			254
180M	180	279	241	121	48				14×9		42.5
180L			279
200L	200	318	305	133	55				16×10		49		19		350	300	400
225S	225	356	286	149			110	140	16×10	18×11	49	53			400	350	450		8-φ19
225M			311		55	60					53
250M	250	406	349	168	60	65	140		18×11		58	58	24		500	450	550
280S	280	457	368	190	65	75			18×11	20×14		67.5
280M			419
315S	315	508	406	216		80	140	170		20×14		71	28	6	600	550	660		8-φ24
315M			457
315L			508
355M	355	610	560	254	75	95			20×12	25×14	67.5	86			740	680	800
355L			630

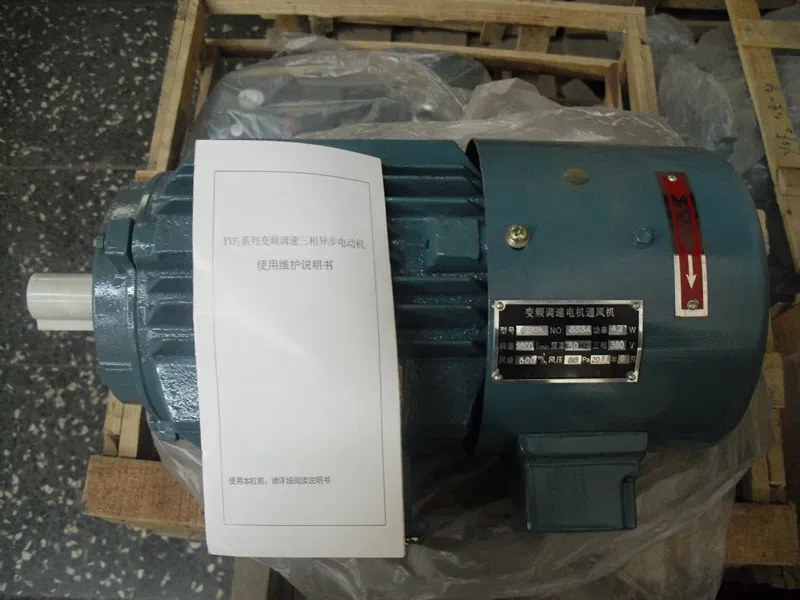

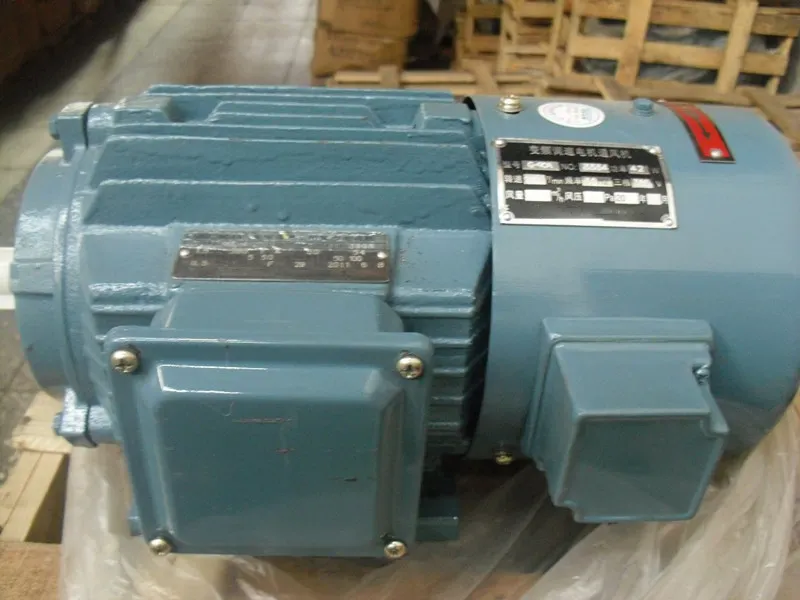

YVF2 Series Frequency Controlled Three-Phase Asynchronous Motor Features:

• YVF2 series three phase asynchronous motor is a new generation of variable frequency speed regulation motor developed to meet the needs of the market. It has the advantages of low noise, small vibration, wide speed regulation range, convenient maintenance, and reliable operation.
• This series of electric motors adopts a specially designed electromagnetic scheme and reasonable coordination of stator and rotor slots so that it can adapt to the condition of the inverter power supply. In order to make the electric motor output constant torque at low speeds and maintain a certain overload capacity at high frequencies.
• YVF2 series three phase asynchronous motors adopt a squirrel cage structure, which is reliable in operation and convenient in maintenance. The electric motor is equipped with an independent axial flow fan to ensure that the motor has a better cooling effect at different speeds.
• This series of electric motors adopts electromagnetic wires and insulating materials with excellent performance, reliable intrusion process, and detection measures so that the electric motor has strong adaptability to the overvoltage caused by the high-frequency carrier of the inverter.
• The YVF2 series frequency controlled three phase asynchronous motor is cooled by an independent fan to ensure that the temperature rise of the positive electric motor does not exceed the allowable value during long-term operation at low speed.
• The appearance of YVF2 series three phase asynchronous motors adopts a parallel heat dissipation rib structure, with a large heat dissipation area and a beautiful appearance.
• The corresponding relationship between the installation size and power of the YVF2 series three phase asynchronous motor, and the main performance indicators (4 poles) conform to the latest international standards. Except for the axial length of the excepted type, the installation size is the same as that of the Y2 series electric motors, which is convenient for selection, installation, maintenance, and exchange.
• The YVF2 series three phase asynchronous motor can be conveniently installed with a braking device, encoder, and tachometer to achieve fast braking and automatic control.

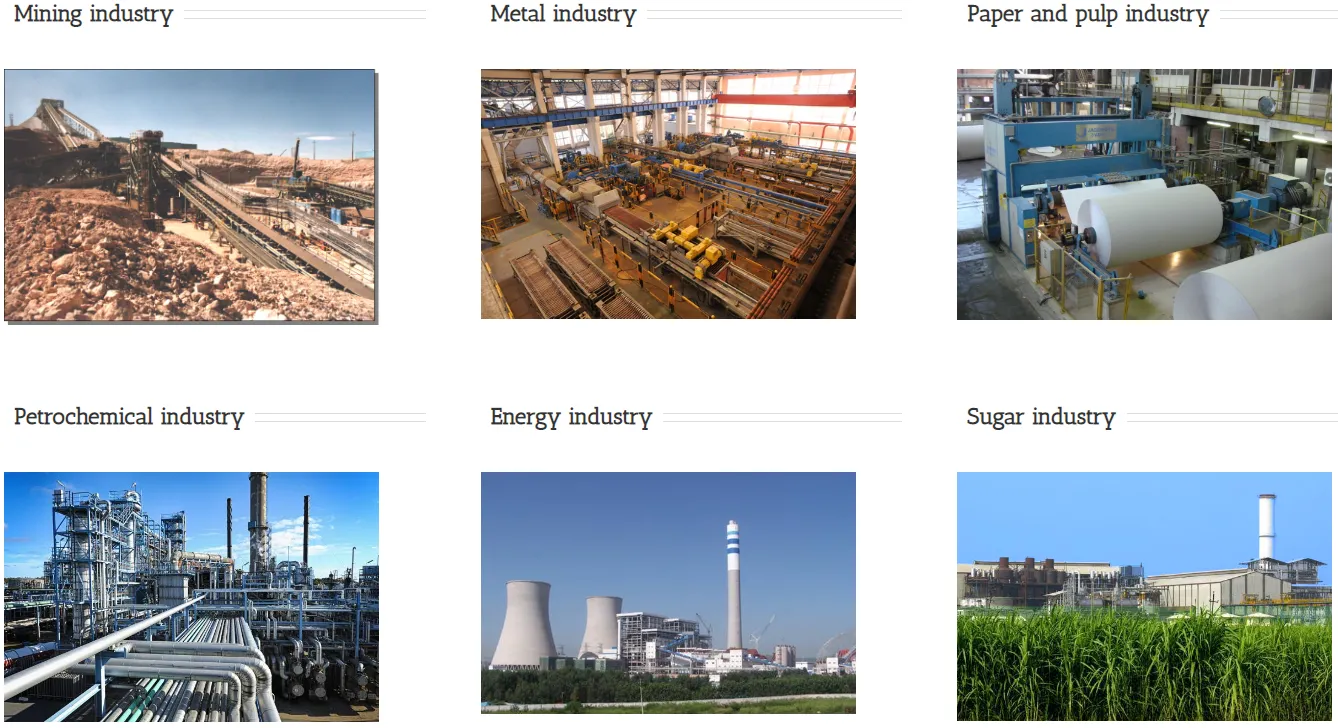

YVF2 Series Frequency Controlled Three-Phase Asynchronous Motor Application:

YVF2 (BPY) series frequency conversion speed-regulating three phase asynchronous motor can be widely used in the constant torque (5-50Hz) and constant power (50-100Hz) speed-regulating of machine tools, textile, chemical, metallurgy, industrial washing machine industries as well as the energy saving and speed-regulating of fan and water pump. It can meet the requirements of the drive field in paper making, plastic, packing, lift, crane, and other special industries.
