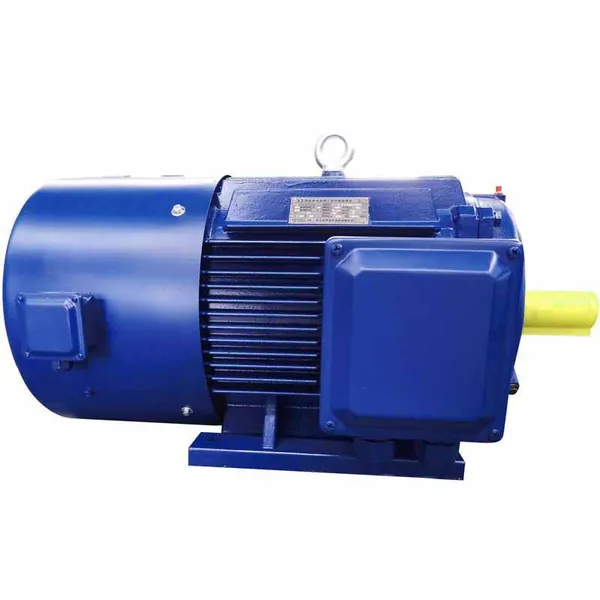

YVF3 Series Variable Frequency Three Phase Asynchronous Induction Electric Motor

YVF3 Series Variable Frequency Three Phase Asynchronous Induction Electric Motor

YVF3 series variable frequency three phase induction motor is based on the YE3 series electric motor. According to the design characteristics of variable frequency motor, appropriate insulation structure, mechanical structure, and electromagnetic scheme are made derived from adjustment. YVF3 series variable frequency electric motor adopts a high-strength cast iron structure, which has the characteristics of high reliability, wide speed regulation range, and high precision. It is equipped with an independent cooling fan to ensure that the electric motor has an excellent cooling effect at different speeds.

The main structure, performance index, appearance, installation size, etc., of this series of motors are the same as those of the YE3 series electric motor to facilitate interchangeability. As an essential product in the field of motor system energy saving, the low-voltage and high-power variable frequency speed regulation three-phase asynchronous motor has the advantages of safety, reliability, long life, and excellent performance.

YVF3 Series Variable Frequency Three Phase Induction Motor Technical Parameters:

• The rating of the motor is a continuous rating based on the continuous duty system (S1).
• The enclosure protection grade is IP55.
• The structural installation types are IM B3, IM B35, and IM V1.
• The cooling method of the motor is IC416.
• The rated frequency of the motor is 50 Hz, the frequency range of constant torque speed regulation: 5 Hz to 50 Hz, the frequency range of constant power speed regulation: 50 Hz to 60 Hz (for 2 poles), 50 Hz to 100 Hz (for 4, 6, 8 poles).
• The rated voltage is 380 V (below 560Kw), 660 V (560Kw and above), and Y connection.
• Power classes: 200 kW, 250 kW, 315 kW, 355 kW, 400 kW, 450 kW, 500 kW, 560 kW, 630 kW, 710 kW, 800 kW, 900 kW.
• The synchronous speed of the motor is 3000, 1500, 1000, and 750 rpm.

YVF3 Series Variable Frequency Three Phase Induction Motor Technical Data:

Type	Power kW	Rated Current A	Rated Torque N.m	Constant Torque Frequency Range Hz	Constant Output Frequency Range Hz
YVF3-80M1-4	0.55KW	1.6	3.8	5~50	50~100
YVF3-80M2-4	0.75KW	2	5.2
YVF3-90S-4	1.1KW	2.9	7.5
YVF3-90L-4	1.5KW	3.7	10
YVF3-100L1-4	2.2KW	5.2	14.9
YVF3-100L2-4	3KW	6.8	20
YVF3-112M-4	4KW	8.8	26.5
YVF3-132S-4	5.5KW	11.8	36.5
YVF3-132M-4	7.5KW	15.6	50
YVF3-160M-4	11KW	22.3	72
YVF3-160L-4	15KW	30.1	98
YVF3-180M-4	18.5KW	36.1	120
YVF3-180L-4	22KW	42.7	143
YVF3-200L-4	30KW	57.6	195
YVF3-225S-4	37KW	69.9	240
YVF3-225M-4	45KW	84.7	291
YVF3-250M-4	55KW	103	355	3~50
YVF3-280S-4	75KW	140	484
YVF3-280M-4	90KW	167	580
YVF3-315S-4	110KW	201	710
YVF3-315M-4	132KW	240	852
YVF3-315L1-4	160KW	288	1032
YVF3-315L2-4	200KW	359	1290

Specifications of Cooling Blower and Brake for the Motor:

Motor	Frame	80	90	100	112	132	160	180	200	225	250	280	315
Cooling Fan	Power(W)	60 (10)*	60 (25)*	60 (25)*	60 (25)*	40	40	230	230	230	230	370	500
	Voltage	Single-phase or Three-phase 220V、380V 1-PH220V or 3-PH220V、380V				Three-phase 380V 3-PH380V
Brake	Braking Torque	7.5	15	30	40	75	150	200	300	450	–	–	–
	Excitation Power	50	60	80	110	130	150	150	200	200	–	–	–
	Excitation Voltage	DC24V、AC220V、AC380V									–	–	–
Encoder	Incremental Encoder

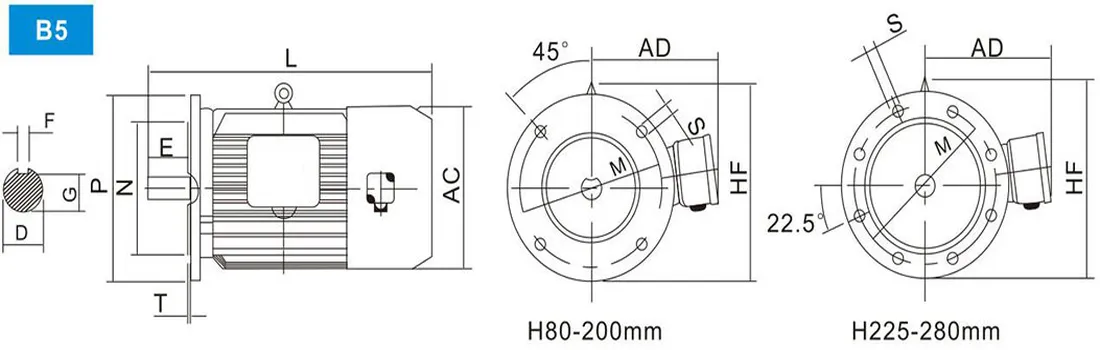

YVF3 Series Variable Frequency Three Phase Induction Motor Installation Dimension:

Frame	Mounting Dimension												Overall Dimension
	C	D	E	F	G	H	M	N	P	R	S	T	AC	AD	HF	L
80M	50	19	40	6	15.5	80	165	130	200	0	12	3.5	175	145	185	370
90S	56	24	50	8	20	90	165	130	200	0	12	3.5	195	155	195	380
90L	56	24	50	8	20	90	165	130	200	0	12	3.5	195	155	195	410
100L	63	28	60	8	24	100	215	180	250	0	15	4	215	180	245	465
112M	70	28	60	8	24	112	215	180	250	0	15	4	240	190	265	480
132S	89	38	80	10	33	132	265	230	300	0	15	4	275	210	315	530
132M	89	38	80	10	33	132	265	230	300	0	15	4	275	210	315	570
160M	108	42	110	12	37	160	300	250	350	0	19	5	330	255	385	660
160L	108	42	110	12	37	160	300	250	350	0	19	5	330	255	385	715
180M	121	48	110	14	42.5	180	300	250	350	0	19	5	380	280	430	775
180L	121	48	110	14	42.5	180	300	250	350	0	19	5	380	280	430	815
200L	133	55	110	16	49	200	350	300	400	0	19	5	420	305	480	850
225S	149	60	140	18	53	225	400	350	450	0	19	5	470	335	535	885
225M	149	60	140	18	53	225	400	350	450	0	19	5	470	335	535	915
250M	168	65	140	18	58	250	500	450	550	0	19	5	510	370	595	980
280S	190	75	140	20	67.5	280	500	450	550	0	19	5	580	410	650	1085
280M	190	75	140	20	67.5	280	500	450	550	0	19	5	580	410	650	1135

Frame	Mounting Dimension															Overall Dimension
	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	AB	AC	AD	HD	L
80M	125	100	50	19	40	6	15.5	80	165	130	200	0	12	3.5	10	165	175	145	220	370
90S	140	100	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	380
90L	140	125	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	250	410
100L	160	140	63	28	60	8	24	100	215	180	250	0	15	4	12	205	215	180	270	465
112M	190	140	70	28	60	8	24	112	215	180	250	0	15	4	12	230	240	190	300	480
132S	216	140	89	38	80	10	33	132	365	230	300	0	15	4	12	270	275	210	345	530
132M	216	178	89	38	80	10	33	132	365	230	300	0	15	4	12	270	275	210	345	570
160M	254	210	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	660
160L	254	254	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	715
180M	279	241	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	775
180L	279	279	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	815
200L	318	305	133	55	110	16	49	200	350	300	400	0	19	5	19	395	420	305	505	850
225S	356	286	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	885
225M	356	311	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	915
250M	406	349	168	65	140	18	58	250	500	450	550	0	19	5	24	490	510	370	615	980
280S	457	368	190	75	140	20	67.5	280	500	450	550	0	19	5	24	550	580	410	680	1085
280M	457	419	190	75	140	20	67.5	280	500	450	550	0	19	5	24	550	580	410	680	1135
315S	508	406	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	1285
315M	508	457	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	1395
315L	508	508	216	80	170	22	71	315	600	550	660	0	24	6	28	635	645	530	845	1395

YVF3 Series Variable Frequency Three Phase Induction Motor Mounting Arrangements:

Conventional mounting types and suitable frame sizes are given in the following table

Frame

Basic Type

Derived Type

B3

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

80~160

√

√

√

√

√

√

√

√

√

√

√

√

180~280

√

√

√

√

-

-

-

-

-

-

-

-

315

√

-

√

-

-

-

-

-

-

-

-

-

Note "√" indicates the structure type that can be manufactured

YVF3 Series Variable Frequency Three Phase Induction Motor Model Description:

What is the meaning of the YVF three phase induction motor model series? for example:

YVF3-450L1-8

• “Y” stands for Y series squirrel cage induction motor;
• “VF” is actually a variable frequency speed regulation mode that can be used in V/F constant control mode
• “3” is the feature code
• “450” is the frame size
• “L1” is the core length code
• “8” is the motor poles

YVF3 Series Variable Frequency Three Phase Induction Motor Advantages:

YVF3 variable frequency electric motor can change the speed according to the load adjustment frequency. In low-voltage places, the frequency of the YVF3 series three phase induction motors can be reduced, so that the motor can start reliably. In light load places, the YVF3 variable frequency motor can be used to reduce the frequency, reduce the speed and current, and save energy. YVF3 variable frequency electric motor can change the frequency of the motor according to the work requirements to meet the required speed requirements. Of course, some working conditions also need to add a forced cooling fan to ensure the cooling of the motor at low frequency and low speed for a long time, and to prevent the motor from burning out due to excessive temperature rise.

1. YVF3 variable frequency electric motor can be continuously variable speed.

Infinite speed adjustment is from stop to maximum speed, or from maximum speed to stop, without gears, it gradually becomes faster or slower. In addition, the full DC variable frequency motor can control the motor speed and actual demand by dividing the motor speed gear into multiple gears through the inverter. However, the maximum number of gears for AC brushed motors is only 3. Wind speed adjustment cannot achieve the effect of frequency conversion.

2. YVF3 variable frequency electric motor has a long service life.

When the motor is running, the carrier frequency is about several thousand to ten thousand Hz, which makes the stator winding of the motor withstand a high rate of voltage rise, which is equivalent to the steep impulse voltage applied by the motor, which makes the motor's turn insulation Withstand a more severe test. However, the YVF3 variable frequency electric motor can work under rectified and filtered voltage, with more stable performance and longer service life.

3. YVF3 variable frequency electric motor saves more energy.

All household appliances produce harmonic voltage and current to varying degrees during the operation of the motor, so that the motor runs under non-sinusoidal voltage and current. High-order harmonics will lead to an increase in rotor copper loss, iron loss, and additional motor stator loss, the most significant of which is the team copper loss. Because the ordinary AC motor rotates at a synchronous speed close to the fundamental frequency, the high-order harmonic voltage will cut off the rotor bar with a large slip rate, resulting in large rotor loss. In addition, the extra copper consumption caused by the skin effect should also be considered. These losses apply to the additional heating of the motor, thereby reducing efficiency and output power. However, if the YVF3 variable frequency motor is used, its energy consumption can be reduced by about 20%-30%.

YVF3 Series Variable Frequency Three Phase Motor Applications:

YVF3 series low-voltage high-power variable frequency three phase induction motors are general-purpose cage-type three-phase asynchronous motors, which can be used for general variable frequency speed regulation power machinery, and are widely used in metallurgy, water supply, oil fields, ports, mines, etc.
