Gear rack for construction is a crucial component used in the construction industry for precise linear motion and positioning. It consists of a long, straight metal bar with specially designed teeth. This rack is paired with a compatible gear or pinion to convert rotational motion into linear movement.

The gear rack is commonly used in various construction applications such as heavy machinery, tower cranes, construction elevators, sliding gates, and formwork systems. It offers high load-carrying capacity, ensuring reliable power transmission and control. With its durable construction and precise tooth profile, it enables accurate positioning and smooth operation even in demanding environments.

Gear racks for construction are known for their durability, low noise levels, and resistance to wear and tear. They play a vital role in enhancing the efficiency, safety, and productivity of construction projects by providing reliable and precise linear motion.

Gear Rack for Construction is a rack and pinion transmission device used in the construction industry to achieve linear motion and precise positioning.

It is made of high-quality materials with durability and reliability.

Gear Rack for Construction can be applied to various construction machinery and equipment, providing precise power transmission and position control.

Gear rack for construction Gear Rack For construction5

Features and advantages:

High load carrying capacity

Gear Rack for Construction can withstand heavy loads and provide reliable power transmission.

Accurate position control

It enables building equipment to achieve precise linear motion and positioning.

Durability

The Gear Rack for Construction is made of durable materials and can be used for a long time in harsh environments.

Low noise

It is designed to generate lower noise levels, reducing the impact of noise on the working environment and operators.

Application scenario

Gear rack for construction construction company icon 7 yellow

Tower crane

commonly found in construction sites, warehouses, and industrial facilities, providing smooth sliding movements.

Gear rack for construction construction company icon 1 yellow
Construction machinery

It is widely used in various heavy-duty construction machinery, such as excavators, cranes, and loaders.

Gear rack for construction construction company icon 5 yellow

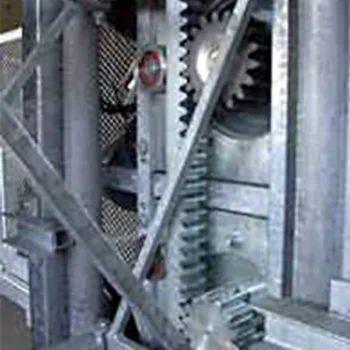

Construction elevator

used for vertical transportation of personnel and materials on construction sites.

Gear rack for construction construction company icon 4 yellow
Scaffold Systems

By engaging with a pinion gear, they allow workers to raise or lower the scaffolding to the desired height, providing a safe and stable working platform during construction or maintenance activities.

Gear rack for construction Gear Rack for Construction
Gear rack for construction Gear Rack for Construction2
Gear rack for construction Gear Rack for Construction3 2

How Does Gear Rack For Construction Work

Gear racks for construction work by converting rotational motion into linear motion. Here’s a step-by-step explanation of how they function:

1. Gear Rack: The gear rack is a long, straight metal bar with specially designed teeth along its length. These teeth are typically straight and parallel to each other.

2. Pinion Gear: The gear rack is paired with a pinion gear, which is a small gear with meshing teeth. The pinion gear is usually connected to a motor or another power source that provides rotational motion.

3. Meshing of Teeth: The teeth of the pinion gear mesh with the teeth of the gear rack. As the pinion gear rotates, it engages with the gear rack.

4. Conversion of Motion: As the pinion gear rotates, the meshing teeth cause the gear rack to move linearly. The direction and distance of the linear motion depend on the rotation direction and speed of the pinion gear.

5. Precise Positioning: The tooth design of the gear rack ensures smooth and precise linear motion. The teeth engage with the pinion gear, providing accurate positioning and control over the movement.

6. Load Carrying: Gear racks for construction are designed to handle heavy loads. The robust construction and tooth profile allow them to transmit power effectively and withstand the forces associated with construction applications.

By utilizing the meshing of the teeth between the gear rack and the pinion gear, gear racks for construction enable the conversion of rotational motion into linear motion, providing precise positioning and control in various construction applications.

Installation Guidelines

The steps for installing Gear Rack for Construction can be summarized as follows:
Required tools:
1. Screwdriver or wrench
2. Measuring tools (such as rulers or measuring tapes)
3. Drilling machine or screwdriver accessories
4. Screws and nuts
Installation points:
1. Measurement and marking position: Use measuring tools to mark the starting and ending points of the rack on the installation position as needed. Ensure that the markings are accurate and perpendicular to the desired linear motion direction.
2. Prepare support structure: According to the marked position, pre install support brackets or plates on the required support structure to fix the rack in the correct position. Ensure that the supporting structure is sturdy and reliable.
3. Rack cutting: Use appropriate tools (such as saws or cutting tools) to cut the rack to the desired size according to the required length. Ensure smooth cutting and complete tooth profile.
4. Fixed rack: Use screws and nuts to install the rack on the support structure. Ensure that the screws are securely fastened, keeping the rack in a vertical and horizontal position.
5. Testing and adjustment: After installation is completed, manually operate the gears or use a motor for testing to ensure that the meshing between the rack and gear is normal, linear motion is smooth, and the position is accurate.
Please note that the specific installation steps and points may vary depending on different racks and installation situations. Before installing, please refer to the relevant installation guidelines and manufacturer’s instructions to ensure proper and safe installation of the Gear Rack for Construction.

Gear rack for construction Gear Rack for Construction1

Maintenance Guidelines

1. Regular cleaning: Regularly clean the rack to remove dust, grease, and other debris. You can use a soft brush or a clean cloth to clean the surface of the rack.
2. Lubrication: Ensure that the meshing between the rack and gear maintains good lubrication. Use appropriate lubricants, such as lubricating oil or grease, and lubricate according to the manufacturer’s recommendations.
3. Check and tighten screws: Regularly check the tightness of the rack fixing screws and nuts. If loose screws are found, tighten them in a timely manner to ensure the stability and normal operation of the rack.
4. Check tooth profile wear: Regularly check the tooth profile wear of the rack. If obvious wear or damage is found, the rack should be replaced in a timely manner to ensure accuracy and reliability of operation.
5. Regular check of operation status: Regularly check the operation status of the rack and gear to ensure smooth operation without any abnormal noise or jamming. If there are any abnormal situations, adjustments or repairs should be made in a timely manner.
6. Prevent the entry of pollutants: Ensure that the environment around the rack is clean, and take measures to prevent dust, particles, and other pollutants from entering the rack system to avoid damage and abnormal wear.
7. Follow manufacturer’s recommendations: Follow the maintenance guidelines and recommendations provided by the manufacturer, and perform regular maintenance and upkeep according to their prescribed maintenance schedule.

Gear rack for construction Gear Rack for Construction4

Other products

FAQ

1. What is the recommended material for Gear Rack for Construction?
A: The most commonly used material for Gear Rack in construction applications is steel due to its strength, durability, and resistance to wear.

2. How do I determine the appropriate length of Gear Rack for my construction project?
A: Measure the distance over which the linear motion is required and choose a Gear Rack that matches or slightly exceeds that length. It’s advisable to consult the manufacturer’s guidelines for specific recommendations.

3. How often should I lubricate the Gear Rack for Construction?
A: Regular lubrication is essential to maintain optimal performance. It is recommended to lubricate the Gear Rack periodically, following the manufacturer’s instructions, typically every three to six months.

4. What should I do if I notice excessive wear or damage to the Gear Rack?
A: If you observe significant wear or damage on the Gear Rack, it is advisable to replace it promptly to ensure accurate and reliable operation. Contact the manufacturer or supplier for a suitable replacement.

5. Can Gear Rack for Construction be used in outdoor environments?
A: Yes, Gear Rack for Construction can be used in outdoor environments. However, it is important to choose a material with suitable corrosion resistance, such as stainless steel or galvanized steel, and regularly inspect and maintain the Gear Rack to protect it from environmental factors.
